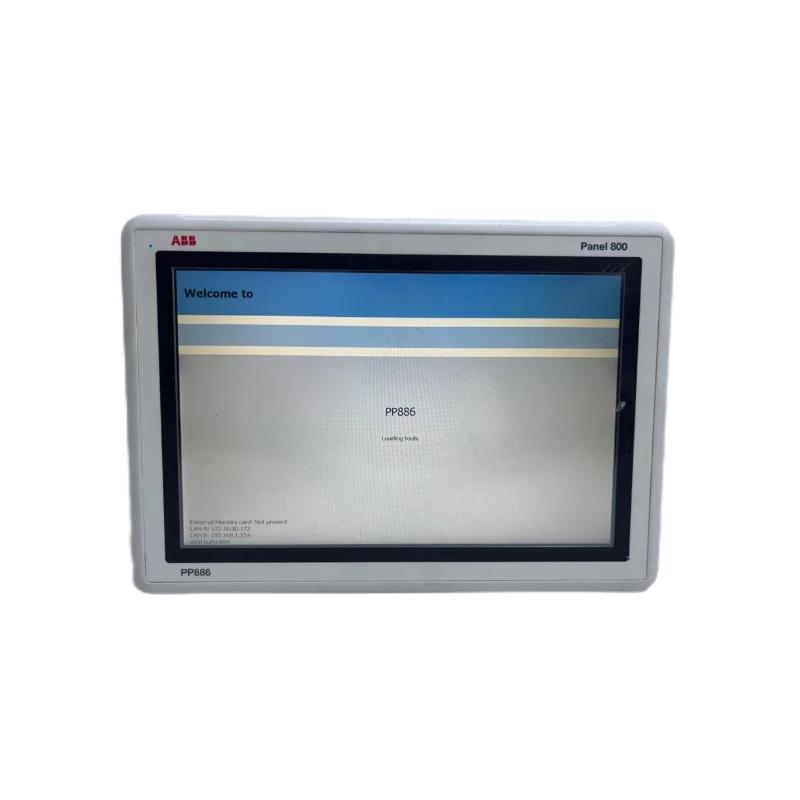

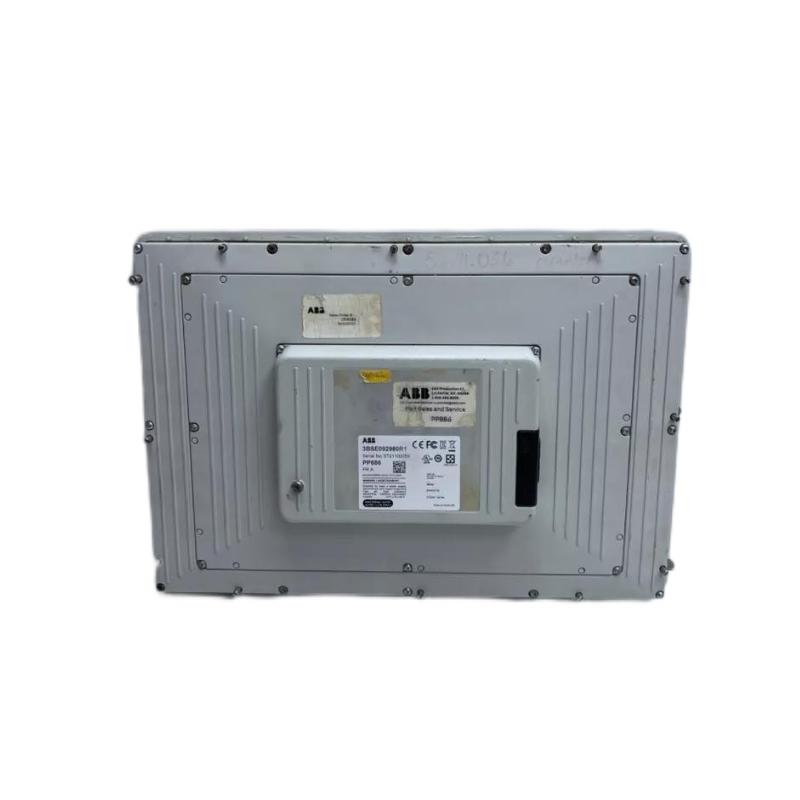

- Standard Panel 15 Panel 800 Touch Screen HIM
- Sweden
- 410 × 286 × 61 mm
- 3.85kg
- 3BSE092980R1
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 9
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
ABB PP886 3BSE092980R1 – Complete Technical Overview and Product Guide
1. Product Basic Information
Product Model: ABB PP886
Part Number: 3BSE092980R1
Brand: ABB
Series: Panel 800
Product Type: Industrial Human-Machine Interface (HMI)
Category: Touchscreen Operator Panel
2. Product Introduction
The ABB PP886 3BSE092980R1 is a high-performance industrial Human-Machine Interface (HMI) designed for advanced automation systems. It belongs to the Panel 800 series, which is widely used in industrial process control and factory automation environments.
This operator panel provides a widescreen high-resolution display that allows operators to monitor, control, and visualize industrial processes in real time. The PP886 combines reliable hardware, durable construction, and flexible communication interfaces, making it suitable for demanding industrial conditions.
The unit is engineered for continuous operation in environments where stability, visibility, and connectivity are critical. It supports integration with PLCs, DCS systems, and other automation controllers.
3. Technical Specifications
Electrical & Hardware Parameters
| Parameter | Specification |
|---|---|
| Model | PP886 |
| Part Number | 3BSE092980R1 |
| Series | Panel 800 |
| Display Size | 15.4 inch Widescreen |
| Resolution | 1280 × 800 pixels |
| Display Type | TFT LCD |
| Touch Type | Resistive Touchscreen |
| Processor | ARM Cortex Processor |
| Memory (RAM) | 1 GB |
| Flash Storage | 2 GB |
| Power Supply | 24 V DC |
| Input Voltage Range | 18–32 V DC |
| Power Consumption | Approx. 30 W |
| Ethernet Ports | 2 × RJ45 |
| USB Ports | 2 × USB 2.0 |
| Serial Ports | RS232 / RS422 / RS485 |
| Protection Rating (Front) | IP65 |
| Protection Rating (Rear) | IP20 |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Mounting Type | Panel Mount |
| Dimensions (W × H × D) | 410 × 286 × 61 mm |
| Weight (kg) | 3.85 kg |
4. Product Applications
The PP886 is widely used in industrial sectors that require advanced visualization and reliable control interface solutions.
Typical applications include:
• Manufacturing production lines
• Power generation systems
• Oil & gas processing plants
• Chemical processing industries
• Water and wastewater treatment plants
• Mining automation systems
• Food and beverage production lines
• Marine automation systems
It is commonly integrated into distributed control systems and PLC-based automation networks.
5. Product Advantages
1. High-Resolution Industrial Display
The 15.4-inch widescreen display provides clear graphics, trend curves, alarms, and process data visualization.
2. Industrial-Grade Durability
Front panel IP65 protection ensures resistance to dust and water spray, suitable for harsh environments.
3. Wide Communication Compatibility
Supports Ethernet, USB, and serial communication for flexible system integration.
4. Stable 24V DC Operation
Designed for industrial power standards, ensuring reliable and safe operation.
5. Extended Temperature Range
Operates reliably in environments from -10°C to +60°C.
6. Flexible Mounting
Panel-mount design simplifies installation in control cabinets.
7. Long Service Life
Industrial components ensure durability under continuous operation conditions.
6. Recommended Models from the Same Series (Panel 800)
Below are five related models from the Panel 800 HMI series.
| Model | Display Size | Resolution | Power Supply | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| PP881 | 7 inch | 800×480 | 24V DC | 202×154×50 | 1.5 kg |
| PP883 | 10.4 inch | 800×600 | 24V DC | 302×228×55 | 2.6 kg |
| PP885 | 12.1 inch | 1024×768 | 24V DC | 329×251×57 | 3.2 kg |
| PP886 | 15.4 inch | 1280×800 | 24V DC | 410×286×61 | 3.85 kg |
| PP895 | 19 inch | 1280×1024 | 24V DC | 465×352×70 | 5.5 kg |
7. Five Popular Models from the Same Brand
Below are widely used automation products from ABB.
| Model | Product Type | Main Function | Power Supply | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| AC800M | PLC Controller | Process Automation Controller | 24V DC | 140×180×120 | 1.2 kg |
| PM866K01 | CPU Module | Controller Processor Module | 24V DC | 120×150×90 | 0.9 kg |
| CI854A | Communication Module | PROFIBUS Interface | 24V DC | 120×150×90 | 0.7 kg |
| AI810 | Analog Input Module | 8-channel AI | 24V DC | 120×150×80 | 0.6 kg |
| DI810 | Digital Input Module | 16-channel DI | 24V DC | 120×150×80 | 0.6 kg |
8. FAQ – ABB PP886 3BSE092980R1
Q1: What is the main function of the PP886?
A: It is an industrial HMI panel used for monitoring and controlling automation systems.
Q2: What size is the display?
A: The panel features a 15.4-inch widescreen TFT display.
Q3: What power supply does it require?
A: It operates on standard 24V DC industrial power.
Q4: Is the front panel protected against dust and water?
A: Yes, it has IP65 protection on the front side.
Q5: Can it communicate via Ethernet?
A: Yes, it includes dual Ethernet ports.
Q6: What industries commonly use this model?
A: Manufacturing, power plants, oil & gas, and water treatment industries.
Q7: What is the operating temperature range?
A: -10°C to +60°C.
Q8: How heavy is the device?
A: Approximately 3.85 kg.
Q9: Is it suitable for cabinet mounting?
A: Yes, it is designed for panel/cabinet mounting.
Q10: Does it support serial communication?
A: Yes, it supports RS232, RS422, and RS485.
