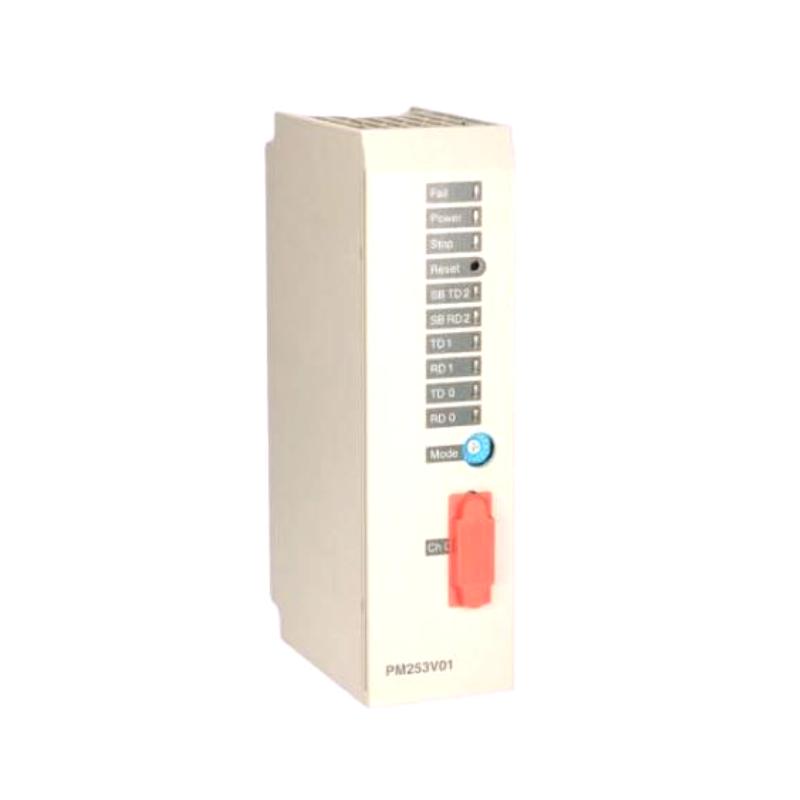

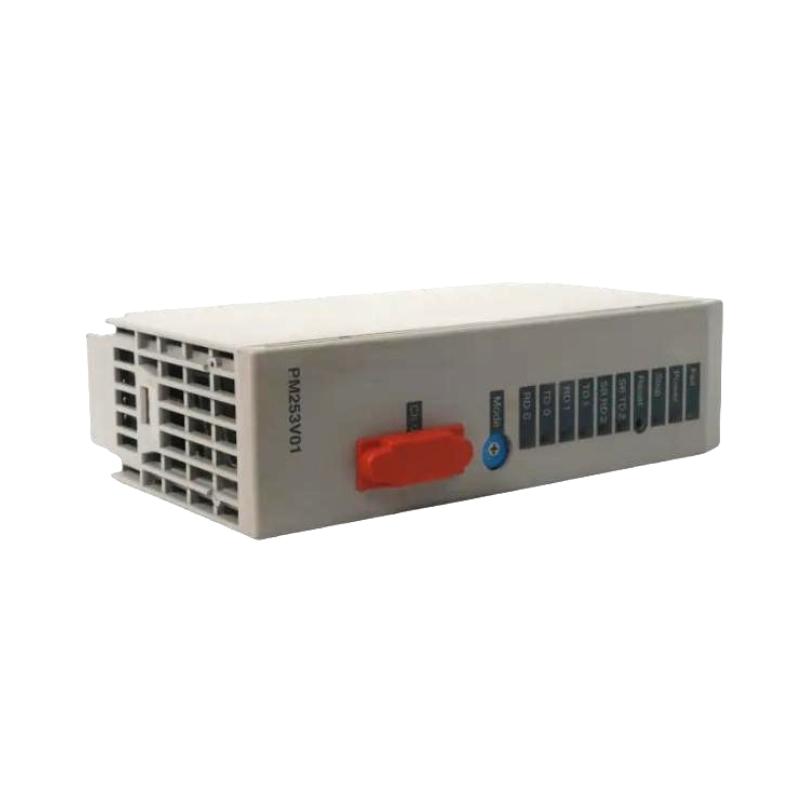

Product Profile: ABB PM253V01
Product Code: 492943601 / 492-943-601
Product Overview
The ABB PM253V01 is a versatile digital multifunctional power and energy meter designed for industrial, commercial, and utility-scale applications. This meter provides precise real-time measurements of voltage, current, active/reactive power, energy consumption, frequency, power factor, and harmonics.
PM253V01 is optimized for integration with SCADA systems, PLCs, and building energy management systems. Its compact design, robust housing, and advanced monitoring capabilities make it ideal for operators seeking enhanced energy efficiency, predictive maintenance, and detailed electrical system analysis. The meter supports data logging, event recording, and trend analysis to optimize electrical network performance.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | PM253V01 |
| Brand | ABB |
| Series | PM250 Series |
| Product Code | 492943601 / 492-943-601 |
| Function | Multifunction power and energy meter |
| Measurement Type | Voltage, Current, Active/Reactive Power, Energy, Frequency, Power Factor, Harmonics |
| Input Voltage | 100–480 V AC |
| Dimensions (mm) | 144 x 72 x 90 |
| Weight (kg) | 0.56 |
| Operating Temperature (°C) | -10 ~ +60 |
| Mounting Type | DIN rail / Panel mount |
| Output Signal | Digital pulse output, optional communication modules |
| Applications | Industrial energy monitoring, SCADA integration, power quality analysis, automation |
| Material | High-strength polymer and metal housing |
| Compliance | CE, IEC, UL standards |
Product Applications
-
Real-time monitoring of voltage, current, active/reactive power, energy, frequency, and power factor
-
Power quality assessment and harmonic analysis in industrial and commercial networks
-
Integration into SCADA, building management, and automation systems
-
Monitoring of electrical panels, switchgear, and distribution networks
-
Data logging for energy management, cost allocation, and performance optimization
-
Predictive maintenance of electrical equipment and load management
Product Advantages
-
Multifunction measurement including harmonics for comprehensive energy monitoring
-
Compact design suitable for DIN rail or panel mounting
-
Wide input voltage range (100–480 V AC) for versatile applications
-
Robust construction ensures long-term reliability in industrial environments
-
Supports digital pulse output and optional communication modules for SCADA integration
-
Enables energy efficiency optimization and predictive maintenance
-
Reduces operational costs through detailed monitoring and analysis
-
Complies with CE, IEC, and UL standards for safety, reliability, and industrial performance
Related Models in the Same Series (PM250 Series)
| Model | Function / Type | Dimensions (mm) | Weight (kg) | Input Voltage (V) |
|---|---|---|---|---|
| PM253V02 | Digital multifunction meter | 144 x 72 x 90 | 0.56 | 100–480 AC |
| PM253V03 | Advanced power & energy meter | 144 x 72 x 90 | 0.57 | 100–480 AC |
| PM253V04 | Power and harmonic monitoring | 144 x 72 x 95 | 0.58 | 100–480 AC |
| PM253V01 | Multifunction power and energy meter | 144 x 72 x 90 | 0.56 | 100–480 AC |
| PM253V05 | High-precision energy meter | 144 x 72 x 95 | 0.59 | 100–480 AC |
Popular Models from the Same Brand (ABB)
| Model | Function / Type | Dimensions (mm) | Weight (kg) | Application Area |
|---|---|---|---|---|
| S203-C16 | Circuit breaker | 81 x 18 x 70 | 0.09 | Electrical protection |
| S804 | Industrial switchgear | 250 x 120 x 110 | 3.5 | Power distribution |
| AF09-30-10 | Contactor / Relay | 95 x 60 x 75 | 0.5 | Motor control |
| OT100F3 | Overload protection | 180 x 90 x 80 | 1.2 | Industrial circuits |
| TMAX XT4 | Circuit breaker | 230 x 110 x 100 | 2.8 | Medium voltage systems |
Frequently Asked Questions (FAQ)
QA1: What is the main function of PM253V01?
It provides accurate real-time measurement of voltage, current, power, energy, frequency, power factor, and harmonics.
QA2: What voltage range does it support?
PM253V01 supports 100–480 V AC.
QA3: Can this meter be mounted on a DIN rail?
Yes, it supports both DIN rail and panel mounting.
QA4: What parameters can the PM253V01 measure?
Voltage, current, active/reactive power, energy, frequency, power factor, and harmonics.
QA5: What are the physical dimensions?
The dimensions are 144 x 72 x 90 mm.
QA6: What is the weight of the PM253V01?
It weighs approximately 0.56 kg.
QA7: Does it have communication options?
Yes, it supports digital pulse output and optional communication modules for integration.
QA8: What is the operating temperature range?
It operates from -10°C to +60°C.
QA9: Where is this device typically used?
In industrial and commercial energy monitoring, SCADA integration, power quality analysis, and automation systems.
QA10: Is the PM253V01 compliant with any standards?
Yes, it complies with CE, IEC, and UL standards for safety, reliability, and industrial performance.
