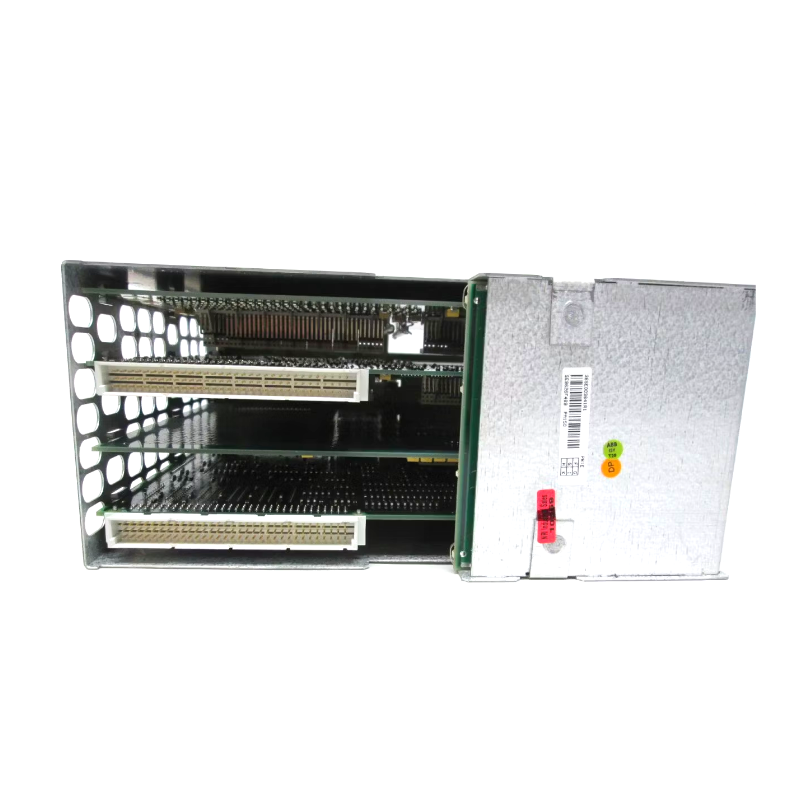

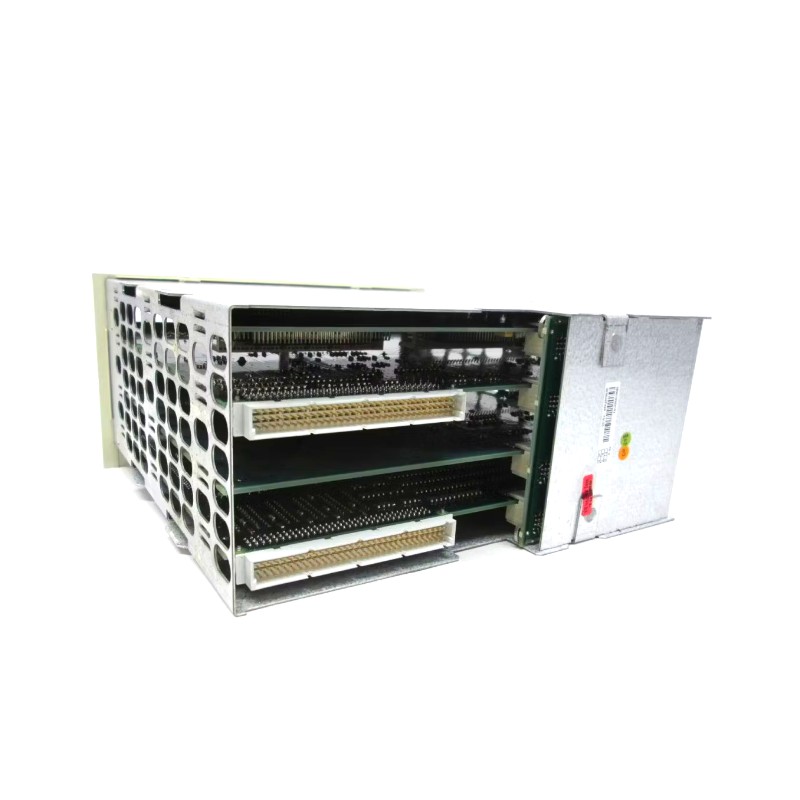

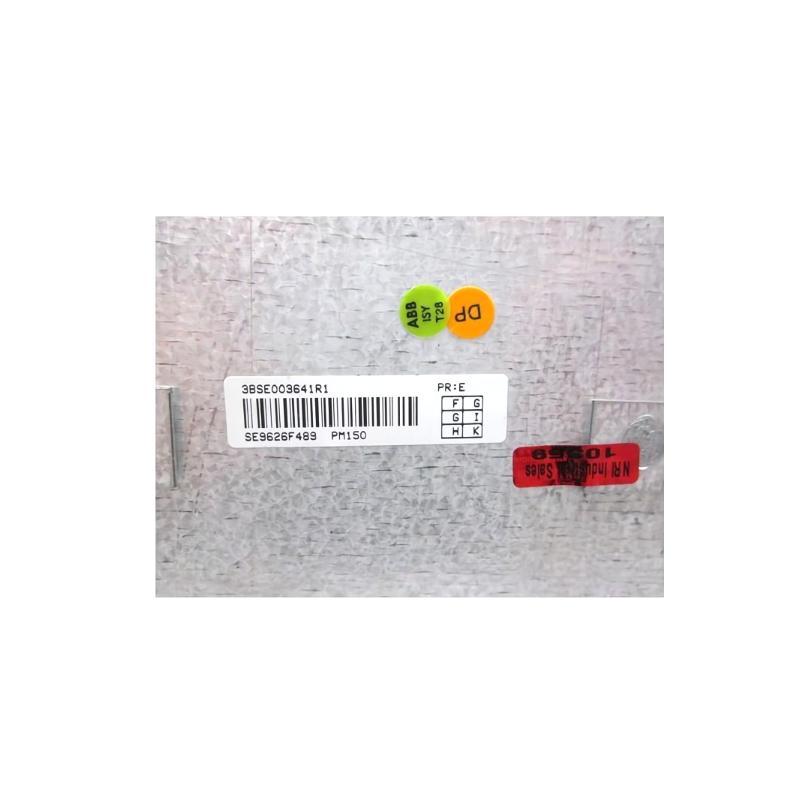

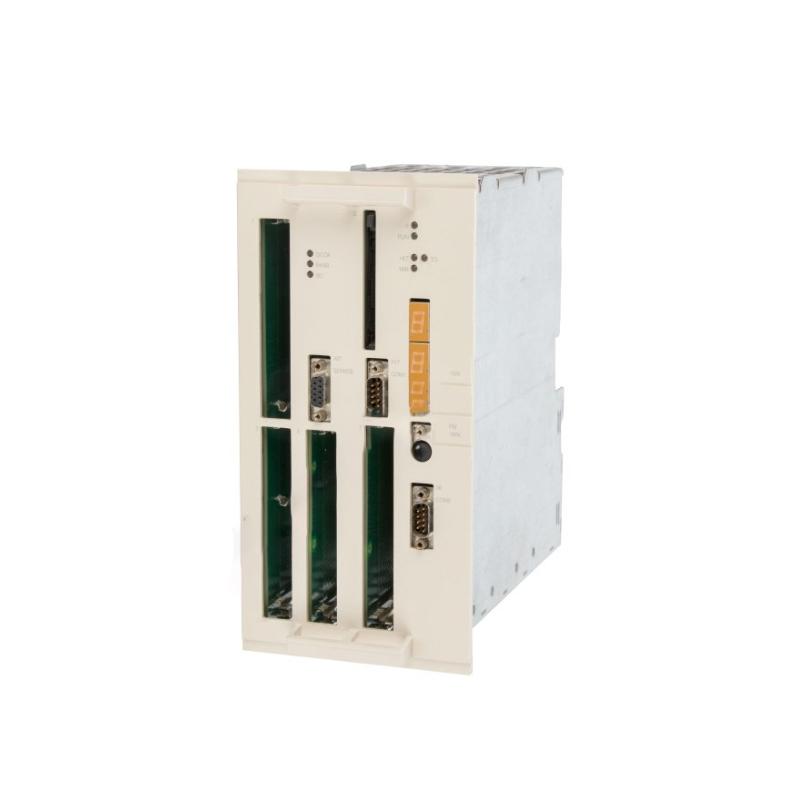

ABB PM150 Product Overview
Product Introduction
The ABB PM150 (part number 3BSE003641R1) is a high-performance power module designed for use in industrial applications that require precise control and monitoring of electrical power systems. This module is a part of ABB’s Power Module series, offering reliable solutions for controlling power flows and managing energy in a variety of industrial environments. The PM150 provides advanced features such as fault detection, real-time monitoring, and intelligent diagnostics, ensuring that power systems remain stable and efficient.
The PM150 is highly versatile and supports a range of industrial protocols, making it easy to integrate into existing power distribution and control systems. It is designed to be robust and durable, capable of withstanding harsh operating conditions while delivering consistent performance. This power module is particularly useful in critical applications where power management, safety, and system uptime are top priorities.
Product Parameters
Here is a detailed breakdown of the ABB PM150’s parameters:
| Parameter |
Details |
| Model Number |
PM150 |
| Part Number |
3BSE003641R1 |
| Voltage |
24 VDC |
| Current |
500 mA |
| Power Consumption |
12 W |
| Communication Type |
Industrial Communication |
| Environmental Conditions |
-20°C to +60°C |
| Dimensions (W x H x D) |
130 mm x 95 mm x 60 mm |
| Weight |
0.8 kg |
| Mounting Type |
DIN Rail |
| Protection Class |
IP20 |
| Operating Temperature |
-20°C to +60°C |
| Storage Temperature |
-40°C to +85°C |
Product Applications
The ABB PM150 is designed for a wide range of applications, including but not limited to:
-
Industrial Power Distribution: The PM150 is commonly used in power distribution systems, helping to manage the flow of electricity, monitor load levels, and detect faults.
-
Energy Management Systems: It can be integrated into energy management systems to optimize energy use, reduce waste, and increase the efficiency of industrial operations.
-
Building Automation: In large commercial or industrial buildings, the PM150 plays a key role in managing power for HVAC systems, lighting, and other critical systems.
-
Process Control: The module ensures reliable power management in manufacturing environments, where power stability is essential to maintain continuous operations.
-
Renewable Energy Systems: The PM150 is also used in renewable energy installations, such as solar or wind power, to ensure stable and efficient power distribution.
Product Advantages
-
Efficient Power Management: The PM150 module is designed to provide efficient management of electrical power systems, ensuring that power is distributed effectively and faults are detected quickly.
-
High-Performance Monitoring: It provides real-time monitoring of power systems, allowing operators to detect issues before they cause system downtime or failure.
-
Compact and Robust Design: With a compact size (130 mm x 95 mm x 60 mm) and lightweight (0.8 kg), the PM150 is easy to install in control panels while being durable enough to withstand harsh industrial conditions.
-
Flexible Integration: The PM150 supports multiple industrial communication protocols, making it easy to integrate into existing systems without the need for significant changes.
-
Energy Efficiency: The module consumes only 12 W of power, making it an energy-efficient solution for industrial applications.
-
Protection Class IP20: The PM150 is protected against solid objects larger than 12 mm, making it suitable for environments where there is minimal exposure to dust or debris.
Brand & Series
Recommended Models from the Same Series
Below are five other models from the ABB Power Module series that offer similar functionality and are suitable for different industrial power management applications:
| Model Number |
Voltage |
Current |
Dimensions (W x H x D) |
Weight (kg) |
Protection Class |
| PM120 |
24 VDC |
400 mA |
120 mm x 85 mm x 55 mm |
0.7 |
IP20 |
| PM130 |
24 VDC |
550 mA |
130 mm x 100 mm x 60 mm |
0.9 |
IP20 |
| PM140 |
24 VDC |
600 mA |
140 mm x 105 mm x 65 mm |
1.0 |
IP20 |
| PM160 |
24 VDC |
700 mA |
140 mm x 110 mm x 70 mm |
1.1 |
IP20 |
| PM170 |
24 VDC |
750 mA |
150 mm x 115 mm x 75 mm |
1.2 |
IP20 |
