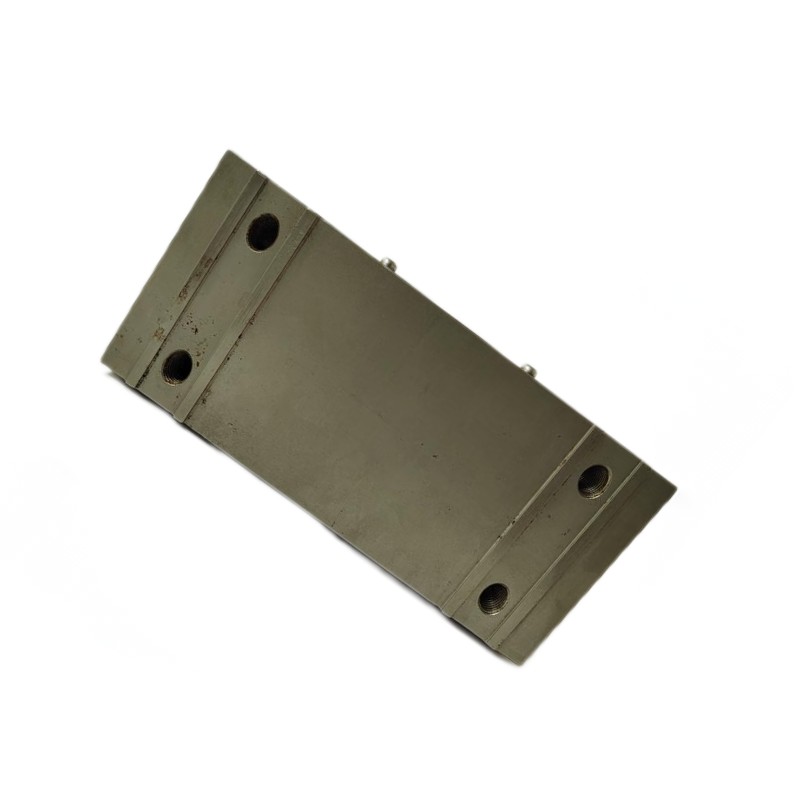

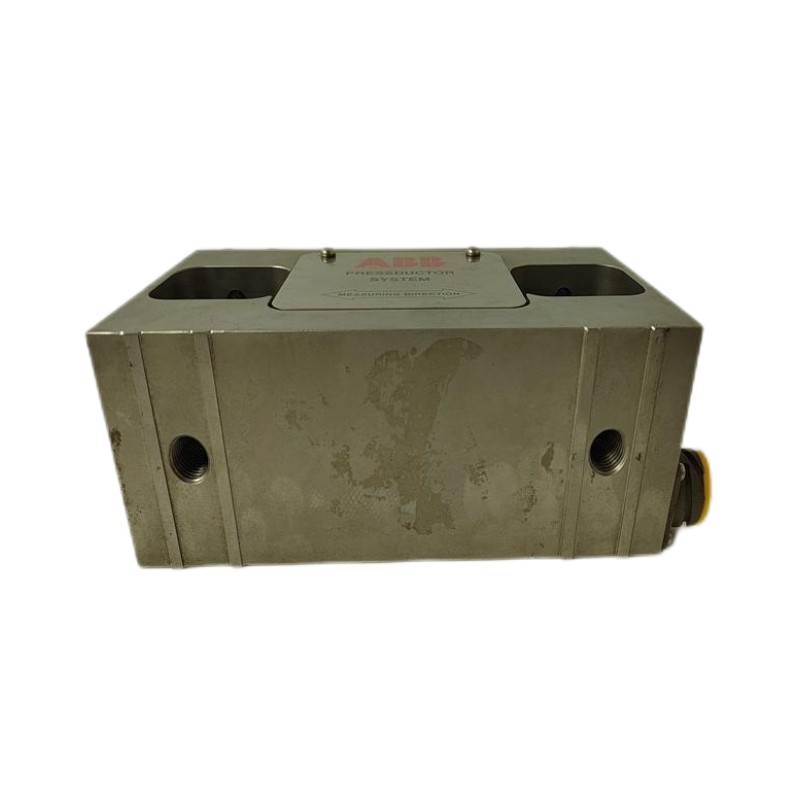

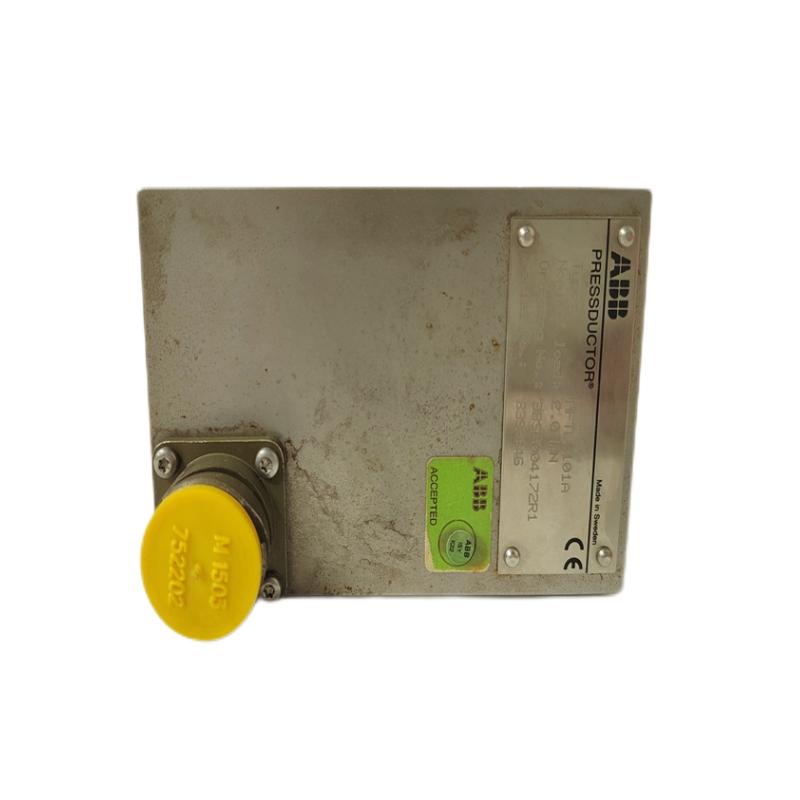

Product Profile: ABB PFTL101A 0.5KN / PFTL101A-0.5KN
Product Code: 3BSE004160R1
Product Overview
The ABB PFTL101A 0.5KN is a precision mechanical force sensor designed for industrial automation and control applications. It accurately measures forces up to 0.5 kilonewtons (kN) and converts them into reliable electrical signals for monitoring or control purposes.
This sensor features a compact and robust design suitable for integration into mechanical and electromechanical systems. Its construction includes high-strength materials ensuring stability, repeatability, and durability even under continuous industrial use. The device is ideal for applications where precise force measurement is critical, including robotics, testing systems, and automation machinery.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | PFTL101A 0.5KN / PFTL101A-0.5KN |
| Brand | ABB |
| Series | PFTL Series |
| Product Code | 3BSE004160R1 |
| Maximum Force Capacity (kN) | 0.5 |
| Dimensions (mm) | 80 x 50 x 30 |
| Weight (kg) | 0.35 |
| Measurement Type | Compression / Tension |
| Accuracy (%) | ±1 |
| Operating Temperature (°C) | -10 ~ +70 |
| Material | Stainless steel / High-strength alloy |
| Output Signal | Analog voltage / Current signal |
| Mounting Type | Panel / Bracket mount |
| Applications | Industrial automation, force testing, robotics |
Product Applications
-
Force measurement in industrial automation
-
Robotic arms and manipulators
-
Mechanical testing and quality control
-
Load monitoring in manufacturing systems
-
Automation system feedback loops
-
Research and development in mechanical engineering
Product Advantages
-
High measurement accuracy ±1% for precise monitoring
-
Compact design for easy integration
-
Robust construction for long-term durability
-
Can measure both compression and tension forces
-
Reliable operation in industrial temperature ranges
-
Easy mounting with standard brackets or panels
-
Minimal maintenance required
-
Compatible with analog output control systems
Related Models in the Same Series (PFTL Series)
| Model | Maximum Force (kN) | Dimensions (mm) | Weight (kg) | Accuracy (%) |
|---|---|---|---|---|
| PFTL101A 0.2KN | 0.2 | 80 x 50 x 30 | 0.32 | ±1 |
| PFTL101A 1KN | 1 | 85 x 55 x 35 | 0.4 | ±1 |
| PFTL101A 2KN | 2 | 90 x 60 x 40 | 0.45 | ±1 |
| PFTL102A 0.5KN | 0.5 | 82 x 52 x 32 | 0.36 | ±1 |
| PFTL103A 0.5KN | 0.5 | 80 x 50 x 30 | 0.35 | ±0.5 |
Popular Models from the Same Brand (ABB)
| Model | Function / Type | Dimensions (mm) | Weight (kg) | Application Area |
|---|---|---|---|---|
| S203-C16 | Circuit breaker | 81 x 18 x 70 | 0.09 | Electrical protection |
| S804 | Industrial switchgear | 250 x 120 x 110 | 3.5 | Power distribution |
| AF09-30-10 | Contactor / Relay | 95 x 60 x 75 | 0.5 | Motor control |
| OT100F3 | Overload protection | 180 x 90 x 80 | 1.2 | Industrial circuits |
| TMAX XT4 | Circuit breaker | 230 x 110 x 100 | 2.8 | Medium voltage systems |
Frequently Asked Questions (FAQ)
QA1: What is the primary function of the PFTL101A 0.5KN?
It accurately measures forces up to 0.5 kN and provides an electrical output for control or monitoring.
QA2: What is the maximum force capacity?
The maximum force capacity is 0.5 kilonewtons.
QA3: Can this sensor measure both tension and compression?
Yes, it can measure both compression and tension forces.
QA4: What is the accuracy of the sensor?
It has an accuracy of ±1%.
QA5: What are the dimensions of the PFTL101A 0.5KN?
The dimensions are 80 x 50 x 30 mm.
QA6: How much does the sensor weigh?
It weighs approximately 0.35 kg.
QA7: What materials are used in the sensor construction?
It is made from stainless steel and high-strength alloys.
QA8: In what temperature range can the sensor operate?
The operating temperature range is -10°C to +70°C.
QA9: What type of output does the sensor provide?
It provides an analog voltage or current signal.
QA10: Where is this sensor commonly used?
It is commonly used in industrial automation, robotics, mechanical testing, and load monitoring systems.
