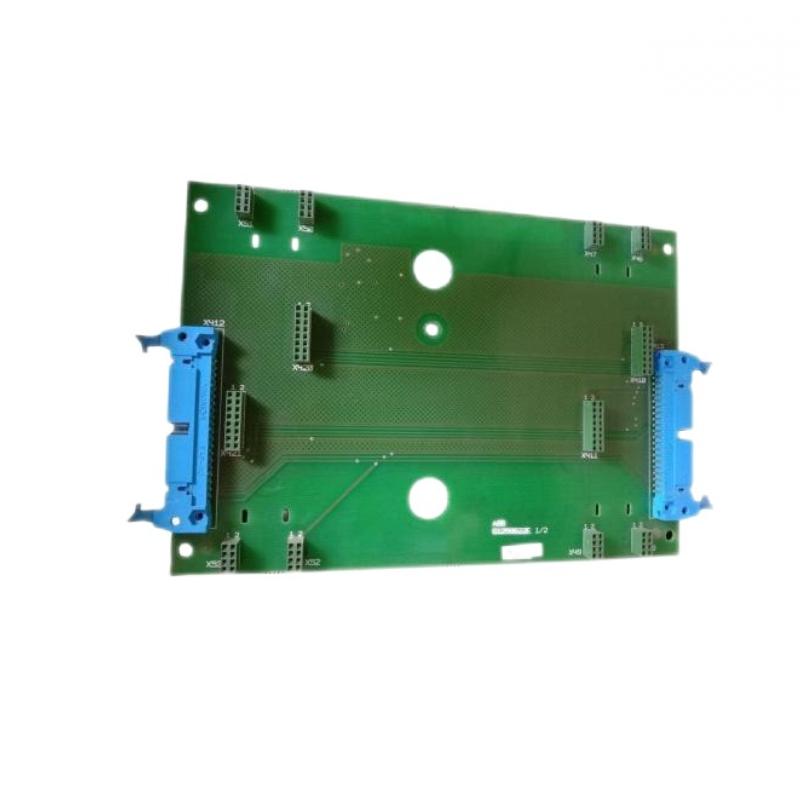

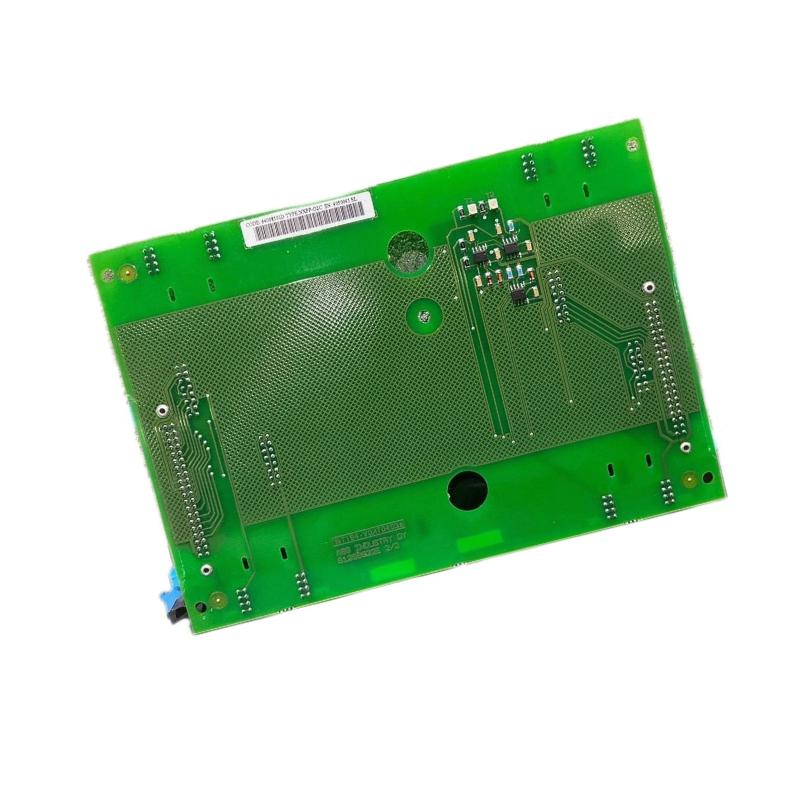

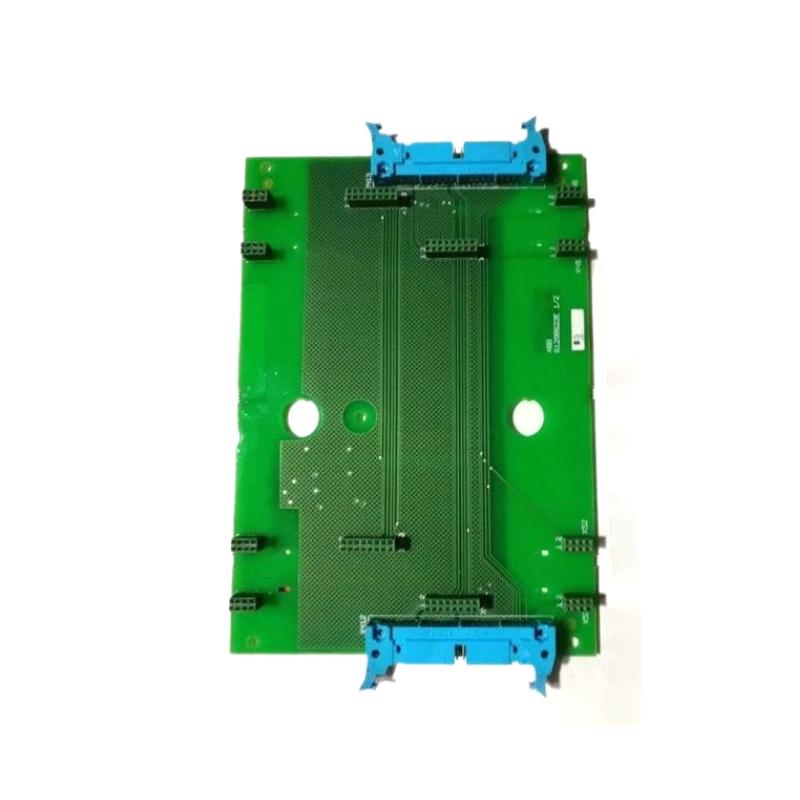

- Inverter Interface Board
- Sweden
- 160 × 110 × 85 mm
- 1.7kg
- 54120662/64008501D/61298622E
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 4
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
ABB NXPP-02C (54120662 / 64008501D / 61298622E) Technical Overview
Product Introduction
The ABB NXPP-02C is a high-performance industrial process and power protection unit designed for reliable control, monitoring, and distribution of electrical power in complex automation systems. It functions as a key interface between electrical distribution and process control equipment, providing precision, safety, and operational stability.
Constructed with industrial-grade materials, the NXPP-02C is resistant to vibration, dust, and temperature fluctuations, making it ideal for demanding industrial environments. Its modular and compact design allows flexible installation on DIN rails, control panels, or within larger distribution systems, while providing options for future system expansions.
Product Applications
The ABB NXPP-02C is suitable for a wide range of industrial applications, including:
-
Power protection and distribution in automated manufacturing systems
-
Signal routing and monitoring in industrial electrical networks
-
Integration with PLCs, HMIs, and DCS systems
-
Supervisory control in energy management and industrial IoT networks
-
Electrical systems in chemical, pharmaceutical, and food processing industries
-
Industrial environments requiring high-precision monitoring and protection
Product Advantages
The ABB NXPP-02C offers several key advantages:
-
Reliable Power Protection: Ensures stable and safe electrical distribution
-
Robust Industrial Construction: Resistant to dust, vibration, and high temperature
-
Modular Design: Simplifies installation, maintenance, and future system expansion
-
Flexible Mounting Options: Compatible with DIN rails and panel installation
-
Compact Form Factor: Optimized for control cabinets and industrial racks
-
Energy Efficient: Low power consumption while maintaining performance
-
Scalable Integration: Supports future upgrades and modular expansions
Brand and Series Information
-
Brand: ABB
-
Series: NXPP Series
Product Specifications
| Parameter | Value |
|---|---|
| Model | ABB NXPP-02C |
| Product Codes | 54120662 / 64008501D / 61298622E |
| Voltage Rating | 24V DC / 230V AC |
| Current Rating | 12A |
| Function | Power protection, monitoring, and distribution |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Mounting Type | DIN Rail / Panel Mount |
| Dimensions (mm) | 160 × 110 × 85 |
| Weight (kg) | 1.7 |
| Protection Rating | IP20 |
| Material | Industrial-grade thermoplastic |
Recommended Related Models (Same Series / Similar Functionality)
| Model | Voltage | Current | Dimensions (mm) | Weight (kg) | Features |
|---|---|---|---|---|---|
| ABB NXPP-01C | 24V DC / 230V AC | 10A | 150 × 100 × 80 | 1.6 | Standard power protection and distribution |
| ABB NXPP-03C | 24V DC / 230V AC | 14A | 165 × 115 × 90 | 1.75 | High-capacity protection with dual channels |
| ABB NXPP-04C | 24V DC / 230V AC | 15A | 170 × 120 × 95 | 1.8 | Advanced protection and monitoring features |
| ABB NXPP-05C | 24V DC / 230V AC | 16A | 175 × 125 × 95 | 1.85 | Modular design for high-demand applications |
| ABB NXPP-06C | 24V DC / 230V AC | 18A | 180 × 130 × 100 | 1.9 | Dual-channel high-power distribution unit |
Recommended Popular Models (Same Brand, Different Series)
| Model | Voltage | Current | Dimensions (mm) | Weight (kg) | Features |
|---|---|---|---|---|---|
| ABB NPCT-01C | 24V DC | 2A | 160 × 120 × 80 | 1.6 | Operator terminal / HMI |
| ABB NPOW-42C | 24V DC / 230V AC | 12A | 160 × 110 × 85 | 1.7 | Power distribution and monitoring |
| ABB NPBU-42C | 24V DC / 230V AC | 10A | 150 × 100 × 80 | 1.5 | Power and signal distribution |
| ABB NRED-61-E | 24V DC / 230V AC | 10A | 150 × 100 × 80 | 1.5 | Relay and electronic distribution unit |
| ABB NMTU-21C | 24V DC | 2A | 140 × 90 × 80 | 1.4 | Measurement and transmission unit |
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the ABB NXPP-02C?
A1: It is a power protection and distribution unit designed for reliable electrical delivery and monitoring in industrial automation systems.
Q2: Can the NXPP-02C operate in harsh industrial environments?
A2: Yes, it is designed to withstand dust, vibration, and temperature extremes (-20°C to 60°C).
Q3: What voltage and current ratings does it support?
A3: The device supports 24V DC or 230V AC with a maximum current of 12A.
Q4: Can it be mounted on DIN rails or panels?
A4: Yes, it supports both DIN rail and panel mounting options.
Q5: Which industries commonly use this product?
A5: Manufacturing, chemical, pharmaceutical, food production, and energy management industries.
Q6: How heavy is the NXPP-02C?
A6: The device weighs approximately 1.7 kg.
Q7: What are the physical dimensions of the device?
A7: Its dimensions are 160 × 110 × 85 mm.
Q8: Does it allow modular expansion?
A8: Yes, the modular design allows for system expansion and upgrades.
Q9: What additional features does it provide besides power protection?
A9: It provides monitoring, stable signal distribution, and dual-channel power management for industrial devices.
Q10: Is the NXPP-02C energy efficient?
A10: Yes, it is designed to minimize power consumption while maintaining reliable performance.
