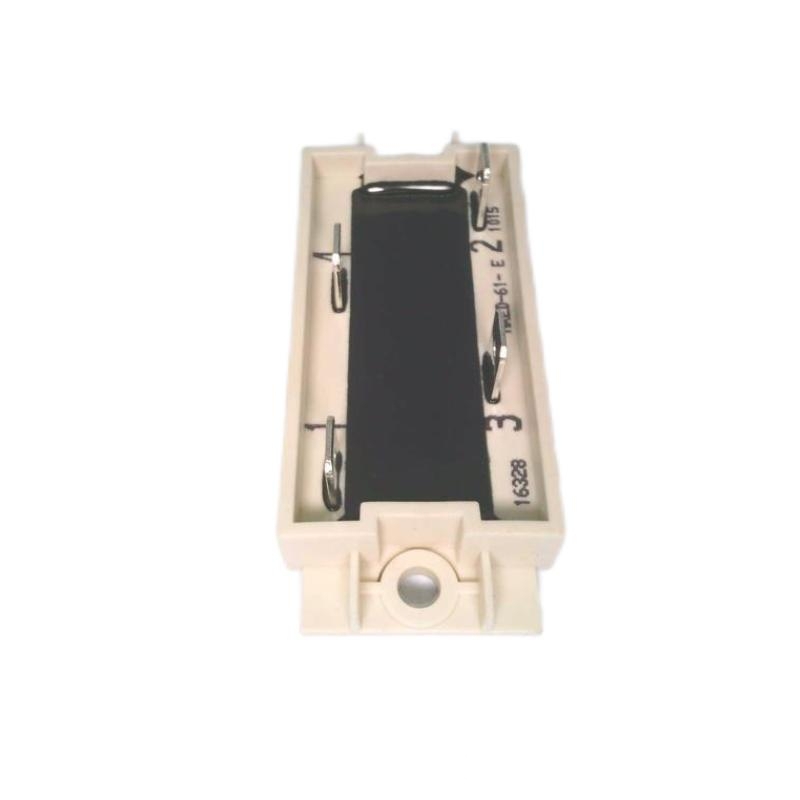

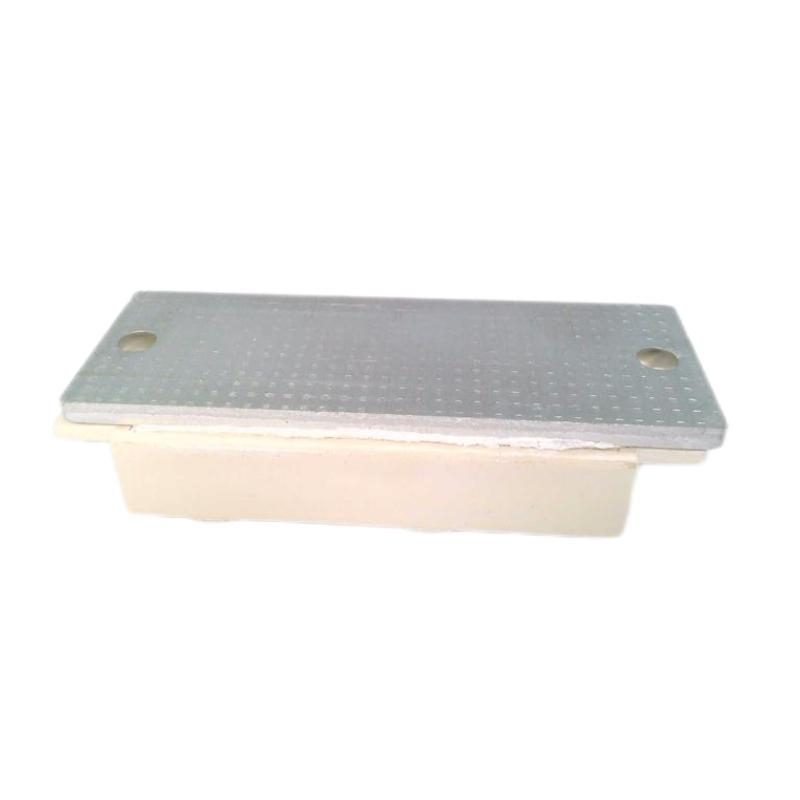

ABB NRED-61-E 68262747 Voltage Divider Resistor Module
Product Introduction:
The ABB NRED-61-E 68262747 is a high-precision voltage divider resistor module designed to provide accurate voltage scaling in electrical measurement systems. This module is typically used for voltage signal conditioning, where high voltage signals need to be reduced to levels suitable for further processing by control and monitoring systems. The NRED-61-E ensures precise voltage division, offering reliability and stability in demanding industrial environments. It is ideal for use in electrical systems where accuracy and long-term performance are critical.
The module is built to endure harsh operating conditions while offering easy integration with automation and control systems. Its compact design makes it suitable for installation in space-constrained environments, while its robust construction ensures reliable operation in various industrial applications.
Product Specifications:
| Parameter | Specification |
|---|---|
| Model | NRED-61-E 68262747 |
| Type | Voltage Divider Resistor Module |
| Dimensions | 34 x 50 x 90 mm |
| Weight | 0.11 kg |
| Nominal Resistance | 100 kΩ |
| Voltage Rating | 250 V AC |
| Accuracy | ±0.5% |
| Temperature Range | -25°C to +70°C |
| Power Rating | 1 W |
| Material | Epoxy-coated resistors |
| Mounting Type | DIN Rail Mountable |
Applications:
The ABB NRED-61-E 68262747 voltage divider resistor module is versatile and can be applied in several key areas within industrial electrical systems:
-
Voltage Signal Conditioning: Used to scale down high voltage signals to levels appropriate for processing by monitoring or control devices.
-
Measurement Systems: Ideal for use in measurement systems where precise voltage division is required for accurate readings.
-
Automated Control Systems: Essential for providing scaled voltage signals to controllers and sensors in automation systems.
-
Power Systems: Used in electrical power systems for voltage scaling to protect sensitive electronics and ensure safe operation.
-
Monitoring and Protection: Integral part of protection systems where voltage needs to be monitored, scaled, and fed to monitoring equipment.
Product Advantages:
-
High Accuracy: With a tolerance of ±0.5%, the NRED-61-E provides highly accurate voltage scaling, ensuring reliable data for control and monitoring systems.
-
Compact Design: Its small size (34 x 50 x 90 mm) allows for installation in space-constrained environments, providing flexibility in system design.
-
Wide Temperature Range: Capable of operating in temperatures from -25°C to +70°C, the module performs well in both extreme cold and heat.
-
Long-Term Stability: Built with epoxy-coated resistors, the module ensures durability and long-term stable performance even in demanding environments.
-
DIN Rail Mounting: Easy to install and integrate into existing electrical setups, as it is compatible with standard DIN rail systems.
-
Cost-Effective: The module offers a cost-effective solution for voltage scaling without compromising on performance or accuracy.
Brand Information:
ABB is a world-renowned leader in electrical engineering and automation technologies. With a strong presence in industrial automation, electrification, and robotics, ABB is known for its commitment to innovation, quality, and reliability. The company manufactures a broad range of products and solutions designed to enhance efficiency, safety, and sustainability across various industries, from power generation to transportation and manufacturing. ABB’s products, including the NRED series, are trusted by industries worldwide for their performance and longevity.
Product Series:
The ABB NRED-61-E 68262747 belongs to the NRED Series of voltage divider resistor modules, which are designed to provide accurate and reliable voltage scaling in electrical systems. The NRED series includes a range of models with varying resistance values and voltage ratings to suit different application needs, from basic signal conditioning to more complex measurement systems.
Recommended Models from the NRED Series:
| Model | Description | Nominal Resistance | Voltage Rating | Accuracy | Power Rating |
|---|---|---|---|---|---|
| NRED-60-E | Low-resistance voltage divider | 10 kΩ | 250 V AC | ±1% | 1 W |
| NRED-62-E | High-voltage divider | 200 kΩ | 500 V AC | ±0.5% | 2 W |
| NRED-63-E | Medium-resistance module | 50 kΩ | 250 V AC | ±0.5% | 1 W |
| NRED-64-E | Precision divider module | 100 kΩ | 250 V AC | ±0.2% | 1 W |
| NRED-65-E | Compact divider module | 10 kΩ | 250 V AC | ±1% | 0.5 W |
Recommended Popular Models from ABB:
| Model | Description | Specification | Power Rating | Voltage Rating | Accuracy | Dimensions | Weight |
|---|---|---|---|---|---|---|---|
| SDCS-CON2A-COAT | Power Supply Unit | 24V, 10A | 240W | 24 V DC | ±1% | 120 x 100 x 150 mm | 0.8 kg |
| TB853 | I/O Interface Module | 8 channels | 24V | 24 V DC | ±0.5% | 130 x 80 x 50 mm | 0.3 kg |
| TK503 | Temperature Controller | 4 to 20 mA output | 5 W | 230 V AC | ±0.2% | 100 x 60 x 45 mm | 0.25 kg |
| TU507-ETH | Communication Module | Ethernet connectivity | 24V DC | 24 V DC | ±1% | 100 x 50 x 80 mm | 0.2 kg |
| 07 AB 67 R1 | Automation Controller | 24V DC, 16 I/O | 48W | 24 V DC | ±0.5% | 140 x 120 x 85 mm | 0.5 kg |
FAQs:
Q1: What is the resistance value of the ABB NRED-61-E voltage divider module?
A1: The nominal resistance value is 100 kΩ.
Q2: What is the voltage rating of this module?
A2: The voltage rating is 250 V AC.
Q3: How accurate is the NRED-61-E voltage divider module?
A3: It has an accuracy of ±0.5%.
Q4: What is the temperature range of the NRED-61-E?
A4: The module operates within a temperature range of -25°C to +70°C.
Q5: What is the power rating of this module?
A5: The power rating is 1 W.
Q6: How is the NRED-61-E module mounted?
A6: It is designed to be mounted on a DIN rail.
Q7: What material is used in the construction of the NRED-61-E?
A7: The module uses epoxy-coated resistors for durability.
Q8: Can this module be used in high-temperature environments?
A8: Yes, the NRED-61-E can operate in environments with temperatures ranging from -25°C to +70°C.
Q9: Is this module suitable for signal conditioning in measurement systems?
A9: Yes, it is ideal for voltage signal conditioning in measurement systems.
Q10: How long will the ABB NRED-61-E module last?
A10: The module is designed for long-term performance with stable accuracy over time, thanks to its robust construction.
