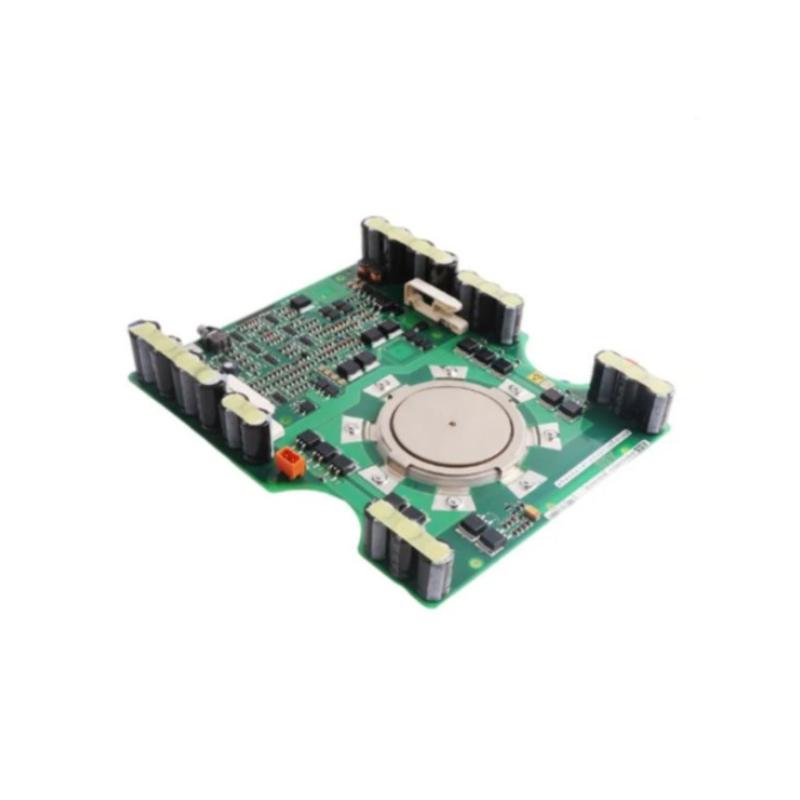

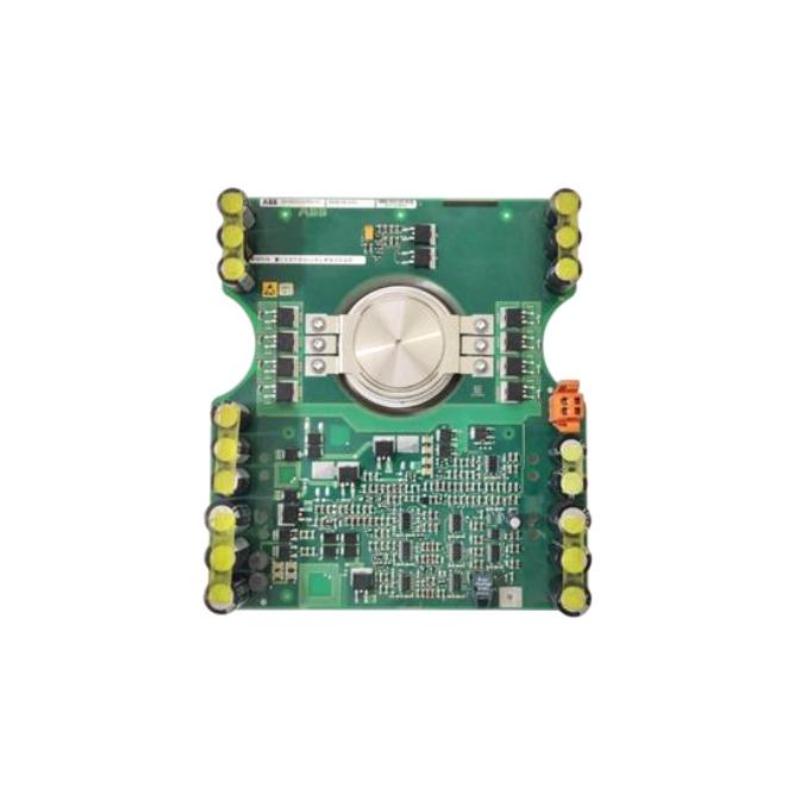

ABB GV C704 AE01 (3BHB003230R0101) – Product Details
Product Overview
The ABB GV C704 AE01 is a high-performance industrial drive and control module designed for medium-to-large motor applications in industrial automation systems. It belongs to ABB’s GV C700 Series, which is recognized for advanced digital control, robust design, and efficient energy management.
This model is ideal for high-demand factory automation, process control, and energy management systems, providing reliable operation, precise motor control, and flexible communication options. Its compact design allows seamless integration into control panels, while its robust construction ensures continuous industrial operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | GV C704 AE01 (3BHB003230R0101) |
| Brand | ABB |
| Series | GV C700 Series |
| Type | Drive / Control Module |
| Input Voltage | 380–480 V AC |
| Output Voltage | 0–480 V AC |
| Current Rating | 30 A |
| Frequency Range | 0–500 Hz |
| Control Type | Digital / Analog |
| Protection Class | IP20 |
| Communication Interfaces | Modbus, Profibus, CANopen, Ethernet/IP |
| Dimensions (L×W×H) | 320 × 210 × 160 mm |
| Weight | 8.0 kg |
| Cooling Method | Forced Air |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Certification | CE, UL |
Product Applications
-
Industrial automation requiring precise speed and torque control of medium-to-large motors
-
Conveyor systems, material handling, and packaging lines
-
Pumps, fans, and HVAC systems in industrial facilities
-
Energy management and variable frequency drive systems
-
Integration with PLCs and SCADA for process control
-
Factory automation and manufacturing systems with high reliability requirements
Product Advantages
-
High current rating suitable for medium-to-large industrial motors
-
Compact, robust design for easy installation in control panels
-
Wide input voltage and frequency range allows versatile application
-
Multiple communication protocols enable seamless integration with industrial networks
-
IP20 protection suitable for indoor industrial environments
-
Advanced digital control improves efficiency, precision, and performance
-
Energy-efficient operation reduces operational costs
-
Reliable construction designed for continuous operation in demanding environments
Recommended Related Models (Same GV C700 Series)
| Model Number | Voltage | Current | Dimensions (mm) | Weight (kg) | Notes |
|---|---|---|---|---|---|
| GV C704 AD01 | 380–480 V | 25 A | 300 × 200 × 150 | 7.2 | Lower current variant for smaller motors |
| GV C704 AF01 | 380–480 V | 28 A | 310 × 205 × 155 | 7.5 | Intermediate model between AD01 and AE01 |
| GV C704 AG01 | 380–480 V | 35 A | 340 × 220 × 165 | 8.5 | High-current variant for demanding applications |
| GV C704 AH01 | 380–480 V | 40 A | 350 × 230 × 170 | 9.0 | Heavy-duty industrial variant |
| GV C704 AJ01 | 380–480 V | 45 A | 360 × 240 × 175 | 9.5 | Maximum performance in GV C704 Series |
Popular ABB Models (Same Brand, Different Series)
| Model Number | Voltage | Current | Dimensions (mm) | Weight (kg) | Notes |
|---|---|---|---|---|---|
| ACS580-01-30A6-4 | 380–480 V | 30 A | 320 × 210 × 160 | 8.0 | Energy-efficient, versatile drive |
| ACS550-01-25A4-2 | 380–480 V | 25 A | 300 × 200 × 150 | 7.2 | Compact and cost-effective industrial drive |
| ACS880-01-35A4-4 | 380–480 V | 35 A | 340 × 220 × 165 | 8.5 | High-performance drive for complex automation |
| ACS355-03E-30A1-4 | 380–480 V | 30 A | 320 × 210 × 160 | 8.0 | Reliable mid-range industrial drive |
| ACH580-01-32A6-2 | 380–480 V | 32 A | 330 × 215 × 165 | 8.3 | Heavy-duty industrial drive for demanding automation |
FAQ (ABB GV C704 AE01)
Q1: What is the maximum operating temperature for the GV C704 AE01?
A1: The maximum operating temperature is 50°C.
Q2: Can this module be installed outdoors?
A2: No, it is designed for indoor use with IP20 protection.
Q3: What types of motors is this module compatible with?
A3: It is compatible with medium-to-large AC induction motors.
Q4: Which communication protocols are supported?
A4: Modbus, Profibus, CANopen, and Ethernet/IP.
Q5: What is the current rating of the module?
A5: The current rating is 30 A.
Q6: How much does the GV C704 AE01 weigh?
A6: The module weighs 8.0 kg.
Q7: Is a warranty included with this product?
A7: Yes, it typically comes with a standard industrial warranty.
Q8: Can it operate in high-humidity industrial environments?
A8: It is intended for standard indoor industrial environments; high humidity may require additional protective measures.
Q9: How is the module cooled?
A9: Forced air cooling ensures stable operation.
Q10: What certifications does this module have?
A10: CE and UL certifications confirm compliance with international safety and quality standards.
