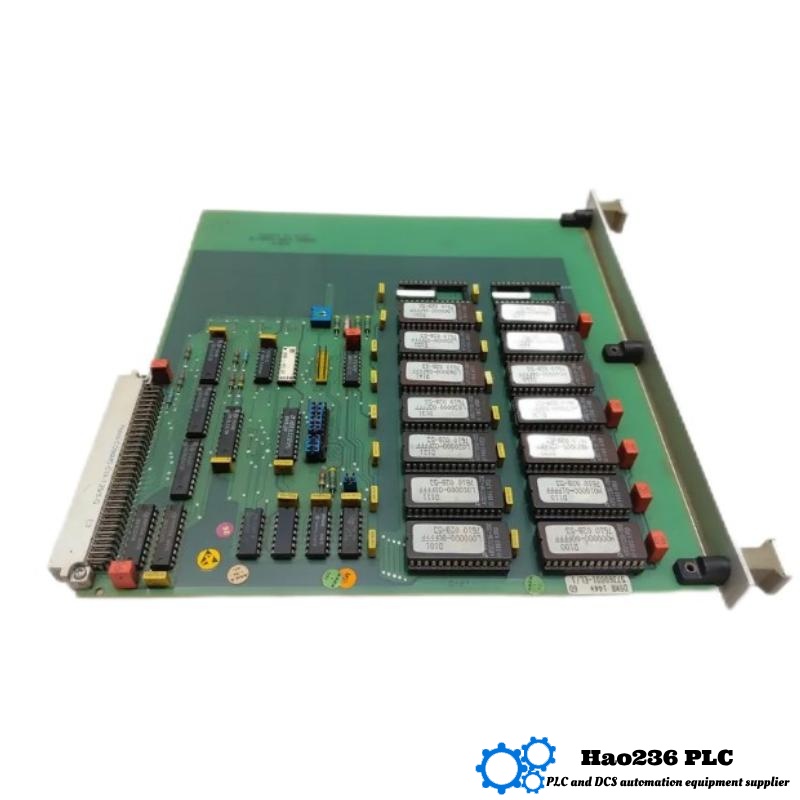

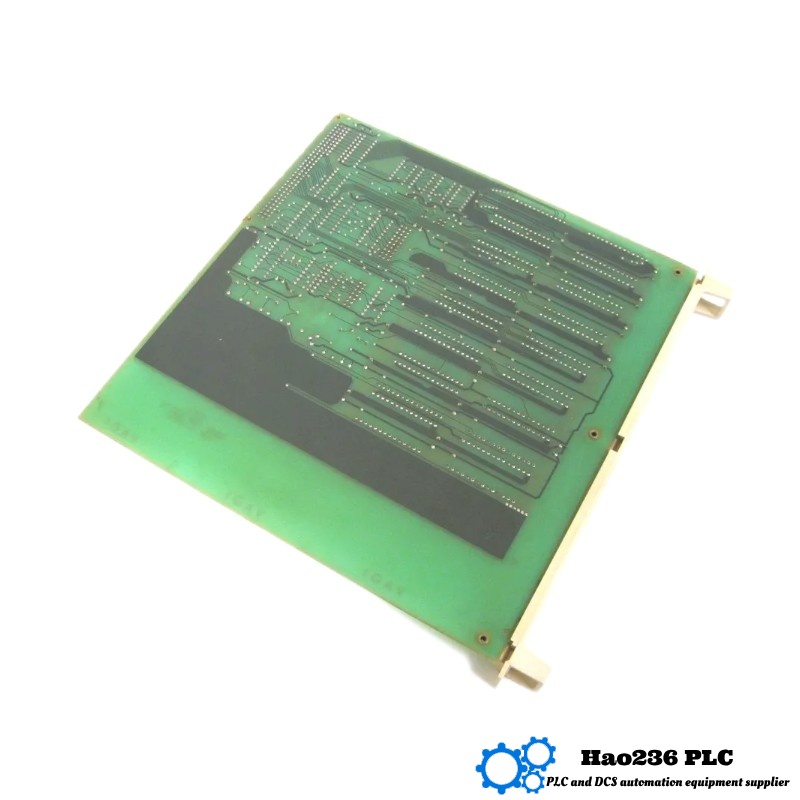

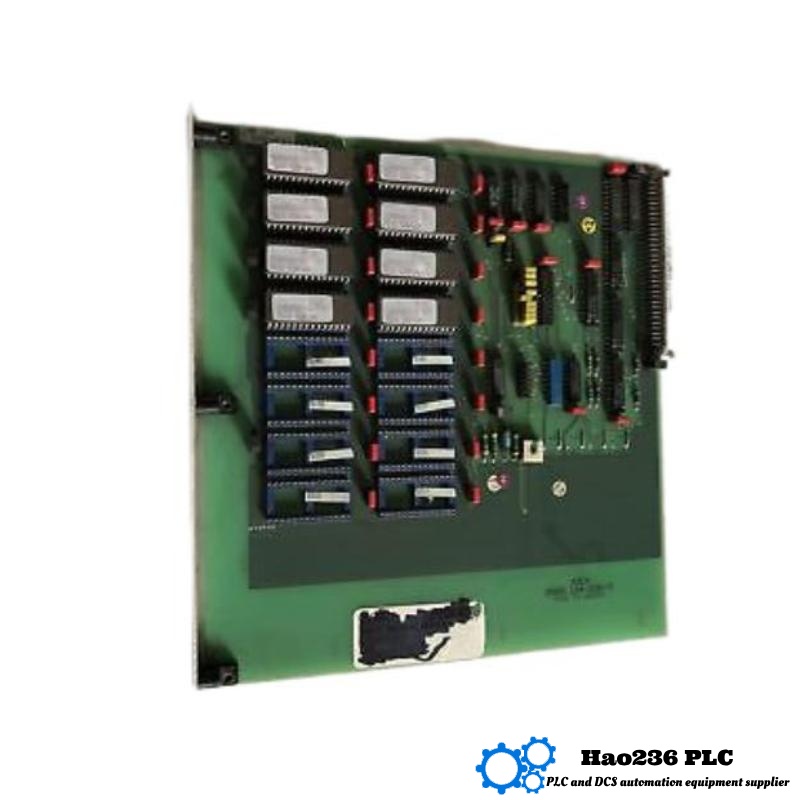

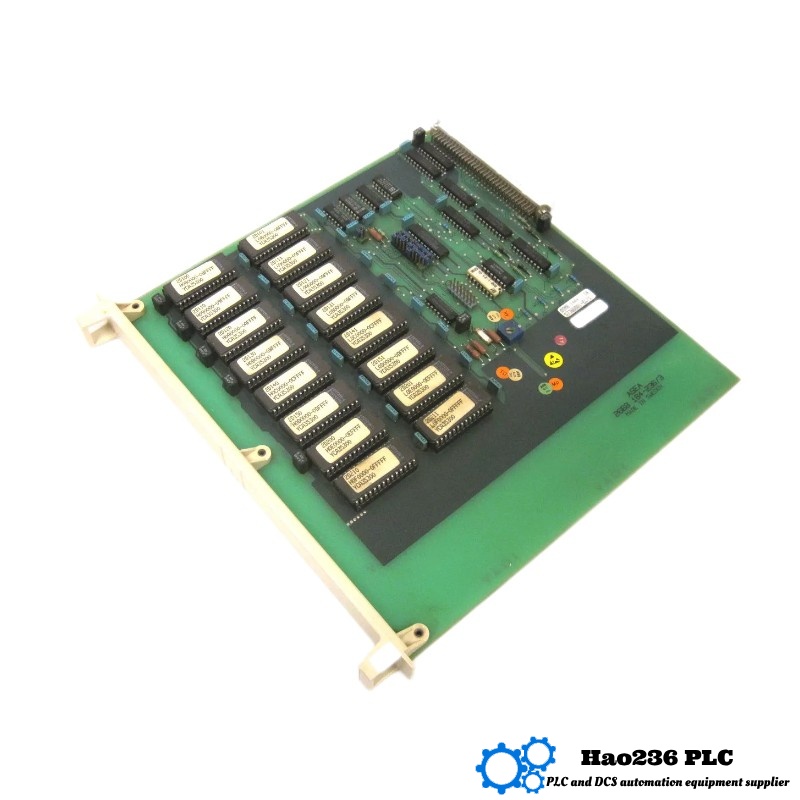

ABB DSMB 144 57360001-EL Memory Module
Product Introduction
The ABB DSMB 144 57360001-EL is a high-performance memory module engineered for seamless integration into ABB’s DS Series distributed control systems. This module is responsible for storing critical system configuration data, user programs, and diagnostic logs, making it an essential component in the reliable operation of industrial automation environments.
As a part of ABB’s robust DCS infrastructure, the DSMB 144 ensures high-speed data access, secure memory retention, and optimal system redundancy. Built with industrial-grade components and tested for rigorous applications, it helps maintain continuous operation across a range of mission-critical industries.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | DSMB 144 57360001-EL |
| Module Type | Memory Module |
| Series | DS Series |
| Dimensions (WxHxD) | 235 × 255 × 10 mm |
| Weight | 0.32 kg |
| Memory Type | Non-volatile (Flash/EEPROM) |
| Memory Capacity | Varies per configuration (typically 4–32 MB) |
| Voltage Requirement | Supplied via system backplane |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Communication Interface | ABB DS bus |
| Data Retention | Up to 10 years (non-powered) |
| Mounting Type | Enclosure-embedded / PCB mount |
Product Applications
-
DCS Configuration Storage: Saves and retains key controller and I/O configurations in ABB DS control systems.
-
Program and Firmware Storage: Houses user application code, firmware, and diagnostics in process automation.
-
Redundancy Management: Supports system failover functions by maintaining mirrored memory copies.
-
Industrial Diagnostics: Retains operational logs, alarms, and historical data for maintenance and troubleshooting.
-
Factory Automation: Ensures smooth boot-up and reliable data read/write during system operation and reset cycles.
Product Advantages
-
High Reliability: Designed for continuous, error-free operation in critical control systems.
-
Long Data Retention: Non-volatile memory maintains integrity even during power loss.
-
Compact and Lightweight: Slim format fits within space-constrained industrial enclosures.
-
Easy Integration: Plug-and-play compatible with ABB’s DS control hardware.
-
Industrial-Grade Durability: Withstands extended temperatures and electromagnetic interference typical of industrial environments.
-
Zero-Maintenance Operation: No moving parts or batteries required for memory retention.
Brand and Series Affiliation
The DSMB 144 module is developed by ABB, a global leader in industrial automation. It belongs to the DS Series, which includes a range of memory, logic, I/O, and communication modules designed for high-reliability distributed control applications in power, manufacturing, and utility sectors.
Related Models in the DS Series
| Model | Dimensions (mm) | Weight (kg) | Function | Description |
|---|---|---|---|---|
| DSMB 145 | 235 × 255 × 10 | 0.32 | Memory Module | Higher-capacity memory module |
| DSMB 130 | 235 × 255 × 10 | 0.30 | Logic/Control Board | For controller application storage |
| DSMB 120 | 235 × 255 × 10 | 0.31 | Base Memory Module | Basic configuration storage |
| DSAB 155 | 324 × 22.5 × 225 | 0.35 | Bus Adapter Module | DS bus signal distribution board |
| DSBC 172 | 324 × 45 × 225 | 0.36 | CPU Communication Unit | Controller data exchange module |
Popular ABB Automation Modules
| Model Number | Description | Module Type | Typical Function | Application Scenario |
|---|---|---|---|---|
| DSMB 112 | Base memory module | Memory Module | Stores configuration data | PLC and control system memory |
| DSMB 127 | Extended memory module | Memory Module | Extended user/program memory | Large automation projects |
| DSMB 137 | Interface and memory combination | Hybrid Module | Interface + memory buffer | High-speed control applications |
| DSMB 145 | Communication buffer module | Interface Module | Temporary data exchange | Fieldbus or remote I/O systems |
| DSMB 150 | Secure storage module | Memory Module | Data protection and retention | Critical logging or event backup |
FAQ (Q&A Format)
Q1: What is the primary function of the DSMB 144?
A1: It stores configurations, application programs, and system data for ABB DS control systems.
Q2: Is the memory retained during power outages?
A2: Yes, it uses non-volatile memory that retains data even when power is off.
Q3: How is the module installed?
A3: It is typically PCB-mounted or enclosed within control cabinets.
Q4: What is the data retention period without power?
A4: Up to 10 years, depending on the memory technology used.
Q5: Is this module compatible with older ABB DCS systems?
A5: Yes, it supports legacy DS control infrastructure and newer versions.
Q6: Can the memory be expanded or upgraded?
A6: No, it comes with fixed capacity based on the factory configuration.
Q7: Does the DSMB 144 require batteries?
A7: No, it operates without battery support for data retention.
Q8: What makes this module suitable for industrial use?
A8: Its robust design, high EMI resistance, and wide temperature range.
Q9: Is the DSMB 144 hot-swappable?
A9: Replacement should follow proper shutdown procedures to avoid data corruption.
Q10: How does it integrate with ABB’s DS bus?
A10: It connects via the system backplane and communicates over the DS bus architecture.
