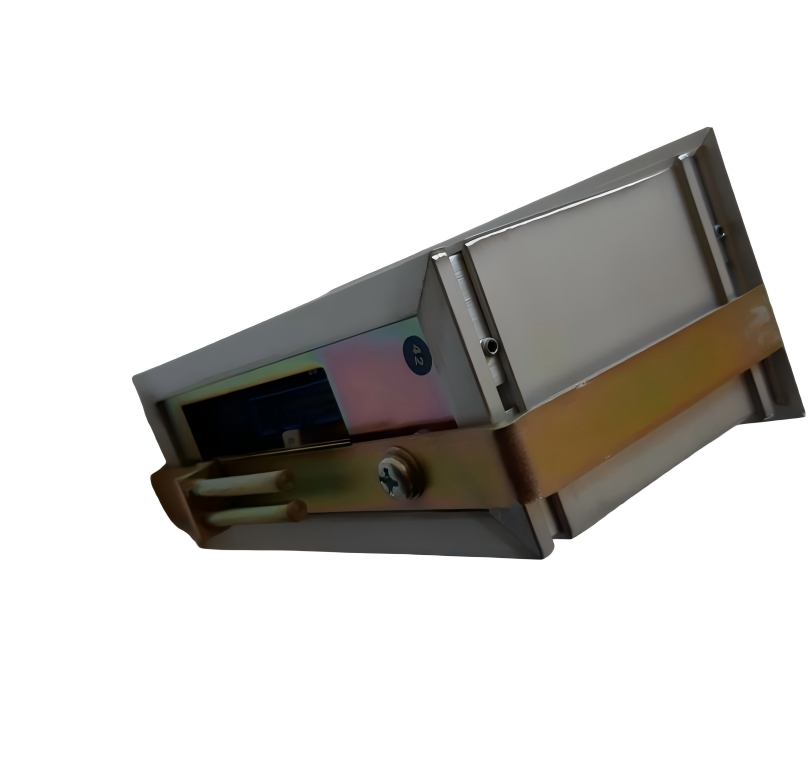

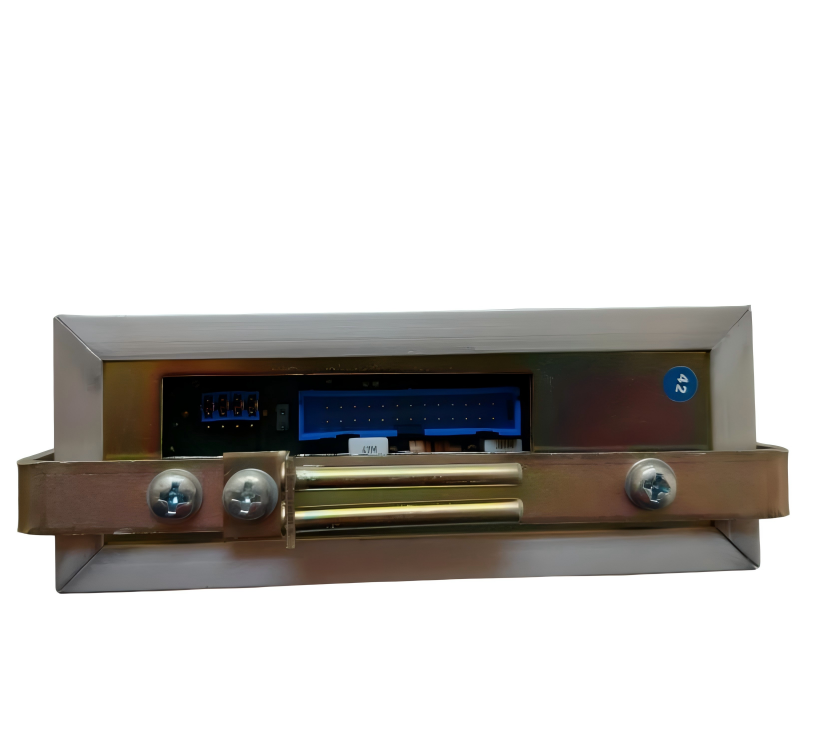

Product Profile: ABB DSHM 110 / DSHM110
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | DSHM 110 / DSHM110 |
| Product Code | 5735095-A |
| Brand | ABB |
| Series | DSHM Series |
| Rated Voltage | 400 V AC |
| Rated Current | 16 A |
| Frequency | 50/60 Hz |
| Number of Poles | 1P/2P/3P (configurable) |
| Breaking Capacity | 10 kA |
| Connection Type | Screw / Bolt Terminal |
| Protection Type | IP20 |
| Operating Temperature | -25°C to +60°C |
| Dimensions (L×W×H) | 90 × 50 × 65 mm |
| Weight | 0.55 kg |
| Material | High-quality flame-retardant plastic and metal |
Product Description
The DSHM 110 is an advanced modular switchgear component designed for medium-power electrical circuits. It provides high-performance protection against overcurrents and short-circuits while offering a compact and durable design.
Engineered for industrial and commercial applications, this device ensures operational safety and reliability. Its robust internal construction, high-quality insulation, and versatile mounting options make it suitable for both retrofit and new installations. The DSHM 110 series is recognized for combining durability, efficiency, and ease of maintenance.
Applications
-
Protection of industrial control panels and distribution boards
-
Overcurrent protection for motors, compressors, and pumps
-
Electrical safety in commercial buildings and office facilities
-
Modular integration in renewable energy systems
-
Circuit protection in machinery and automation systems
Advantages
-
Enhanced breaking capacity (10 kA) for reliable short-circuit protection.
-
Modular design allows easy integration into panels.
-
Compact dimensions save space in electrical cabinets.
-
Lightweight design (0.55 kg) for simplified installation.
-
Wide operating temperature range supports diverse environments.
-
Durable materials ensure long-term reliability and safety.
-
Flexible connection options with screw or bolt terminals.
-
Low maintenance requirements reduce operational downtime.
-
High insulation properties reduce the risk of electrical faults.
-
Suitable for industrial and commercial applications with consistent performance.
Related Models in DSHM Series
| Model | Rated Voltage | Rated Current | Dimensions (mm) | Weight (kg) | Breaking Capacity |
|---|---|---|---|---|---|
| DSHM 111 | 400 V AC | 20 A | 95 × 55 × 70 | 0.60 | 10 kA |
| DSHM 112 | 400 V AC | 25 A | 100 × 55 × 75 | 0.65 | 10 kA |
| DSHM 113 | 400 V AC | 32 A | 110 × 60 × 80 | 0.75 | 15 kA |
| DSHM 114 | 400 V AC | 40 A | 120 × 65 × 85 | 0.85 | 15 kA |
| DSHM 115 | 400 V AC | 50 A | 130 × 70 × 90 | 0.95 | 15 kA |
Popular Models from ABB (Other Series)
| Model | Rated Voltage | Rated Current | Dimensions (mm) | Weight (kg) | Breaking Capacity |
|---|---|---|---|---|---|
| S203-C16 | 230/400 V AC | 16 A | 85 × 40 × 60 | 0.50 | 6 kA |
| S204-C20 | 230/400 V AC | 20 A | 90 × 45 × 65 | 0.55 | 6 kA |
| TMax T2 | 400 V AC | 32 A | 120 × 60 × 75 | 0.85 | 15 kA |
| Emax 2 E2.2 | 690 V AC | 100 A | 250 × 150 × 200 | 2.50 | 50 kA |
| OT63F4 | 400 V AC | 63 A | 130 × 70 × 85 | 1.10 | 15 kA |
FAQ (DSHM 110)
Q1: What is the rated current of DSHM 110?
A1: The rated current is 16 A.
Q2: Can it protect against short circuits?
A2: Yes, it has a breaking capacity of 10 kA.
Q3: What is the operating temperature range?
A3: The device operates between -25°C and +60°C.
Q4: What type of terminals does it use?
A4: It supports both screw and bolt terminal connections.
Q5: What is the weight of DSHM 110?
A5: It weighs approximately 0.55 kg.
Q6: Can it be mounted in modular panels?
A6: Yes, it is designed for modular integration in electrical panels.
Q7: What applications is this device suitable for?
A7: It is used for industrial machinery, commercial circuits, and renewable energy installations.
Q8: What materials are used in its construction?
A8: High-quality flame-retardant plastic and durable metals.
Q9: Is maintenance frequent?
A9: No, it requires minimal maintenance due to robust design.
Q10: Can it handle high inrush currents from motors?
A10: Yes, the DSHM 110 is suitable for motor and pump protection.
