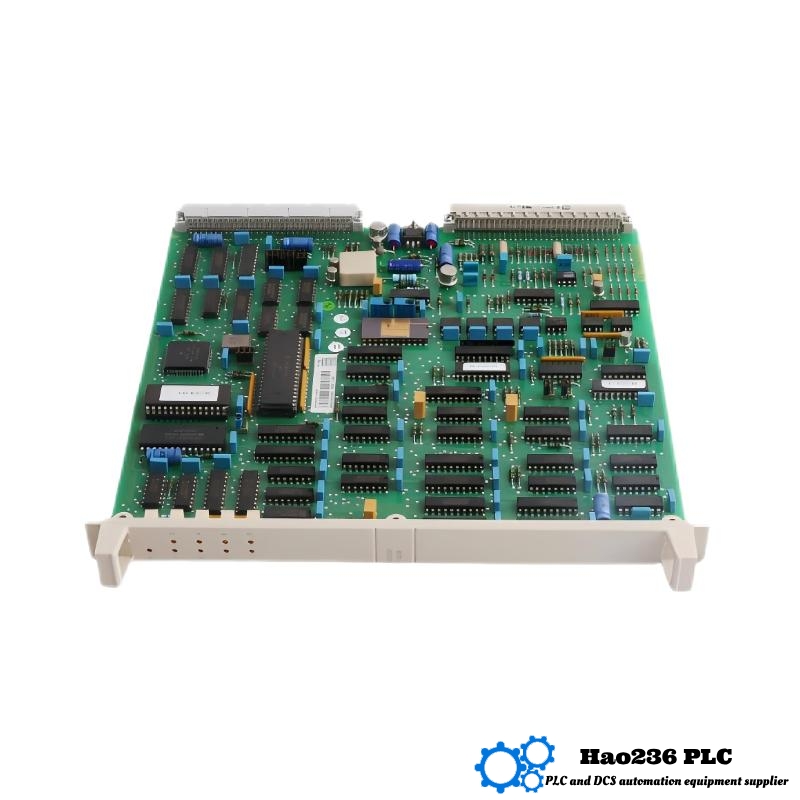

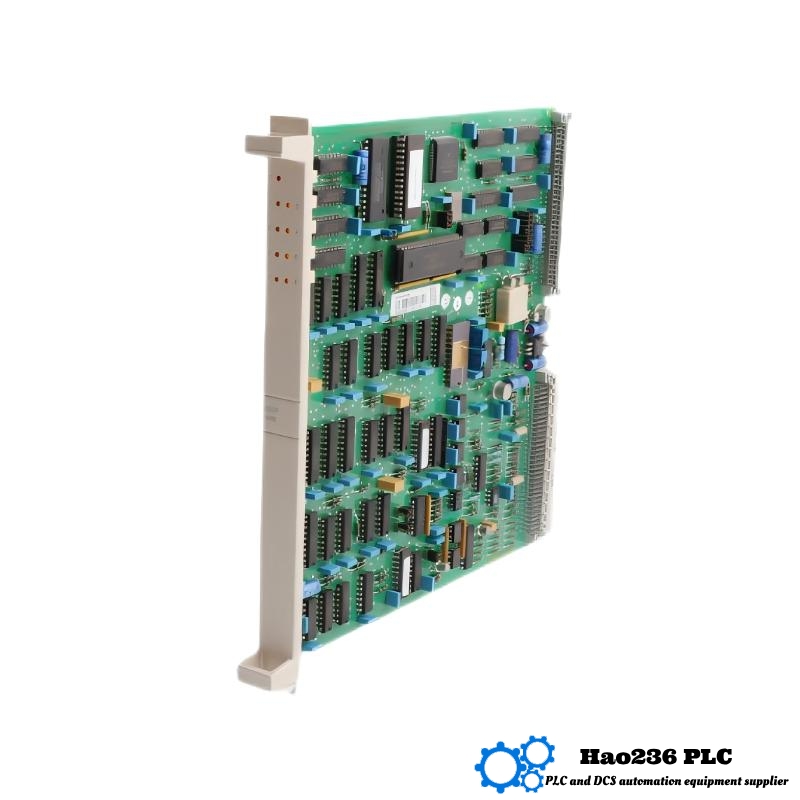

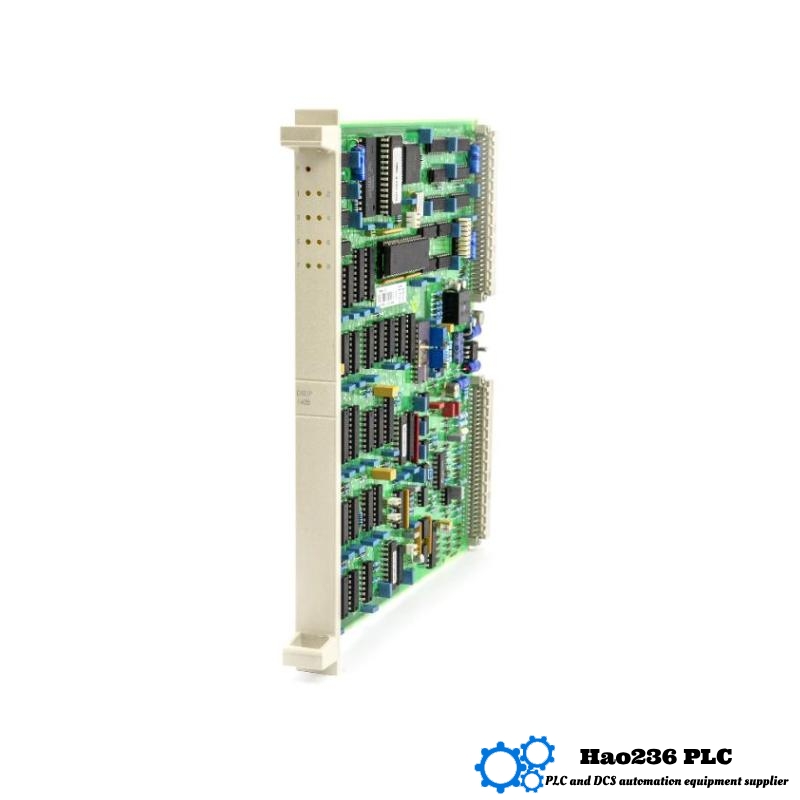

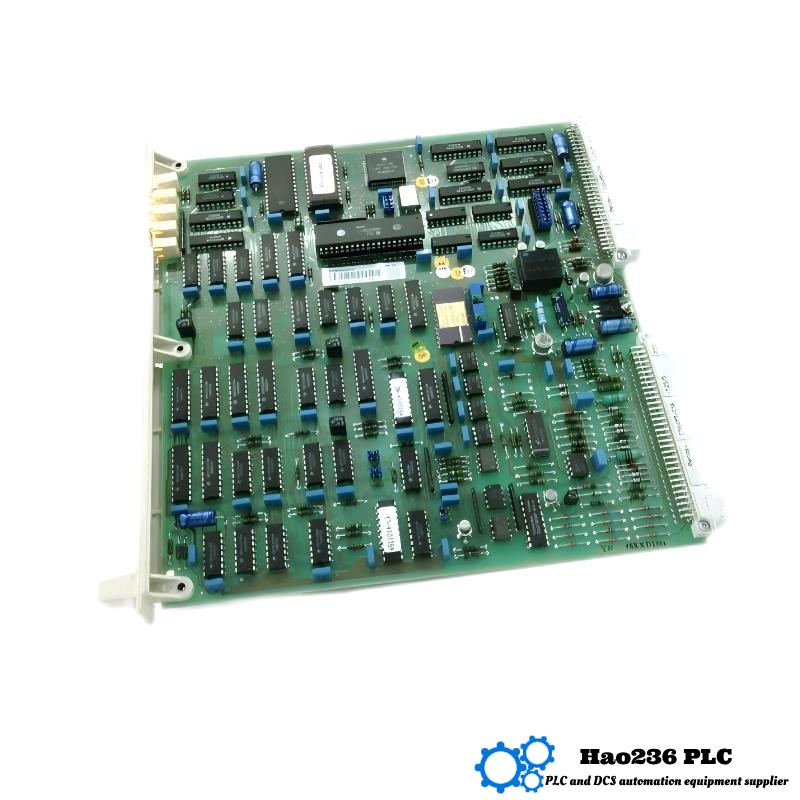

ABB DSDP 140B 57160001-ACX Pulse Counter Board
Product Introduction
The ABB DSDP 140B 57160001-ACX is a high-performance pulse counter board designed for precise counting and monitoring of pulse signals in industrial automation systems. Compatible with ABB’s Advant OCS and Advant S100 I/O systems, this module plays a crucial role in applications requiring accurate pulse counting, such as speed measurement, position tracking, and event counting. Its robust design and advanced features make it an essential component for enhancing control and monitoring capabilities in complex industrial environments.
Product Parameters
| Parameter | Description |
|---|---|
| Model | DSDP 140B 57160001-ACX |
| Type | Pulse Counter Board |
| Brand | ABB |
| Series | Advant OCS / Advant S100 I/O |
| Dimensions (mm) | 350 x 20 x 255 |
| Weight | 0.44 kg |
| Input Voltage | 24V DC or 125V DC |
| Output Voltage | 24V DC |
| Maximum Output Current | 10A |
| Operating Temperature Range | -40°C to +70°C |
| Pulse Counting Frequency | Up to 10 kHz |
| Counting Modes | Single, Double, Quadrature |
| Digital Inputs | 8 channels |
| Prescale Function | Yes |
| Communication Interfaces | Ethernet, RS-485 |
| Sampling Period | 100ms |
| Maximum I/O Points | 384 |
| Communication Protocols | Modbus, Ethernet, OPC |
Product Applications
The ABB DSDP 140B 57160001-ACX is utilized across various industrial sectors for applications that demand precise pulse counting and monitoring. Key applications include:
-
Speed Measurement: Accurately measures the rotational speed of machinery such as motors, conveyors, and fans, ensuring optimal performance and safety.
-
Position Tracking: Monitors the position of linear or rotary actuators using encoders or position sensors, crucial for automated assembly lines and robotic systems.
-
Event Counting: Counts occurrences of specific events in industrial processes, such as product units passing a sensor, aiding in production monitoring and quality control.
-
Data Logging: Records pulse data over time for analysis and monitoring, supporting predictive maintenance and process optimization.
-
Process Control: Utilizes pulse data to control processes or trigger specific actions based on predefined counts or rates, enhancing automation efficiency.
Product Advantages
-
High-Speed Counting: Capable of handling pulse frequencies up to 10 kHz, suitable for applications requiring rapid and precise pulse detection.
-
Versatile Counting Modes: Supports single, double, and quadrature counting modes, providing flexibility to meet diverse application requirements.
-
Robust Digital Inputs: Equipped with 8 digital input channels, allowing integration with various pulse-generating devices like encoders and sensors.
-
Prescale Functionality: Offers a prescale feature to adjust counting resolution, accommodating different pulse frequencies and enhancing measurement accuracy.
-
Wide Operating Temperature Range: Designed to operate reliably in extreme temperatures ranging from -40°C to +70°C, ensuring performance in harsh industrial environments.
-
Flexible Communication Interfaces: Supports Ethernet and RS-485 interfaces, facilitating seamless integration into existing control systems and networks.
-
Comprehensive Protocol Support: Compatible with multiple communication protocols, including Modbus, Ethernet, and OPC, enhancing interoperability with various industrial devices.
Brand and Series
-
Brand: ABB
Recommended Models from the Same Series or Related Models
| Model | Type | Channels | Voltage | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| DSDP 150B | Pulse Counter Board | 8 | 24V DC | 350 x 20 x 255 | 0.45 kg |
| DSDO 120 | Digital Output Module | 16 | 24V DC | 342 x 22.5 x 238.5 | 0.46 kg |
| DSAI 130 | Analog Input Module | 8 | 0–10V | 342 x 22.5 x 238.5 | 0.48 kg |
| DSAO 120 | Analog Output Module | 8 | 0–20mA | 342 x 22.5 x 238.5 | 0.48 kg |
| DSMB 121 | Bus Interface Module | — | — | 342 x 22.5 x 238.5 | 0.44 kg |
Recommended Popular Models from ABB
| Model | Type | Application | Dimensions (mm) | Weight |
|---|---|---|---|---|
| PM864AK01 | Control Processor | System Control | 185 x 160 x 85 | 1.5 kg |
| TU810V1 | Terminal Unit | Field Signal Connection | 100 x 50 x 75 | 0.25 kg |
| CI930F | Communication Interface | Remote Data Access | 110 x 110 x 50 | 0.3 kg |
| PM573-ETH | PLC CPU | Automation Controller | 160 x 90 x 60 | 0.7 kg |
| DI810 | Digital Input Module | Input Signal Acquisition | 100 x 50 x 75 | 0.26 kg |
FAQs
Q1: What is the input voltage for the DSDP 140B module?
A1: The DSDP 140B module operates with a nominal input voltage of 24 VDC.
Q2: How many pulse inputs does the DSDP 140B support?
A2: The DSDP 140B supports up to 8 configurable pulse inputs.
Q3: What is the temperature range for the DSDP 140B module?
A3: The DSDP 140B can operate in a temperature range of -25°C to +60°C.
Q4: Is the DSDP 140B suitable for use in harsh environments?
A4: Yes, it is designed to be robust and can operate reliably in industrial environments.
Q5: What is the weight of the DSDP 140B module?
A5: The DSDP 140B weighs 0.44 kg.
Q6: How is the DSDP 140B module mounted?
A6: The DSDP 140B can be mounted using DIN Rail.
Q7: What is the communication protocol for the DSDP 140B module?
A7: The DSDP 140B uses the DS-Local Bus interface for communication.
Q8: Can the DSDP 140B be used in applications outside of automation?
A8: While it is primarily used in industrial automation, the DSDP 140B can also be utilized in applications that require pulse counting and process control.
Q9: Does the DSDP 140B offer any form of protection against environmental factors?
A9: Yes, it has a humidity range of 5% to 95% (non-condensing), making it suitable for a variety of environments.
Q10: Can the DSDP 140B module be integrated with other ABB modules?
A10: Yes, the DSDP 140B can be easily integrated with other ABB modules in the INFI 90 series.
