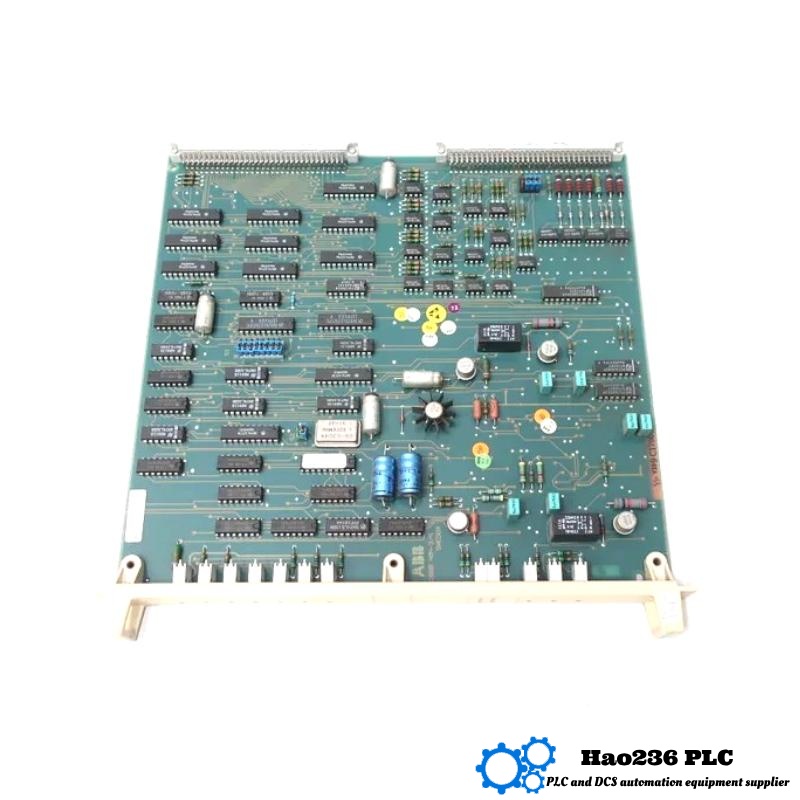

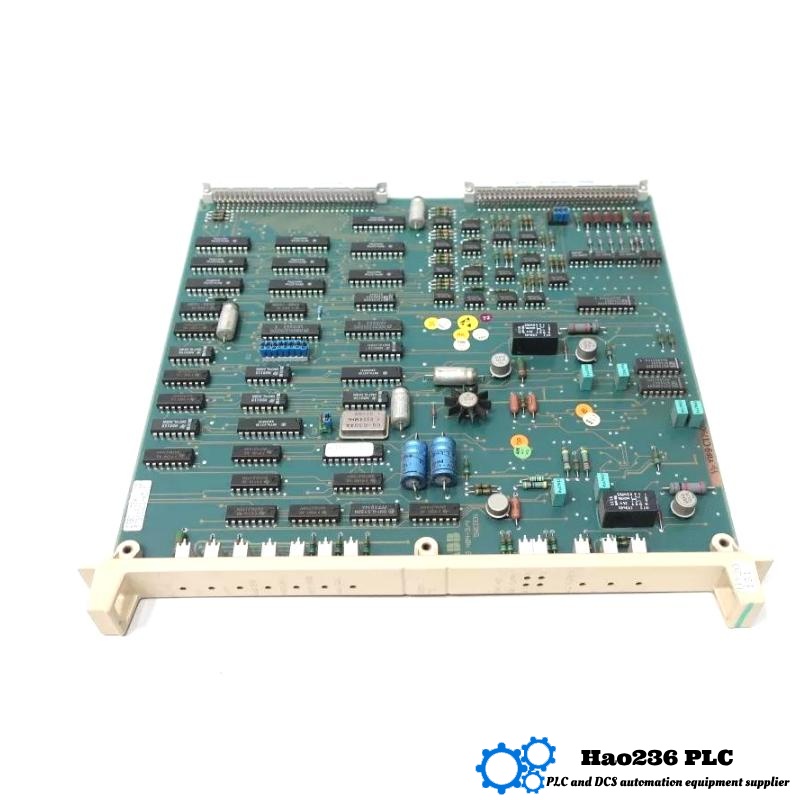

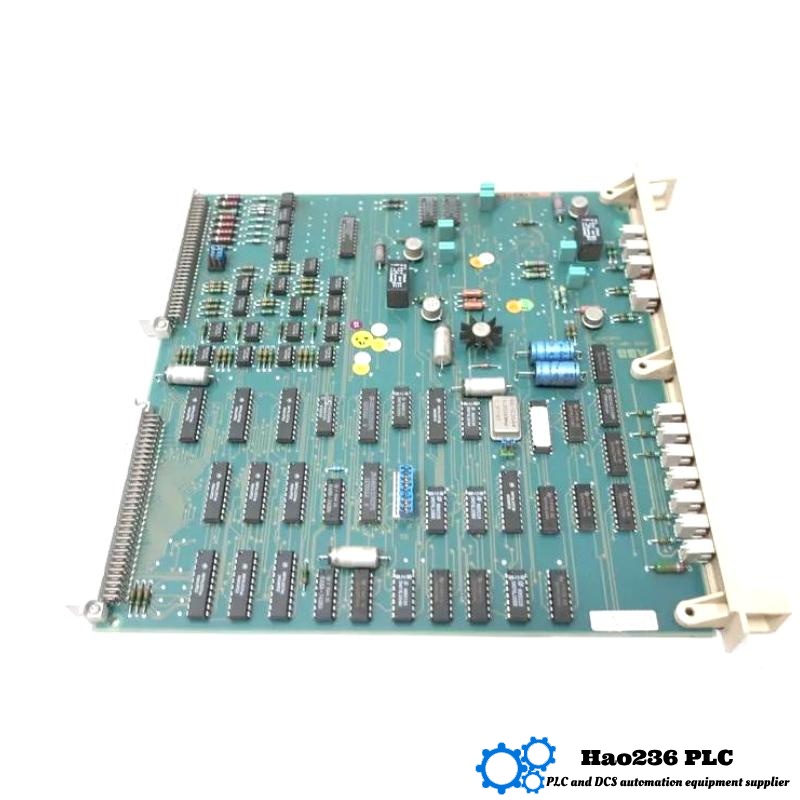

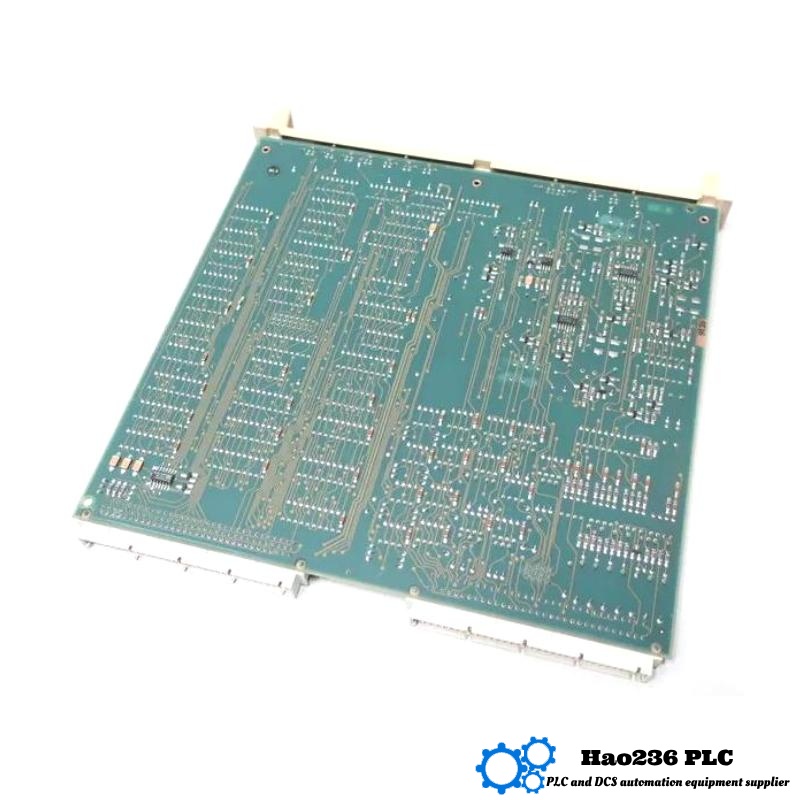

ABB DSBC 172 57310001-KD Bus Repeater Master Controller
Product Introduction
The ABB DSBC 172 57310001-KD Bus Repeater Master Controller is a high-performance device designed to extend and manage communication between field devices and control systems within industrial automation networks. It serves as a bridge that ensures reliable data transmission across extended communication lines, facilitating the connection of multiple bus networks in a seamless and efficient manner.
The DSBC 172 is part of ABB’s robust line of automation products, offering outstanding features such as high-speed data transfer, extended network reach, and robust system performance. This master controller is built to handle data traffic between control systems and field devices over long distances, ensuring high data integrity and communication stability even in challenging environments.
With Modbus, CANopen, and Profibus protocol support, this module is versatile and adaptable, ensuring compatibility with a wide range of industrial systems. Its compact design and lightweight structure make it easy to integrate into existing automation setups, providing improved communication in industrial networks.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | DSBC 172 57310001-KD |
| Type | Bus Repeater Master Controller |
| Dimensions (L x W x H) | 324 x 22.5 x 234 mm |
| Weight | 0.4 kg |
| Input Voltage | 24 V DC |
| Communication Protocol | Modbus, CANopen, Profibus |
| Output Voltage | 24 V DC |
| Current Consumption | 200 mA |
| Operating Temperature | -20°C to +60°C |
| Mounting Type | DIN Rail Mount |
| Signal Types | Digital, Analog |
| Housing Material | Plastic, ABS |
| Certifications | CE, UL, CSA |
Applications
The ABB DSBC 172 57310001-KD Bus Repeater Master Controller is widely used in a variety of industries where robust and extended communication between field devices and control systems is essential:
-
Industrial Automation: Used in large-scale control systems for connecting devices across extended distances.
-
Building Automation: Facilitates communication between various building management devices such as HVAC, security, and lighting systems.
-
Energy Management: Ideal for data communication between energy meters, control panels, and monitoring systems.
-
Process Control Systems: Ensures seamless data flow in complex process automation environments.
-
Machine Control Systems: Used to enhance communication in machines and robotic systems in manufacturing.
Advantages
-
Extended Communication Range: The bus repeater enhances the communication range, allowing control systems to effectively monitor and control devices over long distances.
-
High-Speed Data Transfer: Supports fast communication protocols like Modbus, CANopen, and Profibus, ensuring efficient data transfer with minimal latency.
-
Compact and Lightweight: With a dimension of 324 x 22.5 x 234 mm and weighing only 0.4 kg, the DSBC 172 is space-efficient and easy to install.
-
Energy Efficient: Operating with a low current consumption of 200 mA, it contributes to an energy-efficient control system without compromising performance.
-
Flexible Mounting Options: The module is designed to be mounted on DIN rails, making installation easy and fast in industrial panels and control boxes.
-
Reliable Communication: The DSBC 172 ensures stable and reliable communication between network devices, even in challenging environments with high electromagnetic interference.
-
Durable Construction: Made from ABS plastic, this module is built to withstand harsh environmental conditions, ensuring longevity and durability.
-
Wide Temperature Range: Operating effectively within -20°C to +60°C, it is suitable for various industrial environments.
-
Certified Quality: The DSBC 172 is certified with CE, UL, and CSA, guaranteeing its safety and reliability according to international standards.
Brand Overview: ABB
ABB is a global leader in automation and electrical technologies. Known for its cutting-edge industrial solutions, ABB offers products designed to increase productivity, efficiency, and safety in industrial operations. The DSBC 172 57310001-KD Bus Repeater Master Controller is an excellent example of ABB’s commitment to providing high-quality, reliable, and adaptable automation solutions for industries worldwide.
Related Models from the DSBC Series
Here are five related models from the DSBC Series:
| Model | Input Voltage | Dimensions (L x W x H) | Communication Protocol |
|---|---|---|---|
| DSBC 171 | 24 V DC | 324 x 22.5 x 234 mm | Modbus, CANopen |
| DSBC 173 | 24 V DC | 324 x 22.5 x 234 mm | Modbus, Profibus |
| DSBC 174 | 24 V DC | 324 x 22.5 x 234 mm | Modbus, CANopen |
| DSBC 175 | 24 V DC | 324 x 22.5 x 234 mm | Modbus, Profibus |
| DSBC 176 | 24 V DC | 324 x 22.5 x 234 mm | Modbus, CANopen |
Top 5 Popular Models from ABB
Here are five popular models from ABB:
| Model | Description |
|---|---|
| DSBB 104 | Industrial control module, optimized for high-precision monitoring in machinery systems |
| DSBB 110 | Sensor module, ideal for displacement and vibration measurement in industrial automation applications |
| DSBB 172B | Advanced sensor module, designed for high-accuracy displacement and vibration monitoring in large-scale machinery |
| DSBB 105 | Control module, designed for reliable performance in complex process control systems |
| DSBB 120 | High-performance module, enhanced for use in demanding industrial environments requiring real-time monitoring |
FAQs (Frequently Asked Questions)
1. What is the input voltage for the ABB DSBC 172 module?
2. What communication protocols are supported by the DSBC 172?
-
The module supports Modbus, CANopen, and Profibus protocols.
3. What is the current consumption of the DSBC 172 module?
-
The current consumption is 200 mA.
4. What is the operating temperature range for this module?
-
The module operates in temperatures ranging from -20°C to +60°C.
5. Can the DSBC 172 module be mounted on a DIN rail?
-
Yes, the module can be easily mounted on a DIN rail.
6. What are the dimensions of the ABB DSBC 172 module?
-
The module has dimensions of 324 x 22.5 x 234 mm.
7. What is the weight of the DSBC 172 module?
-
The weight is 0.4 kg.
8. What types of signals can the DSBC 172 module support?
-
The module supports both digital and analog signals.
9. What materials are used for the housing of the DSBC 172 module?
-
The housing is made of ABS plastic, ensuring durability and resilience.
10. Is the ABB DSBC 172 module certified?
-
Yes, it is certified with CE, UL, and CSA.
