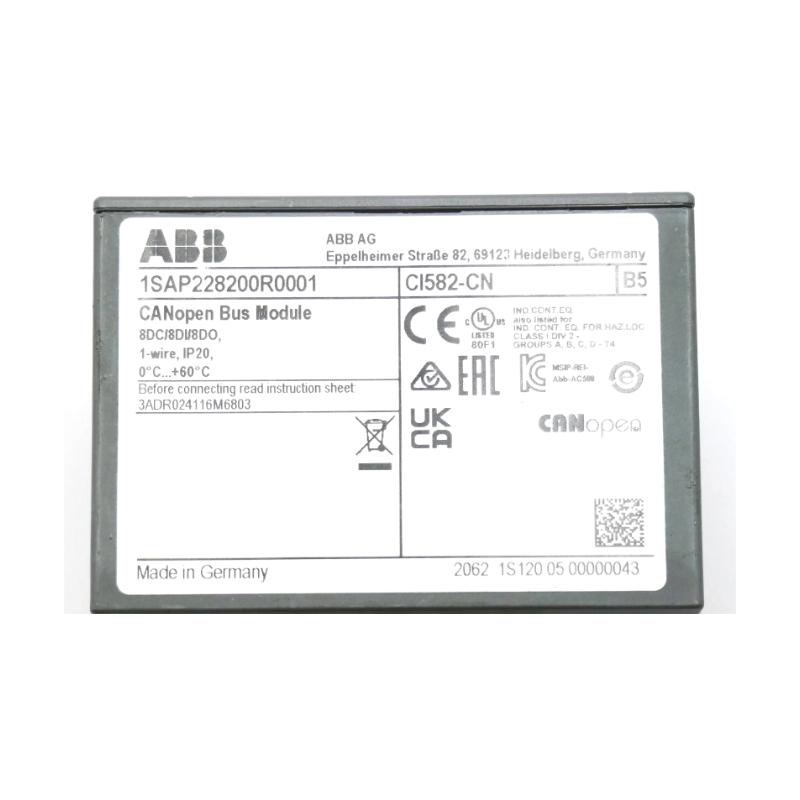

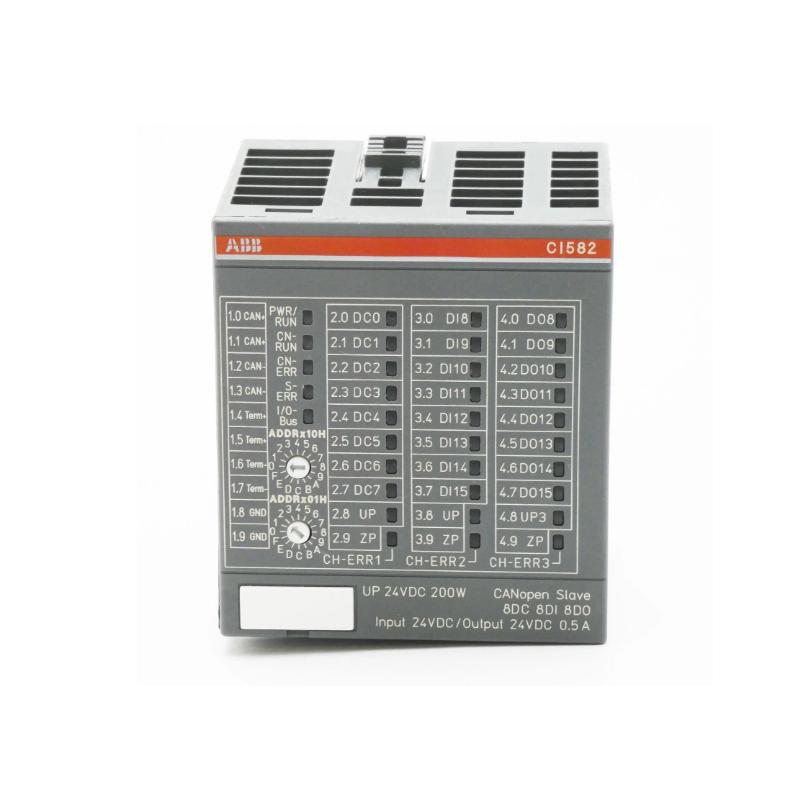

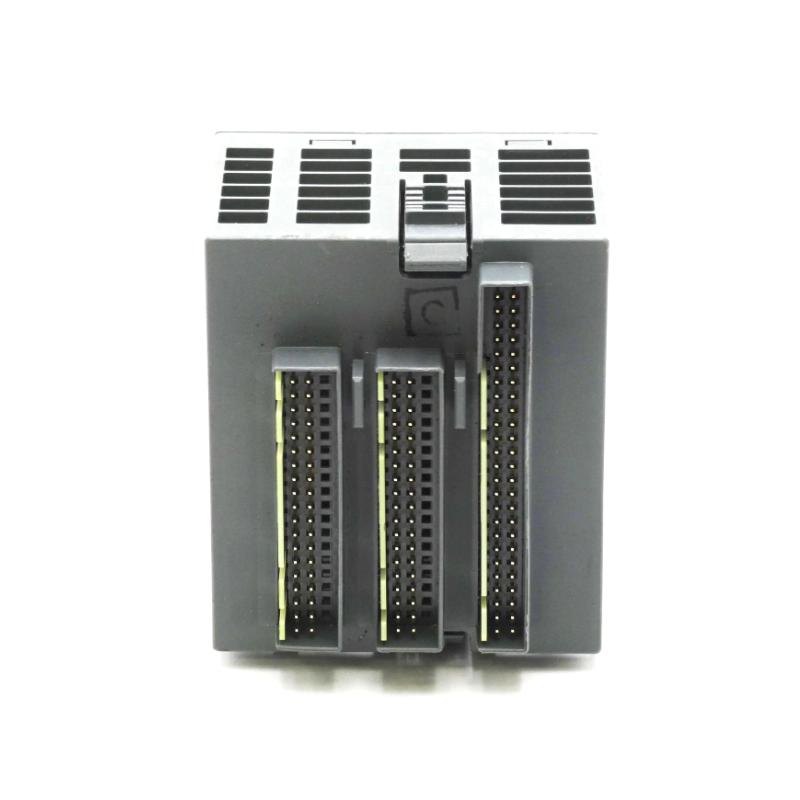

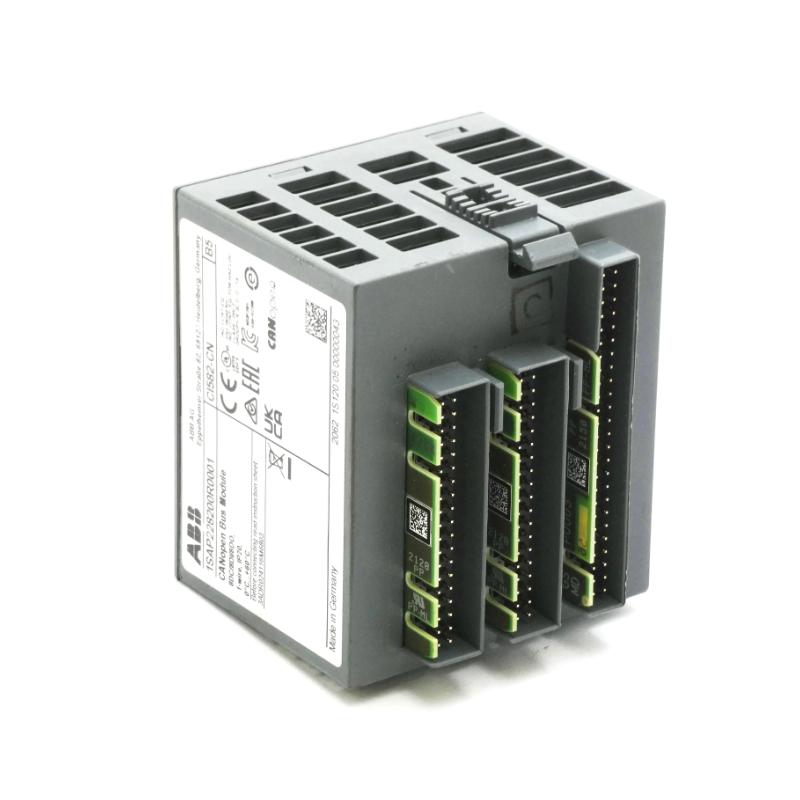

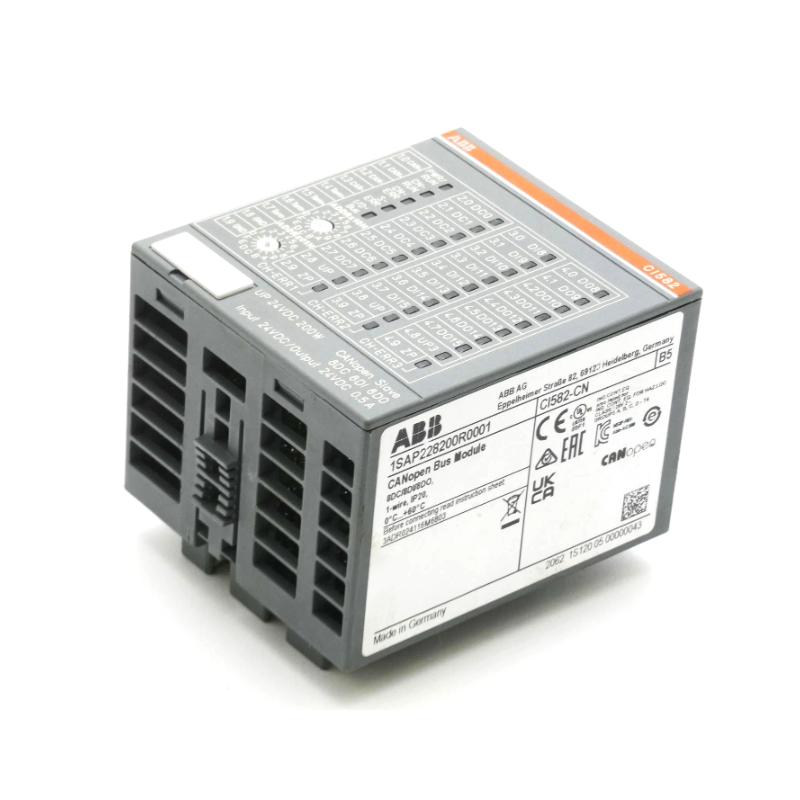

Product Technical Profile – ABB CI582-CN (1SAP228200R0001)
1) Brand and Series Overview
Brand: ABB
Series: CI58x Communication Interface Modules
The CI58x series comprises advanced communication interface modules designed for integration with industrial automation systems. These modules facilitate high-speed, deterministic, and reliable communication between programmable logic controllers (PLCs), distributed I/O, drives, and supervisory control systems.
The CI582-CN is a specialized communication module for Controller Area Network (CAN) bus systems. It allows PLCs to interface with CAN-based field devices and automation networks, enabling deterministic and robust data exchange in industrial environments.
2) Product Overview
The ABB CI582-CN (1SAP228200R0001) is a high-performance CAN interface module built for seamless integration with PLCs. It provides deterministic communication between PLCs and CAN-based devices such as sensors, actuators, drives, and remote I/O units.
The module is engineered for installation on standard DIN rails and is suitable for industrial environments with vibration, electrical noise, and wide temperature ranges. Its compact form factor ensures easy integration into control cabinets while providing reliable network connectivity and advanced diagnostics.
3) Technical Parameters
| Parameter | Specification |
|---|---|
| Model | CI582-CN (1SAP228200R0001) |
| Product Type | CAN Communication Interface Module |
| Series | CI58x Communication Modules |
| Supported Protocol | CAN bus (Controller Area Network) |
| Network Interface | CAN High-Speed 2.0B |
| Backplane Bus | PLC Backplane Compatible |
| Supply Voltage | 24 V DC |
| Power Consumption | ≤ 6 W |
| Mounting | DIN Rail (35 mm) |
| Protection Rating | IP20 |
| Operating Temperature | −20 °C to +60 °C |
| Storage Temperature | −40 °C to +85 °C |
| Relative Humidity | 5–95 % non-condensing |
| Terminal Connection | Screw Terminals / CAN Connector |
| Dimensions (H × W × D) | 125 × 88 × 110 mm |
| Weight (kg) | 1.15 kg |
| Housing Material | Industrial flame-retardant polymer |
4) Product Description
The CI582-CN module enables PLC systems to communicate efficiently with CAN-based networks, commonly used in industrial automation for distributed I/O, drives, sensors, and actuators.
This module provides deterministic, high-speed data transfer for time-critical control applications. It supports advanced diagnostics for network monitoring, fault detection, and maintenance. Its industrial-grade design ensures reliable operation even in environments with vibration, temperature variations, and electrical noise.
5) Key Advantages
Deterministic CAN Communication: Ensures reliable timing for critical control tasks.
Industrial-Grade Design: Durable construction allows operation under harsh conditions.
DIN Rail Mountable: Compact form factor for convenient integration into control panels.
Backplane Compatibility: Seamless connection to PLC backplanes for multi-rack systems.
Advanced Diagnostics: Enables fault detection and network monitoring for preventive maintenance.
Low Power Consumption: Efficient energy usage with ≤6 W operation.
Flexible Connectivity: Supports standard CAN bus networks with robust communication.
6) Typical Applications
• CAN-based distributed I/O and automation networks
• Industrial drives and motor control integration
• Sensor and actuator communication in automated production lines
• Real-time process control and monitoring systems
• Packaging, assembly, and robotics applications
• Supervisory control and SCADA system integration
• Predictive maintenance and fault diagnostics
• Modular and multi-rack PLC configurations requiring CAN connectivity
7) Five Related Models (Same Series / Related Modules)
| Model | Function / Protocol | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| CI580-CN | CAN Interface Module | 125 × 88 × 110 | 1.10 |
| CI581-CN | CAN Bus Communication | 125 × 88 × 110 | 1.12 |
| CI583-CN | High-Speed CAN Module | 125 × 90 × 110 | 1.18 |
| CI584-CN | Multi-CAN Interface | 125 × 92 × 110 | 1.20 |
| CI585-CN | Enhanced CAN Communication | 125 × 95 × 110 | 1.25 |
8) Five Popular ABB Models (Industrial Portfolio)
| Model | Product Type | Primary Feature / Rating | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| ACS580‑01‑12A6‑4 | Variable Frequency Drive | 5.5 kW | 358 × 152 × 203 | 6.5 |
| ACS880‑01‑017A‑4 | Drive Inverter | 17 kW | 220 × 120 × 180 | 3.6 |
| Emax 2 E2.2 | Air Circuit Breaker | 1600 A | 371 × 210 × 268 | 8.2 |
| Tmax XT4N | Molded Case Circuit Breaker | 250 A | 140 × 105 × 160 | 2.1 |
| AF16‑30‑10 | Contactor | 16 A | 90 × 55 × 78 | 0.42 |
9) Frequently Asked Questions (FAQ)
Q1: What is the main purpose of CI582-CN?
A1: To provide deterministic and high-speed CAN bus communication for PLC systems.
Q2: Which protocol does this module support?
A2: Standard CAN bus (Controller Area Network) protocol.
Q3: What supply voltage is required?
A3: 24 V DC.
Q4: How is CI582-CN mounted?
A4: It is installed on a standard 35 mm DIN rail.
Q5: Can it communicate with multiple field devices?
A5: Yes, it supports communication with sensors, actuators, and remote I/O modules.
Q6: What is the operating temperature range?
A6: −20 °C to +60 °C.
Q7: Is it suitable for industrial environments?
A7: Yes, it is designed for environments with vibration, temperature variations, and electrical noise.
Q8: Does it provide diagnostics and fault monitoring?
A8: Yes, it provides advanced network diagnostics and status monitoring.
Q9: What are its dimensions and weight?
A9: 125 × 88 × 110 mm and 1.15 kg.
Q10: Is it low-maintenance?
A10: Yes, its industrial design ensures minimal maintenance requirements.
