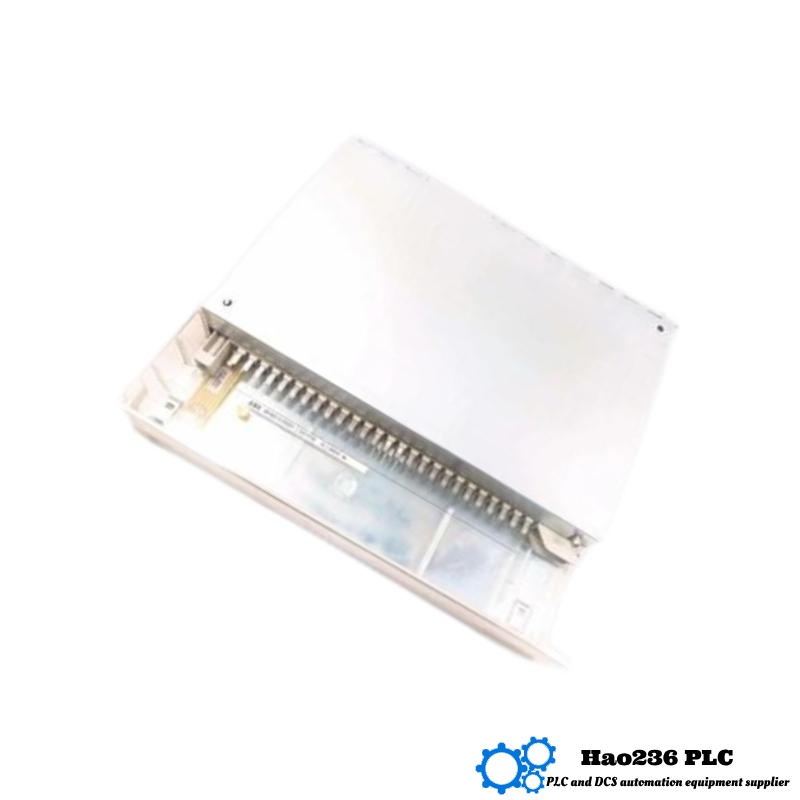

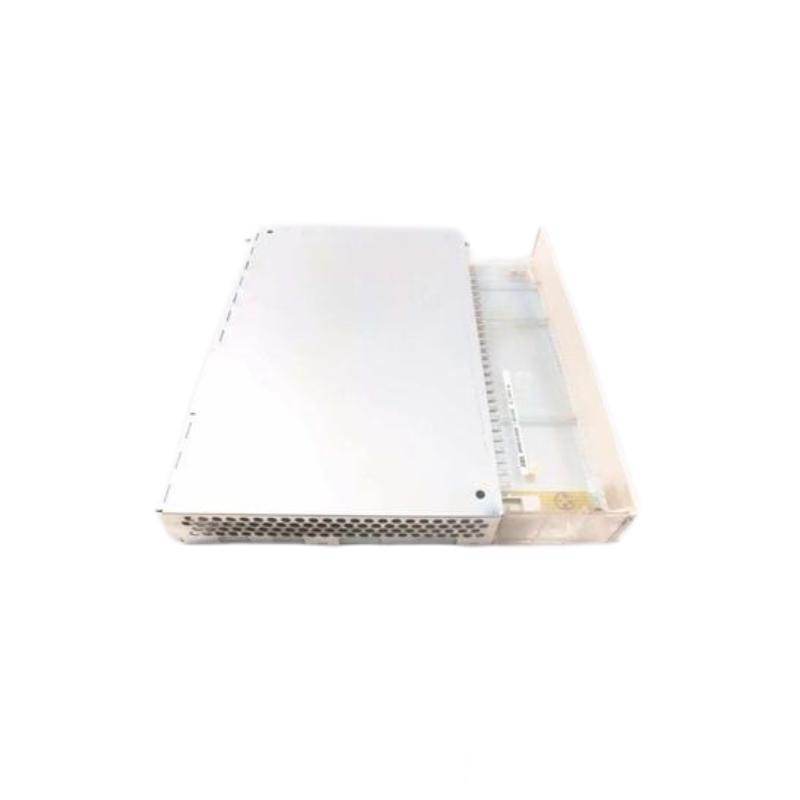

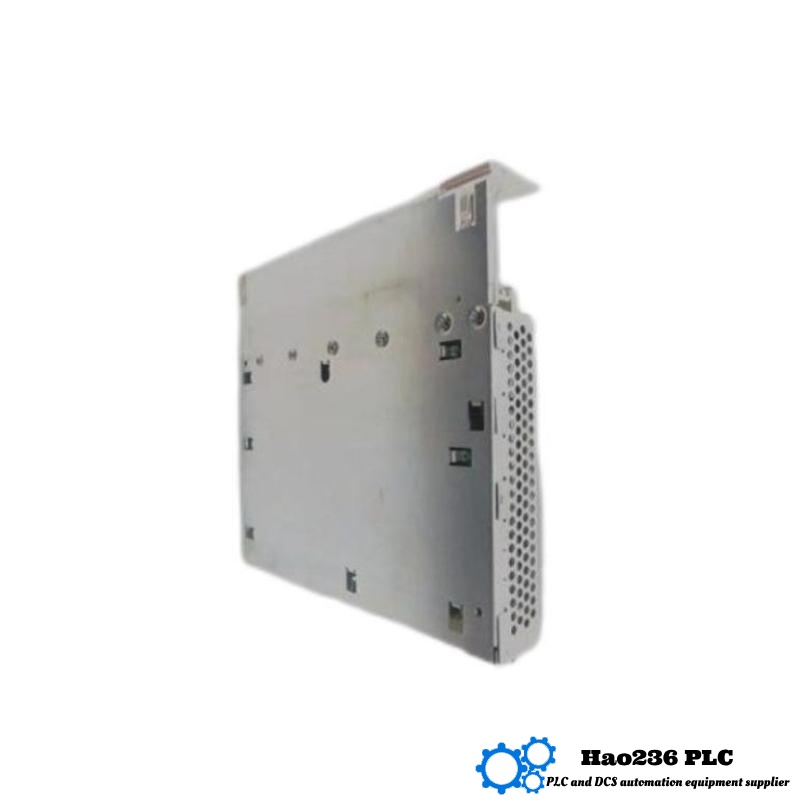

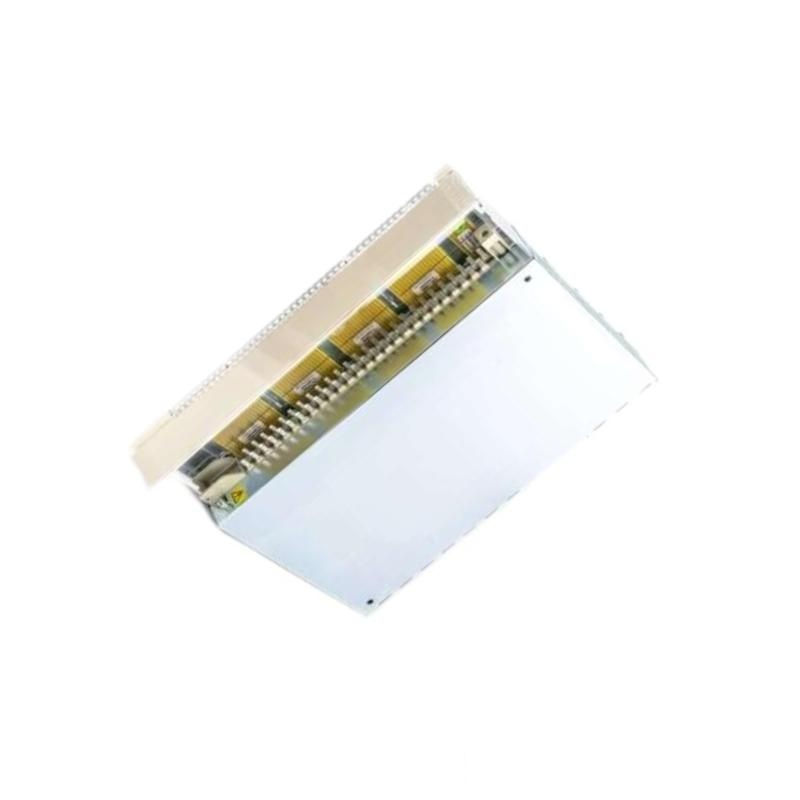

ABB AX645 3BHB001914R0001 Analog Input/Output Module

Product Overview

The ABB AX645 3BHB001914R0001 is a versatile analog input/output module that offers high-quality signal management for industrial applications. This module is part of the ABB S600 I/O series, which is well-known for its modular and scalable design, allowing for easy integration into a variety of automation and control systems. The AX645 is designed to handle both analog inputs and outputs simultaneously, making it highly adaptable for different types of industrial automation needs.

The AX645 provides reliable signal processing, featuring high-precision input and output ranges for applications in process control, machine control, energy management, and building automation. Its compact design, combined with robust performance, makes it ideal for demanding industrial environments.


Technical Parameters

Parameter Value
Model Number AX645 3BHB001914R0001
I/O Type Analog Input/Output Module
Number of Inputs/Outputs 4 Inputs / 4 Outputs
Input Range 0-10 V / 4-20 mA
Output Range 0-10 V / 4-20 mA
Accuracy ±0.1% of Full Scale
Supply Voltage 24 V DC
Operating Temperature Range -20°C to +60°C
Dimensions (L x W x H) 200 x 150 x 50 mm
Weight 1.2 kg
Mounting Type DIN Rail Mountable
Power Consumption 7 W
Status Indicators LED indicators for I/O status
Compliance CE, UL certified
Protection Class IP20 (Indoor use)

Product Applications

The ABB AX645 module is ideal for a wide range of applications requiring analog signal processing. Its versatility makes it a great choice for the following industries:

  1. Process Control Systems: Perfect for managing analog signals in chemical plants, power plants, and water treatment systems.

  2. Machine Control: Ideal for manufacturing lines, robotics, and other machinery requiring analog inputs and outputs for precise control.

  3. Energy Management: The AX645 is widely used in energy distribution and monitoring systems, providing efficient control and monitoring of energy usage.

  4. Building Automation: It plays a vital role in controlling systems such as HVAC, lighting, and security in smart buildings and large facilities.

  5. Testing and Measurement Systems: The AX645 is suitable for precise data acquisition and signal processing in test equipment and industrial measurement systems.


Product Advantages

  • Dual Functionality: This module handles both analog inputs and analog outputs, reducing the need for multiple separate modules and simplifying system design.

  • High Precision: Offering an accuracy of ±0.1%, the AX645 ensures precise control and monitoring of signals, which is critical in high-accuracy applications.

  • Wide Input/Output Ranges: With 0-10 V and 4-20 mA ranges, the AX645 is flexible enough to handle a variety of industrial control and monitoring tasks.

  • Compact and Efficient: Measuring 200 x 150 x 50 mm and weighing only 1.2 kg, the AX645 is easy to integrate into control cabinets, even in space-constrained environments.

  • Seamless Integration: The AX645 is part of the ABB S600 I/O series, ensuring compatibility and ease of integration with other ABB automation products.

  • Durable Construction: Designed for harsh industrial environments, the AX645 is housed in an IP20 rated enclosure, providing protection against dust and contact with internal components.

  • Energy Efficient: The AX645 operates with a low power consumption of just 7 W, contributing to overall system energy savings.


Brand Overview

ABB is a global leader in industrial automation, providing cutting-edge solutions for a wide range of industries, including energy, transportation, manufacturing, and building systems. Known for their reliability and innovation, ABB products are recognized for their performance, scalability, and integration capabilities. The AX645 is part of the S600 I/O series, a family known for its high reliability, flexibility, and ease of use in modern automation systems.


Related Models in the S600 I/O Series

Model Number Description Number of Channels Dimensions (L x W x H) Weight Input/Output Range
AX646 Analog Input/Output Module 8 200 x 150 x 50 mm 1.3 kg 0-10 V / 4-20 mA
AI602 Analog Input Module 16 120 x 100 x 50 mm 0.5 kg 0-10 V / 4-20 mA
AO611 Analog Output Module 16 120 x 100 x 50 mm 0.5 kg 0-20 mA / 4-20 mA
DI610 Digital Input Module 16 120 x 100 x 50 mm 0.5 kg 24 V DC
DO611 Digital Output Module 16 120 x 100 x 50 mm 0.5 kg 24 V DC

Popular ABB Models

Model Number Description Number of Channels Dimensions (L x W x H) Weight Input/Output Range
AI611 Analog Input Module 16 120 x 100 x 50 mm 0.5 kg 0-10 V / 4-20 mA
DO611 Digital Output Module 16 120 x 100 x 50 mm 0.5 kg 24 V DC
AO602 Analog Output Module 8 120 x 100 x 50 mm 0.5 kg 0-20 mA
DO602 Digital Output Module 8 120 x 100 x 50 mm 0.5 kg 24 V DC
AI602 Analog Input Module 8 120 x 100 x 50 mm 0.5 kg 0-10 V


FAQ (Frequently Asked Questions)

Q1: What input/output ranges does the ABB AX645 support?
A1: The AX645 supports 0-10 V and 4-20 mA input/output ranges.

Q2: How many analog channels are available on the ABB AX645?
A2: The AX645 has 4 input channels and 4 output channels.

Q3: What power supply is required for the ABB AX645?
A3: The AX645 requires a 24 V DC power supply.

Q4: What is the accuracy of the ABB AX645?
A4: The AX645 offers an accuracy of ±0.1% of the full scale.

Q5: What is the temperature range for the ABB AX645?
A5: The operating temperature range for the AX645 is -20°C to +60°C.

Q6: What are the dimensions of the ABB AX645 module?
A6: The AX645 has dimensions of 200 x 150 x 50 mm.

Q7: How much does the ABB AX645 weigh?
A7: The weight of the AX645 is 1.2 kg.

Q8: Can the ABB AX645 module be mounted on a DIN rail?
A8: Yes, the AX645 module is designed for DIN rail mounting.

Q9: What is the protection class of the ABB AX645?
A9: The AX645 has an IP20 protection class, suitable for indoor use.

Q10: Is the ABB AX645 module CE certified?
A10: Yes, the AX645 is CE certified.
