Product Overview

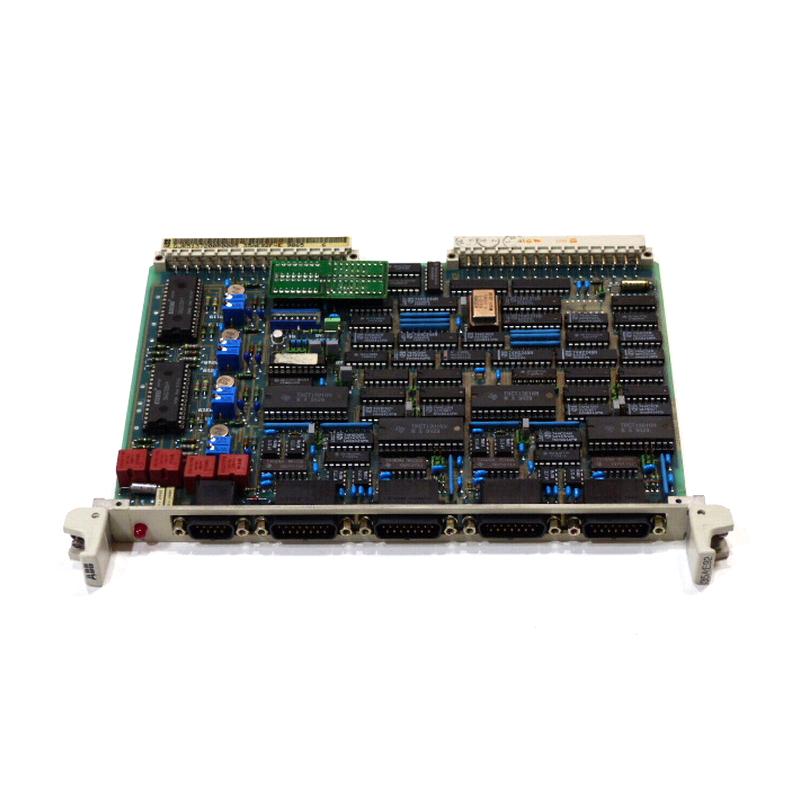

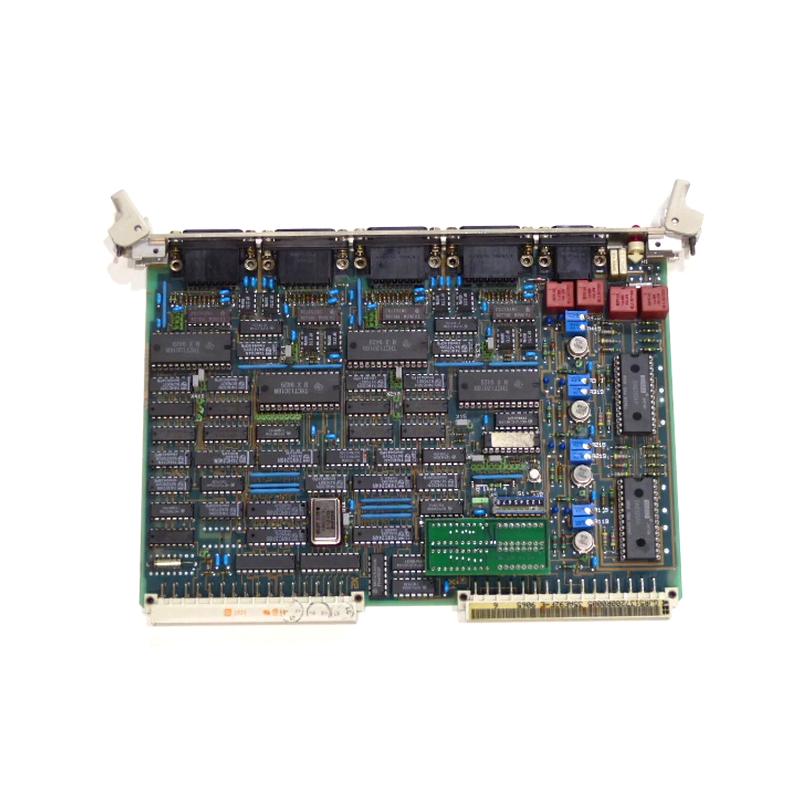

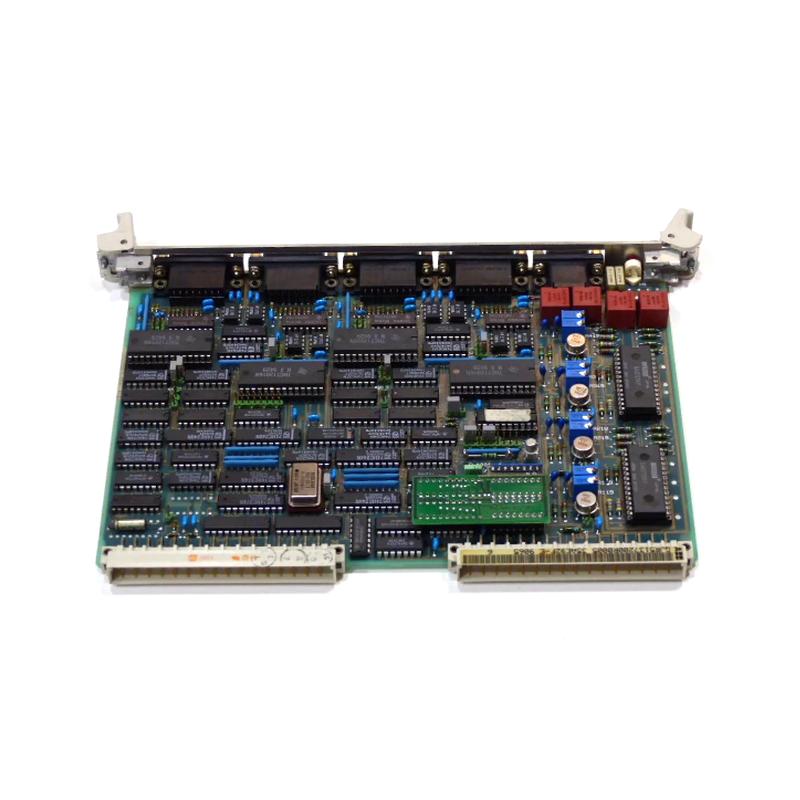

The ABB 35AE92F-E GJR5137200R0005 4-Channel Axis Module is a high-performance industrial motion control component designed to coordinate and control up to four independent axes in automated systems. With physical dimensions of 120 × 60 × 30 mm and a weight of 0.35 kg, this compact module delivers precise position control and synchronized motion for demanding industrial applications.
Manufactured by ABB, the 35AE92F-E is built for reliable multi-axis control, robust signal processing, and seamless integration into ABB automation platforms.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 35AE92F-E GJR5137200R0005 |
| Product Type | 4-Channel Axis Module |
| Manufacturer | ABB |
| Dimensions | 120 × 60 × 30 mm (H × W × D) |
| Weight | 0.35 kg |
| Function | Controls up to four motion axes simultaneously |
| Installation | Rack-mounted or integrated within control cabinet |
| Application | Industrial motion and automation control |
| Operating Environment | Control panels, automation racks |
Functional Description
The 35AE92F-E 4-Channel Axis Module is designed to:
-
Control and synchronize four motion axes such as motors or servos
-
Process position feedback and command signals for precise operation
-
Interface with higher-level controllers like PLCs or motion CPUs
-
Enable coordinated motion profiles for complex automation tasks
-
Support real-time motion adjustments for dynamic system demands
This module enables accurate and reliable motion control, which is essential for applications requiring coordinated multi-axis movements.
Industrial Applications
This axis module is widely used in:
-
CNC machining and robotic automation
-
Material handling and palletizing systems
-
Automated assembly lines
-
Packaging and printing machinery
-
Semiconductor manufacturing equipment
-
Precision positioning and motion control systems
Owing to its compact design, the module supports high-density installations in control cabinets without sacrificing performance.
Key Advantages
-
Multi-axis motion control: Up to four independent channels in a single module
-
Compact form factor: 120 × 60 × 30 mm size reduces system footprint
-
Precision performance: Accurate motion and position control
-
Industrial-grade reliability: Designed for continuous operation under harsh conditions
-
Seamless integration: Works with ABB automation platforms and motion systems
These advantages make the 35AE92F-E ideal for applications where synchronized axis coordination and precise motion are critical.
Recommended Complementary Components
| Model | Description | System Role |
|---|---|---|
| 23NG23 | Power Module | Supplies regulated system power |
| 23ZG21A | Circuit Board | Internal signal routing and interfacing |
| 23BE21 | Binary Input Board | Receives digital feedback signals |
| 23BA20 | Binary Output Module | Controls external devices and actuators |
| 23WT21 | Modem | Remote communication and monitoring |
Conclusion
The ABB 35AE92F-E GJR5137200R0005 4-Channel Axis Module is a compact, precise, and reliable motion control solution for industrial automation systems. With dimensions of 120 × 60 × 30 mm and a weight of 0.35 kg, it delivers synchronized multi-axis motion control, robust signal processing, and seamless system integration.
For facilities requiring advanced motion coordination, high performance, and dependable industrial operation, the 35AE92F-E module is a key component in cutting-edge automation architectures.
