- Siemens
- 6SN1118-0DK21-0AA2
- Digital High Performance Closed-Loop Control Unit
- Germany
- 330 × 51 × 152 mm
- 0.51 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 5
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

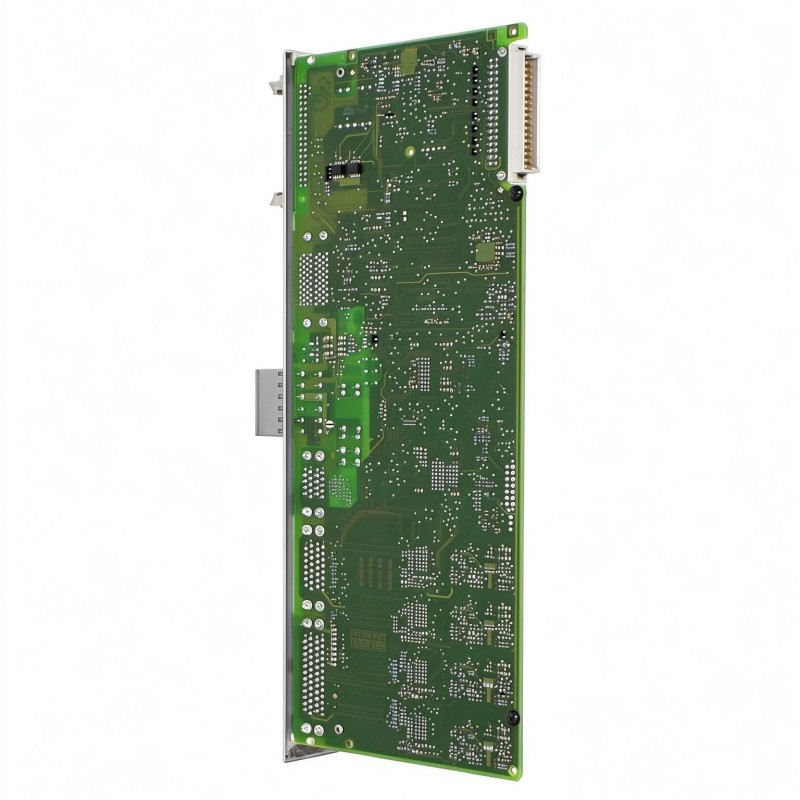

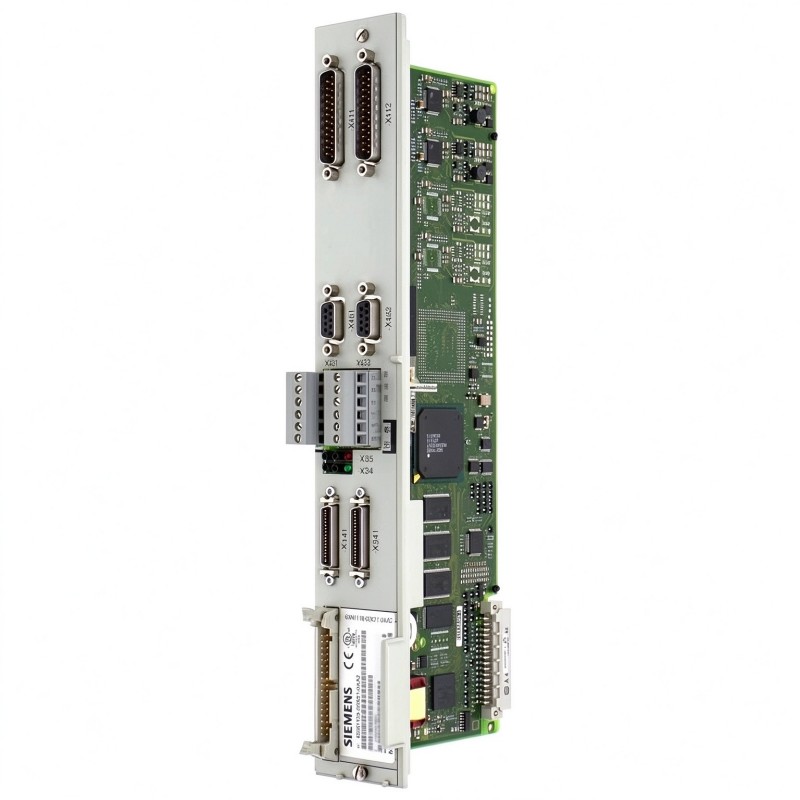

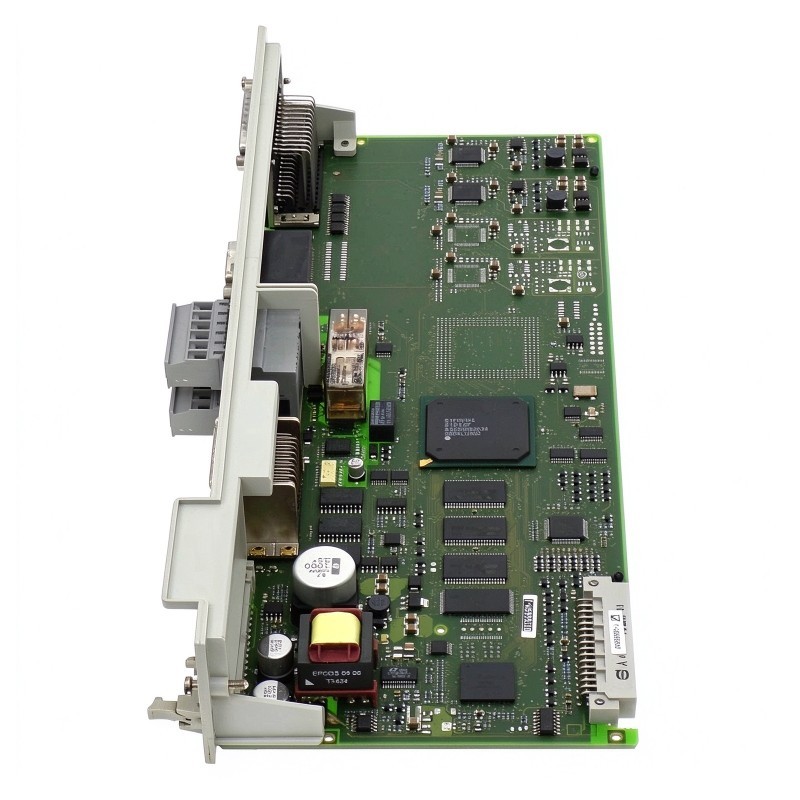

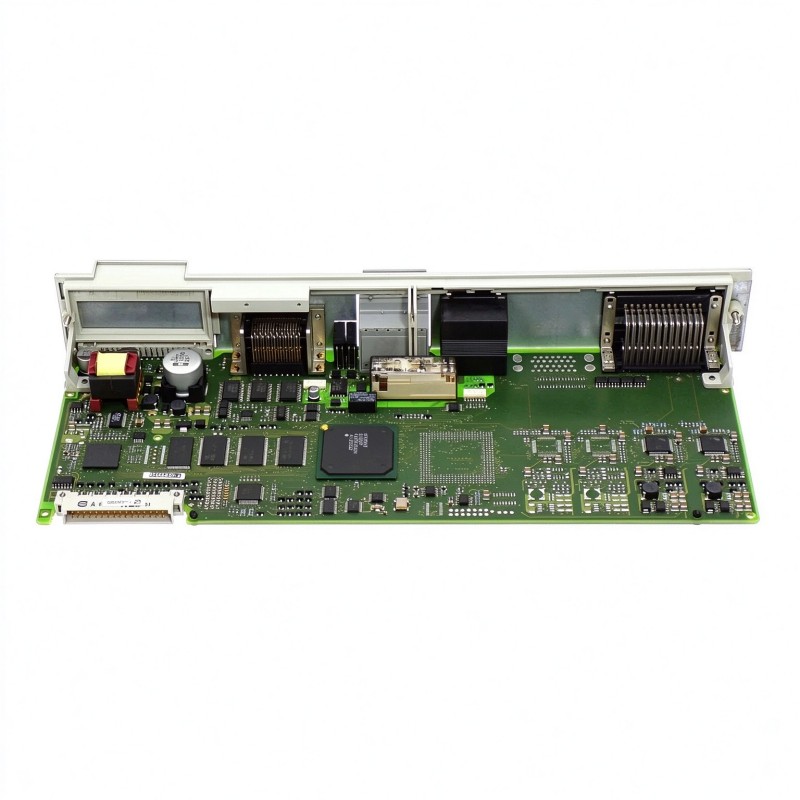

The Siemens 6SN1118-0DK21-0AA2 is a high-performance digital control unit for the SIMODRIVE 611-D drive system. This two-axis control unit handles closed-loop drive-control functions in CNC machine tools, connecting digital motion commands with feedback from compatible motor encoders.
In a machine-tool application, the control unit works within the drive system to regulate the assigned axes according to the configured CNC program. It supports a digital setpoint architecture and sin/cos 1 Vpp encoder feedback, making the encoder interface and the existing drive configuration important factors when selecting a replacement.
The unit is a control component rather than a complete motor drive. It operates alongside the appropriate SIMODRIVE power modules, motors, feedback devices, and numerical control system. Its two-axis configuration allows the associated control functions to be integrated into one plug-in unit, provided that the machine’s axis assignments and hardware configuration are compatible.
For maintenance and replacement work, the complete article number must be checked carefully. Similar SIMODRIVE 611-D units may differ in feedback arrangements, measuring-system support, or control configuration even when their external appearance is similar.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model / Article Number | 6SN1118-0DK21-0AA2 |
| Product Family | SIMODRIVE 611-D |
| Product Type | Digital High Performance Closed-Loop Control Unit |
| Control Configuration | Two-Axis |
| Drive Control | Digital Closed-Loop Control |
| Encoder Interface | sin/cos 1 Vpp |
| NC Software Requirement | Version 6.04.09 or later |
| Dimensions | 330 × 51 × 152 mm |
| Weight | 0.51 kg |
Product Features
- Two-axis control architecture: Supports control functions for two assigned drive axes within a compatible SIMODRIVE 611-D system.
- High-performance digital control: Handles closed-loop drive regulation for supported CNC applications.
- sin/cos 1 Vpp encoder interface: Uses the specified encoder signal format for feedback.
- Digital setpoint integration: Operates within the SIMODRIVE digital drive-control architecture.
- CNC system compatibility: Requires suitable NC software and drive parameters for the configured installation.
- Plug-in control design: Integrates into the corresponding SIMODRIVE drive assembly.
Working Principle
The 6SN1118-0DK21-0AA2 processes the control information needed for closed-loop operation of its assigned drive axes. The CNC system supplies motion commands, while compatible encoders provide feedback signals representing motor movement. The control unit uses the command and feedback information within the drive-regulation process.
The specified sin/cos 1 Vpp encoder interface is a key part of this arrangement. The encoder, feedback wiring, and configured drive parameters must all match the control unit’s requirements. The associated power module supplies motor power, while the control unit handles digital regulation functions.
The typical signal path is:
CNC Controller → Digital Drive Control Unit → SIMODRIVE Power Module → Motor → Encoder Feedback
During operation, the drive system evaluates the commanded motion against the available feedback and adjusts motor operation accordingly. Actual performance depends on the connected power electronics, motor, encoder configuration, and the parameters loaded into the CNC and drive system.
When replacing the control unit, technicians should verify the original feedback arrangement and software configuration instead of assuming that another two-axis SIMODRIVE module will operate identically.
Role in the SIMODRIVE 611-D Control Architecture
The 6SN1118-0DK21-0AA2 occupies the digital control layer between the CNC system and the associated drive power electronics. It processes control information for the assigned axes and participates in the closed-loop regulation of the connected drives.
CNC Controller → 6SN1118-0DK21-0AA2 → SIMODRIVE Power Module → Drive Motor → Encoder Feedback
| System Element | Function |
|---|---|
| 6SN1118-0DK21-0AA2 | Performs digital closed-loop control functions for two assigned axes |
| CNC Controller | Supplies motion commands and coordinates machine operation |
| SIMODRIVE Power Module | Supplies electrical power to the connected motor |
| sin/cos 1 Vpp Encoder | Provides compatible feedback signals |
| Feed Drive or Spindle Motor | Produces the commanded mechanical movement |
| NC Software and Drive Parameters | Define the operating configuration and control behavior |
Industrial Applications
| Application | Typical Use |
|---|---|
| CNC Machine Tools | Closed-loop control of configured drive axes |
| Milling Machines | Coordinating feed movement with machining operations |
| Turning Centers | Regulating drive movement within the CNC architecture |
| Precision Machining Systems | Processing encoder feedback for controlled motion |
| Multi-Axis Equipment | Integrating two drive-control axes into a compatible SIMODRIVE system |
| CNC Maintenance | Replacing a failed control unit after verifying the original configuration |
| Drive System Refurbishment | Restoring control functions in an existing SIMODRIVE 611-D installation |
Installation and Maintenance
- Verify the article number: Confirm that the replacement is 6SN1118-0DK21-0AA2 and distinguish it from similar control units with different suffixes.
- Check axis assignments: Confirm which drive axes are controlled by the unit and whether the machine’s configuration matches its two-axis architecture.
- Verify encoder compatibility: Check that the installed feedback devices provide the specified sin/cos 1 Vpp signals.
- Confirm software requirements: Verify that the NC software meets the required version and supports the existing drive configuration.
- Isolate the drive system: Follow the machine’s electrical safety procedures and isolate the relevant supplies before removing or installing the control unit.
- Inspect the mounting position: Check the designated slot, connectors, and mating interfaces for damage or contamination.
- Install the unit correctly: Fit the control unit into the specified SIMODRIVE assembly position and ensure the connections are fully seated.
- Inspect feedback wiring: Check encoder cables and connectors for loose contacts, damage, or incorrect assignments.
- Review drive parameters: Confirm the axis configuration, motor data, encoder settings, and control parameters against the machine’s approved records.
- Check associated power modules: Verify that the connected power electronics are appropriate for the assigned drives and the existing system configuration.
- Perform a controlled test: Check drive enable behavior, feedback signals, axis response, and fault messages before returning the equipment to production.
- Document the replacement: Record the installed article number, software version, parameter changes, and functional test results.
Compatible System Components
| Component | Function |
|---|---|
| SIMODRIVE 611-D Power Module | Supplies motor power for the configured drive |
| CNC Controller | Generates motion commands and coordinates the axes |
| Compatible sin/cos 1 Vpp Encoder | Provides the required feedback signals |
| Feed Drive Motor | Produces controlled feed-axis movement |
| Main Spindle Motor | Provides spindle movement in a compatible configuration |
| Encoder Feedback Cable | Carries feedback signals to the control interface |
| NC Software and Drive Parameters | Establish the control-unit configuration |
Recommended Related Models
| Model | Product Type | Selection Consideration |
|---|---|---|
| Siemens 6SN1118-0DK21-0AA0 | Digital High Performance Closed-Loop Control Unit | Verify the exact hardware variant and machine configuration before substitution |
| Siemens 6SN1118-0DK21-0AA1 | Digital Closed-Loop Plug-In Performance Control Unit | Compare the complete article number and applicable system requirements |
| Siemens 6SN1118-0DK23-0AA0 | Digital High Performance Closed-Loop Control Unit | Verify the measuring-system and encoder configuration before selecting |
| Siemens 6SN1118-0DJ21-0AA0 | Digital High Performance Closed-Loop Control Unit | Check the axis configuration; this is a different control arrangement |
Key Advantages
- Two-axis digital closed-loop control within the SIMODRIVE 611-D architecture.
- Support for the specified sin/cos 1 Vpp encoder interface.
- Integration with CNC-based digital drive control.
- Suitable for configured feed-drive and spindle-drive applications.
- Practical for replacement and maintenance when the original system configuration is verified.
Technical FAQs
What encoder interface is specified for the 6SN1118-0DK21-0AA2?
The specified encoder interface is sin/cos 1 Vpp. The connected encoder and feedback wiring must match this interface and the machine’s configured drive parameters.
What NC software version is required for this control unit?
The listed requirement is NC software version 6.04.09 or later. The software and complete drive configuration should be checked before installing a replacement.
Can the 6SN1118-0DK21-0AA2 replace another two-axis SIMODRIVE 611-D control unit?
Not solely because both units support two axes. Verify the complete article number, encoder interface, measuring-system configuration, software requirements, and drive parameters before substitution.
What should be checked if the control unit does not regulate the drive correctly after replacement?
Check encoder signals, axis assignments, NC software compatibility, drive parameters, power-module status, and active fault messages. These checks help identify whether the problem is related to configuration, feedback, or the wider drive system.
