Product Overview

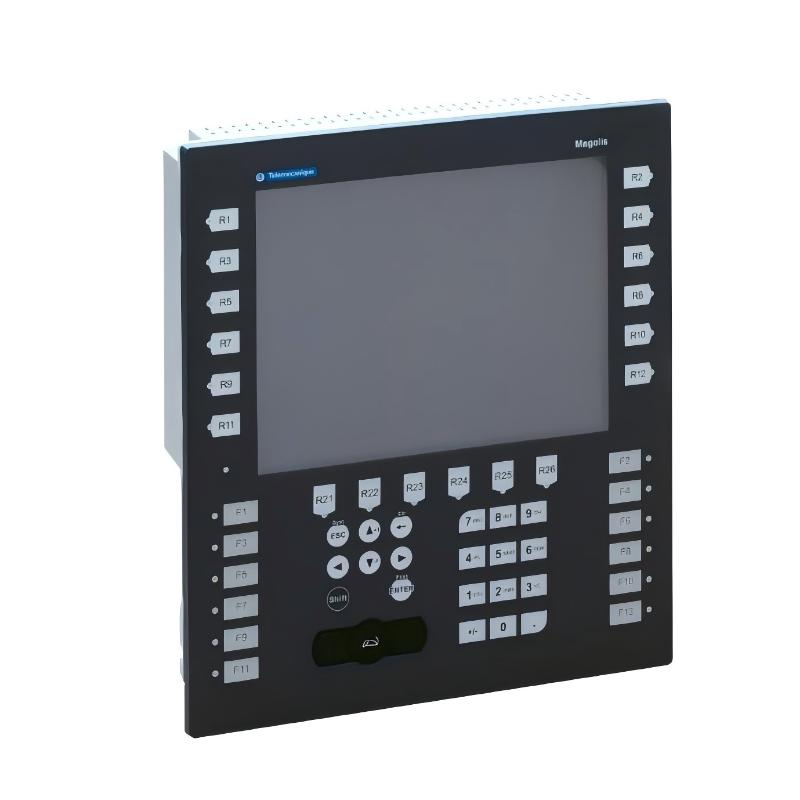

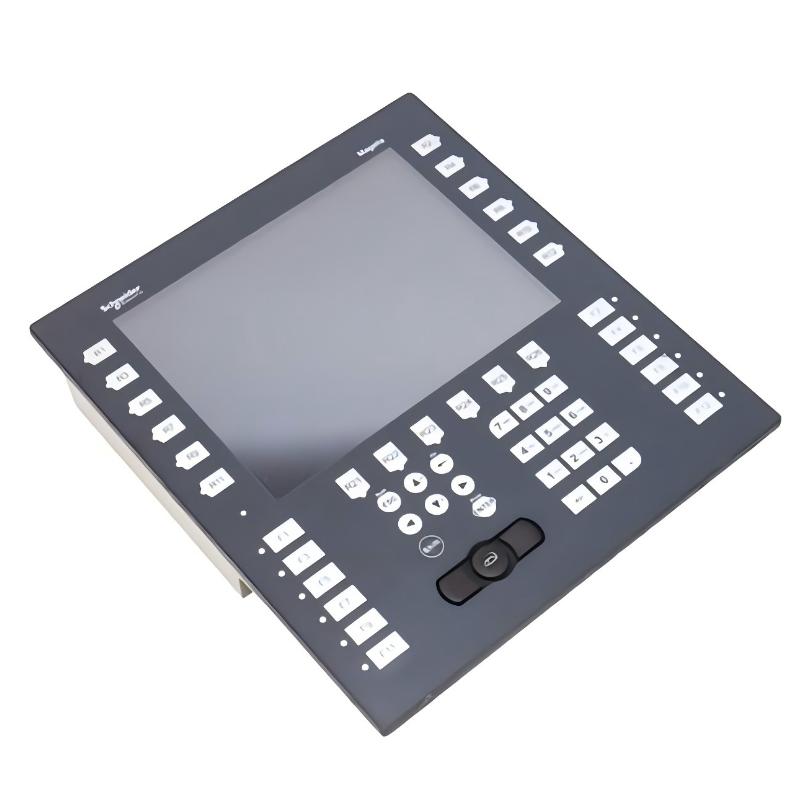

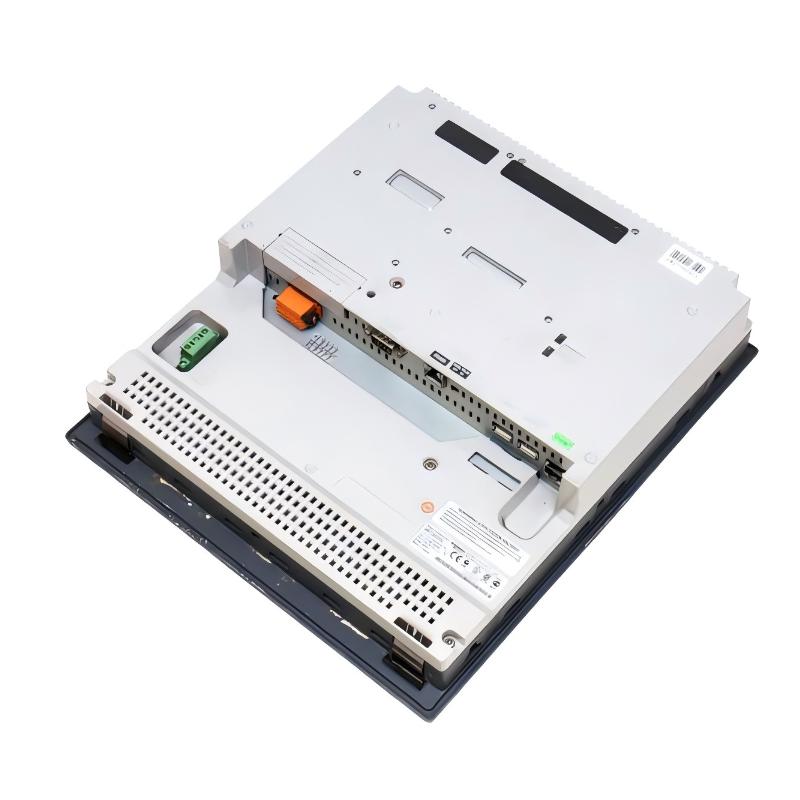

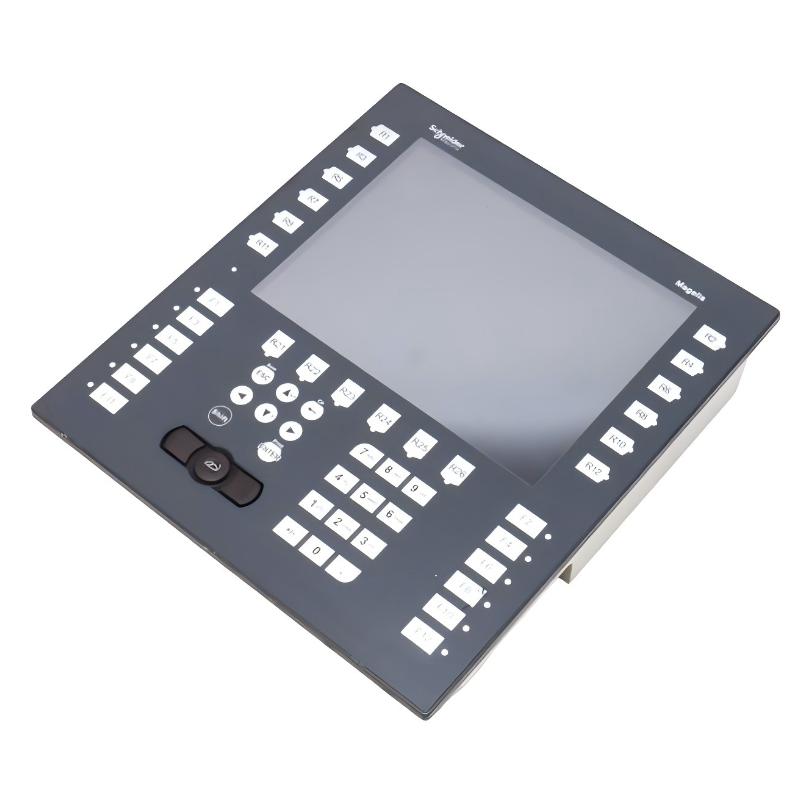

The Schneider XBTGK5330 10.4″ Touchscreen Panel with Keyboard is a graphical operator interface for industrial machines and automation systems that require both touchscreen interaction and physical operator keys. The combination gives operators two different ways to access configured machine functions, which is useful when frequently used commands need direct physical controls.
The 10.4-inch display provides a larger working area for machine status, operating values, alarms, and control screens. The keyboard section is particularly useful for applications where operators repeatedly perform navigation or command-entry functions and prefer dedicated keys alongside the graphical interface.
Within a machine-control architecture, the XBTGK5330 operates as the HMI layer between the operator and the PLC or controller. The terminal presents configured information from the control system and transfers operator actions back to the controller, while the PLC remains responsible for sequencing, interlocks, and field-device control.
For commissioning and maintenance, the combination of touchscreen and keyboard can make machine-side operation more practical. Technicians can navigate configured screens, monitor equipment states, and use available operator functions directly from the local panel.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | XBTGK5330 |
| Product Family | Magelis XBT |
| Product Series | XBTGK |
| Product Type | 10.4″ Touchscreen Panel with Keyboard |
| Primary Function | Graphical operator interface with keyboard |
| System Role | Human-machine interface |
| Application | Machine monitoring and operator control |
| Installation | Control panel / operator station |
| Display Size | 10.4 inches |
| Dimensions | 296 × 332 × 72.7 mm |
| Weight | 2.4 kg |
Product Features
- 10.4-inch graphical touchscreen interface
- Integrated keyboard for physical operator input
- Magelis XBT operator-interface platform
- XBTGK series configuration for industrial machine applications
- Combines touchscreen navigation with dedicated keyboard operation
- Suitable for applications requiring frequent operator interaction
- Provides local visualization of configured machine information
- Useful for production, commissioning, and maintenance operations
Working Principle
The XBTGK5330 combines graphical touchscreen operation with physical keyboard input. The HMI application defines the screens, displayed information, and operator functions available through the interface.
Operator → Touchscreen / Keyboard → XBTGK5330 → PLC / Controller → I/O System → Machine Equipment
When the operator selects a touchscreen control or presses a configured keyboard key, the terminal processes the input and communicates the associated command to the automation controller. The PLC evaluates the command according to its control logic and operating conditions before affecting the machine.
Information generated by the controller follows the reverse path. Machine states, process values, and other configured data are made available to the HMI application and presented on the graphical display.
The dual-input arrangement is useful when an application requires both visual navigation and dedicated physical controls.
Typical functions can include:
- Machine status monitoring
- Process information display
- Operator command entry
- Screen navigation
- Alarm indication
- Manual machine operation
- Maintenance interaction
Role in a Magelis XBTGK Control Architecture
The XBTGK5330 occupies the operator-interface layer of the automation architecture. It gives personnel a local interface for interacting with the control program while the PLC, I/O modules, and field equipment remain responsible for the actual automation process.
Operator → XBTGK5330 → PLC / Controller → I/O Modules → Sensors & Actuators
| System Element | Function |
|---|---|
| Operator | Monitors machine conditions and enters commands |
| XBTGK5330 | Provides touchscreen and keyboard-based HMI interaction |
| PLC / Controller | Executes control logic and machine sequencing |
| I/O Modules | Exchanges signals with field equipment |
| Sensors | Supplies machine and process feedback |
| Actuators | Performs commands generated by the controller |
| Machine Equipment | Executes the physical operation |
Using a dedicated HMI at the operator level keeps machine visualization and operator input separate from the underlying control logic.
Industrial Applications
| Application | Typical Use |
|---|---|
| Packaging Machinery | Production monitoring and operator commands |
| Assembly Equipment | Touch and keyboard-based machine operation |
| Machine Tools | Local operating functions and status display |
| Material Handling | Equipment monitoring and command entry |
| Production Cells | Centralized local HMI functions |
| OEM Machinery | Integrated operator station |
| Process Equipment | Display and interaction with configured process data |
| Manufacturing Systems | Machine status, alarms, and operator control |
Installation and Maintenance
- Install the XBTGK5330 where operators can clearly view and comfortably operate the touchscreen and keyboard.
- Verify the control-panel mounting opening before installation.
- Provide sufficient space behind the panel for wiring and service access.
- Confirm all power connections before energizing the terminal.
- Verify communication wiring between the HMI and associated controller.
- Route communication and power wiring appropriately within the control cabinet.
- Check the HMI application configuration before commissioning.
- Verify that displayed variables correspond to the intended PLC data.
- Test both touchscreen functions and keyboard-operated commands during commissioning.
- Check the display, touch surface, and physical keys for abnormal operation or damage.
- Keep the touchscreen and keyboard area clean using suitable non-abrasive methods.
- After replacing the terminal, verify the HMI project and communication configuration before returning the machine to service.
During troubleshooting, test the touchscreen and keyboard independently before investigating the communication and PLC layers. If the input is correctly detected but the machine does not respond, continue the diagnosis through the HMI configuration, controller logic, permissive conditions, and field outputs.
Related Components
| Component | Function |
|---|---|
| Schneider PLC / Controller | Executes machine-control logic |
| Schneider Magelis XBT Terminals | Provides operator-interface functions |
| Schneider Digital I/O Modules | Interfaces with discrete field signals |
| Schneider Analog I/O Modules | Handles analog process signals |
| Machine Sensors | Provides machine and process feedback |
| Relays and Contactors | Switches electrical loads |
| Motor Starters | Controls motor starting and stopping |
| Variable Speed Drives | Controls motor operating conditions |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Schneider Magelis XBT | Operator Terminal Family | Machine-level operator interface |
| Schneider Magelis XBTGK | Touchscreen and Keyboard HMI | Industrial machine operation |
| Schneider Magelis XBTG | Graphic Touch Panel Family | Graphical machine operation |
| Schneider Magelis XBT GT | Graphic HMI | Machine and process visualization |
| Schneider Magelis HMIG | HMI Terminal | Machine and process visualization |
| Schneider Modicon M340 | PLC Platform | Machine and automation control |
Key Advantages
- 10.4-inch graphical display for machine information
- Combines touchscreen operation with physical keyboard input
- Suitable for applications with frequent operator interaction
- Provides a local interface for machine monitoring and control
- Useful during production, commissioning, and maintenance
- Fits the Magelis XBT operator-interface platform
- Suitable for compatible Schneider Electric automation architectures
Technical FAQs
Why does the XBTGK5330 include both a touchscreen and keyboard?
The dual-input arrangement allows operators to use graphical touchscreen controls while also having dedicated physical keys for frequently used operating or navigation functions.
What type of application benefits from a 10.4-inch operator interface?
Applications with multiple machine values, status indicators, alarms, or operating controls can benefit from the larger graphical display area, especially when operators need to view several items during normal operation.
Does the XBTGK5330 execute PLC control logic?
No. The XBTGK5330 provides the operator interface. The PLC or controller executes the machine-control program, evaluates operator commands, and manages the associated I/O and field equipment.
What should be checked if the keyboard works but a machine command is not executed?
First verify that the HMI recognizes the keyboard input and that the corresponding function is correctly configured. Then check HMI communication, PLC logic, permissive conditions, interlocks, and the relevant field output to locate the fault in the control chain.
