Product Overview

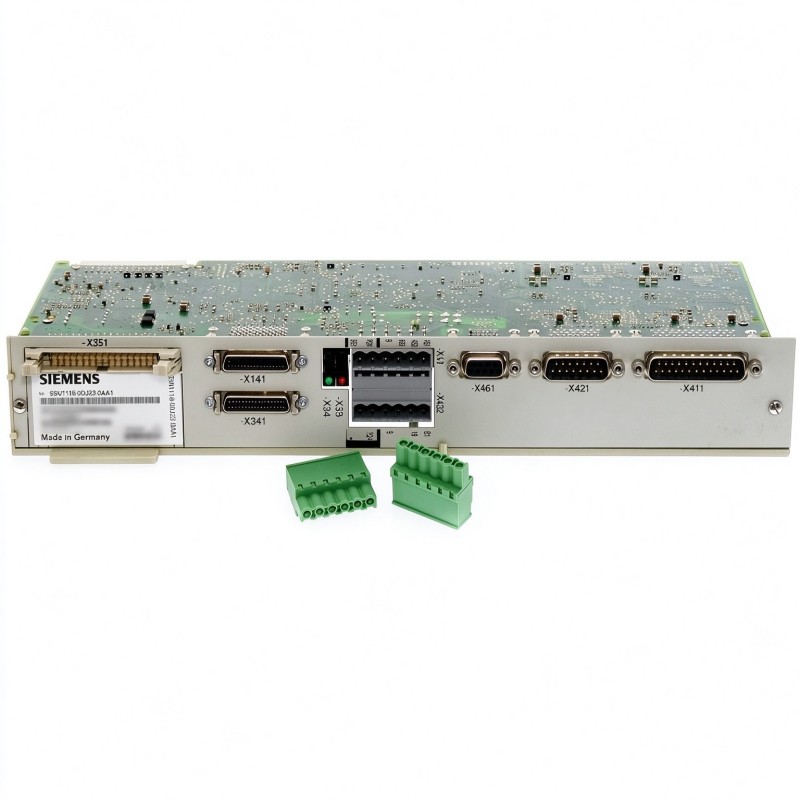

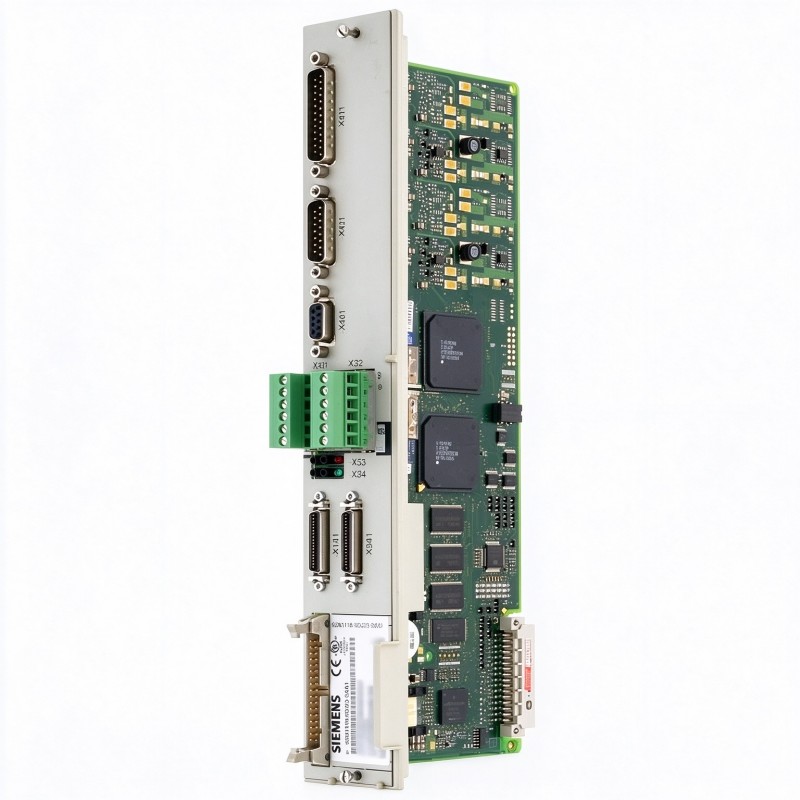

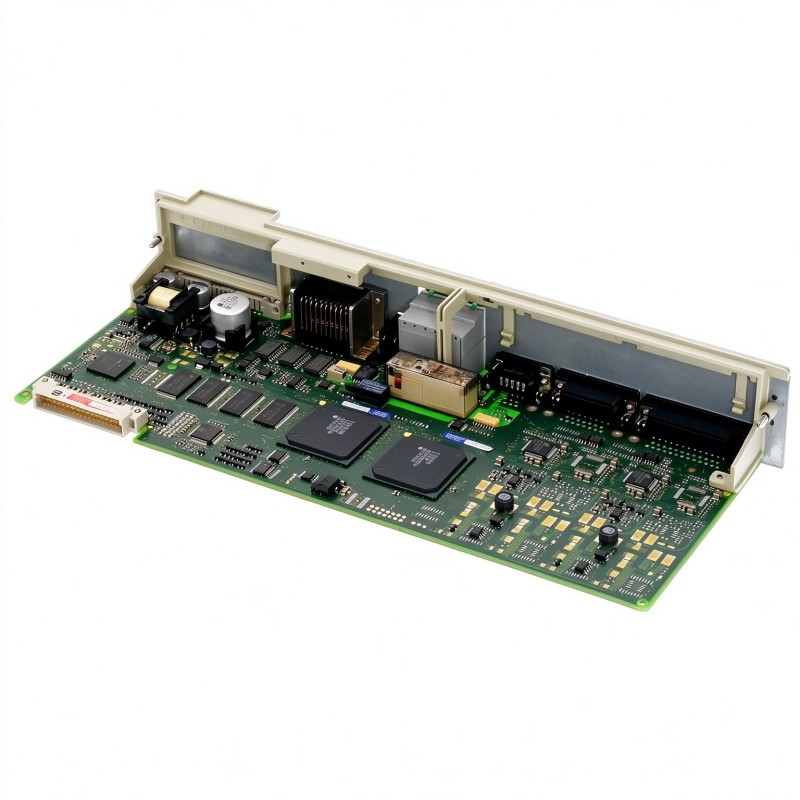

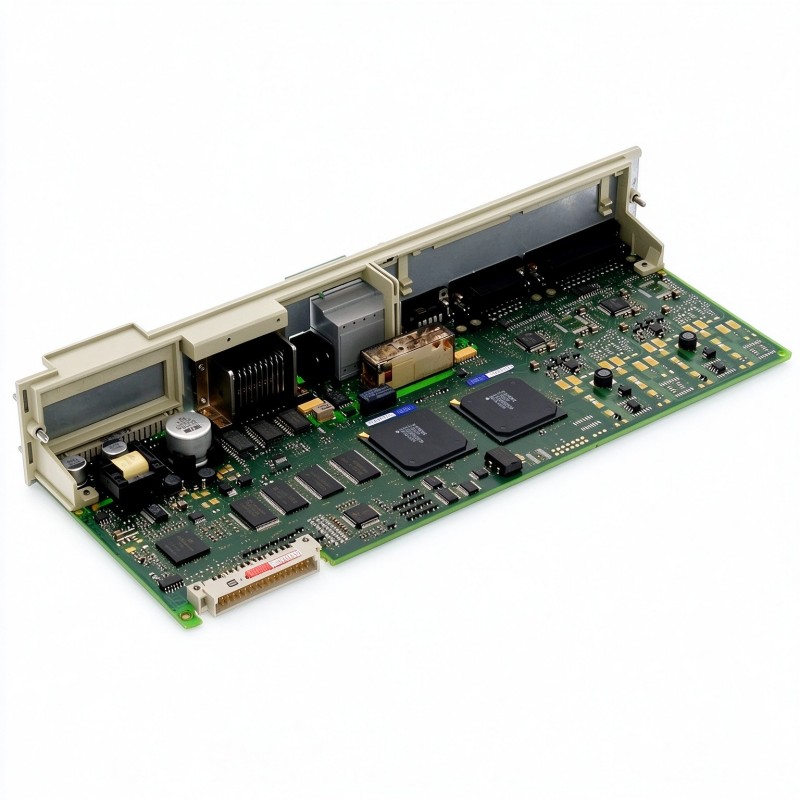

The Siemens 6SN1118-0DJ23-0AA1 is a single-axis high-performance digital control loop block for the SIMODRIVE 611 digital drive system. Its configuration supports a direct measuring system with SIN/COS 1 Vpp feedback, making it suitable for CNC machine tools that require position information from the machine axis rather than relying exclusively on motor-side measurement.
In a CNC machining center, a feed axis may need to move a table or tool slide through several positioning and cutting stages. The CNC controller generates the motion commands, while the drive system regulates the motor and processes feedback from the measuring equipment. The 6SN1118-0DJ23-0AA1 handles the closed-loop control functions for one axis within this arrangement.
The direct measuring system is particularly relevant when mechanical transmission components affect the relationship between motor rotation and actual machine movement. A measuring device installed along the controlled axis can report position at that location, helping the control system evaluate movement in the context of the machine’s actual mechanics. The resulting positioning performance depends on the encoder, mechanical arrangement, control parameters, and overall drive configuration.
This model belongs to the high-performance control family of SIMODRIVE 611 digital units. The SIN/COS 1 Vpp interface and direct measuring system configuration are important selection details, especially when replacing a unit in an established CNC installation. Similar-looking modules may have different feedback arrangements, so the full order number and existing encoder configuration should be checked together.
The control loop block is not a standalone drive. It operates with compatible SIMODRIVE power hardware, a motor, the required feedback equipment, and a CNC controller. When an axis develops following errors or fails to initialize after maintenance, the encoder signals, software configuration, drive parameters, and associated power module should be assessed as part of the same system.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 6SN1118-0DJ23-0AA1 |
| Product Family | SIMODRIVE 611 |
| Drive System | SIMODRIVE 611 Digital |
| Product Type | High Performance Digital Control Loop Block |
| Control Class | High-performance |
| Number of Axes | 1 |
| Control Method | Digital closed-loop control |
| Measuring System | Direct measuring system |
| Encoder Interface | SIN/COS 1 Vpp |
| Drive Application | Digital feed-drive and main-spindle control, subject to system configuration |
| NC Software Requirement | Version 06.04.09 or later |
| System Integration | Compatible SIMODRIVE 611 power module, motor, and feedback equipment |
| Typical Application | CNC machine tools and single-axis motion control |
| Dimensions | 330 × 51 × 127 mm |
| Weight | 0.2 kg |
Product Features
- Single-axis control: Handles one drive axis within the SIMODRIVE 611 digital architecture.
- High-performance control: Supports the corresponding high-performance closed-loop configuration.
- Direct measuring system: Accommodates direct position feedback for the configured machine axis.
- SIN/COS 1 Vpp interface: Supports the specified incremental encoder signal arrangement.
- Digital closed-loop regulation: Uses feedback and configured drive functions to regulate axis movement.
- CNC integration: Works with the controller’s motion commands and machine sequencing.
- Software compatibility: Requires a compatible NC software environment for drive initialization.
- Modular drive integration: Operates with compatible power hardware and the associated motor.
Working Principle
The 6SN1118-0DJ23-0AA1 participates in the closed-loop control process between the CNC controller, the SIMODRIVE power module, the drive motor, and the direct measuring system.
A simplified control path is:
CNC Controller → 6SN1118-0DJ23-0AA1 → SIMODRIVE Power Module → Motor → Machine Axis
Direct Measuring System (SIN/COS 1 Vpp) → Feedback Interface → Closed-Loop Control
When a CNC program commands an axis to move, the control system processes the required motion and regulates the associated drive. The power module supplies the motor, while the direct measuring system reports position information through the configured SIN/COS 1 Vpp interface.
Consider a machine tool moving a table toward a programmed cutting position. The motor drives the mechanical transmission, but the direct measuring device can monitor movement at the machine axis. The control system uses the feedback to evaluate the axis response and regulate movement according to the configured control functions.
This arrangement is useful when the machine’s mechanical transmission affects the relationship between motor-side movement and the actual position of the working axis. Direct measurement can help account for certain mechanical effects, although the outcome depends on the measuring device, installation quality, mechanical condition, and control-loop settings.
The SIN/COS 1 Vpp signal configuration must match the connected measuring equipment. Incorrect feedback wiring, connector assignments, or encoder selection can prevent proper initialization or cause position-related faults. During commissioning, technicians should verify the feedback interface alongside the axis assignment, software version, and power-module configuration.
Role in a SIMODRIVE 611 Digital Drive Architecture
The 6SN1118-0DJ23-0AA1 serves as the high-performance control loop block for one axis in a SIMODRIVE 611 digital installation. It links the CNC controller’s motion commands with the drive hardware and the feedback information required for closed-loop regulation.
CNC Controller → Control Loop Block → Power Module → Motor → Machine Axis
Direct Measuring System → SIN/COS 1 Vpp Feedback → Control Loop
| System Element | Function |
|---|---|
| 6SN1118-0DJ23-0AA1 | Performs high-performance digital closed-loop control for one axis |
| SIMODRIVE 611 Power Module | Supplies electrical power to the associated motor |
| Drive Motor | Converts electrical drive output into mechanical movement |
| Direct Measuring System | Measures position at the designated machine location |
| SIN/COS 1 Vpp Encoder | Supplies incremental feedback signals through the configured interface |
| CNC Controller | Generates motion commands and coordinates machining operations |
| NC Software | Provides the compatible software environment for drive initialization |
| Machine-Axis Mechanics | Transfer motor movement to the table, slide, or other controlled mechanism |
| Feedback Cable | Carries encoder signals to the control interface |
| Motor Power Cable | Connects the power module to the motor |
The control unit must match the installed feedback configuration, power module, software environment, and assigned machine axis.
Industrial Applications
| Application | Typical Use |
|---|---|
| CNC Milling Machines | Regulating feed-axis movement during positioning and cutting |
| CNC Machining Centers | Controlling table or tool-slide movement along programmed paths |
| CNC Turning Centers | Managing compatible feed-drive functions |
| Precision Machine Tools | Using direct position feedback for axis regulation |
| Grinding Machines | Controlling feed movement during grinding cycles |
| Special-Purpose Machine Tools | Providing dedicated high-performance control for one axis |
| Automated Machining Cells | Coordinating axis movement with programmed production sequences |
| CNC Retrofit Projects | Replacing an existing control loop block after verifying encoder and software compatibility |
| Machine Tool Maintenance | Investigating following errors, encoder faults, and initialization problems |
| Industrial Positioning Systems | Controlling a dedicated axis within a compatible SIMODRIVE installation |
Installation and Maintenance
- Verify the complete order number: Confirm that the installed control loop block is 6SN1118-0DJ23-0AA1 and distinguish it from related variants with different feedback configurations.
- Confirm the single-axis requirement: Check that the machine uses a one-axis high-performance control configuration.
- Identify the direct measuring system: Verify that the installed machine uses the expected direct position-measuring arrangement.
- Check the encoder interface: Confirm that the feedback device is compatible with the SIN/COS 1 Vpp signal configuration.
- Verify NC software compatibility: Check that the installed NC software meets the requirements for the control unit before commissioning.
- Inspect feedback wiring: Check connectors, shielding, cable routing, and signal connections if the axis reports encoder or position faults.
- Confirm power-module compatibility: Verify the associated SIMODRIVE power hardware and inspect its status if the motor fails to respond correctly.
- Review axis parameters: Compare the current configuration with the machine’s commissioning records before modifying control-loop settings.
- Investigate following errors: Compare commanded movement with available feedback and drive diagnostics to distinguish control, feedback, and mechanical problems.
- Inspect the mechanical transmission: Check couplings, screws, guides, and other motion components if measured axis movement differs from the expected response.
- Follow electrical safety procedures: Isolate hazardous electrical energy and follow the machine’s approved servicing procedures before removing the control unit or handling drive connections.
- Document commissioning results: Record the replacement model, encoder configuration, software compatibility, axis assignment, parameter changes, and functional test results.
Compatible System Components
| Component | Function |
|---|---|
| Siemens SIMODRIVE 611 Digital Drive System | Provides the drive architecture for the control loop block |
| Compatible SIMODRIVE 611 Power Module | Supplies power to the associated motor |
| Compatible Drive Motor | Produces the mechanical movement required by the controlled axis |
| Direct Position Measuring System | Measures movement at the designated machine location |
| SIN/COS 1 Vpp Encoder | Supplies compatible incremental feedback signals |
| CNC Controller | Generates motion commands and coordinates machine operations |
| Compatible NC Software | Provides the software environment required for drive initialization |
| Encoder Feedback Cable | Carries measuring-system signals to the control interface |
| Motor Power Cable | Connects the power module to the motor |
| Machine-Axis Mechanics | Transfer motor movement to the controlled machine element |
Recommended Related Models
| Model | Product Type | Selection Consideration |
|---|---|---|
| Siemens 6SN1118-0DJ23-0AA0 | High Performance Closed-Loop Control Unit | Related single-axis control unit; verify feedback and software compatibility |
| Siemens 6SN1118-0DJ23-0AA2 | High-Performance Digital Control Loop Block | Related model variant; confirm the exact measuring-system configuration |
| Siemens 6SN1118-0DJ21-0AA1 | High Performance Digital Control Loop Block | Single-axis high-performance variant with a different feedback configuration |
| Siemens 6SN1118-0DK23-0AA1 | High-Performance Digital Control Loop Block | Two-axis option for installations requiring control of two axes |
| Siemens 6SN1118-0DM31-0AA1 | Digital High-Standard Control Unit | Different control class for applications suited to high-standard control |
Key Advantages
- Provides high-performance digital control for one drive axis.
- Supports direct measuring-system feedback using SIN/COS 1 Vpp signals.
- Integrates with compatible SIMODRIVE 611 digital power hardware.
- Works with CNC motion commands and compatible NC software.
- Supports feedback-based regulation of machine-axis movement.
Technical FAQs
What is the purpose of the direct measuring system on the 6SN1118-0DJ23-0AA1?
The direct measuring system measures position at the designated machine location. This allows the configured control loop to use machine-axis feedback rather than relying exclusively on motor-side measurement.
Which feedback signal should be verified before installing this module?
The relevant interface is SIN/COS 1 Vpp. Confirm that the installed measuring device, connector assignment, and feedback wiring match the required signal configuration.
Why does NC software compatibility matter for this control loop block?
The drive requires a compatible NC software environment for initialization and operation. Software requirements should be checked alongside the control-unit reference and existing machine configuration before replacement.
What should be investigated if the machine axis develops a following error?
Check the direct measuring device, SIN/COS 1 Vpp signals, feedback wiring, axis parameters, power-module status, and mechanical transmission. These checks help determine whether the error originates in the feedback path, drive configuration, or machine mechanics.
