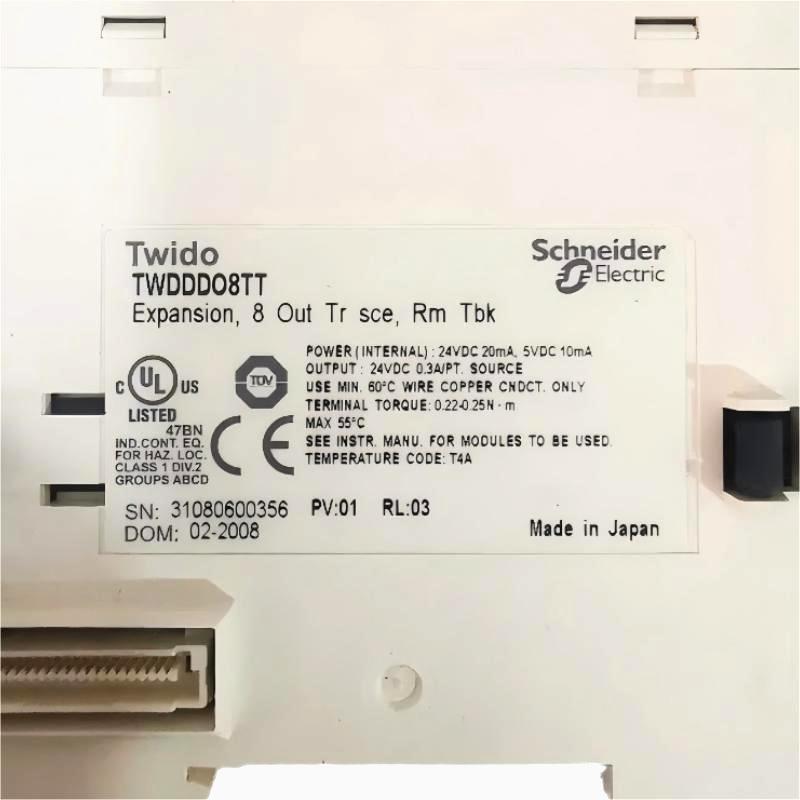

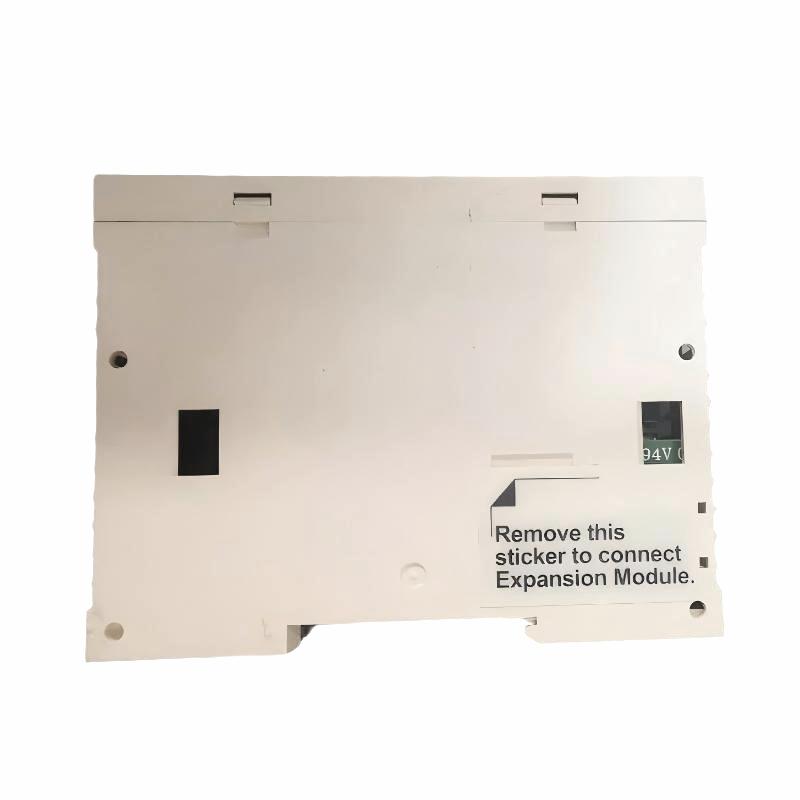

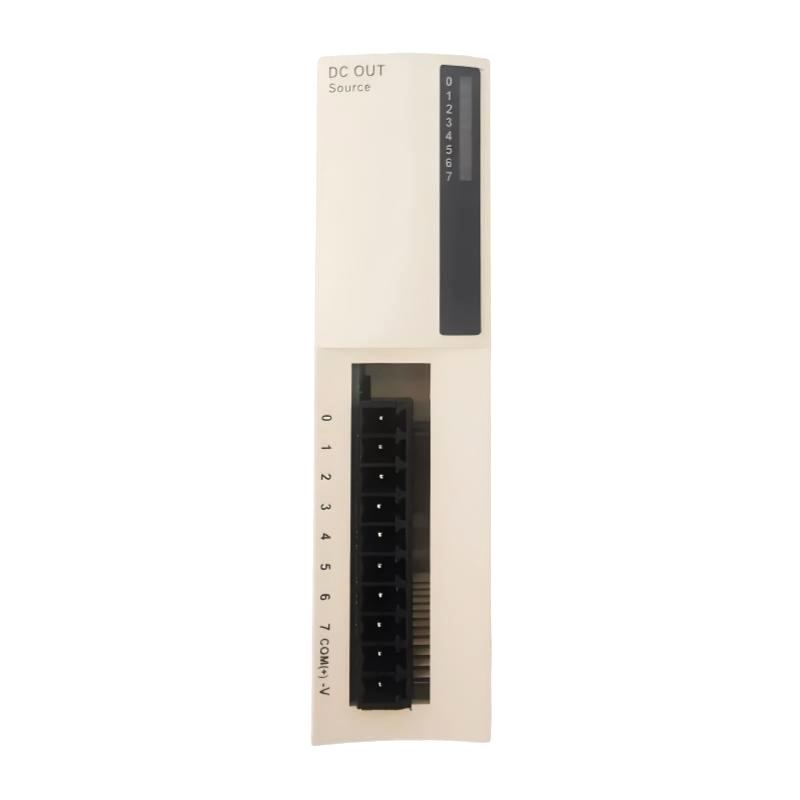

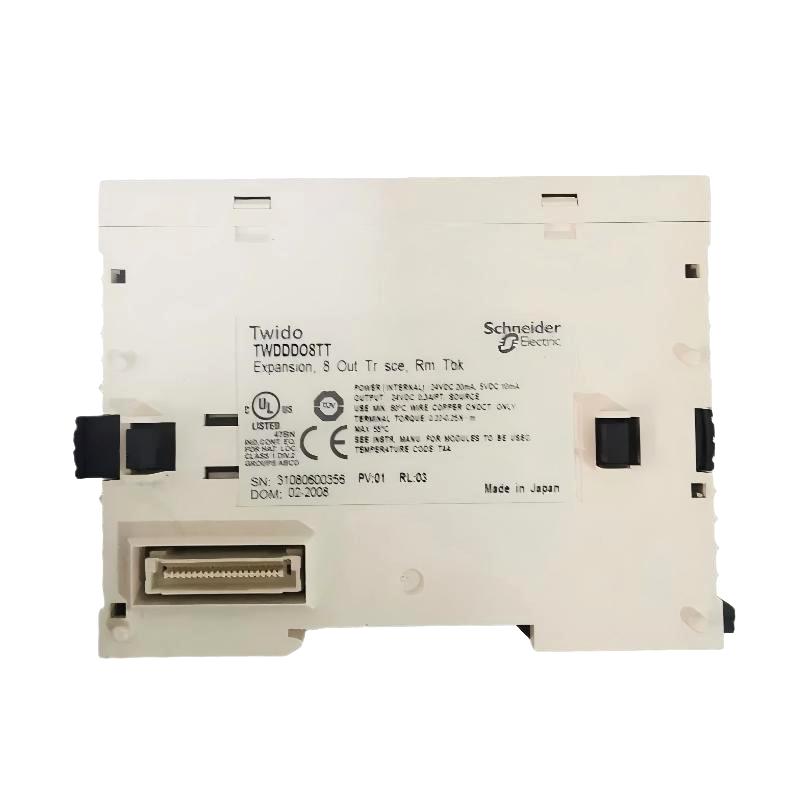

1. Product Overview

The Schneider Electric TWDDDO8TT Discrete Output Module is an 8-channel transistor output expansion module designed for the Modicon Twido programmable logic controller (PLC) platform. It enables the PLC to control compatible field devices by switching 24 V DC output signals according to the application program.

In industrial automation systems, discrete output modules connect the PLC’s control logic with external devices such as indicator lamps, small solenoid valves, interface relays, and other compatible DC loads. When a programmed condition is satisfied, the controller activates the corresponding output channel, allowing the connected device to respond.

The TWDDDO8TT uses solid-state transistor outputs with source logic. Unlike relay output modules, transistor outputs have no mechanical contacts and are suitable for applications requiring relatively fast switching of compatible DC loads. The module provides eight output channels, making it useful for compact machine-control panels and existing Twido installations.

Typical applications include packaging machinery, conveyor systems, assembly equipment, machine status indication, and automated production lines. For maintenance teams, this module may be required when restoring an existing PLC system or replacing a failed output module in legacy machinery.

The TWDDDO8TT has been discontinued. Buyers should therefore confirm the exact model number, output type, electrical ratings, connector arrangement, and product condition before purchasing. When considering an alternative, the replacement must match the application’s electrical requirements as well as the installed PLC platform.

2. Technical Specifications

Technical note: The dimensions are based on the supplied product information and should be confirmed against the physical module or packaging. The 0.085 kg weight is consistent with the published 85 g weight for this model. Actual installation and load limits must be checked against the applicable hardware documentation.

3. Function and Working Principle

The primary function of the TWDDDO8TT is to convert PLC output commands into switched electrical signals for compatible field devices. Each of the eight channels can be controlled independently by the PLC program, subject to the module’s electrical and common-line limits.

When the PLC program activates an output, the corresponding transistor switching circuit conducts and supplies the appropriate positive DC output to the connected load through the source-output arrangement. When the output is deactivated, the transistor stops conducting, allowing the load to return to its inactive state.

This solid-state switching method is commonly used in machine automation where the controller must repeatedly activate and deactivate DC devices.

3.1 Eight-Channel Output Control

The eight output channels allow one module to control multiple devices within a machine or process. For example, the PLC may use separate channels to operate several indicator lamps, command compatible interface relays, or activate low-power DC solenoids.

The actual number of devices that can operate simultaneously depends on the current drawn by each load and the module’s overall electrical limitations. Each output must remain within its rated current, and the total load on the common line must not exceed its specified limit.

3.2 Source-Type Transistor Switching

The TWDDDO8TT uses source logic, meaning that an activated output supplies positive DC voltage to the connected load. The load’s return connection must follow the manufacturer’s wiring diagram.

This differs from a sink-type transistor output, which switches the load toward the DC return. Although source and sink modules may appear similar, they are not automatically interchangeable because their electrical switching arrangements and wiring requirements differ.

Before installation, engineers should confirm that the output logic matches the connected devices and the existing control-circuit design.

3.3 Solid-State Switching

Because the module uses transistor outputs rather than mechanical relay contacts, it avoids mechanical contact wear associated with repeated switching. This can be beneficial in applications involving frequent output transitions.

However, transistor outputs have specific limitations. They are intended for compatible DC loads and should not be used to switch AC loads. Their off-state leakage current, voltage drop, current capacity, and behavior with inductive loads must be considered during system design.

3.4 Integration with PLC Logic

The module does not independently determine when a device should operate. The PLC program controls each output according to sensor inputs, timers, counters, sequence conditions, and other application logic.

For example, a packaging machine may activate an output when a product is correctly positioned, a conveyor may run when the next production zone is available, or a status lamp may turn on when the controller detects a fault condition.

This arrangement allows output commands to be coordinated with the wider automation process.

4. Role in Industrial Automation Systems

The TWDDDO8TT provides the output interface between a compatible Twido PLC and external DC control devices. It allows the controller to perform programmed actions rather than merely monitor field conditions.

4.1 Actuator Command Control

Compatible DC solenoids and other low-power control devices can be operated through appropriate output circuits. The PLC activates the relevant channel when the required operating conditions are met.

The current and voltage requirements of each load must be checked before connecting it directly to the module. Loads exceeding the output ratings require a suitable external switching device.

4.2 Machine Status Indication

Output channels can drive compatible indicator lamps or interface circuits used to display operating conditions. Examples include machine running, cycle complete, material required, and maintenance warning indications.

The PLC can update these outputs according to its internal logic and the current state of the equipment.

4.3 Production Sequence Coordination

Automated machines frequently execute a series of coordinated operations. Output signals may command a valve, enable a small actuator, operate a control relay, or signal that a particular sequence step has started.

The TWDDDO8TT can support these operations when the output load and timing requirements fall within its specifications.

4.4 Equipment Interlocking

The PLC can use its program to prevent selected outputs from activating unless required conditions are satisfied. For example, a conveyor output may remain inactive until the receiving station is ready.

Safety-critical functions must be designed using appropriately rated safety equipment and control architectures. A standard transistor output module should not be assumed to provide a certified safety function.

5. Industrial Applications

5.1 Packaging Machinery

Packaging equipment uses discrete outputs to control compatible DC actuators, signal devices, and interface relays. The module’s eight channels can support a compact machine section where several output commands are required.

Typical examples include product-transfer mechanisms, packaging sequence indicators, and auxiliary control signals.

5.2 Conveyor and Material Handling Systems

Conveyors and material-handling equipment may require outputs for control relays, indicator lamps, or compatible low-power DC devices. The PLC can coordinate these outputs with product-detection sensors and downstream equipment status.

For motor control, the module should normally command an appropriate starter, contactor, or drive interface rather than directly supply motor power.

5.3 Assembly Machines

Assembly equipment often uses pneumatic valves, small actuators, and status indicators. Where the load is electrically compatible and within the module’s ratings, an output channel can be used to initiate a control action.

The PLC program determines when each output is activated based on workpiece detection, positioning feedback, and sequence conditions.

5.4 Industrial Control Panels

The TWDDDO8TT can be incorporated into a compatible Twido control panel to operate low-power DC control devices and interface circuits. Its compact eight-channel arrangement helps organize output functions within an established PLC system.

5.5 General Manufacturing Automation

Other applications may include machine-state indication, auxiliary equipment control, process sequencing, and command signals for compatible DC interface devices.

The module’s suitability depends on the field load, switching frequency, electrical environment, and existing PLC configuration.

6. Installation and System Integration

Correct installation is essential for reliable output operation. Before installing or replacing the TWDDDO8TT, engineers should review the electrical drawings, PLC model, output wiring, and load specifications.

6.1 Verify Controller Compatibility

The TWDDDO8TT belongs to the Modicon Twido product family. Confirm that the existing PLC and expansion arrangement support this module before installation.

A module from another Schneider Electric product family should not be assumed to be compatible solely because it also provides eight 24 V DC outputs.

6.2 Confirm Source-Output Wiring

Because the TWDDDO8TT uses source-type transistor outputs, the positive output and load-return connections must be arranged correctly.

Review the original wiring diagram and verify the polarity of connected devices. Do not substitute a sink-type output module without checking the circuit design and field-device compatibility.

6.3 Check Load Current

The rated current is 0.3 A per output, with a maximum common-line current of 3 A under the specified conditions. These limits must be considered together when multiple outputs operate simultaneously.

For example, eight loads each drawing 0.3 A would total 2.4 A, but the design must still account for startup current, inductive behavior, wiring capacity, and other relevant operating conditions.

The module should not be used to supply loads exceeding its specified ratings.

6.4 Protect Inductive Loads

Solenoid valves, relay coils, and similar inductive devices can generate voltage transients when switched off. Appropriate suppression components and wiring practices should be selected according to the load type and manufacturer’s instructions.

Incorrectly protected inductive loads can damage output electronics or cause unreliable operation.

6.5 Follow Safe Replacement Procedures

Isolate the relevant power supplies before removing or installing the module. Follow the site’s electrical safety and lockout/tagout procedures, and verify that hazardous voltage has been removed.

After installation, inspect the connections, restore power under controlled conditions, and test the output channels before returning the equipment to production.

6.6 Test Output Operation

Test each output using the PLC program or an approved commissioning procedure. Verify that the commanded output state corresponds to the expected field-device response.

Check for abnormal heating, unexpected switching, wiring errors, and excessive load current. Confirm that machine interlocks and operational sequences work correctly.

6.7 Document the Installation

Record the module model, output assignments, load details, wiring configuration, and any replacement work. Maintaining an accurate I/O list and a backup of the PLC program can simplify future maintenance.

7. Compatible System Components

The TWDDDO8TT is normally installed as part of a broader PLC control system. The following table describes common component categories that may be used in a compatible installation.

This is a functional guide, not a guarantee that every component can be connected directly to the module. Final selection should be based on the actual wiring diagram and electrical ratings.

8. Recommended Alternative Models and Replacement Considerations

The TWDDDO8TT is discontinued. Selecting an alternative requires particular care because the original module uses transistor source outputs, while some official replacement recommendations use relay outputs.

8.1 TM3DQ8T as a Modernization Candidate

The TM3DQ8T provides eight 24 V DC source-type transistor outputs and may be worth evaluating when modernizing a compatible Modicon M2xx system.

Although its output function resembles that of the TWDDDO8TT, the two products belong to different PLC families. Controller compatibility, expansion connections, mounting, wiring, current limits, output protection, and program configuration must be reviewed before migration.

It should not be described as a direct plug-in replacement for the Twido module.

8.2 Understanding the TM3DQ8R Recommendation

Schneider Electric lists the TM3DQ8R relay output module as a replacement for the discontinued TWDDDO8TT. However, the TM3DQ8R uses relay contacts rather than transistor source outputs.

Relay outputs may support different load types and switching arrangements, but they have different electrical characteristics, switching speeds, and contact-wear considerations. The TM3DQ8R should therefore be selected only after checking whether its output behavior suits the application and whether the target PLC supports the module.

8.3 Verify Electrical and Mechanical Compatibility

Before selecting an alternative, verify:

• The target PLC model and supported expansion modules.
• Source or sink output logic.
• Output voltage and current ratings.
• Common-line current limitations.
• Load type and switching frequency.
• Connector and terminal arrangement.
• Mounting dimensions and panel space.
• PLC configuration and application-program changes.

A similar channel count does not guarantee electrical or mechanical interchangeability.

9. Key Advantages

Eight Independent Output Channels

The module can control up to eight discrete output points, helping organize multiple control functions within a compact automation system.

Solid-State Switching

Transistor outputs avoid mechanical relay contacts and are suitable for repeated switching of compatible DC loads within the specified electrical limits.

Source-Output Configuration

The source-output arrangement supports field circuits designed for positive-switched 24 V DC control signals.

Compact Module Design

The module’s small form factor can help preserve space in control cabinets and expansion assemblies, subject to confirmation of the supplied dimensions.

Integration with Existing Twido Systems

For legacy equipment, retaining the original module type may reduce the need for wiring or program changes compared with an unverified substitute.

Useful for Industrial Spare-Parts Management

An appropriately tested replacement can help maintenance teams restore existing machinery and reduce downtime associated with a failed output channel or module.

10. Technical FAQs

Q1: What is the Schneider TWDDDO8TT?

The TWDDDO8TT is a Schneider Electric Modicon Twido discrete output module with eight transistor source outputs for compatible 24 V DC loads.

Q2: How many output channels does it provide?

It provides eight discrete output channels grouped on one common line.

Q3: What is the rated output voltage?

The rated output voltage is 24 V DC, with a specified operating range of 20.4–28.8 V DC.

Q4: What is the rated current per output?

The rated load current is 0.3 A per output. The common-line current and other electrical limitations must also be observed.

Q5: Is the TWDDDO8TT a relay output module?

No. It is a transistor source output module. Its output technology differs from relay output modules, which use mechanical contacts.

Q6: Can it switch AC loads?

The TWDDDO8TT is designed for 24 V DC transistor outputs and should not be used to switch AC loads directly.

Q7: Is the TWDDDO8TT discontinued?

Yes. Schneider Electric lists this product as discontinued. Availability may depend on remaining inventory and specialist industrial spare-parts suppliers.

Q8: Can the TM3DQ8R replace the TWDDDO8TT?

Schneider Electric lists the TM3DQ8R as a replacement candidate, but it is a relay output module rather than a transistor source output module. Check load requirements, switching behavior, wiring, and PLC compatibility before selecting it.

Q9: Can the TM3DQ8T be used instead?

The TM3DQ8T is a potential modernization candidate because it also provides eight 24 V DC source transistor outputs. However, it belongs to the TM3 family and is intended for compatible newer PLC systems. It is not automatically a drop-in replacement for the Twido module.

Q10: What should be checked before purchasing a replacement?

Confirm the complete model number, product condition, connector and terminal condition, output technology, current ratings, and compatibility with the installed PLC. For used or refurbished modules, request clear label photographs and available functional test information.

11. Procurement and Replacement Considerations

Because the TWDDDO8TT is discontinued, procurement should prioritize exact identification and verification of the product’s condition.

Before placing an order, buyers should consider the following:

• Exact part number: Verify that the label states TWDDDO8TT.
• Output technology: Confirm that the required application uses source-type transistor outputs rather than relay or sink outputs.
• Product condition: Determine whether the item is new, unused surplus, refurbished, or used.
• Functional testing: Ask whether all eight output channels have been tested.
• Connector and terminal condition: Inspect the connection points for damage, corrosion, or signs of overheating.
• Electrical suitability: Check the connected loads, per-channel current, and common-line current.
• Physical measurements: Confirm whether the listed dimensions describe the module body or its packaging.
• Replacement planning: Evaluate whether an original spare or a broader PLC modernization project is more suitable for the equipment’s remaining service life.

For existing Twido installations, using the exact original module may help minimize changes to the established control design. If the original part is unavailable, a replacement should be selected through a complete electrical and platform compatibility review.

12. Conclusion

The Schneider Electric TWDDDO8TT Discrete Output Module is an eight-channel transistor source output module designed for the Modicon Twido PLC family. With a rated output voltage of 24 V DC and a rated current of 0.3 A per output, it is intended to switch compatible DC control loads in industrial automation applications.

Although the TWDDDO8TT has been discontinued, it remains relevant to facilities maintaining existing Twido-based machinery. Correct identification, output-current verification, source-output wiring, and appropriate protection for inductive loads are essential when installing or replacing the module.

For industrial maintenance and spare-parts procurement, the original TWDDDO8TT may be appropriate when a verified unit is available. For modernization projects, modules such as the TM3DQ8T or TM3DQ8R may be evaluated, but their output technology, controller compatibility, and wiring requirements must be assessed before use.
