Product Overview

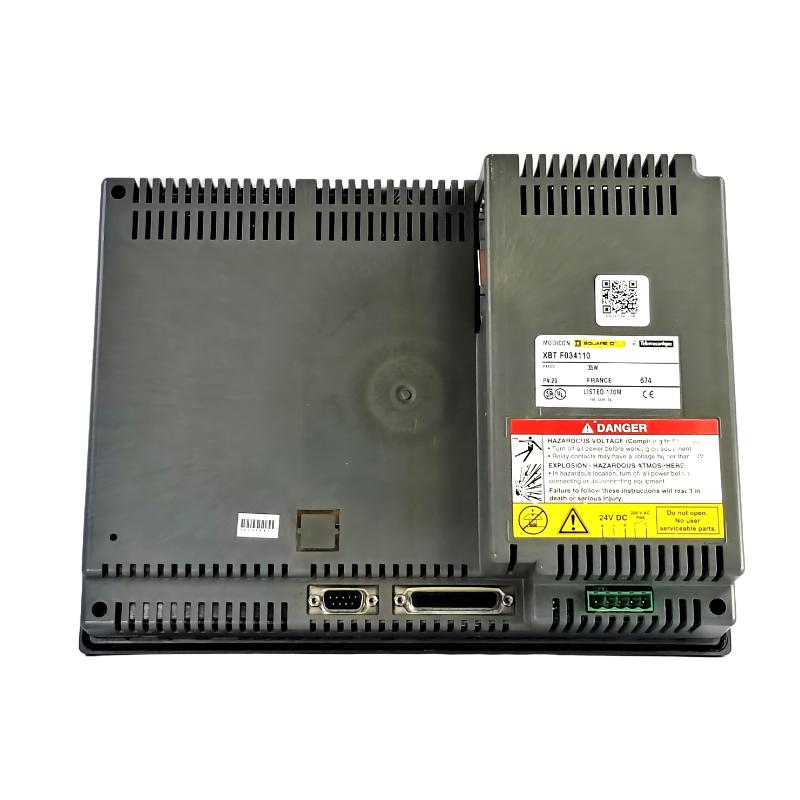

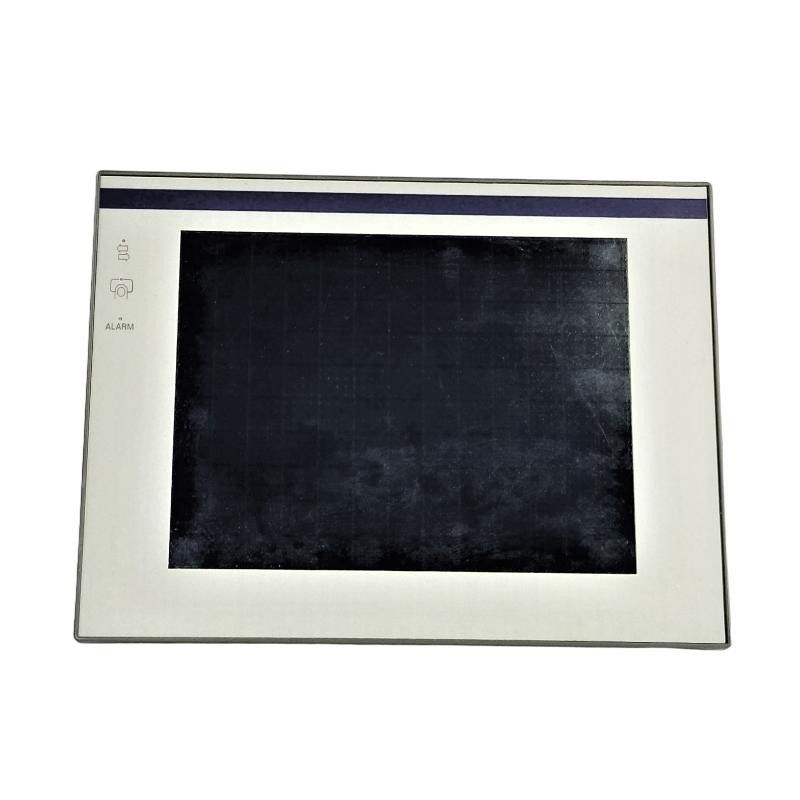

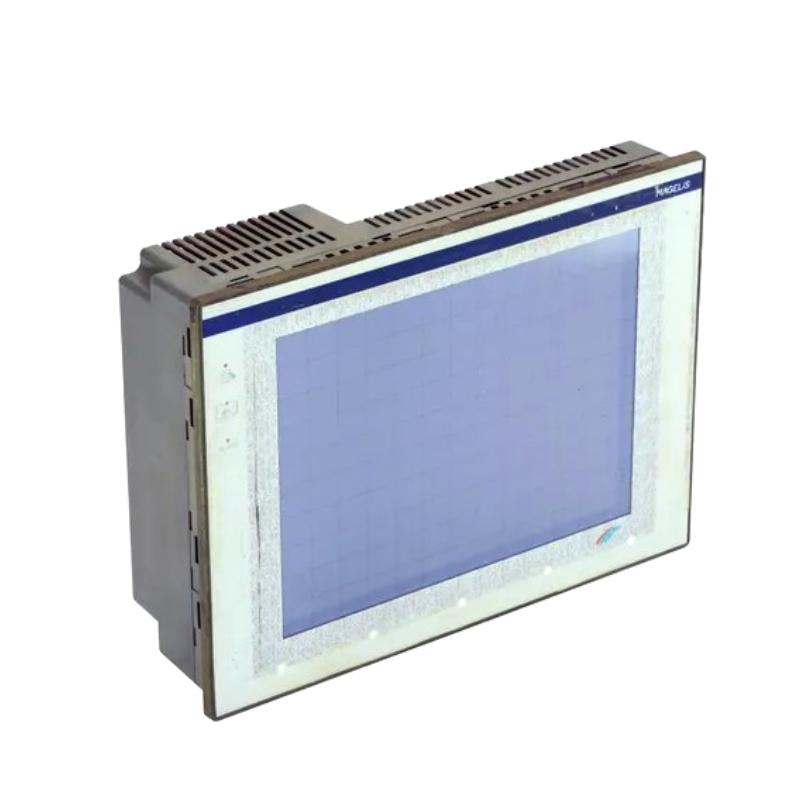

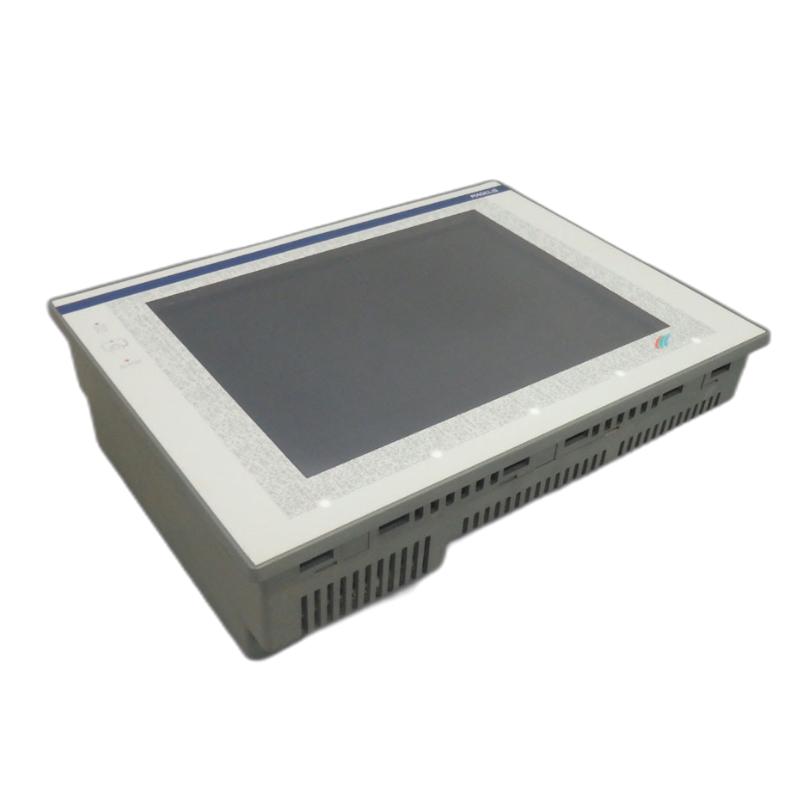

The Schneider XBTF034110 10.4″ Touch Screen is a graphical operator interface used for local machine and process interaction. It gives operators a direct point for viewing configured operating information, entering commands, and monitoring equipment conditions from the control-panel level.
The 10.4-inch screen is suited to applications where operators need a larger visual area to work with multiple values, machine states, alarms, or control functions. It is particularly practical for production machinery, packaging systems, assembly equipment, and process-related panels where a compact operator interface would limit the amount of information shown on one screen.
In a typical automation architecture, the XBTF034110 operates at the HMI layer while the PLC or controller remains responsible for machine logic and sequencing. The touch screen presents information supplied by the control system and transfers operator selections back to the controller for evaluation and execution.
The terminal can also be used during commissioning and maintenance. Technicians can work from the machine-side operator station to observe configured operating conditions and access available control or diagnostic functions without repeatedly opening the main electrical cabinet.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | XBTF034110 |
| Product Family | Magelis XBT F |
| Product Type | 10.4″ Touch Screen |
| Primary Function | Graphical touch-based operator interface |
| System Role | Human-machine interface |
| Application | Machine and process monitoring and control |
| Installation | Control panel / operator station |
| Display Size | 10.4 inches |
| Weight | 2.31 kg |
Product Features
- 10.4-inch graphical touch-screen interface
- Magelis XBT F family operator interface
- Suitable for industrial machine and process applications
- Provides direct touch interaction with configured operating functions
- Larger display area for presenting multiple machine parameters
- Suitable for local monitoring and operator command functions
- Practical for production, commissioning, and maintenance activities
- Suitable for compatible Schneider Electric automation architectures
Working Principle
The XBTF034110 functions as the operator-facing interface of the control system. Its configured HMI application determines the information presented to the operator and the touch actions available on each screen.
Operator Touch Input → XBTF034110 → PLC / Controller → I/O System → Machine Equipment
When an operator selects a configured command, the touch screen transfers the corresponding information through the communication path to the controller. The PLC or controller then applies its programmed logic, permissives, and interlocks before generating the required machine-control action.
Operating information follows the reverse path. Data from the controller is transferred to the terminal and presented through configured screens, allowing the operator to monitor machine conditions and respond to changes during production.
Typical functions may include:
- Machine status visualization
- Process value monitoring
- Operator command entry
- Alarm and condition display
- Manual operating functions
- Commissioning and maintenance interaction
Role in a Magelis XBT F Control Architecture
The XBTF034110 forms the operator-interface layer between personnel and the machine-control system. Its function is to make control-system information accessible to the operator while leaving sequencing, interlocking, and equipment control to the PLC or other controller.
Operator → XBTF034110 → PLC / Controller → I/O Modules → Sensors & Actuators
| System Element | Function |
|---|---|
| Operator | Monitors operating conditions and enters commands |
| XBTF034110 | Provides the graphical touch interface |
| PLC / Controller | Executes machine-control logic |
| I/O Modules | Exchanges signals with field devices |
| Sensors | Provides machine and process feedback |
| Actuators | Executes commands from the control system |
| Machine Equipment | Performs the physical production or process operation |
This architecture allows the HMI to remain focused on visualization and operator interaction while the controller handles the underlying automation functions.
Industrial Applications
| Application | Typical Use |
|---|---|
| Production Machinery | Machine status and operator control |
| Packaging Equipment | Production monitoring and touch commands |
| Assembly Lines | Local machine operation and status display |
| Material Handling | Equipment monitoring and operating commands |
| Process Machinery | Visualization of configured process information |
| Manufacturing Cells | Centralized local HMI functions |
| OEM Machinery | Integrated operator station for machine builders |
| Utility Equipment | Local monitoring and control functions |
Installation and Maintenance
- Install the terminal in a control-panel position with a clear viewing angle for operators.
- Verify that the panel mounting arrangement is suitable for the terminal.
- Provide sufficient space behind the terminal for wiring and service access.
- Confirm the power connections before energizing the unit.
- Verify the communication wiring between the terminal and associated controller.
- Keep communication wiring properly routed relative to high-power cables.
- Check the HMI application configuration before commissioning.
- Confirm that displayed variables correspond to the intended controller data.
- Test touch commands under controlled machine conditions before production use.
- Check the touch surface and display periodically for physical damage or abnormal response.
- Keep the touch surface clean using an appropriate non-abrasive cleaning method.
- When replacing the terminal, verify the HMI project and communication configuration before returning the machine to service.
For troubleshooting, separate the HMI interface, communication path, controller application, and field equipment into individual checkpoints. An incorrect displayed value or failed command may originate in the PLC program or communication configuration rather than in the touch screen itself.
Related Components
| Component | Function |
|---|---|
| Schneider PLC / Controller | Executes machine-control logic |
| Schneider Magelis HMI Family | Provides operator visualization and control |
| Schneider Digital I/O Modules | Interfaces with discrete field signals |
| Schneider Analog I/O Modules | Handles analog process signals |
| Machine Sensors | Provides process and equipment feedback |
| Relays and Contactors | Switches electrical loads |
| Motor Starters | Controls motor starting and stopping |
| Variable Speed Drives | Controls motor operating conditions |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Schneider Magelis XBT F | Operator Terminal | Industrial machine and process operation |
| Schneider Magelis XBT Family | Operator Terminal | Machine-level operator interface |
| Schneider Magelis XBT GT | Graphic HMI | Machine visualization and control |
| Schneider Magelis XBT GK | Keypad HMI | Industrial operator control |
| Schneider Magelis HMIG | HMI Terminal | Machine and process visualization |
| Schneider Modicon M340 | PLC Platform | Machine and automation control |
Key Advantages
- 10.4-inch touch interface for graphical operator interaction
- Provides more display area for machine and process information
- Suitable for local control-panel operation
- Direct touch access to configured HMI functions
- Useful during production, commissioning, and maintenance
- Fits the Magelis XBT F operator-interface family
- Suitable for compatible Schneider automation architectures
Technical FAQs
What type of HMI application is suitable for the XBTF034110?
The XBTF034110 is suitable for machine and process applications where operators need graphical information, local operating commands, and access to configured monitoring functions.
How does the 10.4-inch screen affect operator interaction?
The larger screen area allows application designers to organize more information and operating functions within a single visual interface, which can reduce the need to move repeatedly between small display pages.
What is the relationship between the XBTF034110 and the PLC?
The XBTF034110 provides the operator interface, while the PLC executes the actual control program. Operator commands are transferred to the controller, and configured machine information is returned to the HMI for display.
What is the recommended troubleshooting sequence when the HMI shows incorrect data?
Check the displayed variable configuration first, then trace the value through the communication connection and PLC data. If the controller value is also incorrect, the investigation should continue into the PLC program, I/O signals, and associated field device.
