- Schneider
- XBT0T2210
- Touch Screen
- France
- 159 × 131 mm
- 0.35 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 5
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

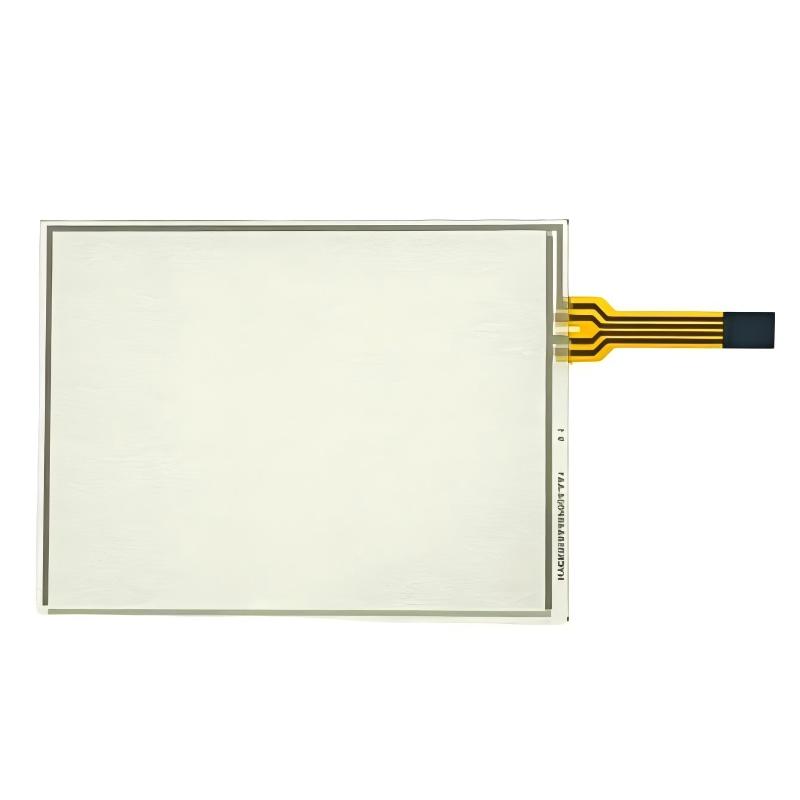

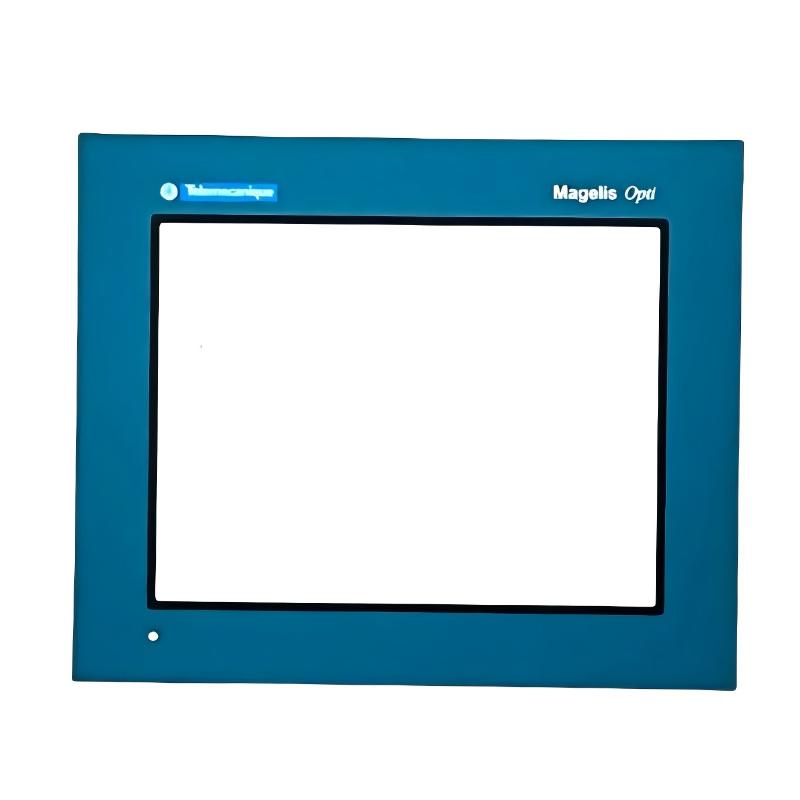

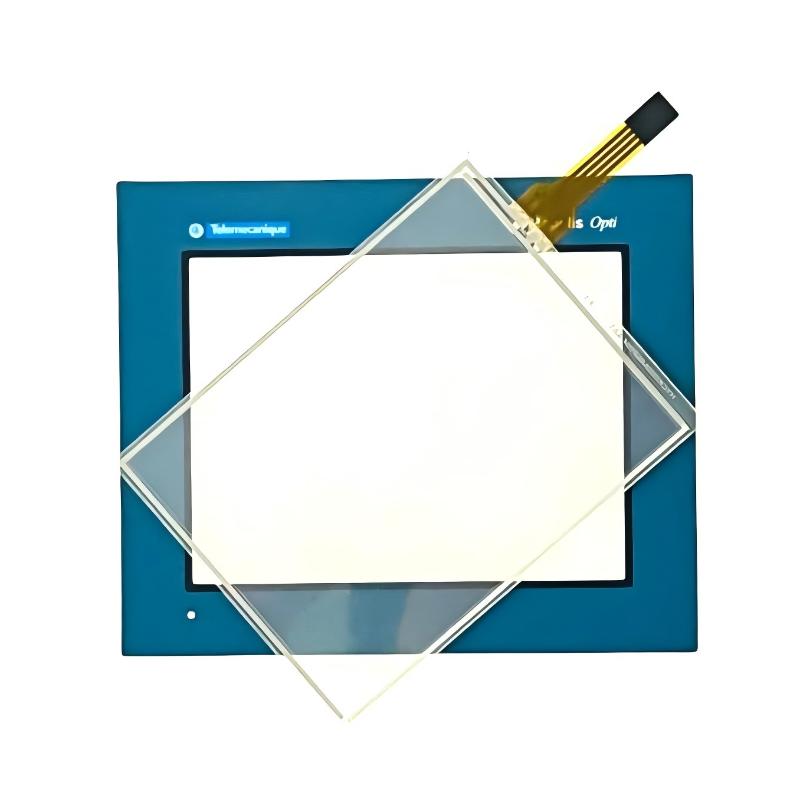

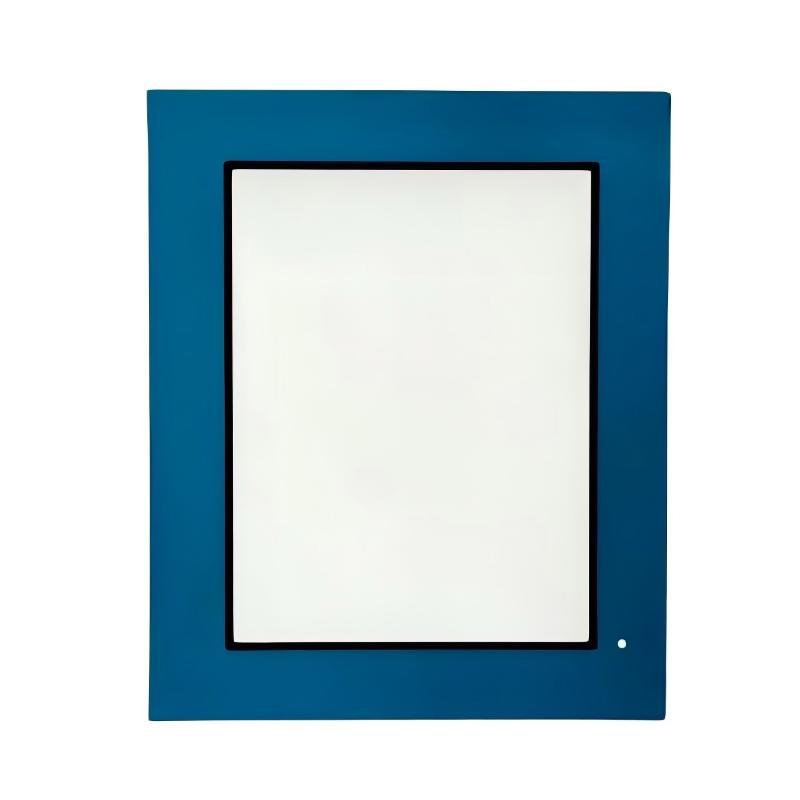

The Schneider XBT0T2210 Touch Screen is a compact touch-based operator interface used for local machine monitoring and control. It gives operators a direct point of interaction with configured automation functions, allowing machine information and operating commands to be handled from the control-panel level.
The compact format is practical for small machines, auxiliary equipment, and control panels where installation space is limited but a local touch interface is still required. It can be positioned close to the machine operator, making frequently used operating functions accessible without requiring direct interaction with the PLC cabinet.
In a typical automation system, the XBT0T2210 sits between the operator and the control system. The touch interface displays configured operating information received from the controller, while operator selections are transferred back to the control system for processing according to the machine program.
The terminal can also be useful during commissioning and service work. Maintenance personnel can use the local interface to observe machine conditions, access configured operating screens, and perform available manual or diagnostic functions while working at the equipment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | XBT0T2210 |
| Product Family | Magelis XBT |
| Product Type | Touch Screen |
| Primary Function | Touch-based operator interface |
| System Role | Human-machine interface |
| Application | Machine monitoring and operator control |
| Installation | Control panel / operator station |
| Dimensions | 159 × 131 mm |
| Weight | 0.35 kg |
Product Features
- Compact touch-screen operator interface
- Suitable for machine-level HMI applications
- Provides direct touch interaction with configured control functions
- Practical for small machines and space-constrained control panels
- Allows operators to view configured machine information locally
- Supports local machine operation and monitoring functions
- Useful during commissioning, operation, and maintenance
- Suitable for Schneider Electric automation architectures where compatible
Working Principle
The XBT0T2210 operates as the local touch interface between the machine operator and the automation controller. The HMI application determines what information is displayed and what touch actions are available to the operator.
Operator Touch Input → XBT0T2210 → PLC / Controller → I/O System → Machine Equipment
When the operator touches a configured control area, the terminal processes the selected function and communicates the corresponding command to the controller. The PLC then evaluates the command against the programmed control logic, interlocks, and machine conditions before controlling the relevant equipment.
At the same time, operating data from the controller can be presented on the touch interface. This allows the operator to observe machine status and respond to changing operating conditions without accessing the control cabinet.
Typical functions can include:
- Machine status display
- Operator command entry
- Process information display
- Alarm indication
- Manual operating functions
- Maintenance interaction
Role in a Touch-Screen HMI Control Architecture
The XBT0T2210 occupies the operator-interface layer of the control system. It does not replace the PLC or field I/O; instead, it provides the physical interface through which operators interact with functions implemented in the control program.
Operator → XBT0T2210 → PLC / Controller → I/O Modules → Sensors & Actuators
| System Element | Function |
|---|---|
| Operator | Enters commands and monitors machine conditions |
| XBT0T2210 | Provides touch-based HMI interaction |
| PLC / Controller | Executes control logic and machine sequencing |
| I/O Modules | Exchanges signals with field devices |
| Sensors | Provides machine and process feedback |
| Actuators | Performs commanded machine actions |
| Machine Equipment | Executes the physical production process |
This architecture keeps operator interaction separate from the underlying control logic while maintaining a direct local interface at the machine.
Industrial Applications
| Application | Typical Use |
|---|---|
| Small Production Machines | Local operation and status monitoring |
| Packaging Equipment | Operator commands and machine-state display |
| Assembly Machines | Touch-based machine operation |
| Material Handling | Local control of handling equipment |
| Conveyor Systems | Status monitoring and operating commands |
| Auxiliary Equipment | Local HMI for supporting machinery |
| OEM Machinery | Compact operator interface for machine builders |
| Maintenance Stations | Local access to configured operating functions |
Installation and Maintenance
- Install the XBT0T2210 in a control-panel position that provides convenient operator access.
- Verify that the panel mounting opening is suitable for the terminal.
- Ensure sufficient clearance is available for wiring and service access.
- Confirm the power connections before energizing the terminal.
- Verify the communication connection between the terminal and associated controller.
- Keep communication wiring properly separated from high-power wiring where practical.
- Check the HMI application configuration before commissioning.
- Verify that displayed variables correspond to the intended controller data.
- Test touch-operated commands under controlled machine conditions.
- Check the touch interface regularly for abnormal response or physical damage.
- Keep the touch surface clean and use non-abrasive cleaning methods.
- When replacing the terminal, verify the HMI project and controller communication configuration before returning the machine to service.
When troubleshooting, check the terminal, communication path, controller, application configuration, and field equipment as separate points in the control chain. An incorrect screen value or unavailable command may originate from the controller or configuration rather than from the touch interface itself.
Related Components
| Component | Function |
|---|---|
| Schneider PLC / Controller | Executes machine-control logic |
| Schneider Magelis HMI Family | Provides operator visualization and control |
| Schneider Digital I/O Modules | Interfaces with discrete field signals |
| Schneider Analog I/O Modules | Handles analog process signals |
| Machine Sensors | Provides equipment feedback |
| Relays and Contactors | Switches electrical loads |
| Motor Starters | Controls motor starting and stopping |
| Variable Speed Drives | Controls motor operating conditions |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Schneider Magelis XBT Family | Operator Terminal | Machine operator interface |
| Schneider Magelis XBT F | Operator Terminal | Industrial machine and process operation |
| Schneider Magelis XBT GT | Graphic HMI | Machine visualization and control |
| Schneider Magelis XBT GK | Keypad HMI | Industrial operator control |
| Schneider Magelis HMIG | HMI Terminal | Machine and process visualization |
| Schneider Modicon M340 | PLC Platform | Machine and automation control |
Key Advantages
- Compact touch-screen interface for machine-level operation
- Suitable for control panels with limited installation space
- Provides direct operator interaction with configured HMI functions
- Allows machine information to be viewed at the equipment level
- Useful for operation, commissioning, and maintenance
- Integrates the operator interface with compatible Schneider automation systems
Technical FAQs
What is the main purpose of the XBT0T2210 Touch Screen?
The XBT0T2210 provides a local touch interface through which operators can monitor configured machine information and interact with available control functions.
Why is a compact touch interface useful on small machines?
A compact touch interface can provide local operator access without requiring a large HMI enclosure or a separate operating station, making it practical for smaller machines and auxiliary equipment.
How does the XBT0T2210 interact with a PLC?
The terminal communicates configured operator actions and receives configured machine information through the automation system communication path. The PLC remains responsible for executing the actual control logic.
What should be checked if a touch command does not operate the machine?
Check the touch screen response first, then verify the HMI application configuration, communication status, PLC logic, permissive conditions, and the corresponding output or field device. This helps determine whether the problem originates at the HMI or elsewhere in the control chain.
