Product Overview

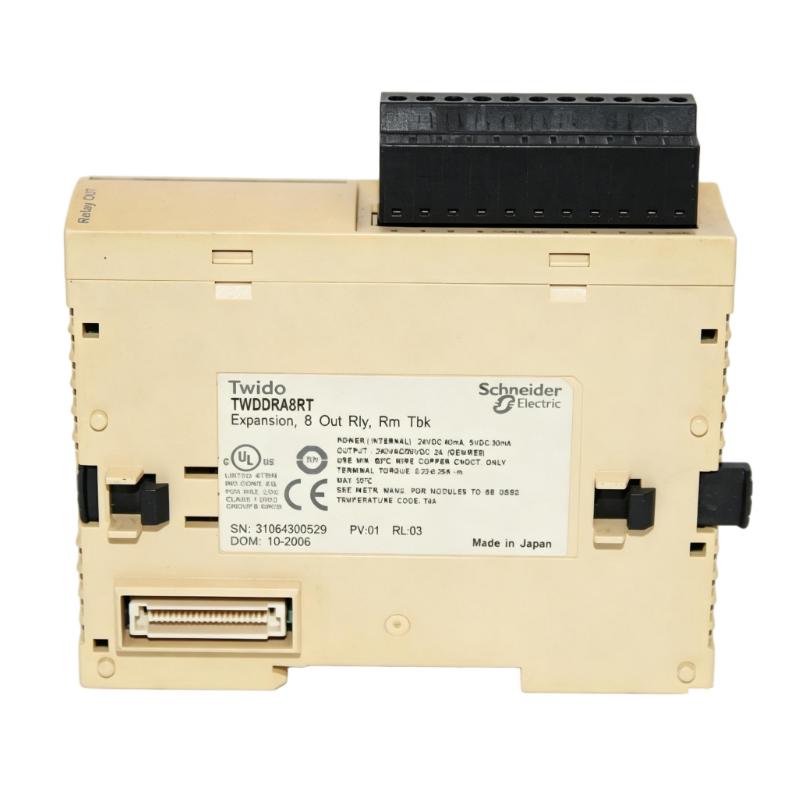

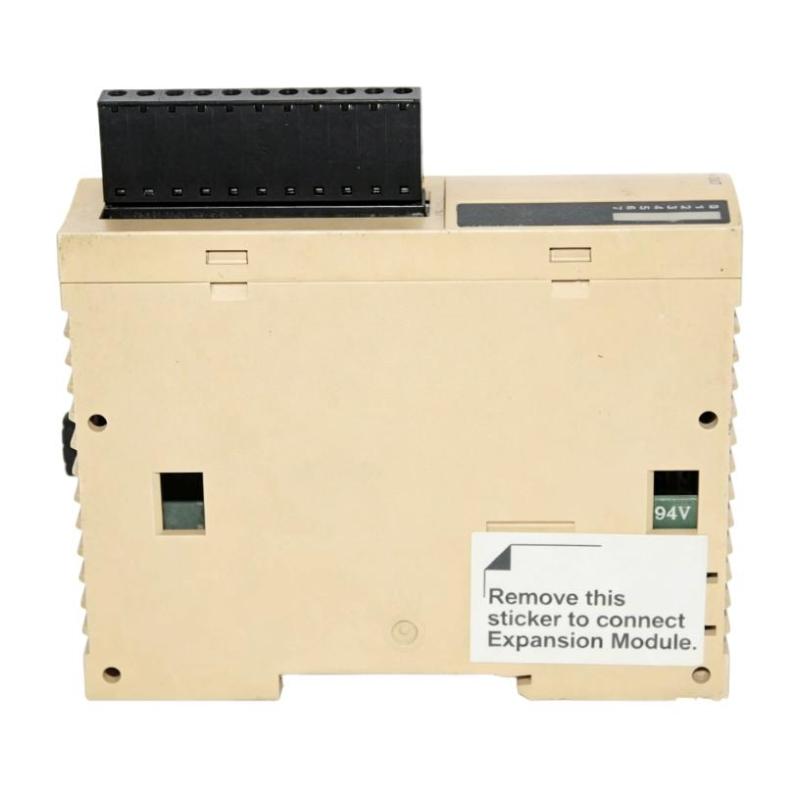

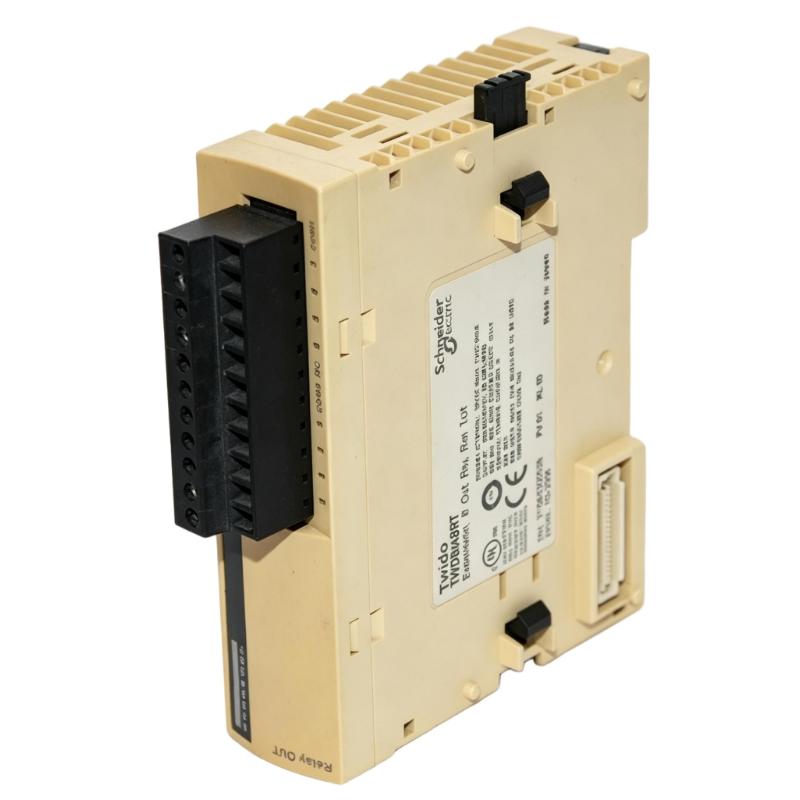

The Schneider Electric TWDDRA8RT Discrete Output Module is an 8-point relay output expansion module designed for compatible Modicon Twido programmable logic controller (PLC) systems. It enables a PLC to switch external electrical loads through relay contacts, supporting the control of industrial equipment such as contactors, indicator lamps, alarms, solenoid-operated devices, and other suitable on/off loads.

As part of the Twido automation platform, the TWDDRA8RT converts output commands generated by the PLC program into switching actions at the connected field devices. This makes it useful in control applications that require dependable discrete output signals and relay-based electrical switching.

The module provides eight normally open (NO) relay output contacts. Relay outputs can be used with suitable AC or DC loads within the module’s specified electrical limits. Because relay contacts provide electrical separation between the control circuitry and the switched load, they can be useful in applications where different load voltages or external circuits must be controlled. Actual isolation ratings and wiring arrangements must follow the manufacturer’s specifications.

The TWDDRA8RT is commonly associated with small and medium-sized machine automation systems. Typical applications include packaging equipment, conveyor controls, pump and fan commands, machine status indicators, and general-purpose industrial switching. Its compact form helps conserve space in control cabinets while providing multiple output points in a single module.

This model is a legacy product. Schneider Electric lists it as discontinued and identifies TM3DQ8R as a recommended replacement. However, the newer module belongs to the Modicon TM3 range, so replacement should not be treated as a direct plug-in exchange. The PLC platform, expansion architecture, wiring, configuration, and application requirements must be checked before changing hardware.

For maintenance engineers, system integrators, and industrial spare-parts buyers, the TWDDRA8RT remains relevant when maintaining existing Twido installations. Correct identification is especially important for older production lines where changing the control platform may involve additional engineering work.

Technical Specifications

The dimensions and weight above follow the supplied product information and are consistent with published documentation for this module. Electrical ratings depend on load type, switching frequency, wiring, and the manufacturer’s output power limitations. Always consult the applicable technical manual before designing or modifying a circuit.

Function and Working Principle

1. Converting PLC Commands into Physical Switching Actions

A PLC program processes input signals, control conditions, timers, interlocks, and other logic to determine when an output should change state. When the program activates one of the TWDDRA8RT output points, the corresponding relay operates and changes the state of its normally open contact.

The connected load can then be energized or de-energized according to the external circuit design. When the PLC removes the output command, the relay returns to its normal state, provided that the module and relay are functioning correctly.

This arrangement allows a PLC to coordinate multiple discrete devices through one compact output module.

2. Eight Relay Output Channels

The TWDDRA8RT provides eight output points, allowing a single module to control several independent loads. Each point can be assigned to a function in the PLC program, such as starting a pump, operating a contactor, activating an alarm, or controlling a machine sequence.

The eight channels help reduce the need for separate switching interfaces in suitable applications. Nevertheless, the number of loads that can be operated simultaneously depends on the electrical ratings, common-line current limits, load characteristics, and required protective devices.

3. Relay Contact Switching

Relay contacts physically open and close to switch an external circuit. Unlike a transistor output, a relay output is not restricted to a single output polarity in the same way; it can support suitable AC or DC circuits within the specified contact ratings.

This flexibility makes relay output modules useful when controlling a mixture of conventional industrial loads. However, the contact rating must be considered carefully. Inductive loads such as coils and solenoids can generate voltage transients, while capacitive loads may create high inrush currents. Appropriate suppression and circuit protection should be provided where required.

4. Common-Line Configuration

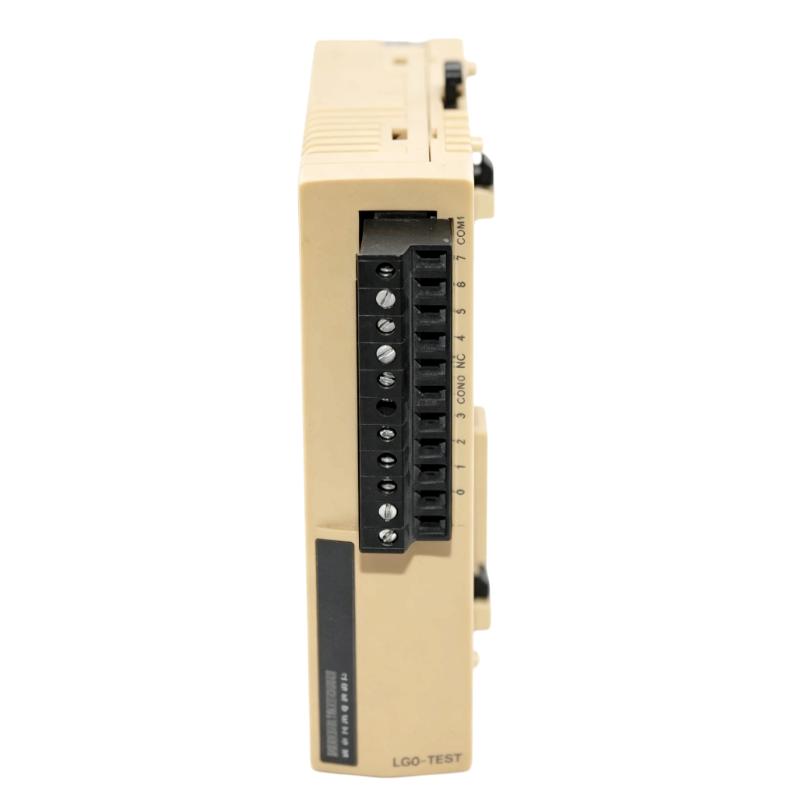

The TWDDRA8RT uses two common lines for its eight normally open contacts. The common terminals are important when organizing the external load circuits and their power supplies.

The common lines must be wired according to the manufacturer’s terminal diagram. They should not be assumed to be internally connected to one another. Incorrect common wiring or exceeding the current limit can lead to malfunction, contact damage, or overheating.

5. Integration with PLC Logic

The module operates as part of the Twido control system. The PLC program determines the logical state of each output, while the relay contacts perform the electrical switching. Correct operation therefore depends on the module being recognized and configured appropriately within the control system, as well as on correct field wiring.

For reliable control, engineers should verify the relationship between program output addresses, terminal assignments, common connections, and the actual field devices.

Role in Industrial Automation Systems

Discrete output modules are a fundamental part of PLC-based control systems. Sensors and switches provide information to the controller, the PLC program evaluates the process conditions, and output modules carry out the resulting commands.

The TWDDRA8RT provides the relay switching interface between a compatible Twido PLC and external electrical equipment. It can be used where the application requires multiple on/off commands rather than continuous analog control.

Machine Control

In automated machinery, the module can switch suitable control circuits for operating sequences. For example, the PLC may activate a contactor after checking safety conditions and process interlocks. The relay output provides the switching contact, while the contactor handles the motor power circuit where appropriate.

The TWDDRA8RT should not be used as a substitute for safety-rated control equipment. Emergency-stop circuits and other safety functions must be implemented using appropriately rated safety components and validated designs.

Process Equipment

Pumps, valves, fans, and auxiliary equipment often require discrete commands. The module can provide output switching for compatible devices when their voltage and current requirements remain within the specified limits.

Where the load draws more current than permitted, an appropriately rated interposing relay or contactor may be needed. This also helps protect the PLC output contacts from unsuitable load conditions.

Alarm and Status Systems

The module can control indicator lamps, audible alarms, and other status devices. In a production line, for example, one output may activate a warning light when the PLC detects a fault condition, while another output operates an alarm according to the programmed response.

The exact alarm strategy depends on the machine design and the required response to faults or loss of control power.

Packaging and Conveyor Equipment

Packaging machines and conveyor systems use many discrete control signals to coordinate actuators, gates, pneumatic valves, and other equipment. An eight-point output module can provide a compact way to switch several suitable devices within a Twido-based installation.

Designers should account for switching frequency, relay mechanical life, load type, and maintenance accessibility when applying relay outputs to repetitive production processes.

Industrial Applications

1. Packaging Machinery

Packaging systems use discrete output signals to operate actuators, control auxiliary mechanisms, activate indicators, and coordinate machine sequences. The TWDDRA8RT can provide relay switching for compatible control circuits in existing Twido installations.

2. Conveyor Systems

Conveyors often use PLC outputs to command motor contactors, diverting mechanisms, warning lights, and auxiliary equipment. The module can handle suitable low-power control circuits, while motor power should normally be switched through correctly rated motor-control equipment.

3. Pump and Fan Control

Industrial facilities use pumps and fans for fluid transfer, ventilation, cooling, and process support. The module can switch suitable command circuits or interposing relays in these applications.

Before connecting a load directly, engineers should check starting current, inductive characteristics, switching voltage, and the maximum allowable current for both the output channel and its common line.

4. HVAC and Building Equipment

Heating, ventilation, and air-conditioning systems use discrete commands for dampers, alarms, contactors, and auxiliary control functions. The module can be considered for compatible legacy control panels where relay output switching is required.

5. Industrial Alarm Panels

The eight output points can support multiple alarm and status functions. Proper circuit protection and a defined response to loss of power or PLC communication should be included in the overall control design.

6. Legacy Machine Retrofits

A key use case for the TWDDRA8RT is maintaining older machinery that still operates with Modicon Twido controllers. Replacing a failed module with the correct part can help restore operation without immediately redesigning the entire control cabinet.

Where the existing Twido platform is being phased out, maintenance teams should also evaluate a planned migration to a supported controller family.

Installation and System Integration

Correct installation is essential for electrical safety, reliable switching, and long-term module performance. The following guidance is general and should be used alongside the applicable Schneider Electric hardware documentation.

Step 1: Confirm the Model

Check the model marking on the existing module and compare it with the system parts list. Confirm that TWDDRA8RT is the intended module and that the controller and expansion configuration support it.

Do not rely only on the external appearance of the module. Similar-looking discrete output products may use different output technologies, terminal assignments, or controller interfaces.

Step 2: Isolate Power

Switch off the equipment and isolate the relevant power sources according to the site’s safety procedures. Verify the absence of hazardous voltage before handling terminals or removing the module.

If the module switches external AC circuits, remember that external load wiring may remain hazardous even when the PLC’s internal supply is disconnected.

Step 3: Inspect the Mounting and Terminal Connections

Check the mounting arrangement, module condition, terminal block, and connecting hardware. Look for cracks, damaged terminals, discoloration, corrosion, or signs of overheating.

Confirm that the replacement module fits the intended installation and that the connector and terminal arrangement match the system documentation.

Step 4: Verify Output Wiring

Review the wiring diagram for all eight output points and both common lines. Confirm the load voltage, load current, conductor size, fuse rating, and any required suppression components.

Do not exceed the maximum output current or common-line current. For inductive AC loads, use appropriate external protection to limit switching transients. Follow the manufacturer’s restrictions for load types, including any restrictions on capacitive loads.

Step 5: Install the Module

Mount the module in the specified position and reconnect the terminal block and expansion connections as directed by the hardware manual. Ensure that the module is seated correctly and that all connections are secure.

Keep the installation within the specified environmental conditions and provide the required clearance and protection for the control cabinet.

Step 6: Configure and Test

After checking the wiring, restore power according to the commissioning procedure. Verify that the controller recognizes the module and that the program’s output addresses correspond to the correct physical terminals.

Test each output under controlled conditions. Confirm that the intended device switches correctly and that there are no unexpected operations, abnormal heating, or repeated relay chatter.

Step 7: Document the Installation

Record the module model, equipment identification, terminal assignments, and any changes made during replacement. This documentation helps future maintenance personnel troubleshoot faults and procure the correct spare parts.

Compatible System Components

The TWDDRA8RT is designed for use within compatible Modicon Twido systems. The following table describes related component categories rather than guaranteeing compatibility with every model.

Compatibility must be confirmed against the controller’s hardware documentation and the installed system architecture. The module should not be assumed to work with a different PLC family simply because the electrical outputs appear similar.

Recommended Replacement Models and Replacement Considerations

Schneider Electric identifies TM3DQ8R as the recommended replacement for TWDDRA8RT. This is a useful starting point when planning maintenance or migration, but it is not sufficient on its own to establish direct compatibility.

The TWDDRA8RT is a discontinued product, and its standard service period has ended. Buyers maintaining older equipment may therefore need to source an original spare through available industrial spare-parts channels.

When considering a migration to TM3DQ8R, engineers should check whether the existing controller supports the newer expansion platform. A replacement may require a different controller, wiring changes, program modifications, or additional commissioning work. The exact requirements depend on the installed system.

A technically similar relay output module is not automatically an approved replacement. Verify the full part number and applicable documentation before ordering or installing an alternative.

Key Advantages

Eight Relay Output Points

The module provides eight normally open relay contacts in a compact unit, allowing multiple discrete loads to be controlled from a compatible PLC system.

Flexible AC and DC Switching

Relay outputs support suitable AC and DC loads within the specified ratings. This flexibility is useful in control panels where different types of external circuits are present.

Compact Installation

With supplied dimensions of 23.5 × 90 × 70 mm and a stated weight of 0.11 kg, the module is suited to compact control-panel arrangements.

Integration with Existing Twido Systems

For installations already designed around the Twido platform, the original module can help maintain the existing control architecture without automatically requiring a full system replacement.

Straightforward Output Mapping

Each output can be assigned to a specific function in the PLC program, supporting organized control logic and systematic troubleshooting.

Practical Spare-Part Identification

The clear model designation helps maintenance teams identify the intended component. Accurate part-number matching is particularly important for legacy automation equipment.

Technical FAQs

1. What is the Schneider Electric TWDDRA8RT?

It is an 8-point relay output module in the Modicon Twido PLC product family. It provides eight normally open relay contacts for switching suitable external loads.

2. How many output channels does it provide?

The module provides eight relay output points. The number of loads that can be controlled simultaneously depends on the wiring design and applicable electrical ratings.

3. What is the maximum output current?

The documented maximum is 2 A per output and 7 A per common line. The actual permissible load depends on the switching voltage, load type, and manufacturer specifications.

4. What are the dimensions and weight?

The supplied dimensions are 23.5 × 90 × 70 mm, and the stated weight is 0.11 kg.

5. Is TWDDRA8RT still manufactured?

Schneider Electric lists the model as discontinued. Its standard service period ended on December 31, 2021, according to the manufacturer’s product information.

6. What is the recommended replacement?

Schneider Electric identifies TM3DQ8R as a recommended replacement. Because it belongs to the Modicon TM3 range, verify controller compatibility and system integration requirements before using it.

7. Can the module control motors directly?

The module should not be treated as a motor power switch. It may control a suitable contactor or interposing relay, while the motor circuit requires correctly rated switching and protection equipment.

8. Can it switch AC and DC loads?

Yes, suitable AC and DC loads can be switched within the specified voltage, current, and load limitations. Consult the hardware manual before connecting a particular load.

9. What should be checked before ordering?

Confirm the complete part number, controller model, terminal arrangement, output type, dimensions, and required quantity. For legacy systems, it is also helpful to verify the original module label and parts list.

10. Is TM3DQ8R a direct plug-in replacement?

It should not be assumed to be a direct plug-in replacement. Although Schneider Electric recommends it as a replacement, the newer platform may require changes to the controller, wiring, configuration, or program.

Procurement and Maintenance Recommendations

When purchasing the Schneider Electric TWDDRA8RT Discrete Output Module, buyers should confirm the model and intended use before placing an order. As the product is discontinued, accurate identification is especially important for reducing procurement errors and avoiding unnecessary machine downtime.

For industrial spare-parts procurement, consider the following:

• Verify the part number on the installed module.
• Confirm the controller model and the existing expansion arrangement.
• Check the output type, number of channels, and electrical ratings.
• Confirm that the module’s physical dimensions and terminal arrangement match the intended installation.
• Clarify product condition and inspection requirements when purchasing legacy stock.
• Evaluate TM3DQ8R only after confirming the feasibility of the required system migration.
• Retain a record of the replacement part number and commissioning results.

During routine maintenance, inspect terminal connections for looseness, discoloration, or overheating. Relay contacts are electromechanical components and have finite electrical and mechanical life. Frequent switching, excessive inrush current, and unsuitable inductive loads may shorten service life.

If an output fails to switch, check the PLC program state, terminal wiring, load circuit, fuse protection, and external device before concluding that the module itself has failed. A structured troubleshooting procedure helps avoid unnecessary replacement.

Conclusion

The Schneider Electric TWDDRA8RT Discrete Output Module is an eight-channel relay output module designed for compatible Modicon Twido PLC systems. Its relay contacts support discrete control of suitable industrial loads, making it relevant to machine automation, packaging equipment, conveyor systems, pump and fan controls, and legacy industrial installations.

The supplied product dimensions are 23.5 × 90 × 70 mm, with a stated weight of 0.11 kg. The model is discontinued, and Schneider Electric recommends TM3DQ8R as a replacement. However, the newer product should be evaluated as part of a compatibility and migration review rather than assumed to be a direct plug-in substitute.

For maintenance engineers, system integrators, and industrial spare-parts buyers, confirming the exact model, electrical requirements, controller platform, and terminal arrangement is essential. Correct identification helps support reliable repairs and informed decisions when maintaining or upgrading existing automation systems.
