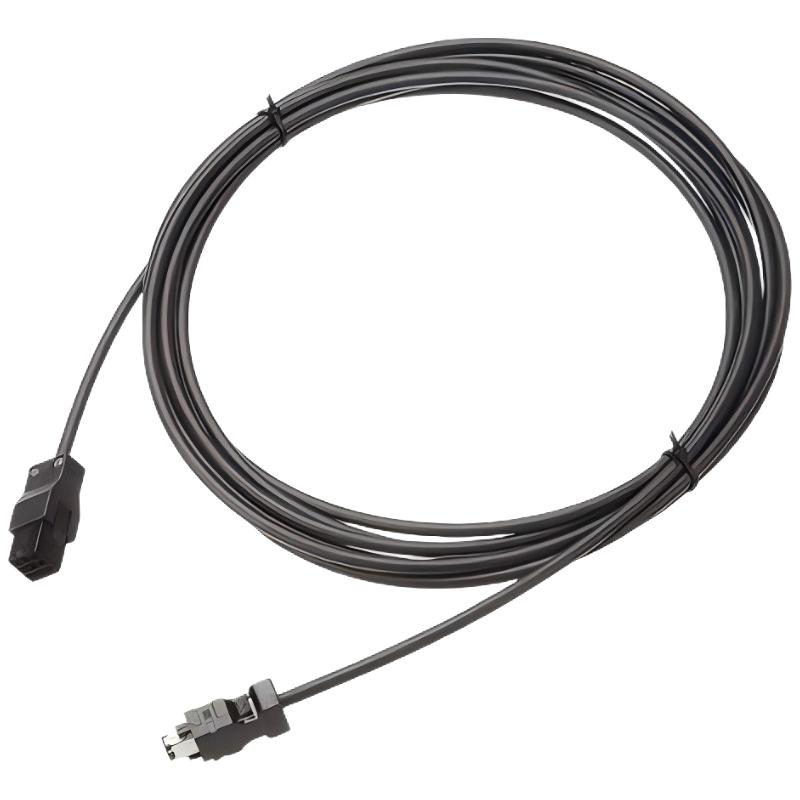

Product Overview

The Schneider Electric VW3M8D1AR50TK Encoder Twisted-Pair Shielded Cable is specified for applications that require reliable encoder signal transmission between a compatible servo motor and servo drive. Encoder cables are important components in industrial motion-control systems because they carry feedback signals used by the control system to monitor motor position and rotational movement.

The corresponding Schneider Electric catalog reference found in product documentation is VW3M8D1AR50. This cable belongs to the Lexium accessory range and is designed for compatible BCH2 servo motors equipped with a SinCos single-turn encoder. It is intended for use with compatible Lexium 28 servo drives.

The cable has a nominal length of 5 meters, providing flexibility when the motor and drive are installed in separate locations within a machine cabinet or mechanical assembly. Its shielded construction helps reduce the influence of electromagnetic interference that may be present in industrial environments containing variable speed drives, servo amplifiers, motors, contactors, and switching power supplies.

The documented cable construction is 5 × (2 × 0.13 mm²), consisting of five pairs of conductors with a nominal conductor cross-sectional area of 0.13 mm² per conductor. The assembly is equipped with a six-pin FireWire-style connector and a nine-pin Molex connector. The appropriate connector must be connected to the designated interface on the compatible drive or motor.

In a servo system, the encoder provides feedback about motor movement. The servo drive processes this feedback and uses it as part of the closed-loop control process. A suitable encoder cable helps preserve signal integrity between the feedback device and the drive, supporting stable operation when the entire system is correctly installed and configured.

The VW3M8D1AR50 cable is a connection accessory rather than an independent encoder, servo motor, or drive. It does not generate feedback data or perform motion-control calculations by itself. Its role is to provide the physical electrical connection required by compatible equipment.

Model identification note: The product documentation located for this description identifies the catalog number as VW3M8D1AR50. The supplied listing uses VW3M8D1AR50TK. Confirm the full part number on the product label before purchasing or replacing an existing cable.

Technical Specifications

Specifications are based on available documentation for VW3M8D1AR50 and the information supplied with the product listing. Confirm the exact suffix, connector arrangement, and compatibility for VW3M8D1AR50TK before ordering.

Function and Working Principle

1. Encoder Feedback Transmission

An encoder is a feedback device that provides information about the movement of a motor shaft. Depending on its design, it can provide information used to determine angular position, rotational direction, and speed.

In a closed-loop servo system, the servo drive uses encoder feedback to evaluate motor behavior against the requested motion or operating reference. The drive can then adjust its output to achieve the required response within the capabilities of the motor and control system.

The VW3M8D1AR50 cable provides the electrical connection between the encoder-equipped BCH2 motor and a compatible Lexium 28 drive. Its function is to carry the supported encoder signals between these devices.

The cable itself does not calculate position or regulate motor speed. Those functions depend on the encoder, drive electronics, control algorithms, and configured application.

2. Shielded Twisted-Pair Construction

The cable uses shielded conductors arranged in pairs. Twisted-pair construction helps reduce the effects of certain types of electromagnetic interference on differential signals, while shielding provides an additional measure of protection against electrical noise.

Industrial machinery can generate electrical interference through motor switching, drive power stages, contactors, and nearby power cables. Encoder signals may be sensitive to noise because incorrect feedback can affect the drive’s interpretation of motor movement.

The effectiveness of the cable depends on correct installation. Shield termination, grounding, cable routing, connector condition, and separation from power conductors all influence the quality of the feedback connection.

Shielding does not eliminate every source of interference. Proper cable installation and compliance with the drive manufacturer’s grounding requirements remain essential.

3. Connection Between Servo Motor and Drive

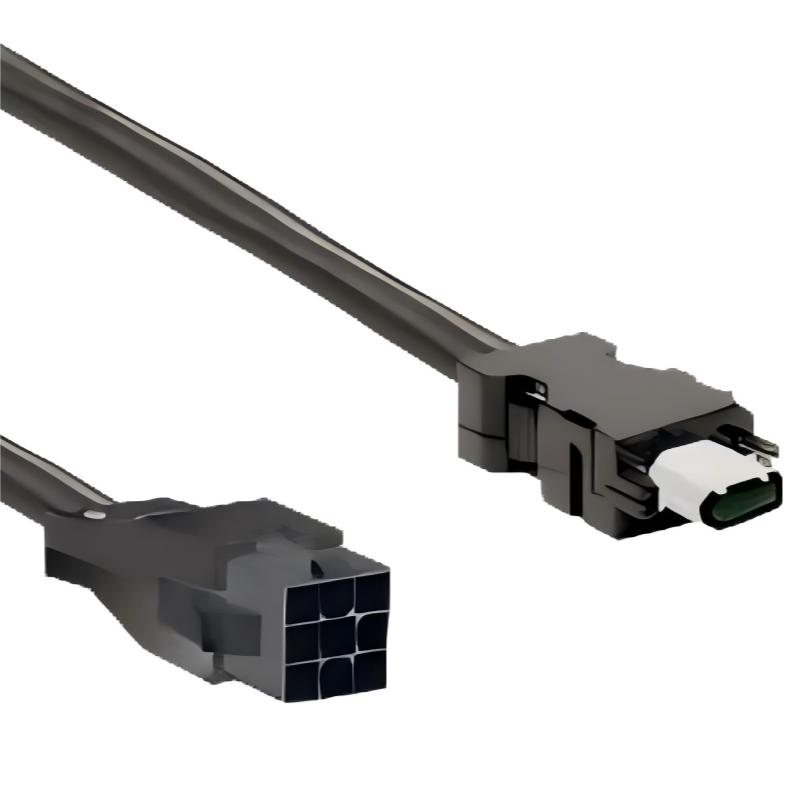

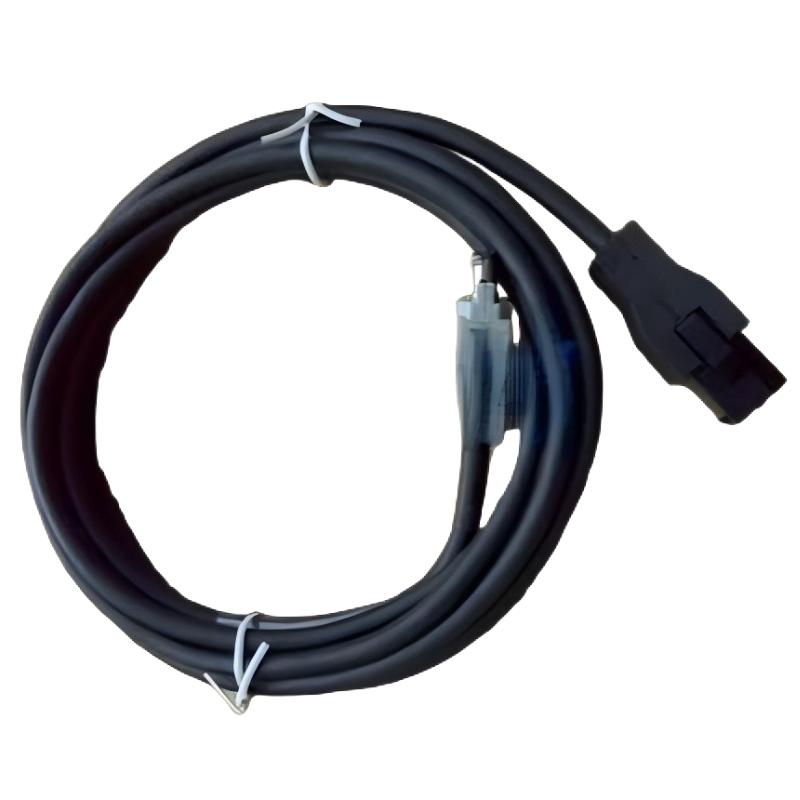

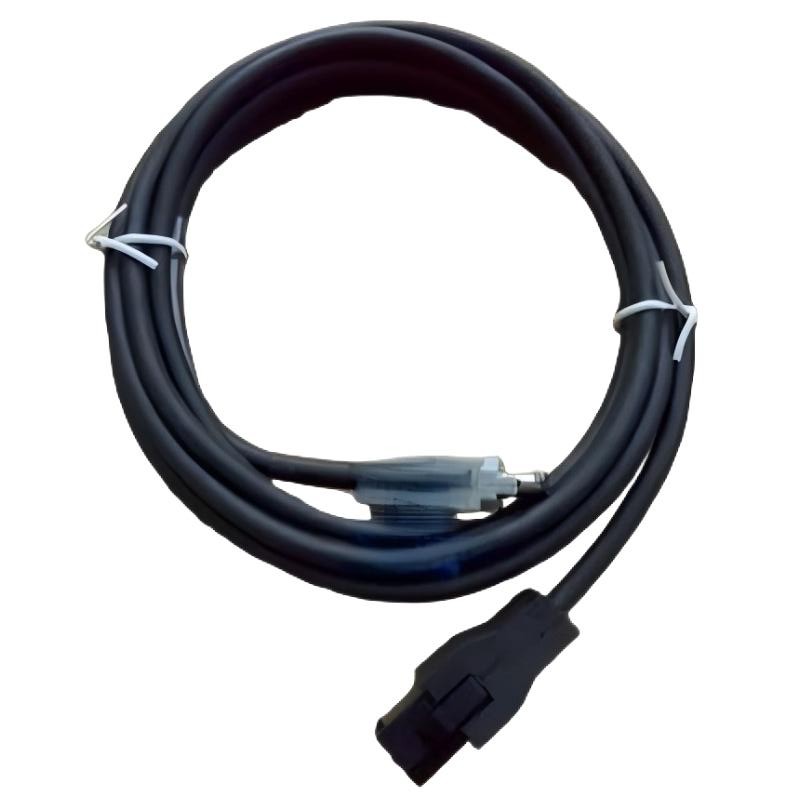

The cable is designed for the specific interfaces used by compatible equipment. The documented assembly uses a six-pin connector at one end and a nine-pin connector at the other.

These connectors provide a defined connection between the servo drive’s encoder interface and the compatible motor’s feedback connection. Their pin assignments and electrical characteristics must match the equipment documentation.

A cable with physically similar connectors is not necessarily electrically compatible. Before connecting a replacement, verify the connector type, pin configuration, encoder type, and intended equipment.

4. Supporting Closed-Loop Motion Control

Closed-loop servo control relies on feedback to compare actual motor behavior with the commanded movement. If the feedback signal is interrupted, distorted, or interpreted incorrectly, the drive may report an encoder-related fault or fail to operate as expected.

A correctly specified and installed encoder cable helps maintain the feedback path needed for this process. It is particularly important in systems where repeatable positioning, controlled acceleration, or coordinated machine movement is required.

The final motion performance depends on the complete servo system, including the motor, encoder, drive, controller, mechanical load, and control parameters.

Role in Industrial Automation Systems

Servo Motor Feedback Integration

The cable connects the feedback interface of a compatible servo motor to the corresponding interface on the servo drive. This connection allows the drive to receive encoder signals required by the supported feedback system.

Without a suitable connection, the drive may be unable to establish normal feedback operation. A damaged or incompatible cable can therefore prevent the servo system from starting correctly or maintaining stable motion.

Reliable Machine Operation

In automated equipment, a feedback cable must remain electrically reliable while the machine experiences vibration, temperature changes, and routine operating cycles. Correct cable selection and routing help reduce the risk of intermittent feedback problems.

The cable should be installed according to the manufacturer’s requirements, with suitable strain relief and protection against abrasion, crushing, and excessive bending.

Maintenance and Troubleshooting

Encoder cables are useful diagnostic checkpoints when a servo drive reports a feedback fault. Maintenance personnel can inspect the connectors, cable jacket, shielding arrangement, and connection security before proceeding to more extensive diagnostics.

However, an encoder-related fault does not automatically indicate cable failure. Other potential causes include an encoder problem, incorrect parameter settings, incompatible hardware, a defective connector, or a drive-side fault.

A systematic inspection helps avoid unnecessary replacement of otherwise functional components.

Industrial Applications

Automated Assembly Machines

Assembly equipment frequently uses servo motors to position components, operate indexing mechanisms, and control moving fixtures. A dependable encoder connection supports the feedback path required for the configured servo-control process.

The 5-meter cable length can be useful where the servo motor and drive are installed at different points within a machine. Actual suitability depends on the machine layout and the cable-routing requirements.

Packaging Equipment

Packaging machinery may use servo-driven feeders, cutting mechanisms, labeling systems, and indexing stations. These applications often require repeatable motor movement and consistent synchronization with other machine functions.

The cable helps connect compatible motor feedback to the drive, supporting the closed-loop control architecture used by the equipment.

Material Handling Systems

Automated transfer equipment and specialized material-handling machines may use servo motors for controlled positioning and movement. In such systems, the encoder connection helps the drive monitor motor behavior.

The cable should be protected against mechanical damage caused by moving assemblies, vibration, and contact with other equipment.

Industrial Robotics and Specialized Machinery

Some specialized automation systems use servo motors to operate positioning mechanisms, tooling, or machine axes. Where the motor and drive are compatible with this cable, the assembly can provide the required encoder connection.

The cable should not be assumed to be suitable for every robotic axis or motion-control platform. Connector design, encoder type, electrical characteristics, and mechanical requirements must all be verified.

Equipment Repair and Spare-Parts Replacement

The cable may be used as a replacement component when a compatible servo system develops an encoder-connection problem or when the original cable has sustained physical damage.

Matching the original catalog reference is important because servo feedback cables may use different conductor arrangements, connector pinouts, and shielding designs even when they have similar lengths or external appearances.

Installation and System Integration

1. Confirm the Equipment Model

Before installation, identify the servo motor and servo drive model numbers. Confirm that the motor uses the supported SinCos single-turn encoder arrangement and that the drive provides the corresponding encoder interface.

Also verify the cable’s complete part number. The available documentation identifies VW3M8D1AR50, while the supplied listing includes the additional suffix TK.

2. Isolate the Equipment

Follow the machine’s electrical isolation and lockout procedures before connecting or disconnecting the cable. Servo drives and motors must be handled according to their product-specific safety instructions.

Do not connect or disconnect feedback wiring while energized unless the manufacturer’s documentation explicitly permits the procedure.

3. Inspect the Cable Assembly

Before installation, check the cable jacket, connectors, contact areas, and strain-relief points. Look for cuts, deformation, contamination, bent contacts, or other visible damage.

A cable with damaged insulation or connectors should not be installed in a critical motion-control application without an appropriate assessment.

4. Connect the Correct Ends

Connect each end to the designated motor or drive interface according to the manufacturer’s documentation. Do not rely on connector shape alone to determine the correct connection.

Ensure that the connectors are fully seated and secured as designed. Avoid excessive force, twisting, or pulling on the cable during installation.

5. Route the Cable Correctly

Route the encoder cable in accordance with the drive manufacturer’s EMC recommendations. Where required, keep it separated from motor power cables, mains conductors, and other strong sources of electrical interference.

Avoid sharp edges, crushing points, excessive bending, and unsupported sections that could place continuous stress on the connectors.

If the machine contains moving cable carriers, confirm that the cable is suitable for the actual bending and movement requirements. A standard shielded cable should not automatically be assumed to have a continuous-flex rating.

6. Verify Shielding and Grounding

Shield termination should follow the equipment manufacturer’s installation instructions. Incorrect shielding or grounding can reduce noise immunity and contribute to intermittent feedback faults.

Do not add arbitrary grounding connections or modify the cable assembly without confirming the electrical design.

7. Test the Servo System

After installation, restore power according to the approved startup procedure. Check for encoder-related alarms and confirm that the drive recognizes the feedback system.

Where appropriate, perform the manufacturer’s recommended motor identification or commissioning procedure. Test the system at a controlled operating condition before returning the machine to normal production.

If feedback errors persist, inspect the cable and connectors, but also consider encoder condition, drive compatibility, parameters, and drive hardware.

Compatible System Components

The following components describe the typical architecture in which the cable may be used. Exact compatibility depends on the equipment model and feedback configuration.

The encoder cable and motor power cable perform different functions. They should not be substituted for one another, and their connections must follow the wiring diagrams for the selected servo system.

Alternative Models and Replacement Considerations

When selecting a replacement, prioritize the original cable reference and verified compatibility. A cable with the same nominal length is not necessarily an acceptable substitute.

A replacement decision should consider the full electrical and mechanical specification rather than cable length alone. If the original reference is unavailable, consult the applicable Schneider Electric documentation or a qualified supplier to identify an approved alternative.

Key Advantages

Shielded Feedback Connection

The shielded construction helps reduce susceptibility to electromagnetic interference when installed and grounded correctly.

Defined Connector Arrangement

The documented six-pin and nine-pin connector configuration supports the intended connection between compatible motor and drive interfaces.

Five-Meter Cable Length

The 5-meter length provides flexibility for equipment layouts in which the motor and servo drive are installed separately.

Designed for Compatible Servo Equipment

The documented cable is intended for supported BCH2 motors with SinCos single-turn encoders and compatible Lexium 28 drives.

Supports Closed-Loop Servo Operation

By carrying encoder signals, the cable supports the feedback connection needed for the drive’s configured closed-loop control process.

Useful for Maintenance and Spare-Parts Inventory

Keeping the correct cable reference available can help maintenance teams restore compatible servo systems when the original cable is damaged or unreliable.

Technical FAQs

1. What is the Schneider Electric VW3M8D1AR50 encoder cable?

It is a shielded encoder cable designed to connect compatible BCH2 servo motors with SinCos single-turn encoders to compatible Lexium 28 servo drives.

2. What is the cable length?

The documented cable length is 5 meters.

3. What is the cable weight?

The supplied product information and the documentation for VW3M8D1AR50 specify a weight of 1.2 kg.

4. Is the cable shielded?

Yes. It is specified as a shielded encoder cable with a paired-conductor construction.

5. What connectors does it use?

The documented assembly uses one six-pin FireWire-style connector and one nine-pin Molex connector. Confirm the connector arrangement against the actual product and equipment documentation before installation.

6. Which servo motors can use this cable?

The cable is intended for compatible BCH2 servo motors with a SinCos single-turn encoder. The exact motor variant must be checked before ordering.

7. Can it be used with any servo drive?

No. It is designed for a defined motor and drive configuration. Connector compatibility alone does not establish electrical compatibility.

8. Does the cable provide motor power?

No. Its primary purpose is encoder feedback connection. The motor power connection is a separate part of the servo system.

9. Can a damaged encoder cable cause a servo alarm?

Yes. An open circuit, damaged conductor, poor connector contact, or interference-related signal problem may cause feedback errors. However, the encoder, drive, configuration, and other connections should also be checked during troubleshooting.

10. Can another 5-meter encoder cable replace it?

Only if the alternative is confirmed to match the required electrical characteristics, connector pinout, encoder type, shielding, and equipment compatibility. Equal cable length is not sufficient.

11. What is the difference between VW3M8D1AR50 and VW3M8D1AR50TK?

The available product documentation identifies VW3M8D1AR50. The additional TK suffix in the supplied listing could not be independently confirmed from the product documentation reviewed. Check the product label or supplier confirmation before treating the two designations as identical.

12. What should be checked before purchasing?

Verify the full part number, motor and drive models, encoder type, connector arrangement, cable length, shielding condition, and supplier’s product-condition information.

Procurement and Maintenance Recommendations

When purchasing the VW3M8D1AR50TK listing, confirm the model suffix with the supplier and request a clear product-label photograph if the suffix is important to your application. The documented VW3M8D1AR50 reference should be used as the primary compatibility-checking point until the exact variant is confirmed.

For replacement inventory, record the associated servo motor and drive models alongside the cable reference. This reduces the risk of selecting a cable with a similar appearance but a different pin configuration or encoder application.

During preventive maintenance, inspect the cable for wear, crushed sections, loose connectors, contamination, and damage around strain-relief points. In installations exposed to vibration or repeated movement, pay particular attention to mechanical stress near the connectors.

If a servo system develops an encoder fault, check the cable and connections systematically before replacing other components. Preserve the existing wiring configuration and follow the equipment manufacturer’s diagnostic procedure.

Conclusion

The Schneider Electric VW3M8D1AR50 encoder cable is a 5-meter shielded connection accessory designed for compatible BCH2 servo motors with SinCos single-turn encoders and Lexium 28 servo drives. Its paired-conductor construction and dedicated connectors support the encoder feedback path required by the configured servo system.

For industrial automation applications, correct cable selection, proper shielding and routing, and secure connector installation are important for dependable feedback transmission. The cable should always be matched to the exact motor, encoder, and drive configuration.

Because the supplied designation includes the suffix TK while the available documentation identifies VW3M8D1AR50, confirm the complete catalog number before purchase or replacement. This simple verification helps ensure that the cable matches the intended servo equipment.
