Product Overview

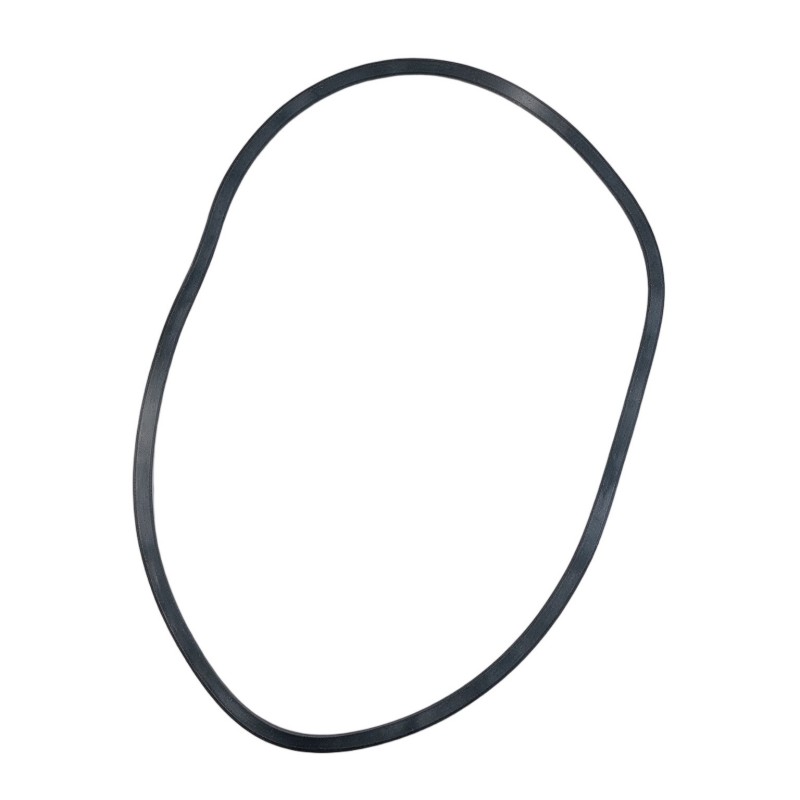

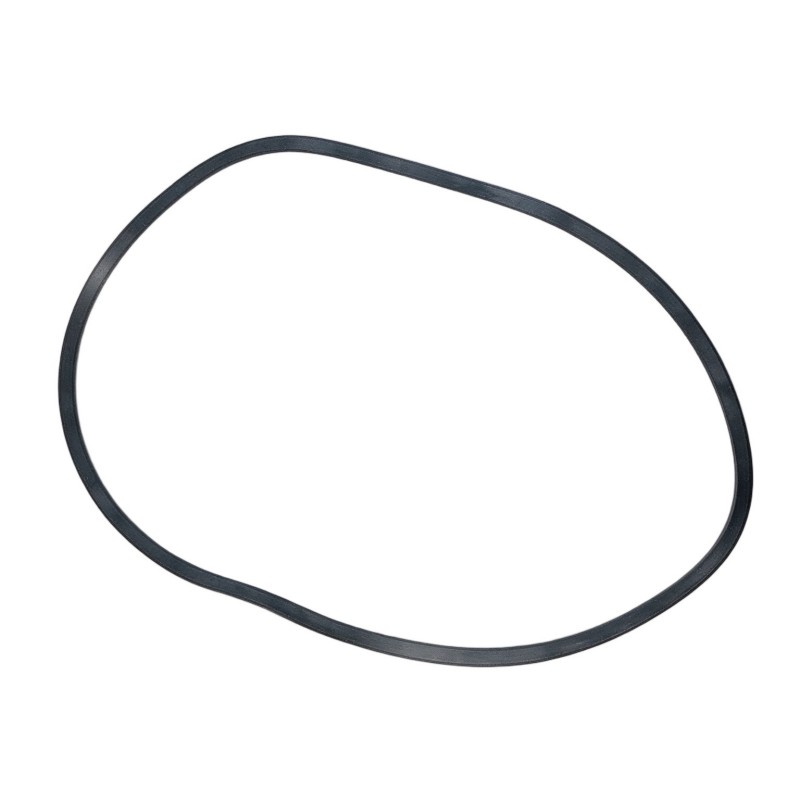

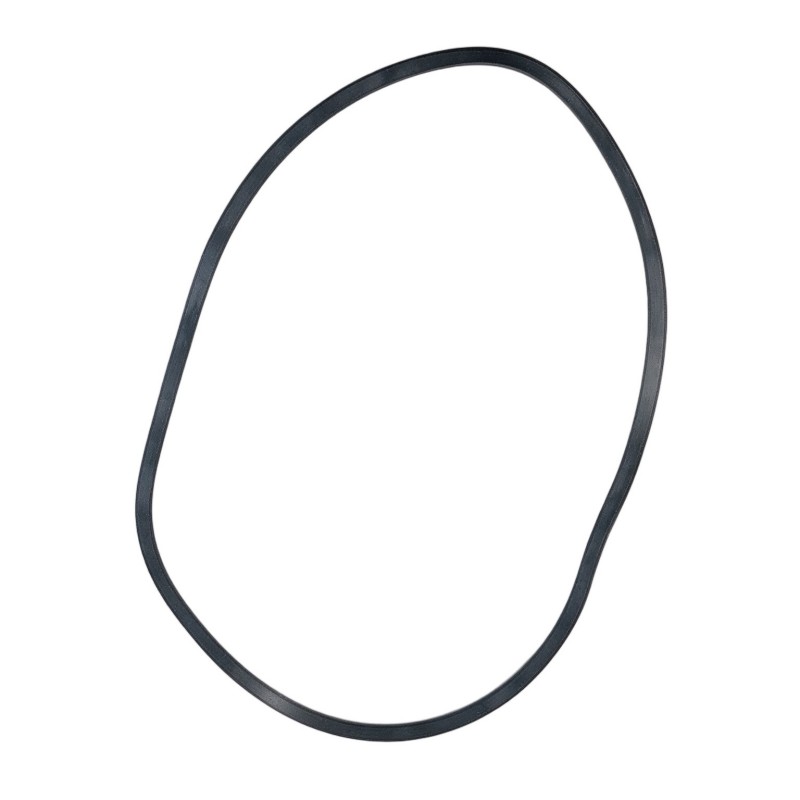

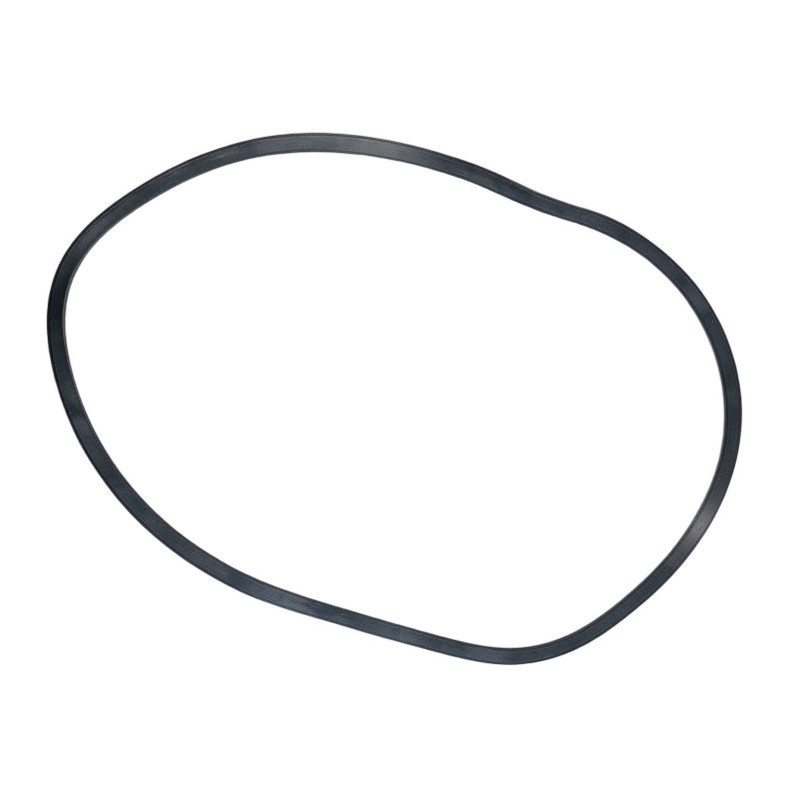

The Ingersoll Rand 47553883001 22088892 Motor Gasket is a sealing component used at the motor-to-airend interface in compatible industrial rotary screw compressor assemblies. Its purpose is to maintain the seal between mating surfaces, helping prevent unwanted leakage and preserving the intended assembly conditions during compressor operation.
In a compressor drivetrain, the motor and airend must remain correctly aligned and securely assembled. The gasket installed at their interface helps accommodate minor surface irregularities and limits leakage through the joint. If the gasket becomes damaged, compressed unevenly, or contaminated during maintenance, the connection may no longer seal as intended. This can lead to leakage, additional maintenance work, or problems during reassembly.
Part number 22088892 is identified as a motor gasket and is listed as a Viton gasket in an Ingersoll Rand drivetrain assembly parts breakdown. This material identification is relevant when checking replacement suitability because gasket material must withstand the temperatures, fluids, and operating conditions present at the installation point.
When replacing this component, technicians should verify the complete part number and the specific compressor assembly in which it is installed. A gasket that appears similar may have a different profile or material specification, potentially affecting sealing performance. The supplied dimensions and weight are useful for product identification and inventory records, but the mating surfaces and original assembly configuration should determine final replacement suitability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Ingersoll Rand |
| Product Type | Motor Gasket |
| Part Number | 47553883001 |
| Component Number | 22088892 |
| Application | Motor-to-airend assembly |
| Material | Viton, as identified in the applicable parts breakdown |
| Dimensions | 180 × 140 × 2 mm |
| Weight | 0.03 kg |
Product Features
- Motor-to-airend sealing: Supports the sealed interface between the motor assembly and compressor airend in compatible equipment.
- Defined replacement identification: The 47553883001 and 22088892 numbers help distinguish the component during maintenance and parts management.
- Viton material specification: The identified elastomer is relevant when evaluating compatibility with operating fluids and temperature conditions.
- Thin sealing profile: The specified thickness supports identification of the intended gasket configuration.
- Assembly-specific fit: Proper installation depends on matching the gasket profile to the corresponding mating surfaces.
- Maintenance replacement: Allows the sealing element to be renewed when inspection reveals damage, permanent deformation, or deterioration.
- Mechanical interface support: Helps maintain the intended sealing conditions when the motor and airend are assembled correctly.
Working Principle
The 22088892 motor gasket works through compression between two mating surfaces. During assembly, the gasket is positioned at the designated motor-to-airend joint. When the fasteners are tightened according to the equipment procedure, the gasket compresses against the adjoining surfaces, filling minor surface irregularities that could otherwise form leakage paths.
In a rotary screw compressor, the motor drives the airend, where the rotors compress incoming air. The motor and airend connection must maintain the intended mechanical relationship while the assembly experiences vibration, temperature changes, and operating loads. The gasket contributes to the integrity of the joint by maintaining contact between the mating surfaces.
The gasket does not perform a mechanical drive function and does not control the compression process. Its function is limited to sealing at the specified interface. If the gasket is installed incorrectly, reused after excessive compression, or exposed to unsuitable conditions, the joint may leak even when the surrounding components remain serviceable.
During replacement, the old gasket should be removed without damaging the mating surfaces. Residual material, oil deposits, scratches, or uneven contact can interfere with the new gasket’s ability to seal. The replacement should be positioned correctly, and the assembly should be tightened in accordance with the applicable service procedure.
Role in a Compressor Drivetrain
The motor gasket occupies the joint between the motor assembly and airend. It supports the mechanical assembly by sealing the mating interface, while the motor, coupling or drive arrangement, and airend perform the power transmission and compression functions.
Electric Motor → Motor-to-Airend Interface with Gasket → Compressor Airend → Compressed Air System
| System Element | Function |
|---|---|
| Electric Motor | Supplies the rotational power required to drive the compressor |
| Motor Mounting Interface | Establishes the mechanical connection between the motor and airend |
| 22088892 Motor Gasket | Seals the designated mating surfaces |
| Fasteners | Secure the assembled components according to the specified procedure |
| Compressor Airend | Compresses incoming air through the rotating screw elements |
| Cooling and Lubrication Circuit | Manages heat and lubrication according to the compressor design |
| Compressor Control System | Coordinates operating conditions and protective functions |
The gasket supports the integrity of the assembled joint but does not compensate for damaged mating surfaces, incorrect alignment, or improperly tightened fasteners.
Industrial Applications
| Application | Typical Use |
|---|---|
| Rotary Screw Compressors | Sealing the motor-to-airend interface in compatible compressor assemblies |
| Industrial Compressed Air Systems | Supporting maintenance of compressor drivetrain joints |
| Manufacturing Facilities | Replacing worn sealing components during scheduled compressor service |
| Process Industries | Maintaining compressor assembly integrity in continuous-duty applications |
| Compressor Overhauls | Renewing the gasket when the motor and airend are separated |
| Preventive Maintenance | Replacing a gasket when inspection identifies deterioration or damage |
| Spare Parts Inventory | Identifying the correct sealing component for a specific assembly |
| Motor Replacement Work | Renewing the gasket when reinstalling a compatible motor assembly |
The correct application depends on the compressor model and the original assembly configuration. The part number should be verified before the gasket is installed in a different compressor variant.
Installation and Maintenance
- Verify the part number: Confirm that 47553883001 and 22088892 match the required compressor assembly.
- Isolate the equipment: Disconnect the power supply and follow the site’s lockout and safety procedures before opening the motor-to-airend joint.
- Inspect the existing gasket: Check for tearing, hardening, flattening, cracking, or signs of leakage.
- Remove residual material: Clean the mating surfaces carefully without scratching or deforming the sealing faces.
- Inspect the mating surfaces: Look for corrosion, scoring, burrs, or uneven contact that could compromise the new gasket.
- Check material compatibility: Confirm that the specified gasket material is suitable for the fluids and temperatures encountered at the installation point.
- Verify gasket orientation: Position the gasket according to the assembly arrangement and ensure that all required openings align correctly.
- Avoid stretching or twisting: Handle the gasket carefully to prevent distortion before the mating surfaces are brought together.
- Check component alignment: Ensure that the motor and airend are correctly positioned before tightening the assembly.
- Tighten fasteners correctly: Follow the applicable tightening sequence and torque requirements rather than applying an assumed value.
- Inspect after assembly: Check the joint for visible misalignment, pinching, or other installation defects before returning the equipment to service.
- Record maintenance details: Document the replacement part number, inspection findings, and service date for future maintenance planning.
If leakage is detected after reassembly, inspect the gasket seating, mating surfaces, fastener condition, and assembly alignment. Replacing the gasket alone will not correct a joint that has damaged sealing faces or incorrect mechanical positioning.
Compatible System Components
The 22088892 motor gasket is associated with the motor-to-airend drivetrain assembly. Related components depend on the compressor configuration and should be verified against the applicable assembly parts list.
| Component | Function |
|---|---|
| Ingersoll Rand Compressor Motor | Supplies rotational power to the airend |
| Ingersoll Rand Compressor Airend | Compresses incoming air |
| Motor Mounting Hardware | Secures the motor and airend assembly |
| Motor Spacer 22056279 | Provides spacing within the applicable drivetrain assembly |
| Hex Head Bolt 22136048 | Secures the specified assembly connection |
| Belleville Spring Washer 22136105 | Provides the specified spring-washer arrangement |
| Motor Rotor/Stator Assembly 23652464 | Forms part of the motor assembly identified in the relevant drivetrain parts breakdown |
Recommended Related Models
| Model | Product Type | Relevance |
|---|---|---|
| Ingersoll Rand 22056279 | Motor Spacer | Related component in the drivetrain assembly |
| Ingersoll Rand 22136048 | Hex Head Bolt | Assembly fastener listed with the motor gasket |
| Ingersoll Rand 22136105 | Belleville Spring Washer | Supports the specified drivetrain fastening arrangement |
| Ingersoll Rand 22136345 | Hardened Washer | Related hardware in the motor-to-airend assembly |
| Ingersoll Rand 22504583 | Socket Head Cap Screw | Fastener used in the corresponding drivetrain assembly |
| Ingersoll Rand 23652464 | Motor Rotor/Stator Assembly | Related motor assembly component |
Key Advantages
- Supports sealing at the motor-to-airend interface.
- Uses the identified Viton gasket material for the applicable assembly.
- Provides a clearly identifiable replacement part for maintenance work.
- Helps limit leakage caused by an improperly sealed mating joint.
- Supports correct reassembly when the mating surfaces and fasteners are in serviceable condition.
Technical FAQs
Where is the 22088892 motor gasket installed?
It is associated with the motor-to-airend drivetrain assembly in compatible Ingersoll Rand compressor configurations. Confirm the exact installation position using the parts breakdown for the compressor being serviced.
Why is gasket material important when replacing this part?
The material must withstand the operating temperature and exposure conditions at the joint. The applicable parts breakdown identifies 22088892 as a Viton gasket, but suitability should still be checked against the specific equipment configuration and service conditions.
Should the old gasket be reused after the motor is removed?
Replacement is generally advisable when the joint has been separated, particularly if the gasket shows compression damage, tearing, hardening, or other deterioration. The service procedure for the specific compressor should determine whether reuse is permitted.
What should be checked if leakage continues after installing a new gasket?
Inspect the mating surfaces for scratches or deformation, verify gasket alignment, and check the assembly fasteners and tightening procedure. Leakage can persist if the joint is misaligned or the sealing faces are damaged, even when the replacement gasket is correct.
