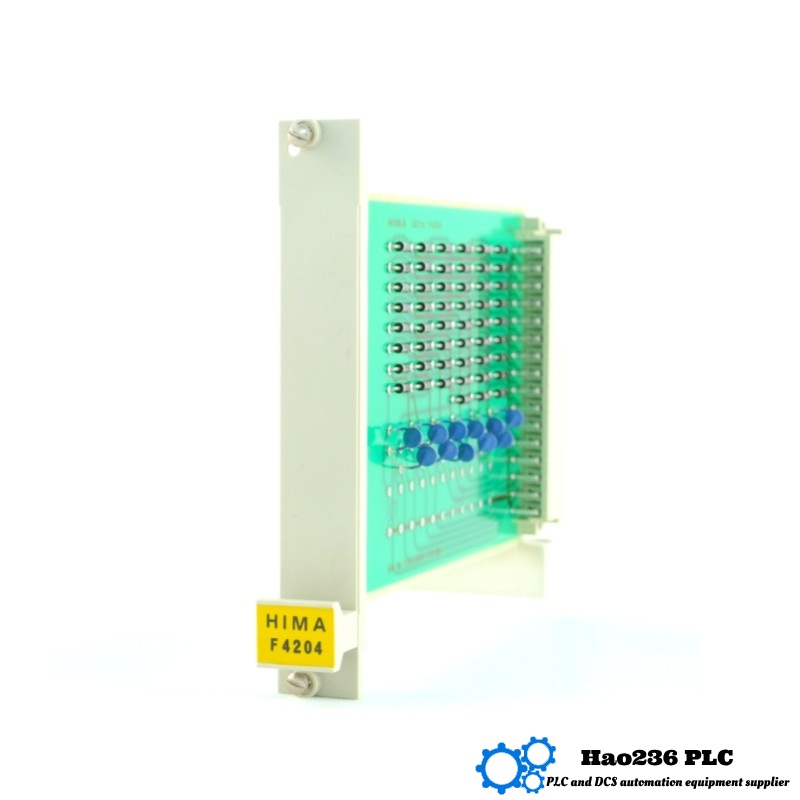

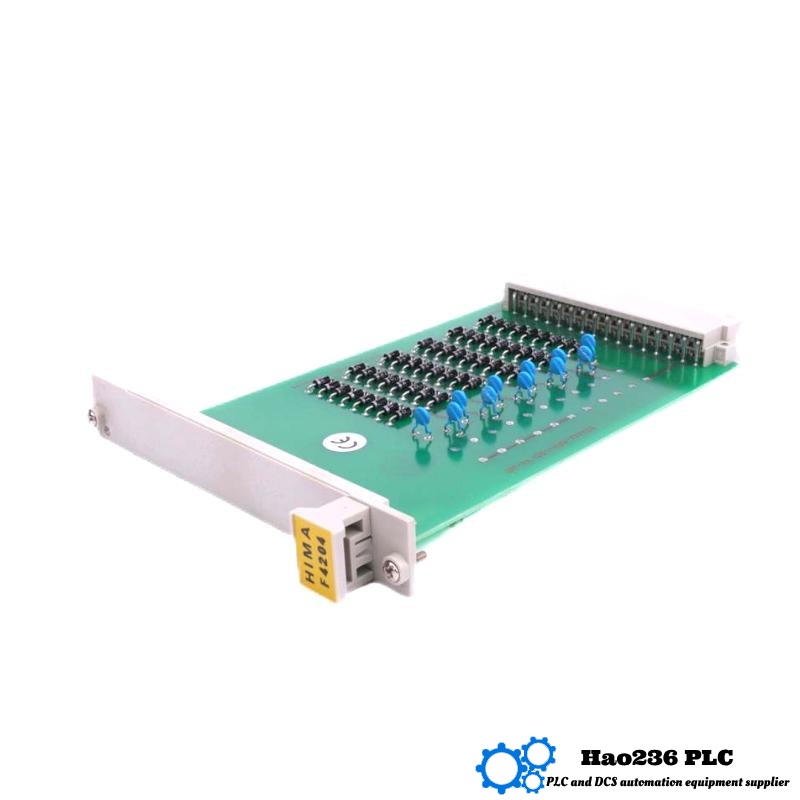

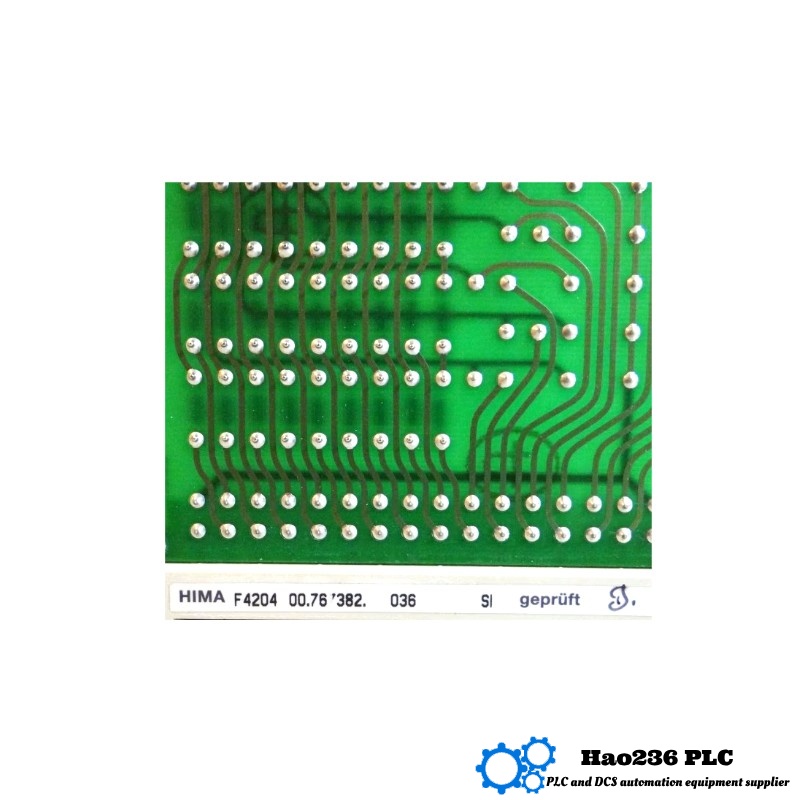

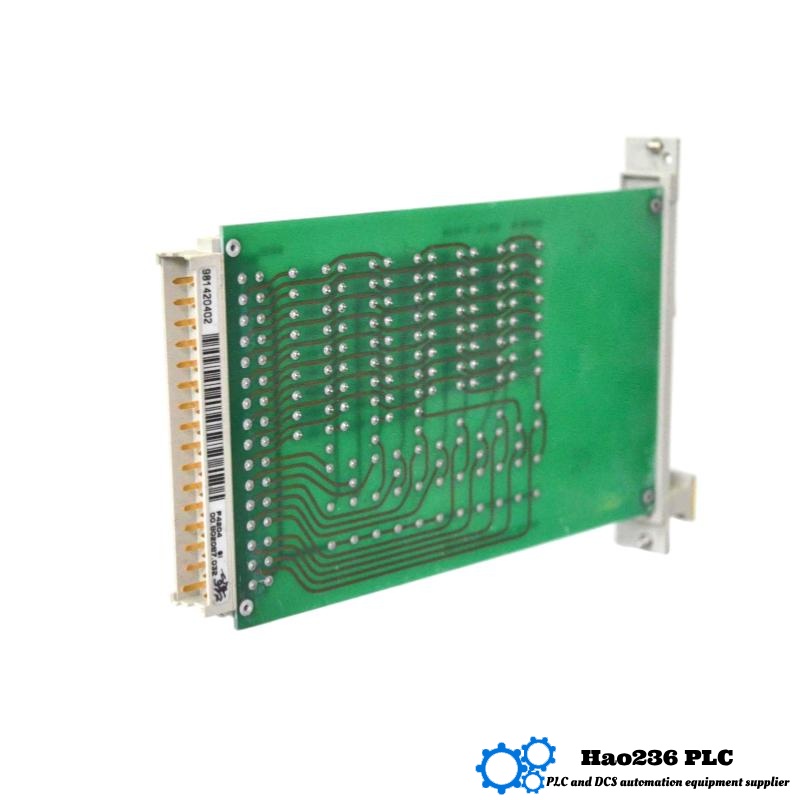

HIMA F4204 Safety Relay Module

Product Introduction

The HIMA F4204 is a high-performance safety relay module designed to meet the stringent requirements of safety-critical applications. As part of the Planar F series, the F4204 is tailored for applications in industries where functional safety, reliability, and performance are crucial, such as industrial automation, process control, and machine safety. This module provides essential safety functionalities like fault detection, safe shutdown, and emergency stop in accordance with IEC 61508 and ISO 13849 standards.

The F4204 is engineered to seamlessly integrate with safety control systems, providing enhanced safety and operational efficiency in automated environments. Its compact size and flexible design make it suitable for a variety of applications in both small and large-scale operations.

With HIMA’s reputation for excellence in safety technology, the F4204 ensures high availability and reliable operation in demanding industrial conditions, offering peace of mind when it comes to the safety of personnel, assets, and systems.

Product Parameters

Product Applications

The HIMA F4204 safety relay module is specifically designed for applications that require functional safety and reliable operation in critical environments. It is commonly used in various industrial sectors, including:

1. Industrial Automation: The F4204 is widely used in automated control systems to ensure safe shutdown processes, emergency stop functions, and other critical safety measures in production lines, machinery, and robotics.

2. Process Control: In chemical plants, oil & gas facilities, and power plants, the F4204 provides critical safety functions for hazardous processes like shutdown of pressurized systems or detection of dangerous conditions, minimizing the risk of accidents and ensuring compliance with safety regulations.

3. Machine Safety: The F4204 is a key component in machine safety systems, providing safe monitoring of machine states, ensuring that the machine can safely stop in case of an emergency or malfunction, thus reducing the risk of injuries and equipment damage.

4. Emergency Shutdown Systems (ESD): The module is commonly employed in ESD applications, where it ensures that critical operations can be safely terminated in case of an emergency, preventing further risk to personnel and equipment.

5. Elevator and Escalator Systems: The F4204 is used in elevator safety control systems, ensuring the safe operation of elevators by monitoring and controlling safety circuits and emergency protocols.

6. Transportation Systems: The safety relay module is also used in the railway industry, vehicle safety systems, and airport baggage handling systems, where safe operation is paramount.

Product Advantages

1. High Safety Integrity (SIL 3): The F4204 module meets SIL 3 safety requirements, making it suitable for the most critical industrial applications that require high reliability and fail-safe operation.

2. Compact and Space-Efficient: With dimensions of 120 x 25 x 90 mm, the F4204 is compact, making it ideal for integration into small spaces or control panels where size constraints exist.

3. Fast Response Time: The module offers a fast response time of < 20 ms, ensuring quick and reliable execution of safety functions.

4. Wide Operating Temperature Range: The F4204 operates in environments with temperatures ranging from -40°C to +70°C, making it suitable for use in harsh and varied industrial environments.

5. Flexible Mounting Options: The DIN rail mounting feature makes the F4204 easy to install and integrate into existing safety control systems.

6. Fault Monitoring: The F4204 has built-in fault detection and monitoring capabilities, enabling proactive maintenance and enhancing system reliability by detecting errors before they affect operation.

7. Easy Integration: It supports digital inputs/outputs, making it easy to integrate into existing industrial systems and safety controllers.

8. Certifications for Industry Standards: The F4204 is compliant with IEC 61508 and ISO 13849, ensuring it meets the highest global safety standards.

9. Versatile Safety Functions: The module provides multiple configurable safety functions that are essential for various industrial applications, from shutdown to emergency stop.

10. Long-Term Durability: With a long operational life and minimal maintenance requirements, the F4204 ensures reliability and cost-effectiveness over time.

Brand Overview

HIMA is a leading brand in the field of functional safety and automation technology. With a long-standing reputation for developing highly reliable safety systems for critical industrial applications, HIMA focuses on providing advanced solutions that ensure safe operations and risk mitigation across a wide range of industries. The Planar F series, to which the F4204 belongs, is specifically designed for safety-critical applications, providing SIL-rated products with unparalleled reliability and ease of use.
