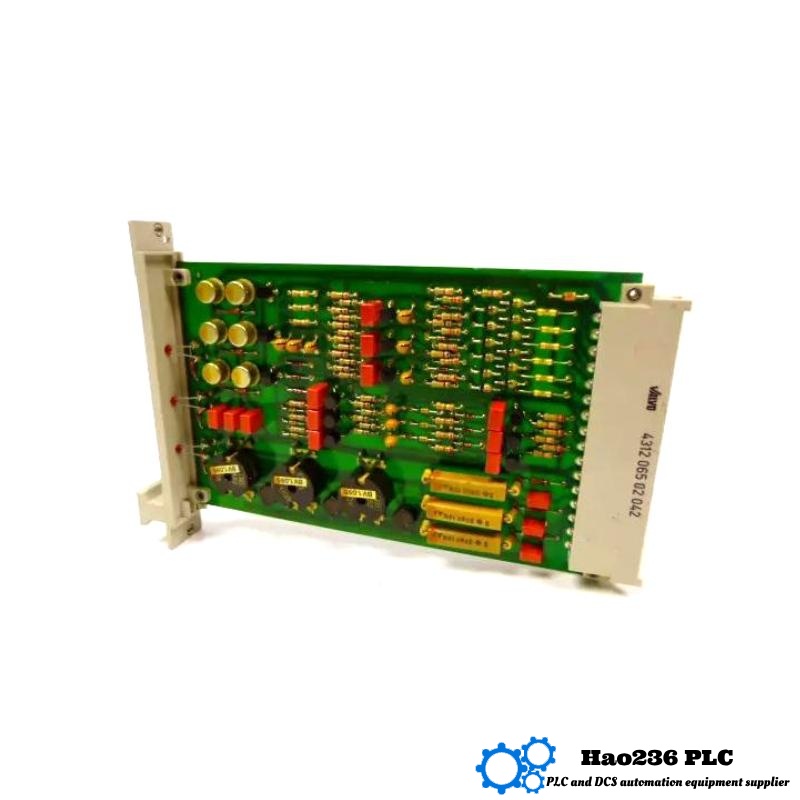

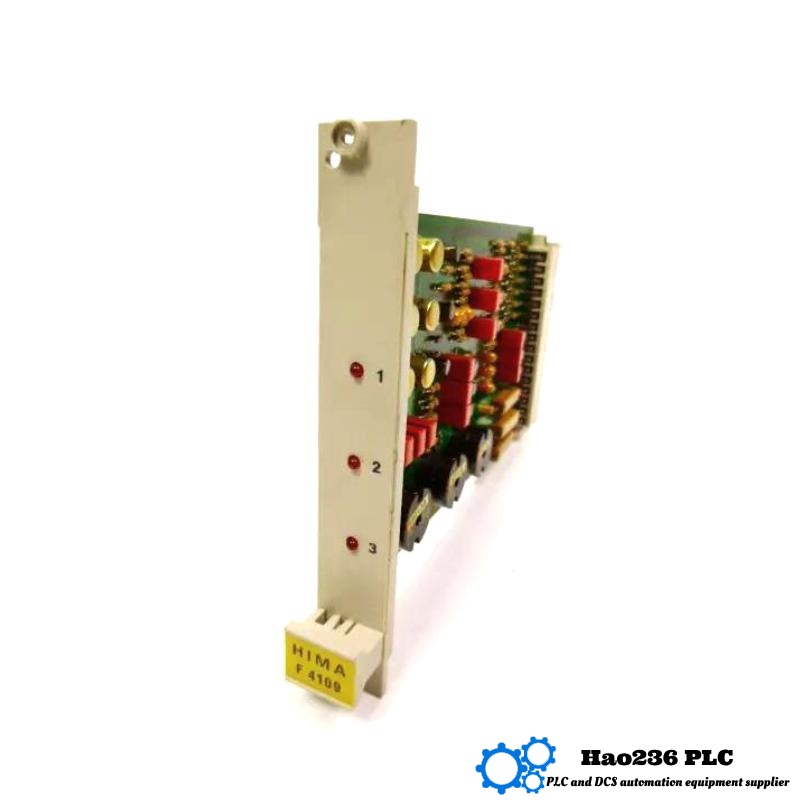

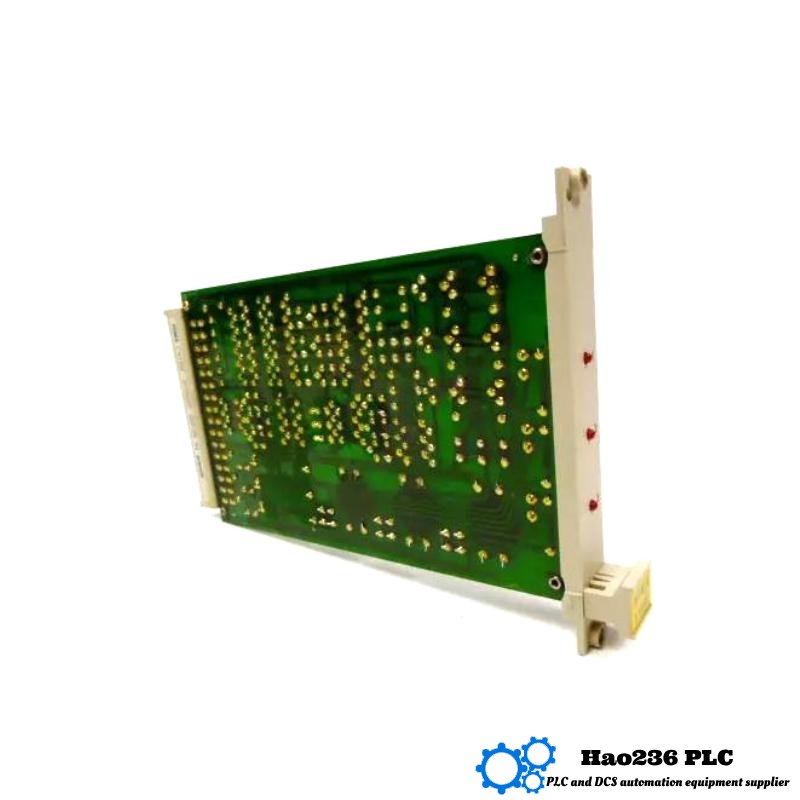

HIMA F4109 Safety-Related Four-Channel AND Gate Module
Product Introduction
The HIMA F4109 is a highly reliable four-channel AND gate module designed specifically for safety-related applications within the Planar F series by HIMA. This module plays a crucial role in ensuring the safety and reliability of critical systems, by processing digital signals in safety systems and executing logical operations, such as AND gates, with redundancy to minimize failure risks.
The F4109 is designed to meet the high demands of industrial safety, offering flexible integration into safety-related systems, especially in process automation, oil and gas, power generation, and chemical industries. By applying robust logic operations across multiple channels, this module ensures that safety systems perform optimally even in the most challenging environments.
Features:
-
Four-Channel AND Gate Logic: Executes safety-related logic operations with four independent channels for increased fault tolerance.
-
Redundancy for Safety: Built-in redundancy ensures that if one channel fails, the system continues operating safely with the remaining channels.
-
Compact Design: Despite its advanced functionality, the F4109 features a compact form factor, allowing for easy integration into tight spaces.
-
Wide Application Compatibility: Suitable for a variety of industrial control systems, ensuring flexibility and scalability for safety-critical processes.
Applications
The HIMA F4109 is typically used in industries that require high levels of safety, such as:
-
Process Automation: Integrated into safety systems controlling plant equipment like valves, actuators, and pumps to ensure safe operations.
-
Oil and Gas: Essential in oil refineries and offshore platforms for ensuring fail-safe operations in hazardous environments.
-
Chemical Manufacturing: Provides vital safety logic in systems managing chemicals, ensuring automatic shutdown in case of a failure or emergency.
-
Power Generation: Critical in monitoring and controlling the safe operation of turbines, reactors, and other equipment.
-
Utilities: Applied in water treatment plants, nuclear facilities, and other critical infrastructure where system safety is paramount.
Advantages
-
High Safety Integrity: The F4109 meets high standards of safety integrity, ensuring safe operations with reduced risks of faults and system downtime.
-
Redundant Operation: With four channels performing the AND gate function, the module ensures that safety functions are maintained even in case of a fault in one channel.
-
Compact and Efficient: Its compact dimensions of 120 x 100 x 75 mm and light weight of 0.2 kg make it ideal for installations where space is limited.
-
Industry-Leading Reliability: Built for continuous operation in demanding environments, the F4109 offers exceptional reliability and long operational life.
-
Flexible Integration: It can be easily integrated into existing safety systems or used in new system designs, offering versatility across applications.
Brand and Series Information
-
Brand: HIMA
-
Series: Planar F Series
-
Module Type: Safety-Related Four-Channel AND Gate Module
-
Application: Safety Systems and Process Automation
Product Parameters
| Parameter | Specification |
|---|---|
| Model | F4109 |
| Module Type | Safety-Related Four-Channel AND Gate Module |
| Dimensions (mm) | 120 x 100 x 75 |
| Weight (kg) | 0.2 |
| Operating Voltage | 24 V DC |
| Number of Channels | 4 |
| Function | AND Gate Logic for Safety Systems |
| Redundancy | Yes, built-in redundancy for fault tolerance |
| Operating Temperature | -20°C to 60°C |
| Protection Class | IP20 |
| Mounting | DIN Rail Mountable |
Recommended Models from the Same Series
Here are 5 similar models from the same Planar F Series:
| Model | Type | Channels | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| F4108 | Safety Module | 4 | Safety-related four-channel OR gate module | 120 x 100 x 75 | 0.2 |
| F4107 | Safety Module | 2 | Safety-related two-channel AND gate module | 120 x 100 x 75 | 0.2 |
| F4110 | Safety Module | 6 | Safety-related six-channel OR gate module | 120 x 100 x 75 | 0.25 |
| F4120 | Safety Module | 4 | Multi-functional safety-related module | 120 x 100 x 75 | 0.3 |
| F4200 | Safety Module | 4 | Safety-related multi-channel logic module | 120 x 100 x 75 | 0.28 |
Recommended Popular Models from HIMA
Here are 5 popular models from HIMA:
| Model | Type | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| F3232 | Safety Controller | Compact controller for safety-related systems | 180 x 140 x 75 | 1.5 |
| F3150 | Safety Controller | Highly reliable controller for industrial automation | 200 x 160 x 90 | 2.0 |
| F3200 | Safety Controller | Advanced safety control system for process industries | 200 x 160 x 100 | 2.5 |
| F7000 | Safety Controller | Powerful controller for large-scale automation systems | 220 x 180 x 120 | 3.2 |
| F4400 | Safety Controller | Modular controller with I/O expansion for flexible applications | 250 x 200 x 150 | 4.0 |
FAQ (Frequently Asked Questions)
Q1: What is the function of the F4109 module?
A1: The F4109 is a safety-related four-channel AND gate module used in critical control systems to ensure that safety-related conditions are met before an action is taken.
Q2: How does the F4109 module ensure fault tolerance?
A2: The F4109 features redundancy, with four independent channels, ensuring that the system continues to function safely even if one channel fails.
Q3: What are the typical applications for the F4109 module?
A3: It is used in industries like oil and gas, process automation, and power generation to monitor and control critical safety functions.
Q4: What is the operating temperature range of the F4109?
A4: The F4109 operates within a temperature range of -20°C to 60°C, making it suitable for most industrial environments.
Q5: How is the F4109 mounted?
A5: The module can be mounted on a DIN rail, which is standard for industrial control systems.
Q6: What is the voltage supply required for the F4109?
A6: The F4109 requires a 24 V DC power supply for operation.
Q7: How many channels does the F4109 module have?
A7: The F4109 features four channels, each providing AND gate logic for safety-related systems.
Q8: What is the weight of the F4109 module?
A8: The F4109 weighs 0.2 kg, making it lightweight and easy to integrate into control panels.
Q9: Is the F4109 compatible with other HIMA safety controllers?
A9: Yes, the F4109 is fully compatible with other HIMA controllers and safety systems.
Q10: How is the F4109 configured?
A10: Configuration can be done through HIMA’s proprietary safety software, which ensures quick and easy setup.
