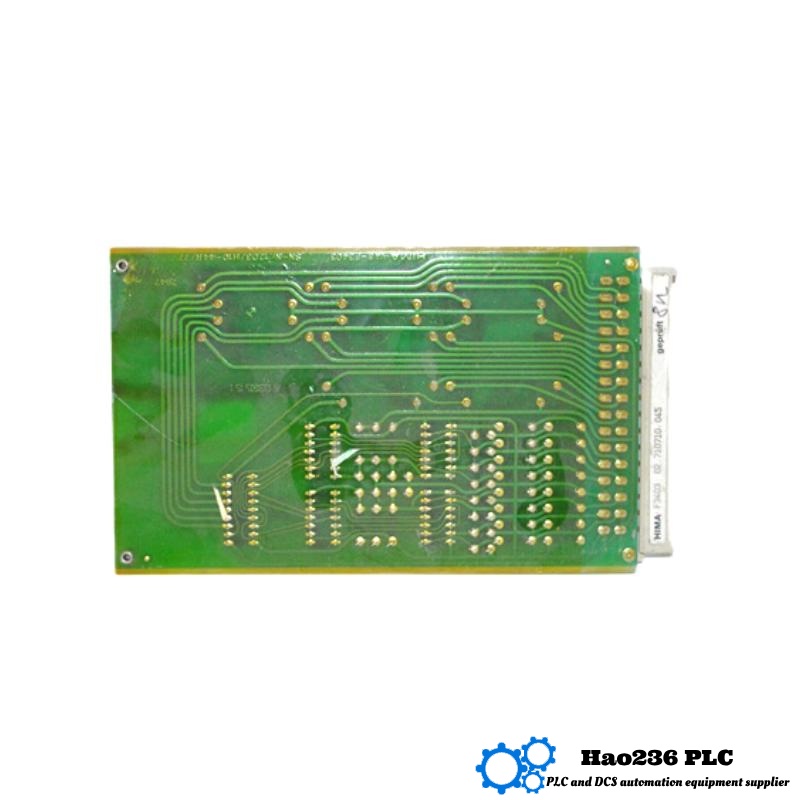

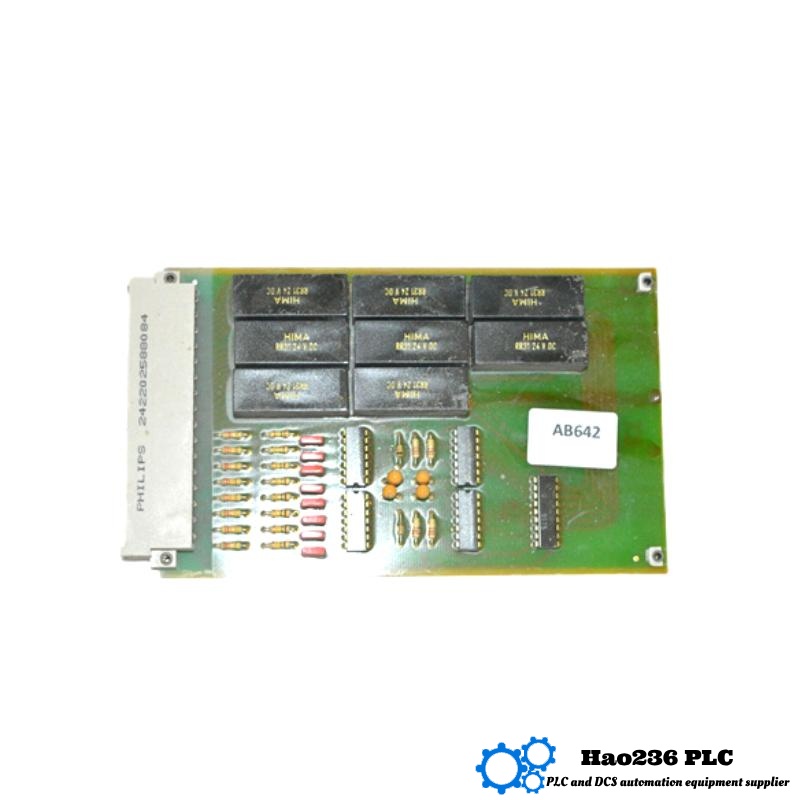

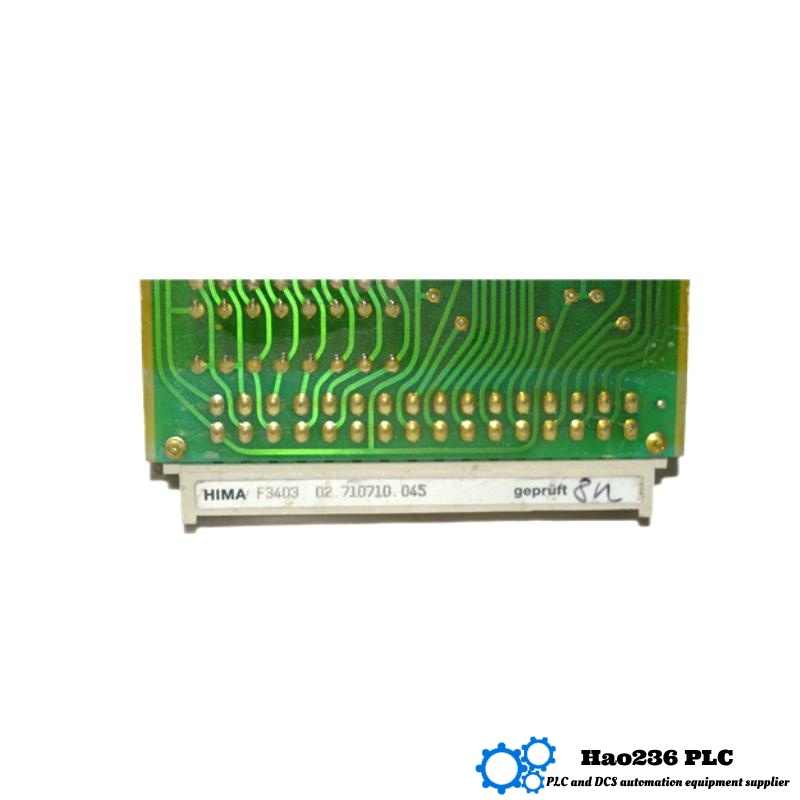

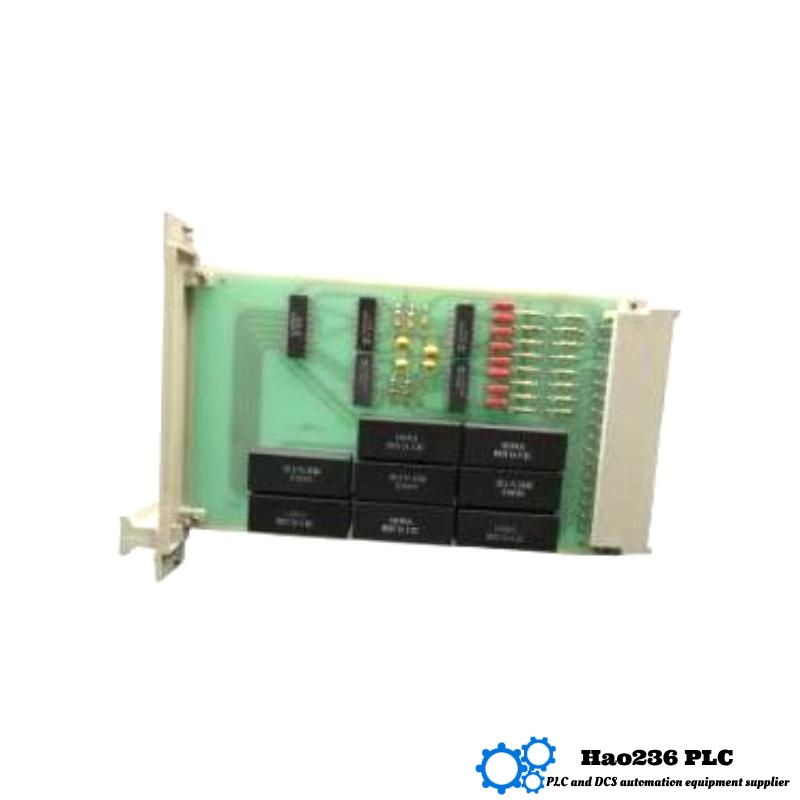

HIMA F3403 Safety Relay Module Detailed Overview

Product Introduction

The HIMA F3403 is a safety-related relay module from HIMA, designed to integrate seamlessly into safety-critical automation systems. This module is part of the Planar F series and provides essential functionality for ensuring that critical operations in industrial environments are monitored and controlled to prevent dangerous failures or hazards. The F3403 is specifically built for applications requiring safety-related monitoring of processes, machinery, and control systems, offering a reliable means of detecting faults or failures and triggering safety shutdowns or actions when needed.

The F3403 module offers outstanding safety performance in compliance with international safety standards, including IEC 61508, ISO 13849, and SIL (Safety Integrity Level) ratings. The F3403 is compact and versatile, with simple wiring and integration, making it an ideal solution for enhancing the safety and reliability of automated systems across industries.

Product Specifications

Product Applications

The HIMA F3403 safety relay module is used in various critical safety applications within industries such as process automation, machinery safety, and robotics. Its versatility and compliance with international safety standards make it suitable for:

• Industrial Process Automation: Ensuring that safety interlocks and emergency shutdowns function correctly in hazardous environments, such as chemical plants, oil refineries, and pharmaceutical manufacturing.

• Machine Safety: Integrated into machinery for real-time monitoring of safety circuits, including emergency stops, over-speed protection, and other critical safety functions in automated systems.

• Robotics: Used in robotic systems to manage safety-related functions, such as limiting arm movement, collision avoidance, and emergency stop operations.

• Energy and Utilities: In power plants and renewable energy systems, the F3403 ensures the safety of power generation equipment, monitoring systems, and safety interlocks.

• Transportation and Infrastructure: Ensures that safety measures for escalators, elevators, and automated systems within transportation hubs (e.g., airports, train stations) are always active and properly functioning.

Product Advantages

1. High Safety Integrity: The F3403 meets the stringent requirements for SIL 3, ensuring that safety functions operate with the highest level of integrity, minimizing the risk of dangerous failures.

2. Compact and Robust Design: With its 150 × 80 × 35 mm dimensions and 0.3 kg weight, the F3403 is compact yet powerful, ideal for systems with limited space.

3. Versatile Input/Output Options: Offers both Normally Open (NO) and Normally Closed (NC) outputs, providing flexibility in how the relay module interacts with the overall system.

4. Quick Response Time: The module features a fast < 10 ms response time, ensuring rapid action in the event of a fault or hazard detection, which is crucial for safety-critical systems.

5. Simple Integration: The F3403 integrates easily into systems with digital inputs and is DIN rail mountable, allowing for quick setup and installation in existing control cabinets.

6. Compliant with Global Safety Standards: Fully compliant with IEC 61508, ISO 13849, and SIL 3, ensuring it meets international safety and quality standards.

7. Redundancy and Reliability: Dual-channel redundancy is implemented in the module, guaranteeing that safety circuits remain functional even if one channel fails.

Brand and Series Information

• Brand: HIMA

• Product Series: Planar F Series

• Type: Safety Relay Module

• Industry Focus: Process Automation, Machinery Safety, Robotics, Energy, Utilities, Transportation
