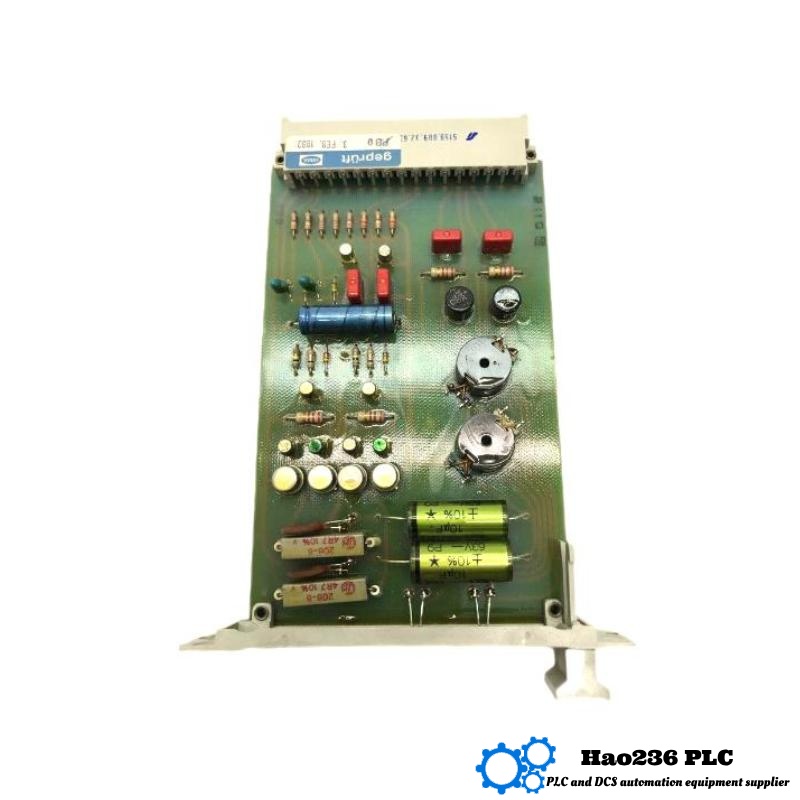

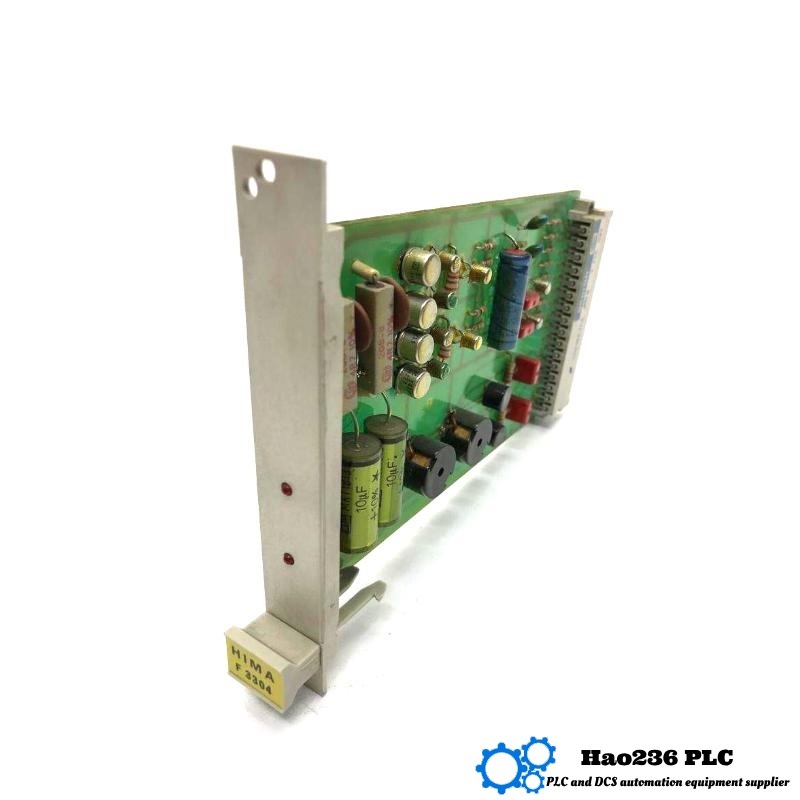

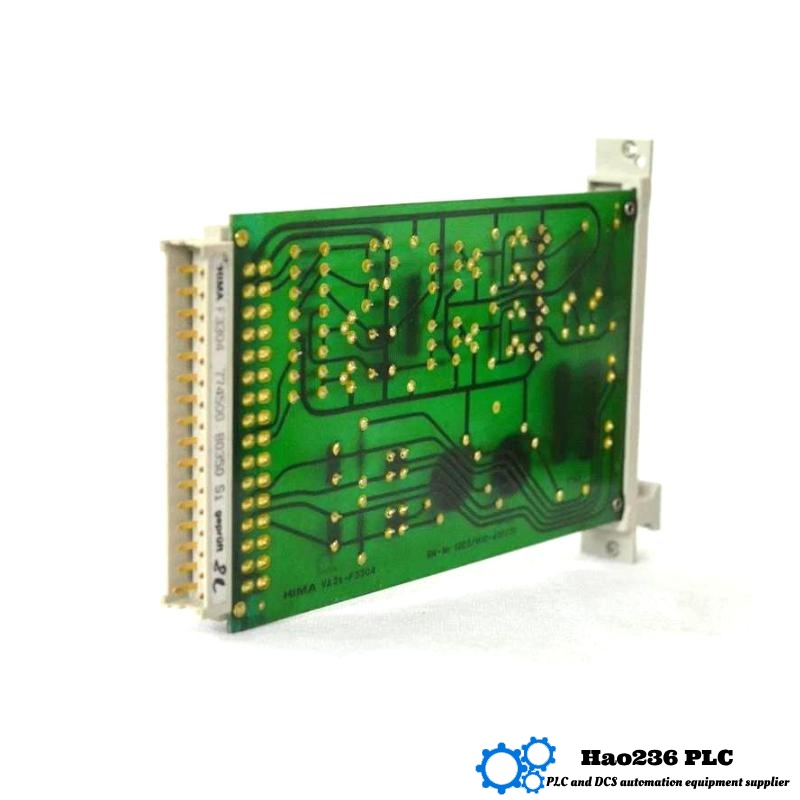

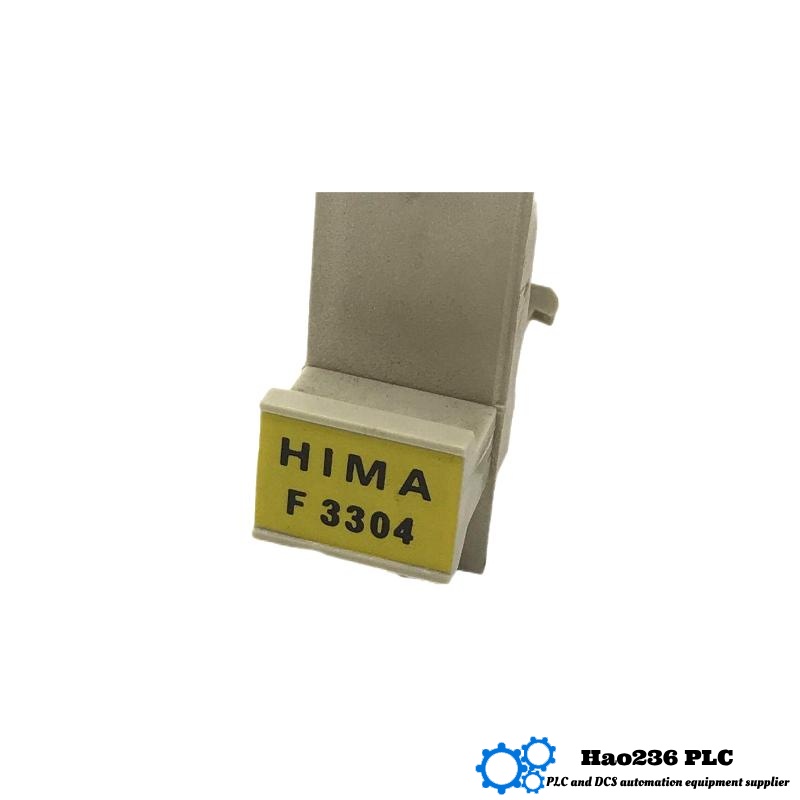

HIMA F3304 Input Module
Product Introduction
The HIMA F3304 is a high-performance input module designed for use in safety-critical automation environments. As part of the renowned Planar F series, the F3304 module offers reliable and fast input signal processing to ensure the integrity and safety of control systems. Its robust design supports industrial-grade operations in environments requiring maximum uptime and safety assurance.
This module accepts digital input signals and integrates seamlessly with the HIMA Planar F safety controllers, providing essential input data for process automation and safety logic. The F3304 is engineered to meet stringent safety standards, including SIL 3 certifications, making it ideal for high-risk industrial applications.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | F3304 |
| Module Type | Digital Input Module |
| Number of Channels | 16 inputs |
| Input Voltage | 24 V DC |
| Input Current | Typical 6 mA per channel |
| Response Time | < 10 ms |
| Operating Temperature | –20°C to +70°C |
| Dimensions (WxHxD) | 120 x 120 x 55 mm |
| Weight | 0.6 kg |
| Protection Class | IP20 |
| Safety Integrity Level | SIL 3 Certified |
| Communication Interface | Planar F Bus |
Product Applications
The HIMA F3304 input module is widely utilized in critical industrial sectors where safety and reliability are paramount, such as:
-
Process control in chemical and petrochemical plants
-
Power generation and distribution safety systems
-
Oil & gas pipeline monitoring and safety
-
Industrial automation requiring SIL 3 safety certification
-
Manufacturing facilities with hazardous material handling
-
Infrastructure automation, including railway signaling and control
-
Safety instrumented systems (SIS) for emergency shutdown and alarm functions
This module is integral to safety-related control loops where rapid and reliable input processing is critical to avoid hazardous events.
Product Advantages
-
High Safety Integrity: Certified SIL 3 for compliance with international safety standards.
-
Robust Design: Suitable for harsh industrial environments with wide temperature and voltage tolerances.
-
Fast Response: Less than 10 ms response time ensures timely safety reactions.
-
High Channel Density: Supports 16 digital inputs within a compact module size.
-
Seamless Integration: Optimized for HIMA Planar F series systems with dedicated communication bus.
-
Reduced Downtime: Designed for easy maintenance and rapid fault diagnostics.
-
Reliable Signal Processing: Immunity to electrical noise and disturbances enhances system stability.
-
Compact Dimensions: Saves valuable cabinet space without compromising performance.
Brand and Series
HIMA is a globally recognized leader in safety automation solutions, known for its cutting-edge safety controllers and modules. The F3304 input module belongs to the Planar F series, a range of safety modules and controllers specifically engineered for flexible and scalable safety instrumented systems (SIS). The Planar F series stands out for its reliability, modularity, and compliance with stringent industrial safety requirements.
Related Models in the Same Series or Similar Types
| Model Number | Module Type | Number of Channels | Dimensions (mm) | Weight | Notes |
|---|---|---|---|---|---|
| F3304 | Digital Input Module | 16 inputs | 120 x 120 x 55 | 0.6 kg | Standard input module |
| F3305 | Digital Output Module | 16 outputs | 120 x 120 x 55 | 0.65 kg | Output counterpart of F3304 |
| F3310 | Analog Input Module | 8 channels | 120 x 120 x 55 | 0.7 kg | Analog signal inputs for Planar F |
| F3311 | Analog Output Module | 8 channels | 120 x 120 x 55 | 0.7 kg | Analog output module |
| F3320 | Relay Output Module | 8 channels | 120 x 120 x 55 | 0.65 kg | Relay outputs for safety control |
Popular HIMA Models
| Model Number | Module Type | Key Features | Dimensions (mm) | Weight | Description |
|---|---|---|---|---|---|
| F3304 | Digital Input Module | 16-channel, SIL 3 | 120 x 120 x 55 | 0.6 kg | Core input module for safety SIS |
| F3305 | Digital Output Module | 16 outputs, SIL 3 | 120 x 120 x 55 | 0.65 kg | Controls safety-related outputs |
| F3310 | Analog Input Module | 8 analog channels | 120 x 120 x 55 | 0.7 kg | Measures analog process variables |
| F3307 | Timer Module | Safety timer functions | 120 x 120 x 55 | 0.55 kg | Timer control in safety loops |
| F3312 | Communication Module | Fieldbus connectivity | 120 x 120 x 55 | 0.7 kg | Interface for network integration |
FAQ (Frequently Asked Questions)
Q1: What are the dimensions of the HIMA F3304 module?
A1: The module measures 120 x 120 x 55 mm.
Q2: How much does the F3304 weigh?
A2: The weight of the module is approximately 0.6 kg.
Q3: How many input channels does the F3304 support?
A3: It supports 16 digital input channels.
Q4: What is the input voltage for this module?
A4: The module operates on 24 V DC input voltage.
Q5: What safety certification does the F3304 have?
A5: It is certified to SIL 3, the highest standard for safety integrity.
Q6: What is the typical response time for input signals?
A6: The response time is less than 10 milliseconds.
Q7: Can the F3304 module withstand harsh industrial environments?
A7: Yes, it is designed for industrial conditions with operating temperatures from –20°C to +70°C.
Q8: Which series is the F3304 part of?
A8: It belongs to the Planar F series by HIMA.
Q9: Is the F3304 compatible with other HIMA safety controllers?
A9: Yes, it integrates seamlessly with Planar F series controllers.
Q10: Does the module support communication buses?
A10: Yes, it communicates via the Planar F bus interface.
