Product Overview

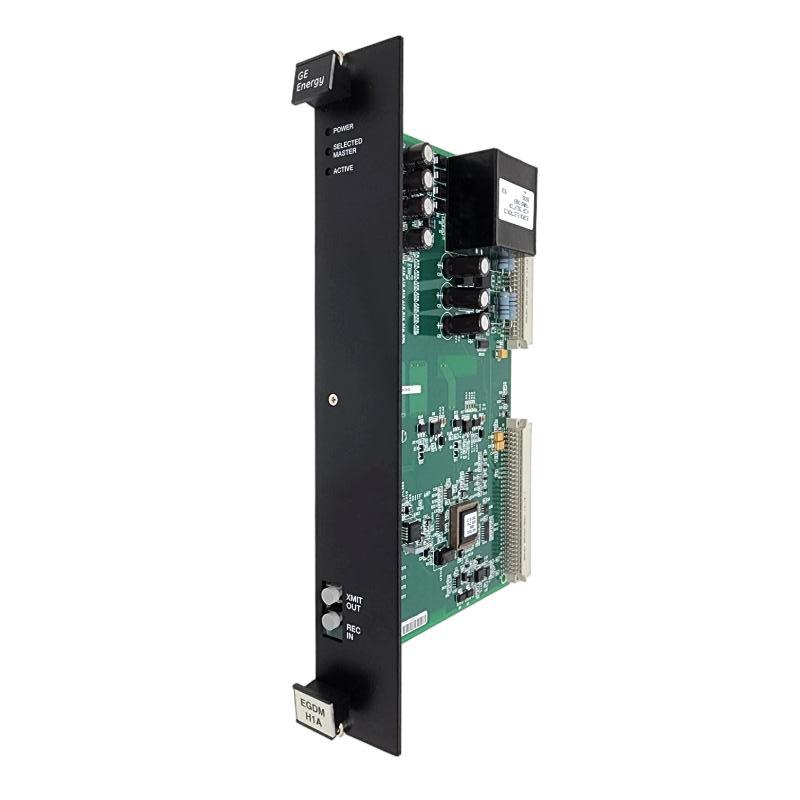

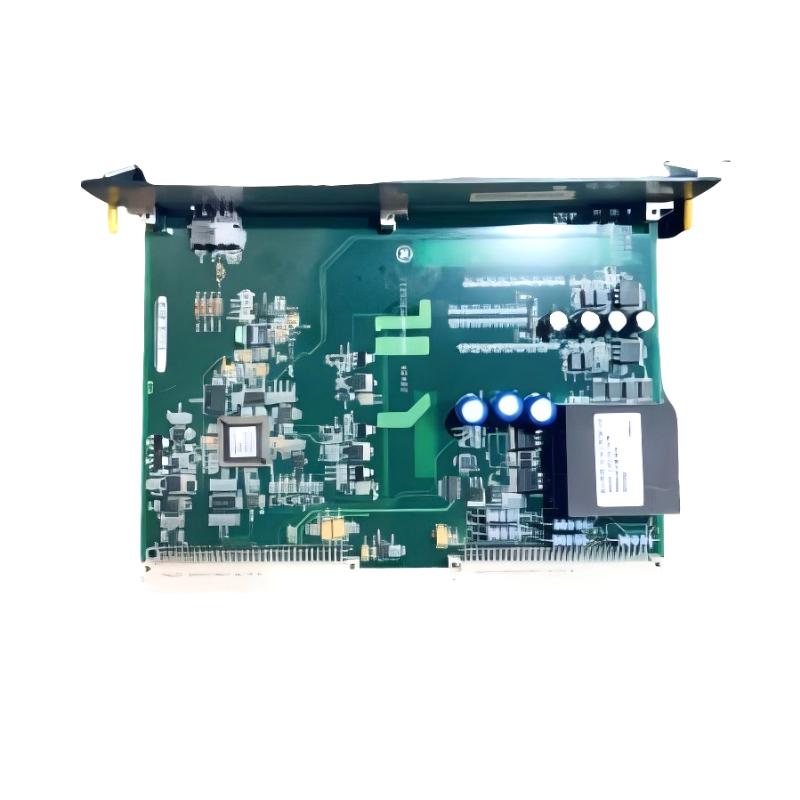

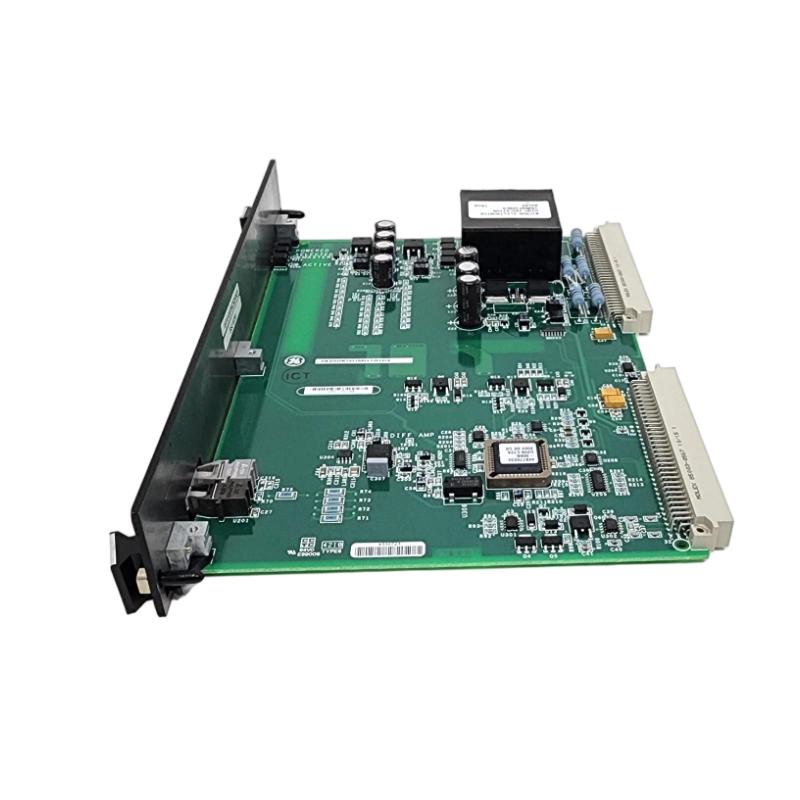

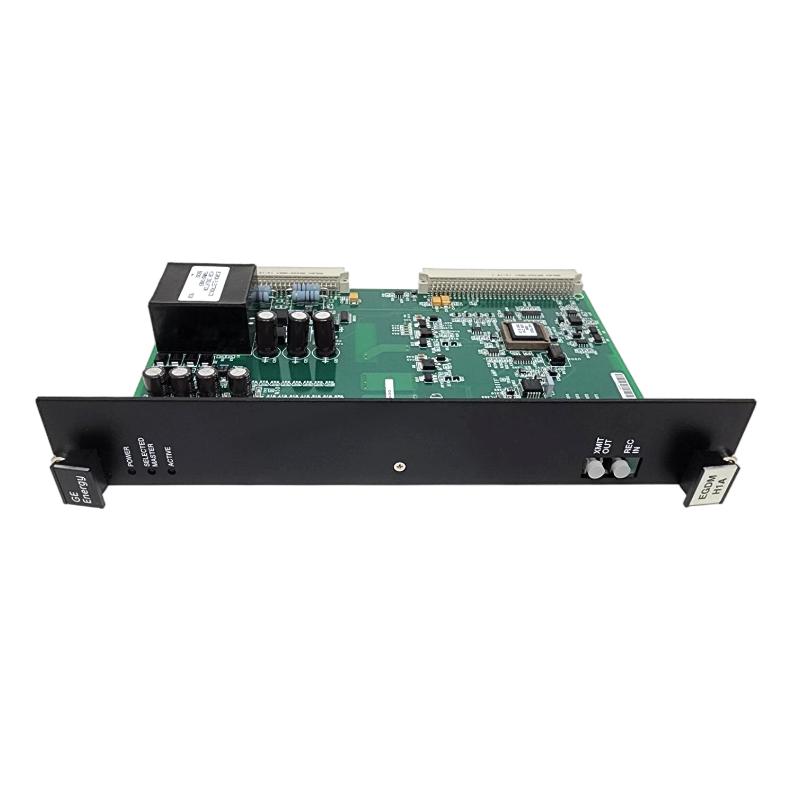

The GE IS200EGDMH1AGG Excitation Field Ground Detector Module is a high-performance protection and monitoring module designed for the GE EX2100 Excitation Control System and compatible GE Mark VI and Mark VIe Speedtronic turbine control platforms. The module continuously supervises the insulation condition of the generator excitation field circuit, allowing early detection of field ground leakage and insulation deterioration before these issues develop into critical equipment failures.

As a dedicated field ground detection device, the IS200EGDMH1AGG works together with the EXAM (Exciter Attenuation Module) to measure leakage resistance between any point of the generator field circuit and earth ground. Through continuous monitoring, it provides operators with accurate diagnostic information that improves generator safety, reduces unexpected downtime, and extends the service life of excitation equipment.

The module utilizes precision analog sensing circuits, high-speed digital processing, optical communication technology, and industrial-grade electrical isolation to ensure highly accurate measurements even in electrically noisy environments. Its rugged multilayer PCB construction allows reliable operation under vibration, humidity, temperature variation, and long-term continuous industrial service.

With dimensions of 82.6 × 41.9 mm and a weight of 0.6 kg, the GE IS200EGDMH1AGG offers a compact yet highly reliable solution for generator field ground monitoring in modern power generation facilities.

Technical Specifications

Function and Working Principle

The GE IS200EGDMH1AGG continuously measures insulation resistance between the generator field circuit and earth ground to detect unwanted leakage current.

Working together with the EXAM Exciter Attenuation Module, the EGDM applies a controlled low-frequency square-wave signal across the field sensing resistor. The attenuated voltage is measured using a high common-mode rejection differential amplifier, converted into digital information, and transmitted through fiber-optic communication to the excitation controller for continuous analysis. This architecture provides highly accurate measurements while maintaining electrical isolation from the high-voltage excitation circuit.

If insulation resistance decreases due to moisture, aging, contamination, damaged cables, or rotor insulation failure, the module immediately detects the abnormal condition. The excitation controller can then generate alarms, record diagnostic events, or initiate protective actions to prevent severe generator damage.

Key operating features include:

• Continuous field insulation monitoring
• High-accuracy leakage resistance measurement
• Early ground fault detection
• Fiber-optic signal transmission
• Industrial electrical isolation
• Fast diagnostic response
• Excellent electromagnetic interference immunity
• Reliable long-term industrial operation

Role in Industrial Control Systems

Within the GE EX2100 excitation architecture, the IS200EGDMH1AGG serves as the dedicated field grounding supervision module.

Its primary responsibilities include:

• Generator field insulation monitoring
• Ground leakage detection
• Continuous resistance measurement
• Excitation protection
• Alarm generation
• Diagnostic information processing
• Preventive maintenance support
• Generator operational safety enhancement

Its intelligent monitoring capability enables operators to detect insulation degradation before catastrophic failures occur, significantly improving plant reliability and reducing maintenance costs.

Industrial Applications

The GE IS200EGDMH1AGG is widely installed in:

• Gas Turbine Power Plants
• Steam Turbine Generating Stations
• Hydroelectric Power Plants
• Combined Cycle Power Plants
• Utility Generator Excitation Systems
• Industrial Power Generation Facilities
• Oil & Gas Processing Plants
• Petrochemical Industries
• Steel Manufacturing Plants
• Mining Operations
• Marine Power Systems
• Cement Production Facilities
• Renewable Energy Power Stations
• Heavy Industrial Automation
• Electrical Infrastructure Projects

Its continuous field ground monitoring capability makes it an essential protection device for mission-critical generator applications.

Installation and System Integration

Proper installation ensures maximum monitoring accuracy and long-term operational stability.

Recommended installation procedures include:

• Install the module into the designated Exciter Power Backplane (EPBP) rack.
• Follow electrostatic discharge (ESD) handling procedures.
• Verify proper seating of all backplane connectors.
• Connect the module to the EXAM attenuation module through the designated cable assembly.
• Ensure correct cabinet grounding and cable shielding.
• Perform insulation resistance verification during commissioning.
• Verify fiber-optic communication with the excitation controller.
• Include the module in scheduled preventive maintenance inspections.

Proper installation helps maximize system reliability while minimizing unexpected downtime.

Compatible System Components

The GE IS200EGDMH1AGG commonly operates together with:

• GE EX2100 Excitation Controller
• GE IS200EXAM Exciter Attenuation Module
• GE IS200EPBP Exciter Power Backplane
• GE IS200EBKPG1CAA Exciter Backplate
• GE IS200EDCFG1BAA Exciter DC Feedback Board
• GE IS200EDCFG1ADC Exciter DC Feedback Board
• GE IS200EDEXG1BAA Exciter De-excitation Control Board
• GE IS200EDEXG1ADA Exciter Demagnetizing Plate
• GE IS200EDEXG1AFA Exciter Demagnetizing Plate
• GE IS200EACFG1B Exciter AC Feedback Board
• GE IS200DSPXH2CAA Digital Signal Processor Control Board
• Human Machine Interface (HMI)
• SCADA Monitoring Systems
• GE Mark VI / Mark VIe Control Systems

Together, these components form a comprehensive excitation protection and monitoring platform capable of providing precise voltage regulation, continuous ground fault supervision, advanced diagnostics, and dependable generator operation.

Recommended Alternative Models

Key Advantages

• Continuous generator field grounding supervision
• High-precision leakage resistance measurement
• Early insulation fault detection
• Fiber-optic communication architecture
• Excellent electrical isolation
• Strong resistance to electromagnetic interference
• Compact industrial design
• Seamless integration with GE EX2100 systems
• Long operational service life
• Designed for continuous industrial applications

Technical FAQs

What is the primary function of the GE IS200EGDMH1AGG?

The IS200EGDMH1AGG continuously monitors insulation resistance between the generator field circuit and ground, detects leakage current at an early stage, and reports abnormal conditions to the excitation controller for alarm generation and equipment protection.

Which systems use the IS200EGDMH1AGG?

The module is specifically designed for the GE EX2100 Excitation Control System and is fully compatible with GE Mark VI and Mark VIe Speedtronic turbine and generator control platforms.

What equipment commonly works with this module?

The IS200EGDMH1AGG is commonly integrated with EX2100 controllers, EXAM attenuation modules, EPBP backplanes, DC feedback boards, AC feedback boards, de-excitation control boards, DSP processor boards, HMI workstations, SCADA systems, and GE excitation cabinets, creating a complete excitation monitoring and protection solution.

Conclusion

The GE IS200EGDMH1AGG Excitation Field Ground Detector Module is a critical protection device within the GE EX2100 Excitation Control System. Through continuous insulation monitoring, precision leakage resistance measurement, fiber-optic communication, and intelligent fault diagnostics, it enables early detection of field grounding faults while improving generator reliability, reducing maintenance costs, and protecting valuable excitation equipment.

Featuring industrial-grade construction, compact dimensions of 82.6 × 41.9 mm, and a weight of 0.6 kg, the GE IS200EGDMH1AGG is an ideal solution for gas turbines, steam turbines, hydroelectric generators, combined-cycle power plants, and other industrial power generation facilities requiring dependable excitation monitoring, advanced protection, and continuous high-performance operation.
