Product Overview

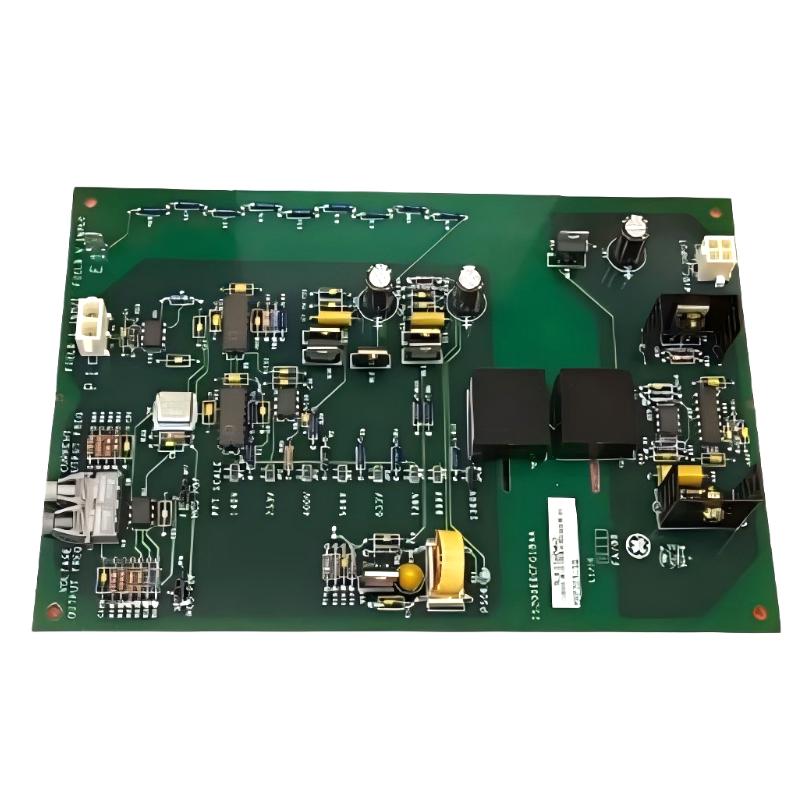

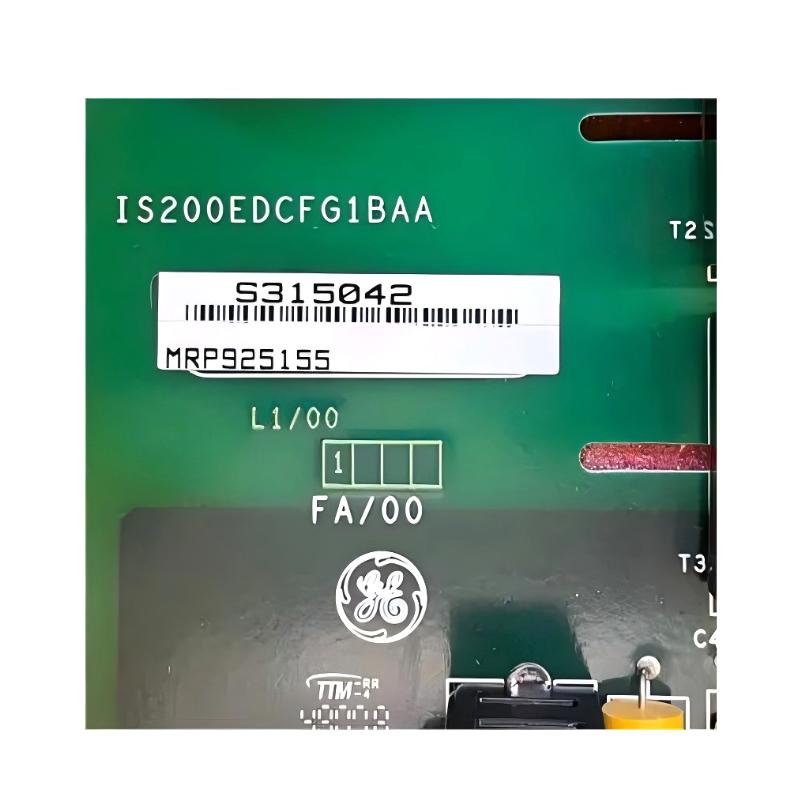

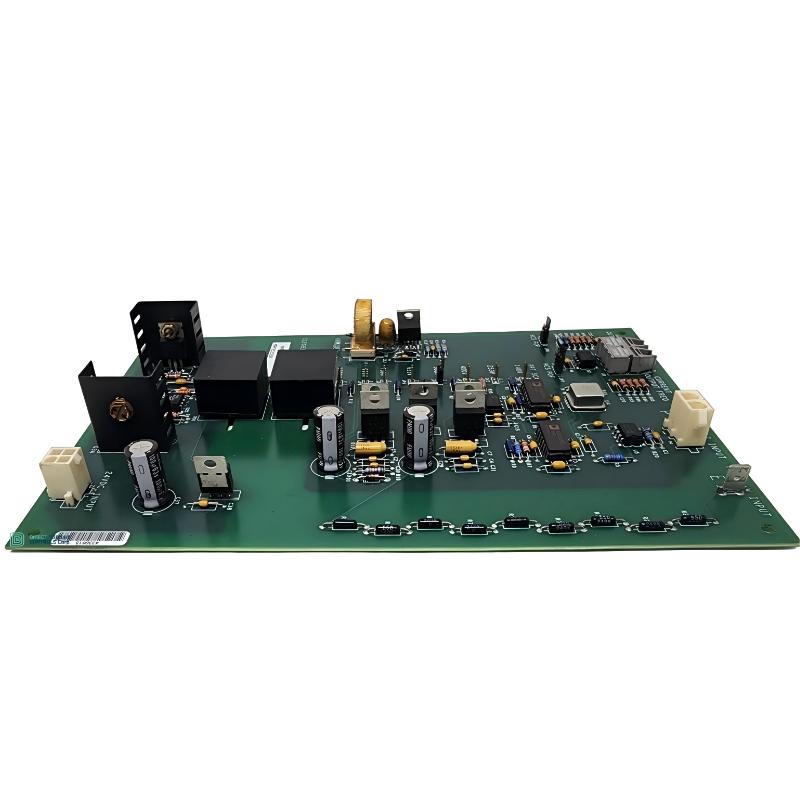

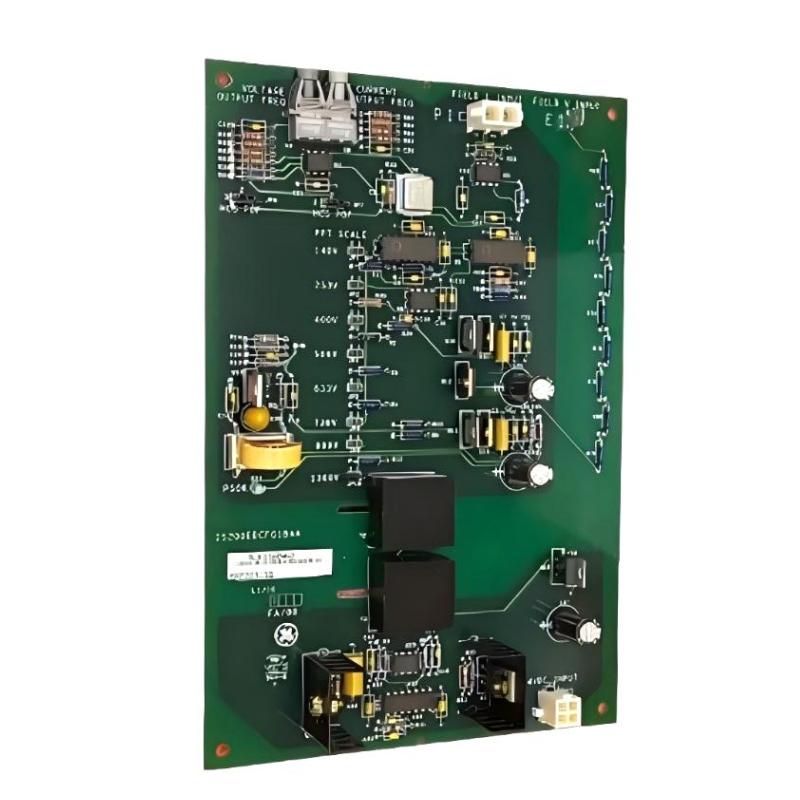

The GE IS200EDCFG1BAA Exciter DC Feedback Board is a high-performance industrial feedback module engineered for the GE EX2100 Excitation Control System and compatible GE Mark VI Speedtronic turbine control platforms. Designed to monitor and process DC excitation signals with exceptional accuracy, the board provides critical field voltage and field current feedback required for stable generator excitation, precise voltage regulation, and reliable turbine-generator operation.

Operating as a key component of the excitation control architecture, the IS200EDCFG1BAA continuously acquires DC feedback signals from the excitation bridge and generator field circuit. Through precision analog conditioning, signal isolation, filtering, and high-speed data transmission, the module supplies the excitation controller with accurate operating information that supports closed-loop regulation of generator output voltage.

The board is manufactured using industrial-grade electronic components, multilayer PCB technology, and high-reliability circuitry to ensure dependable operation under continuous industrial workloads. Its rugged construction enables excellent resistance to vibration, electromagnetic interference, humidity, and temperature variations typically encountered in power generation facilities and heavy industrial automation systems.

With dimensions of 38 × 330 × 250 mm and a weight of 0.7 kg, the GE IS200EDCFG1BAA provides a compact yet highly capable solution for modern excitation systems requiring precise DC feedback acquisition and long-term operational reliability.

Technical Specifications

Function and Working Principle

The GE IS200EDCFG1BAA is responsible for monitoring the DC operating conditions within the excitation system by continuously measuring generator field voltage and excitation current.

Incoming DC signals are routed through precision analog circuitry where they undergo filtering, amplification, scaling, and electrical isolation. After signal conditioning, the processed feedback data is transmitted to the excitation controller, allowing the controller to compare actual operating values with programmed reference settings.

Based on these measurements, the controller dynamically adjusts excitation current to maintain constant generator terminal voltage during varying load conditions. The board also enables continuous monitoring of excitation performance, allowing the system to identify abnormal voltage levels, excessive current, signal loss, or excitation faults before they affect generator stability.

Key operating features include:

• High-precision DC feedback acquisition
• Continuous field voltage monitoring
• Accurate field current measurement
• High-speed analog signal conditioning
• Closed-loop excitation regulation
• Industrial electrical isolation
• Excellent electromagnetic compatibility
• Reliable continuous-duty performance

Role in Industrial Control Systems

Within the GE EX2100 excitation platform, the IS200EDCFG1BAA serves as the primary DC feedback interface between the generator excitation circuit and the digital controller.

Its primary responsibilities include:

• Field voltage acquisition
• Field current monitoring
• DC signal processing
• Analog signal conditioning
• Excitation regulation support
• Generator protection
• Fault diagnostics
• Stable closed-loop control

Accurate feedback from the module enables the excitation controller to optimize generator performance, improve voltage stability, and enhance the reliability of the complete power generation system.

Industrial Applications

The GE IS200EDCFG1BAA is widely used in:

• Gas Turbine Power Plants
• Steam Turbine Generating Stations
• Hydroelectric Power Plants
• Combined Cycle Power Plants
• Utility Generator Excitation Systems
• Industrial Power Generation Facilities
• Oil & Gas Processing Plants
• Petrochemical Industries
• Steel Manufacturing
• Mining Operations
• Marine Power Systems
• Cement Production
• Renewable Energy Projects
• Heavy Industrial Automation
• Electrical Infrastructure Systems

Its precise DC feedback capability makes it particularly suitable for industrial environments requiring accurate excitation control and dependable generator regulation.

Installation and System Integration

Proper installation ensures long-term reliability and maximum measurement accuracy.

Recommended installation procedures include:

• Install the module in the designated EX2100 control rack position.
• Observe electrostatic discharge (ESD) precautions during handling.
• Verify all board connectors before energizing the system.
• Connect field voltage and field current sensing circuits according to engineering documentation.
• Confirm proper grounding and shielding of all signal cables.
• Perform excitation calibration after installation.
• Verify communication with the excitation controller during commissioning.
• Include the module in routine preventive maintenance schedules.

Following these procedures helps maintain stable system performance while minimizing maintenance requirements.

Compatible System Components

The GE IS200EDCFG1BAA commonly operates together with:

• GE EX2100 Excitation Controller
• GE IS200EBKPG1CAA Exciter Backplate
• GE IS200EACFG1B Exciter AC Feedback Board
• GE IS200EACFG2ABB Circuit Board
• GE IS200EDCFG1ADC Exciter DC Feedback Board
• GE IS200ECTBG1ADA Exciter Contact Terminal Block
• GE IS200ECTBG1ADE Exciter Contact Terminal Block
• GE IS200DSPXH2CAA Digital Signal Processor Control Board
• GE IS200DSPXH2DBD Digital Signal Processor Board
• GE IS200DAMDG2AAA Gate Driver Interface Board
• GE IS200DAMEG1ABA Gate Amplifier Interface Board
• Generator Excitation Bridge Assemblies
• Human Machine Interface (HMI)
• SCADA Monitoring Systems
• GE EX2100 Control Cabinets

Together, these components provide a complete excitation control solution capable of delivering accurate feedback acquisition, stable voltage regulation, and dependable generator performance.

Recommended Alternative Models

Key Advantages

• High-accuracy DC voltage and current measurement
• Stable closed-loop excitation control
• Fast analog signal processing
• Excellent electrical isolation
• Strong resistance to electromagnetic interference
• Industrial-grade PCB construction
• Reliable long-term continuous operation
• Easy integration with GE EX2100 systems
• Simplified maintenance and replacement
• Designed for demanding industrial environments

Technical FAQs

What is the primary function of the GE IS200EDCFG1BAA?

The IS200EDCFG1BAA measures field voltage and field current within the excitation system, conditions the DC feedback signals, and supplies accurate operating data to the excitation controller for voltage regulation, excitation control, and generator protection.

Which systems use the IS200EDCFG1BAA?

The board is specifically designed for the GE EX2100 Excitation Control System and is widely integrated into GE Mark VI Speedtronic turbine and generator control platforms.

What equipment commonly operates with this module?

The IS200EDCFG1BAA typically works alongside EX2100 controllers, AC feedback boards, DSP processor boards, gate driver interface boards, excitation bridge assemblies, HMI workstations, communication modules, SCADA systems, and GE control cabinets, creating a fully integrated generator excitation control solution.

Conclusion

The GE IS200EDCFG1BAA Exciter DC Feedback Board is a critical industrial feedback module designed for the GE EX2100 Excitation Control System. By delivering accurate field voltage and current measurements, precision analog signal conditioning, and reliable closed-loop DC feedback, it enables stable excitation control, precise generator voltage regulation, and dependable long-term operation.

With industrial-grade construction, dimensions of 38 × 330 × 250 mm, and a weight of 0.7 kg, the GE IS200EDCFG1BAA is ideally suited for gas turbines, steam turbines, hydroelectric generators, combined-cycle power plants, and other industrial power generation facilities requiring high reliability, precision monitoring, and continuous excitation system performance.
