Product Overview

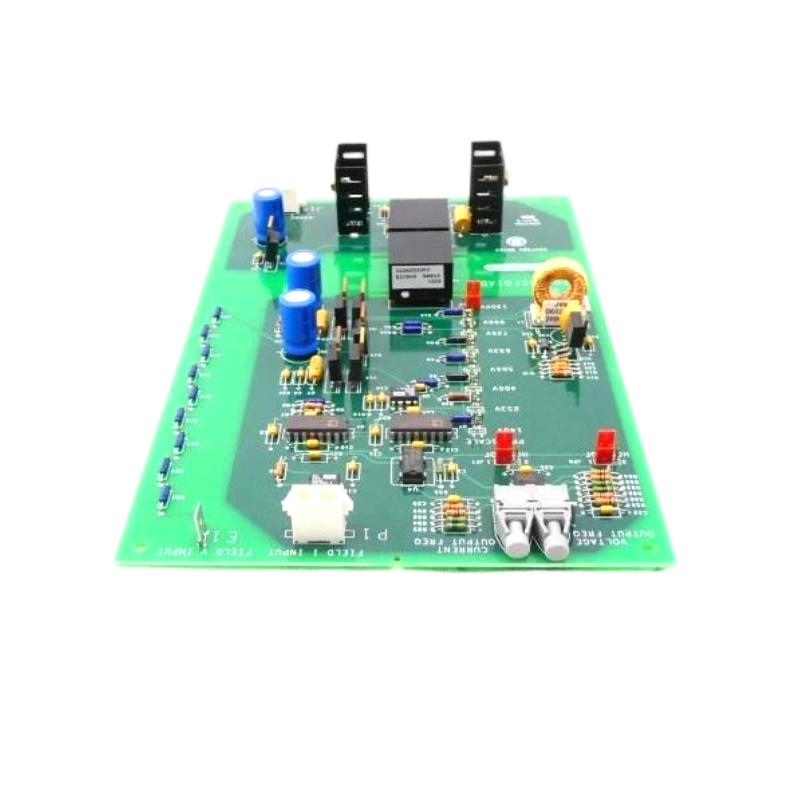

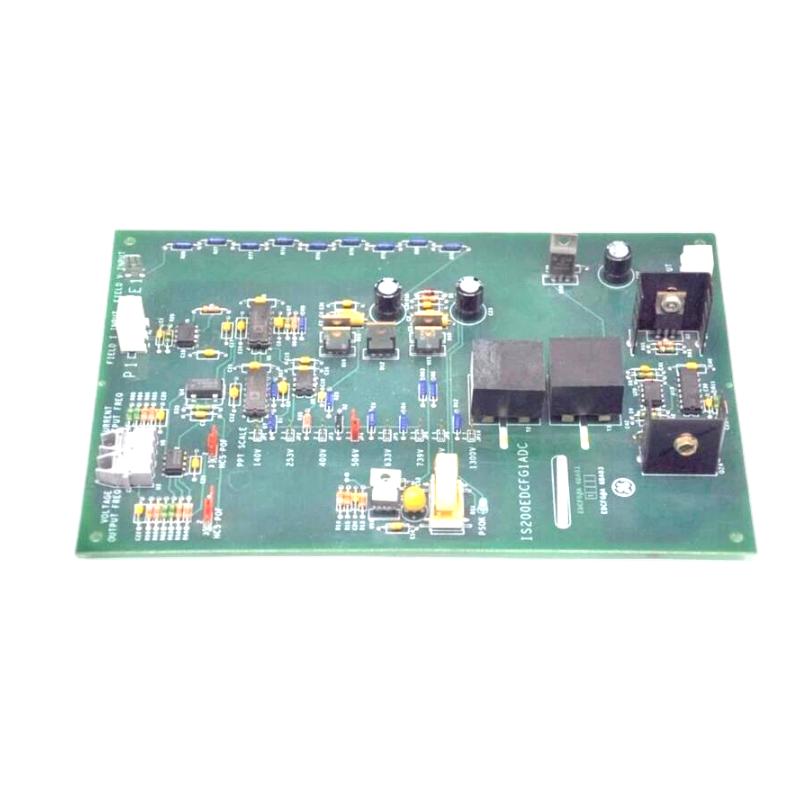

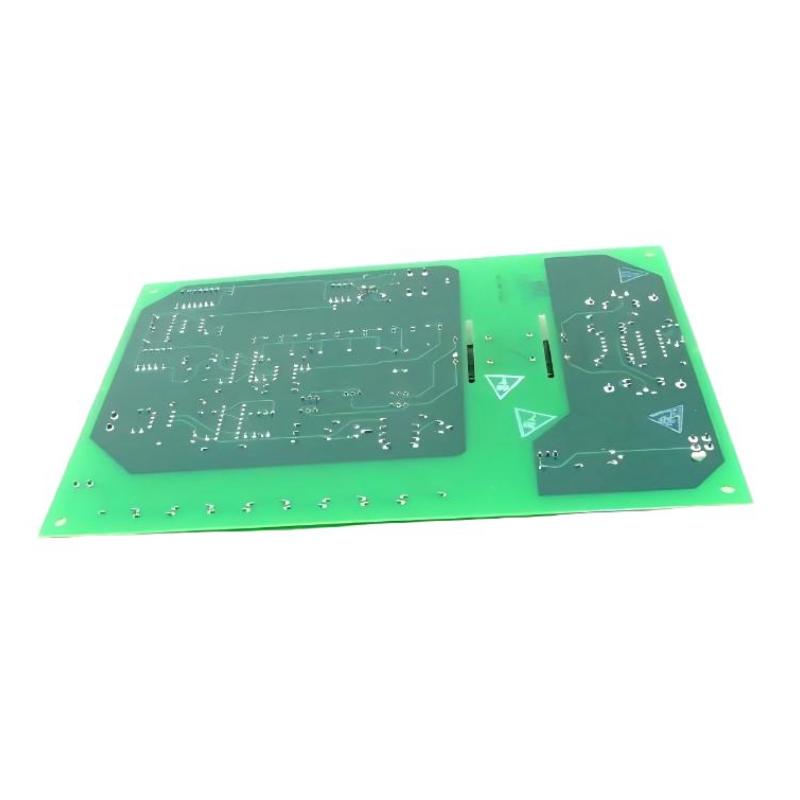

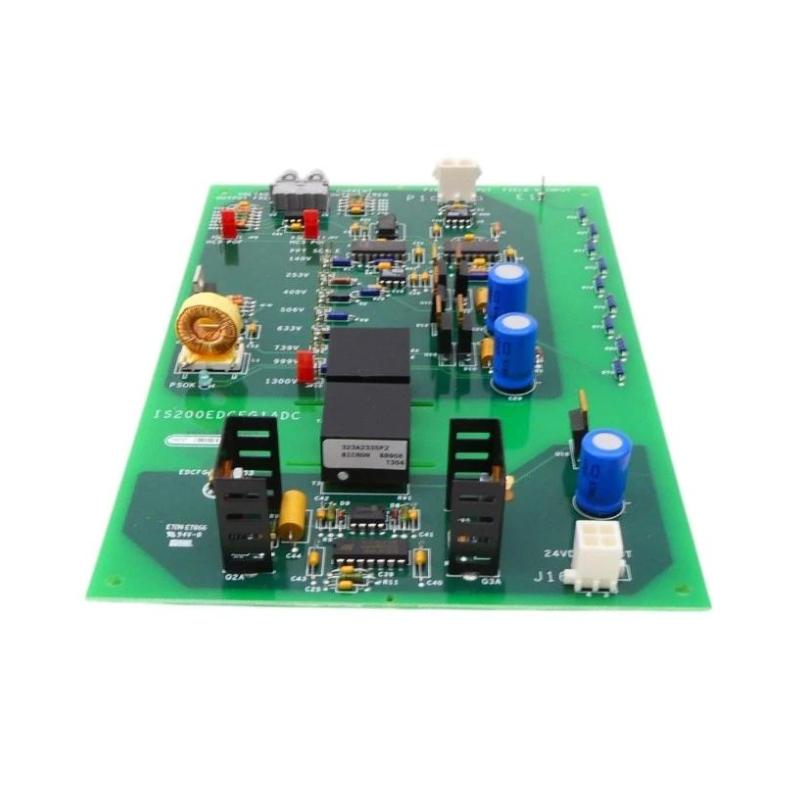

The GE IS200EDCFG1ADC Exciter DC Feedback Board is a high-precision industrial feedback module developed for the GE EX2100 Excitation Control System and compatible GE Mark VI Speedtronic turbine control platforms. Designed to monitor and process direct current (DC) feedback signals within generator excitation systems, this board plays a critical role in maintaining stable excitation performance, accurate voltage regulation, and reliable generator operation.

The IS200EDCFG1ADC continuously acquires DC feedback signals from the excitation circuit, including field voltage and field current measurements. These signals are conditioned, filtered, electrically isolated, and transmitted to the excitation controller, enabling real-time closed-loop regulation of the generator excitation system. By supplying accurate operating data, the board allows the controller to precisely adjust excitation current, maintain generator terminal voltage, and improve overall system stability.

Built with industrial-grade electronic components, precision analog circuitry, and a multilayer printed circuit board, the IS200EDCFG1ADC is engineered to withstand harsh industrial environments characterized by electrical noise, vibration, temperature fluctuations, and continuous operation. Its compact construction allows efficient installation within EX2100 control cabinets while delivering long-term reliability.

With dimensions of 82.6 × 41.9 mm and a weight of 0.6 kg, the GE IS200EDCFG1ADC offers a compact yet robust solution for modern excitation control systems used in power generation and industrial automation.

Technical Specifications

Function and Working Principle

The GE IS200EDCFG1ADC is responsible for acquiring DC feedback signals generated by the excitation system. During operation, field voltage and excitation current are continuously measured through dedicated sensing circuits connected to the excitation bridge.

The incoming analog signals pass through precision filtering, amplification, and electrical isolation stages before being converted into highly accurate feedback data for the excitation controller. Using this real-time information, the controller continuously compares actual operating values with predefined reference settings and adjusts the generator field current accordingly.

This closed-loop control strategy ensures stable generator voltage during rapid load changes while improving excitation efficiency and protecting critical electrical equipment against abnormal operating conditions.

The module also supports continuous monitoring of excitation performance, enabling early detection of feedback abnormalities, overcurrent conditions, voltage deviations, and sensor failures before they develop into major system faults.

Key operating features include:

• High-precision DC voltage measurement
• Accurate field current monitoring
• Advanced analog signal conditioning
• Closed-loop excitation regulation
• High-speed feedback processing
• Excellent electrical isolation
• Strong electromagnetic interference immunity
• Continuous industrial operation

Role in Industrial Control Systems

Within the GE EX2100 excitation architecture, the IS200EDCFG1ADC functions as the primary DC feedback interface responsible for delivering accurate excitation measurements to the control processor.

Its primary responsibilities include:

• Field voltage monitoring
• Field current measurement
• DC feedback acquisition
• Analog signal conditioning
• Excitation regulation support
• Generator protection
• Fault diagnostics
• Stable closed-loop control

Accurate DC feedback enables the excitation controller to maintain generator stability, improve power quality, and maximize overall operational efficiency.

Industrial Applications

The GE IS200EDCFG1ADC is widely applied in:

• Gas Turbine Power Plants
• Steam Turbine Power Stations
• Hydroelectric Power Plants
• Combined Cycle Power Plants
• Utility Generator Excitation Systems
• Industrial Power Generation
• Oil & Gas Facilities
• Petrochemical Processing Plants
• Steel Manufacturing
• Mining Operations
• Marine Power Systems
• Cement Production
• Renewable Energy Generation
• Heavy Industrial Automation
• Electrical Infrastructure Projects

Its precise DC feedback capability makes it an essential component wherever reliable excitation control and stable generator voltage are required.

Installation and System Integration

Correct installation is essential for achieving reliable measurement accuracy and long-term system performance.

Recommended installation procedures include:

• Install the module in the designated EX2100 control rack.
• Observe electrostatic discharge (ESD) protection during installation.
• Verify secure engagement of all board connectors.
• Connect field voltage and current sensing circuits according to system documentation.
• Confirm proper grounding and cable shielding.
• Perform excitation calibration after installation.
• Verify communication with the excitation controller.
• Include the board in routine preventive maintenance inspections.

Following these procedures helps maximize reliability while reducing maintenance requirements.

Compatible System Components

The GE IS200EDCFG1ADC commonly operates together with:

• GE EX2100 Excitation Controller
• GE IS200EBKPG1CAA Exciter Backplate
• GE IS200EACFG1B Exciter AC Feedback Board
• GE IS200EACFG2ABB Circuit Board
• GE IS200ECTBG1ADA Exciter Contact Terminal Block
• GE IS200ECTBG1ADE Exciter Contact Terminal Block
• GE IS200DSPXH2CAA Digital Signal Processor Control Board
• GE IS200DSPXH2DBD Digital Signal Processor Board
• GE IS200DAMDG2AAA Gate Driver Interface Board
• GE IS200DAMEG1ABA Gate Amplifier Interface Board
• Generator Voltage Sensors
• Excitation Bridge Assemblies
• Human Machine Interface (HMI)
• SCADA Monitoring Systems
• GE EX2100 Control Cabinets

Together, these components create a complete excitation control solution capable of delivering accurate feedback, stable generator regulation, and dependable industrial performance.

Recommended Alternative Models

Key Advantages

• High-precision DC voltage and field current measurement
• Stable closed-loop excitation control
• Fast analog signal processing
• Excellent electrical isolation
• High resistance to electromagnetic interference
• Industrial-grade PCB construction
• Compact and lightweight design
• Easy system integration
• High compatibility with GE EX2100 platforms
• Designed for continuous industrial operation

Technical FAQs

What is the primary function of the GE IS200EDCFG1ADC?

The IS200EDCFG1ADC measures field voltage and field current within the excitation system, conditions the DC feedback signals, and supplies accurate operating data to the excitation controller for voltage regulation and generator protection.

Which systems use the IS200EDCFG1ADC?

The board is primarily designed for the GE EX2100 Excitation Control System and is widely integrated into GE Mark VI Speedtronic generator control applications.

What components commonly work with this module?

The IS200EDCFG1ADC is typically installed alongside EX2100 controllers, AC feedback boards, DSP processor boards, gate driver interface boards, excitation bridge assemblies, HMI systems, communication modules, and SCADA monitoring platforms, creating a complete generator excitation control solution.

Conclusion

The GE IS200EDCFG1ADC Exciter DC Feedback Board is a critical feedback module designed for the GE EX2100 Excitation Control System. By delivering precise field voltage and current measurements, advanced analog signal conditioning, and dependable closed-loop feedback, it enables stable generator excitation, accurate voltage regulation, and reliable long-term operation.

Featuring industrial-grade construction, compact dimensions of 82.6 × 41.9 mm, and a weight of 0.6 kg, the GE IS200EDCFG1ADC is ideally suited for gas turbines, steam turbines, hydroelectric generators, combined-cycle power plants, and other demanding industrial power generation applications where precision, reliability, and continuous operation are essential.
