Product Overview

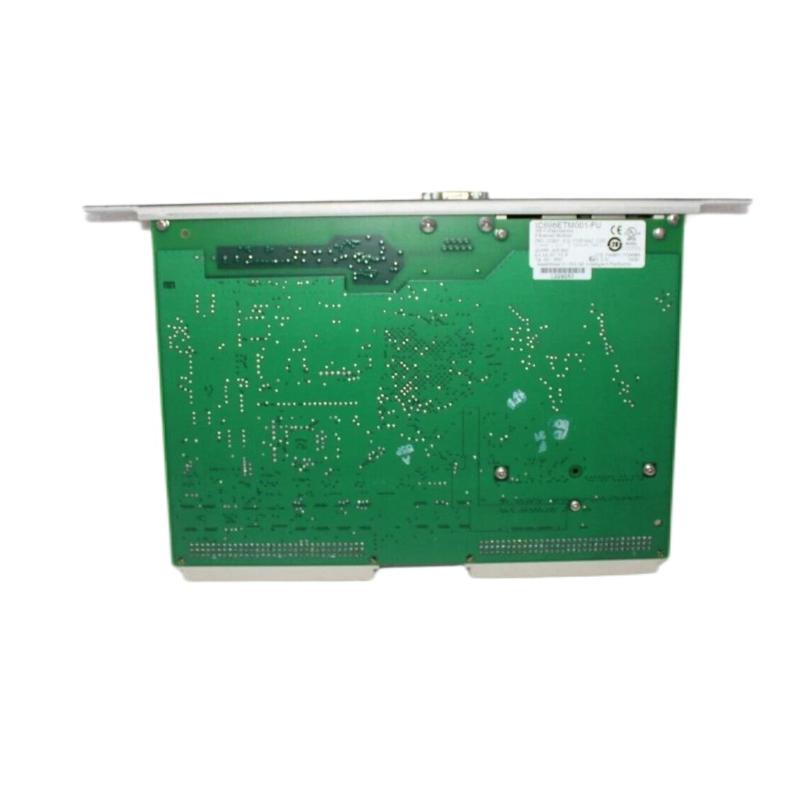

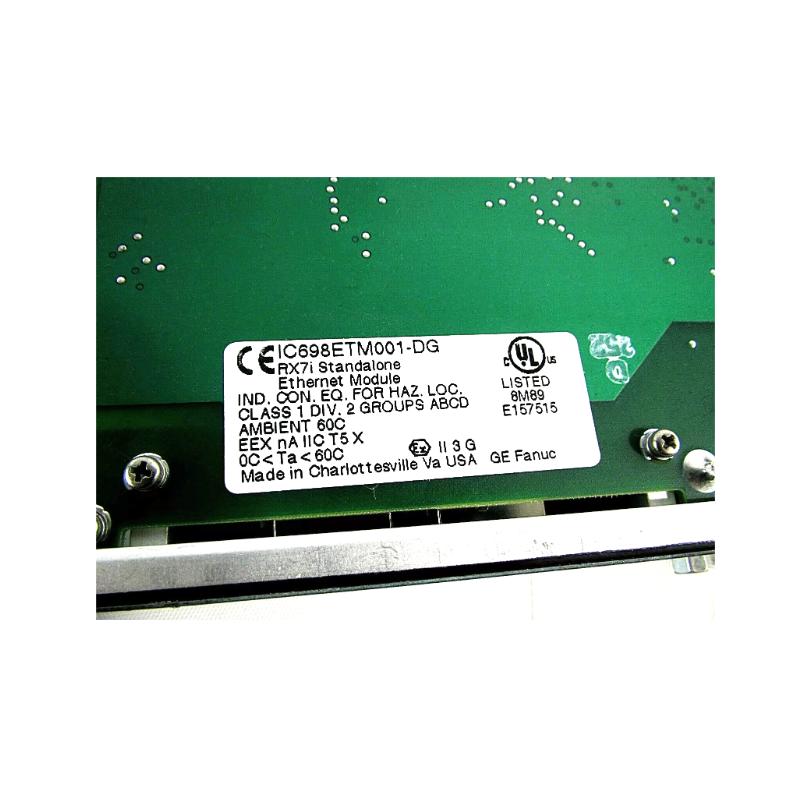

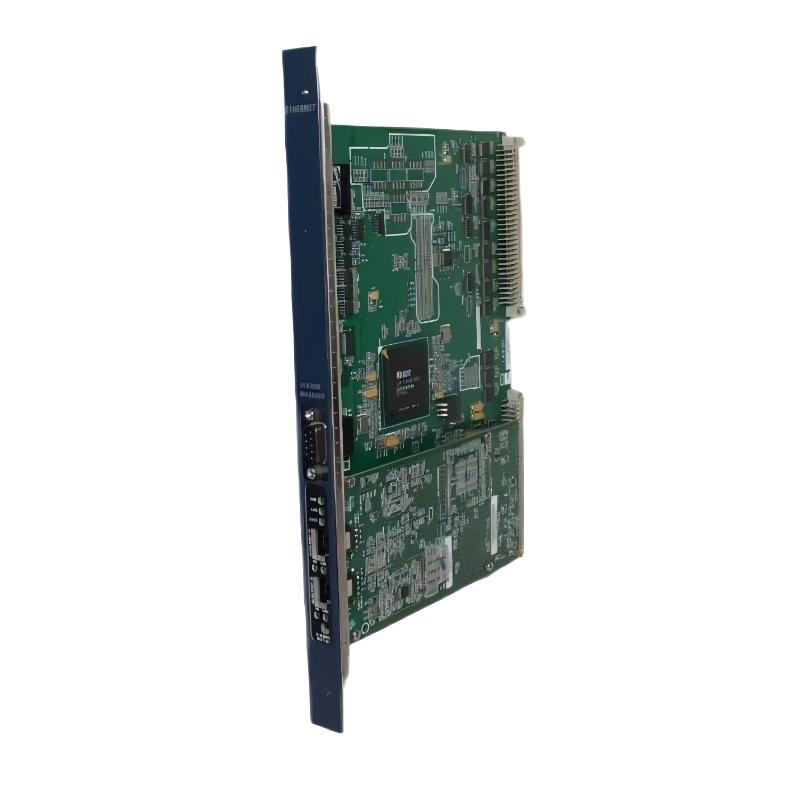

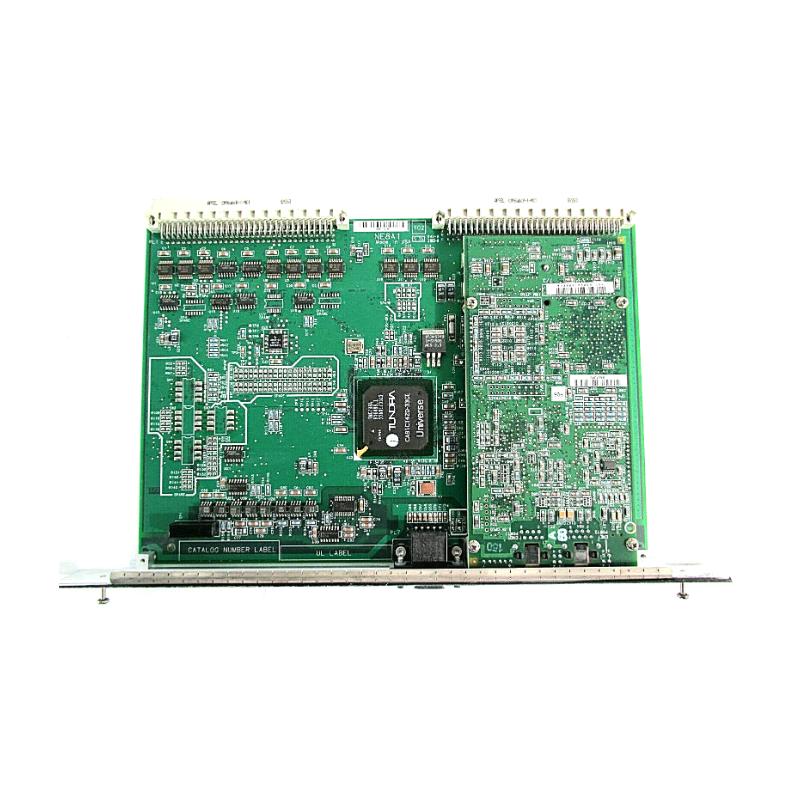

The GE IC698ETM001-DG is a high-performance Ethernet interface module designed for PACSystems RX7i PLC systems. It enables reliable and high-speed industrial Ethernet communication, allowing controllers to exchange data with other PLCs, SCADA systems, HMIs, and networked devices.
This module plays a key role in network integration and distributed control architectures, supporting real-time data exchange across industrial Ethernet networks.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE (Emerson / GE Fanuc) |
| Model | IC698ETM001-DG |
| Product Type | Ethernet Interface Module |
| System Series | PACSystems RX7i |
| Ethernet Ports | 2 × RJ45 ports |
| Communication Speed | 10/100 Mbps (auto-negotiation) |
| Processor Speed | ~200 MHz Ethernet processor |
| Supported Protocols | TCP/IP, SRTP, Modbus TCP, EGD |
| Redundant IP Support | Yes |
| Backplane Voltage | +5 VDC |
| Current Consumption | ~1.5 A @ 5 VDC |
| Network Standard | IEEE 802.3 Ethernet |
| Duplex Mode | Full-duplex / auto-detection |
| Diagnostic Indicators | LED status indicators |
| Mounting Type | Single-slot RX7i module |
| Operating Temperature | 0°C to 60°C |
| Dimensions | 130 × 75 × 140 mm |
| Weight | 0.417 kg |
Function and Working Principle
The IC698ETM001-DG functions as a network communication gateway within the PLC system.
Its operation includes:
- Providing Ethernet connectivity for the RX7i controller
- Enabling data exchange between PLCs and external systems
- Supporting real-time communication protocols (EGD, SRTP)
- Allowing PLC programming and diagnostics over Ethernet
- Managing network traffic through dual Ethernet ports (built-in switch functionality)
- Supporting redundant IP addressing for high-availability systems
It ensures fast and reliable communication across industrial automation networks.
Role in Industrial Control Systems
Within RX7i systems, the IC698ETM001-DG provides:
- Ethernet-based communication between controllers
- Integration with SCADA and HMI systems
- Data exchange across distributed automation systems
- Remote monitoring and programming capability
- Support for redundant and high-availability network designs
Industrial Applications
The GE IC698ETM001-DG is widely used in:
- Distributed control systems (DCS)
- Manufacturing automation networks
- Power generation and energy systems
- Oil & gas and petrochemical plants
- Water and wastewater treatment
- Industrial IoT and networked control environments
Installation and System Integration
Recommended installation practices include:
- Installing into an available RX7i rack slot
- Connecting Ethernet cables to RJ45 ports
- Configuring IP address and communication parameters in software
- Integrating with SCADA/HMI systems via supported protocols
- Ensuring proper network topology and redundancy configuration
Compatible System Components
The IC698ETM001-DG typically works with:
- RX7i CPU modules (IC698 series)
- RX7i I/O modules
- RX7i power supply modules
- Industrial Ethernet switches and network infrastructure
- SCADA, HMI, and DCS platforms
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| IC698ETM001-DG | Ethernet Module | Dual-port Ethernet interface | RX7i systems |
| IC695ETM001 | RX3i Ethernet Module | Ethernet for RX3i systems | Modern architectures |
| IC698ETM002 | Ethernet Module | Enhanced communication version | Advanced networking |
| IC698CPE030 | CPU Module | Built-in Ethernet capability | Integrated control |
| IC695CPE305 | RX3i CPU | Advanced Ethernet CPU | Distributed systems |
Key Advantages
- Dual Ethernet ports with auto-negotiation
- Supports multiple industrial protocols
- Enables real-time data exchange (EGD)
- Redundant IP addressing for high availability
- Built-in diagnostics and status monitoring
- Seamless integration with RX7i systems
Technical FAQs
What is the IC698ETM001-DG used for?
It provides Ethernet communication capability for RX7i PLC systems.
How many ports does it have?
It has two RJ45 Ethernet ports.
What protocols are supported?
TCP/IP, SRTP, Modbus TCP, and EGD.
Does it support redundancy?
Yes, it supports redundant IP addressing for high-availability systems.
Conclusion
The GE IC698ETM001-DG Ethernet Interface Module is a critical communication component for RX7i PLC systems. With dual Ethernet ports, support for industrial protocols, and high-speed data exchange capabilities, it enables seamless integration of automation systems into modern industrial networks.
