Product Overview

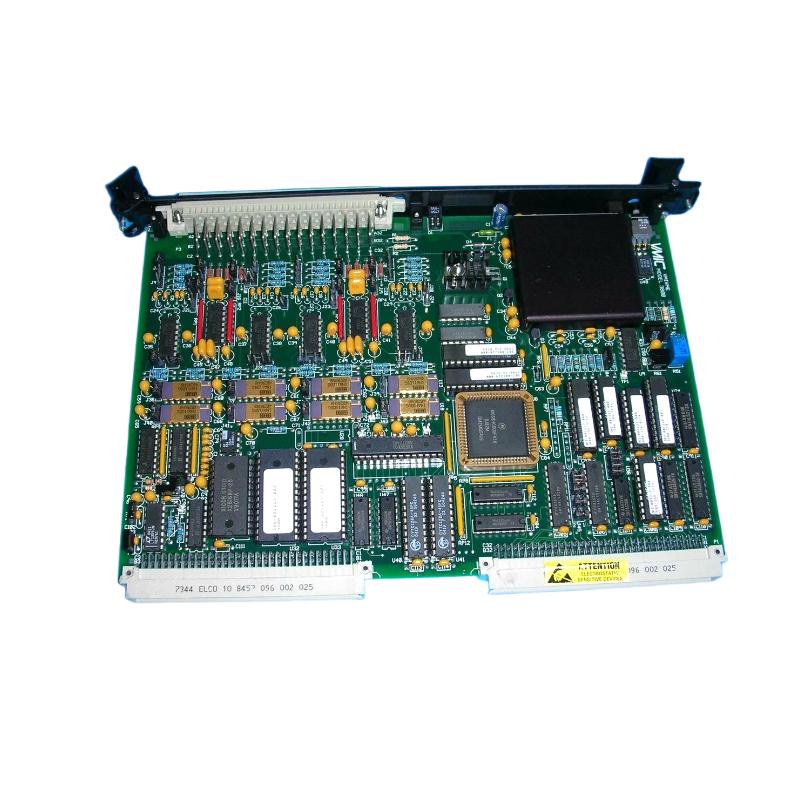

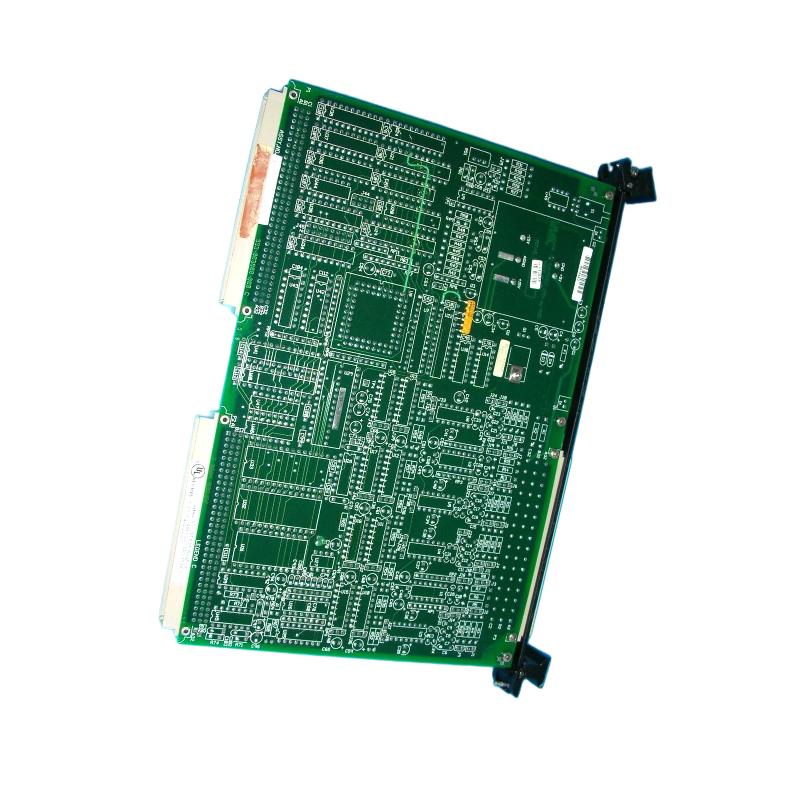

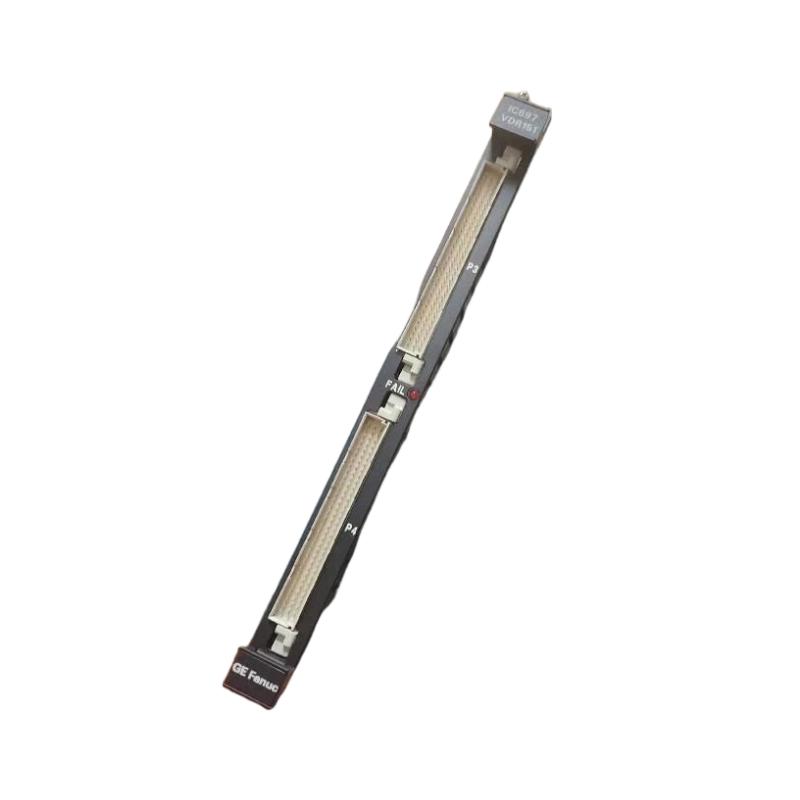

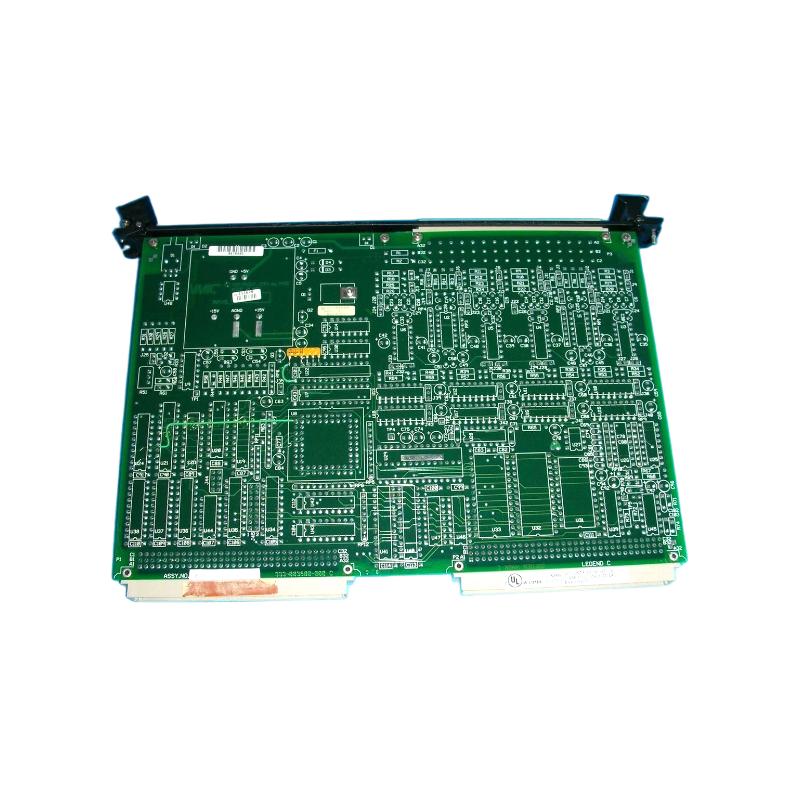

The GE IC697VDR151 Relay Output Module is a high-performance Relay Output Module designed for the GE Fanuc Series 90-70 PLC platform. It provides dependable relay-based output switching for industrial automation systems, allowing the PLC processor to control a wide variety of AC and DC field devices through electrically isolated relay contacts. Designed for demanding industrial environments, the module delivers reliable switching performance, high system availability, and long-term operational stability.
As a member of the Series 90-70 I/O family, the IC697VDR151 installs directly into a compatible PLC rack and communicates with the CPU through the high-speed backplane. The PLC executes the user control program and sends digital output commands to the relay module. The IC697VDR151 energizes or de-energizes its internal relay contacts, controlling connected devices such as motor starters, contactors, solenoid valves, indicator lamps, alarm devices, pumps, fans, and other industrial equipment.
The relay-based output design provides excellent electrical isolation between the PLC electronics and field circuits, making the module suitable for mixed-voltage AC and DC control applications. Its rugged industrial construction ensures reliable operation under conditions involving electrical noise, vibration, temperature fluctuations, and continuous production cycles.
Typical applications include manufacturing automation, conveyor systems, packaging machinery, water treatment facilities, chemical processing plants, power generation, mining operations, oil and gas installations, pharmaceutical production, food and beverage processing, and material handling systems.
With compact dimensions of 200 × 40 × 150 mm and an approximate weight of 1.36 kg, the IC697VDR151 integrates easily into standard Series 90-70 control cabinets.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc |
| Model | IC697VDR151 |
| Product Family | Series 90-70 |
| Product Type | Relay Output Module |
| Primary Function | Relay-Based Digital Output Control |
| Output Type | Electromechanical Relay Outputs |
| Installation Method | Rack Mounted |
| PLC Platform | GE Fanuc Series 90-70 |
| Communication | High-Speed PLC Backplane |
| Electrical Isolation | Relay Isolation Between PLC and Field Devices |
| Application | Industrial Machine Control |
| Dimensions | 200 × 40 × 150 mm |
| Weight | Approximately 1.36 kg |
| Installation Environment | Industrial Control Cabinet |
Engineering Note: Before commissioning or replacement, engineers should verify relay contact ratings, maximum switching voltage and current, channel configuration, electrical isolation, wiring methods, fuse protection, and environmental requirements using the official IC697VDR151 product documentation.
Function and Working Principle
The GE IC697VDR151 receives digital output commands from the PLC CPU and switches internal relay contacts to control industrial equipment.
Typical operating sequence:
PLC Control Program
↓
Series 90-70 CPU
↓
GE IC697VDR151 Relay Output Module
↓
Relay Contacts
↓
Contactors / Solenoid Valves / Motor Starters / Alarm Devices
↓
Industrial Equipment
During each PLC scan cycle, the module performs the following functions:
- Receives digital output commands from the CPU
- Processes PLC control signals
- Energizes or de-energizes relay outputs
- Switches connected AC or DC loads
- Provides electrical isolation between PLC and field circuits
- Communicates through the PLC backplane
- Supports deterministic machine control
- Improves system reliability
- Enables stable industrial automation
- Supports continuous-duty operation
Role in Industrial Control Systems
Within a GE Fanuc Series 90-70 PLC system, the IC697VDR151 acts as the final switching interface between the PLC processor and industrial field equipment.
Typical automation architecture:
Industrial Sensors
↓
Digital Input Modules
↓
Series 90-70 CPU
↓
PLC Control Logic
↓
IC697VDR151 Relay Output Module
↓
Relay Contacts
↓
Motor Starters / Contactors / Solenoid Valves / Alarm Devices
↓
Industrial Equipment
The module converts PLC logic into reliable relay-controlled electrical switching actions, ensuring synchronized machine operation and accurate process control.
Industrial Applications
Manufacturing Automation
Typical applications include:
- Automated production lines
- CNC machinery
- Robotic manufacturing systems
- Conveyor automation
- Industrial assembly equipment
Packaging Machinery
Suitable for controlling:
- Filling valves
- Conveyor motors
- Labeling systems
- Packaging actuators
- Cartoning machines
Water and Wastewater Treatment
Applications include:
- Pump control
- Valve actuation
- Chemical dosing systems
- Aeration equipment
- Filtration systems
Oil and Gas Industry
Typical applications include:
- Pump automation
- Compressor systems
- Pipeline equipment
- Emergency shutdown systems
- Process valve control
Power Generation
Suitable for:
- Generator auxiliary equipment
- Cooling systems
- Circuit breaker control
- Turbine support systems
- Plant automation
Material Handling
Common applications include:
- Conveyor systems
- Warehouse automation
- Sorting equipment
- Crane control
- Logistics systems
Food and Beverage Processing
Widely used for:
- Filling machinery
- Packaging systems
- Conveyor automation
- Mixing equipment
- Production line actuators
Installation and System Integration
Proper installation ensures reliable relay switching and long-term operational stability.
Before installation, engineers should verify:
- Series 90-70 rack compatibility
- Module slot assignment
- PLC hardware configuration
- Relay load ratings
- Field wiring integrity
- Protective grounding
- Cabinet ventilation
- Protective devices
- Environmental conditions
- Power supply capacity
Recommended Installation Procedure
- Shut down the PLC system.
- Disconnect electrical power.
- Verify rack configuration.
- Inspect rack connectors.
- Install the IC697VDR151 module.
- Secure the retaining mechanism.
- Connect field output wiring.
- Verify terminal assignments.
- Confirm grounding.
- Restore system power.
- Verify module recognition.
- Configure output addresses.
- Test each relay output channel.
- Verify controlled equipment operation.
- Complete commissioning.
Relay Output Performance
Reliable relay output performance depends on proper installation and maintenance.
Recommended engineering practices include:
Proper Load Selection
Ensure connected loads remain within the relay contact ratings.
Electrical Protection
Install appropriate fuses, circuit breakers, or surge suppression devices.
Effective Grounding
Follow recommended industrial grounding practices.
Output Verification
Test every relay channel during commissioning.
Terminal Inspection
Inspect wiring terminals periodically for secure electrical connections.
Preventive Maintenance
Inspect relay operation regularly during scheduled maintenance intervals.
PLC Programming and Output Control
The Series 90-70 PLC updates relay outputs during every scan cycle.
Typical programming functions include:
- Machine sequencing
- Equipment interlocking
- Motor control
- Alarm activation
- Automatic start/stop control
- Timer functions
- Counter operations
- Production sequencing
- Safety interlocking
- Equipment protection
Typical control sequence:
PLC Program
↓
IC697VDR151
↓
Relay Outputs
↓
Industrial Equipment
↓
Machine Operation
Maintenance and Troubleshooting
Routine maintenance improves long-term relay reliability.
Common Symptoms
Possible issues include:
- Relay output not switching
- Incorrect output status
- PLC diagnostic alarms
- Wiring faults
- Relay contact wear
- Load failure
- Communication errors
- Intermittent operation
Recommended Troubleshooting Procedure
1. Verify PLC Operation
Confirm normal CPU operation.
2. Check Module Recognition
Verify the PLC recognizes the IC697VDR151.
3. Inspect Output Wiring
Check terminal connections, grounding, and cable continuity.
4. Verify Output Configuration
Confirm output addressing and PLC programming.
5. Check Connected Loads
Inspect contactors, relays, solenoid valves, and controlled equipment.
6. Test Relay Outputs
Verify the operation of every relay output channel.
7. Review PLC Diagnostics
Check available PLC fault information.
8. Inspect Rack Connections
Ensure the module is correctly seated.
9. Replace the Module if Necessary
Replace the module only after confirming an internal hardware fault.
Compatible System Components
| Component | Function |
|---|---|
| GE Series 90-70 CPU | PLC processing |
| IC697VDR151 | Relay output control |
| Series 90-70 Rack | Module installation |
| Series 90-70 Power Supply | PLC system power |
| Digital Input Modules | Signal acquisition |
| Digital Output Modules | Solid-state output control |
| Analog Input Modules | Process monitoring |
| Analog Output Modules | Process regulation |
| HMI | Operator interface |
| SCADA System | Supervisory monitoring |
| Contactors | Motor switching |
| Solenoid Valves | Fluid control |
| Industrial Relays | Load switching |
Recommended Alternative Models
| Model | Product Type | Typical Application |
|---|---|---|
| IC697VDR151 | Relay Output Module | General-purpose relay switching |
| IC697VDR150 | Relay Output Module | Industrial AC/DC load control |
| IC697MDL710 | Relay Output Module | PLC relay output applications |
| IC697VDQ120 | Digital Output Module | Solid-state output switching |
| IC697VDD100 | Digital Input Module | Digital signal acquisition |
| Series 90-70 CPU Modules | CPU Module | Central PLC control |
| Series 90-70 Communication Modules | Communication Module | Industrial networking |
Engineers should verify relay contact ratings, switching capacity, electrical load characteristics, PLC compatibility, and application requirements before selecting a replacement module.
Key Advantages
- Designed for GE Fanuc Series 90-70 PLC systems
- Reliable electromechanical relay outputs
- Supports AC and DC load switching
- High-speed PLC backplane communication
- Excellent electrical isolation
- Rugged industrial construction
- Compact rack-mounted installation
- Easy system integration and maintenance
- Long relay service life
- Suitable for continuous industrial operation
- Dimensions 200 × 40 × 150 mm
- Approximate weight 1.36 kg
Technical FAQs
What is the GE IC697VDR151?
The GE IC697VDR151 is a Relay Output Module designed for the GE Fanuc Series 90-70 PLC platform. It converts PLC digital commands into relay-switched outputs for industrial equipment.
What is its primary function?
Its primary function is to provide relay-based output switching while maintaining electrical isolation between the PLC and connected field devices.
Which field devices can it control?
It can control contactors, motor starters, relay coils, solenoid valves, alarm devices, indicator lamps, pumps, fans, and other compatible AC or DC loads.
What are the module dimensions?
The module measures 200 × 40 × 150 mm.
What is the approximate weight?
The module weighs approximately 1.36 kg.
Which PLC platform supports this module?
The IC697VDR151 is designed specifically for the GE Fanuc Series 90-70 PLC platform.
Is it suitable for continuous industrial operation?
Yes. The module is engineered for reliable long-term operation in demanding industrial automation environments.
How should relay output faults be diagnosed?
Verify PLC operation, module recognition, wiring integrity, relay load conditions, PLC programming, rack connections, and diagnostic information.
What should be verified before replacing the module?
Verify relay contact ratings, switching capacity, electrical load characteristics, PLC compatibility, wiring configuration, and field-device requirements before installation.
Conclusion
The GE IC697VDR151 Relay Output Module is a dependable relay-based output solution for GE Fanuc Series 90-70 PLC systems. By converting PLC-generated digital commands into reliable relay-switched outputs, it provides safe and accurate control of contactors, motor starters, solenoid valves, alarm devices, and other industrial equipment.
With compact dimensions of 200 × 40 × 150 mm and an approximate weight of 1.36 kg, the module integrates seamlessly into Series 90-70 control cabinets while delivering stable long-term performance. When combined with compatible Series 90-70 CPUs, power supplies, digital input modules, analog I/O modules, HMIs, SCADA systems, and industrial field devices, the IC697VDR151 delivers reliable relay output control, improved production efficiency, reduced downtime, and dependable automation performance across a wide range of industrial applications.
