Product Overview

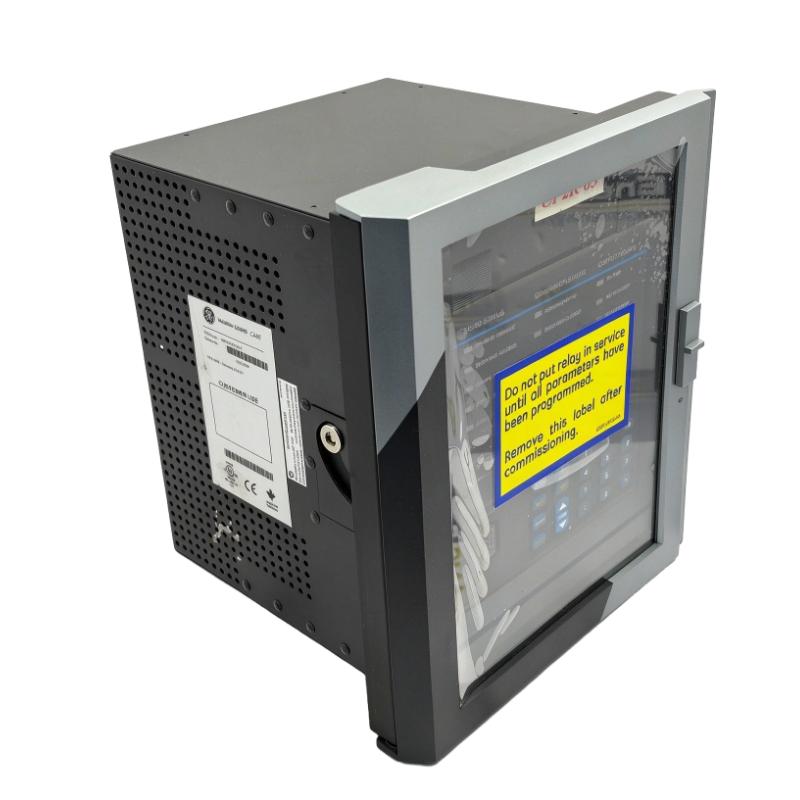

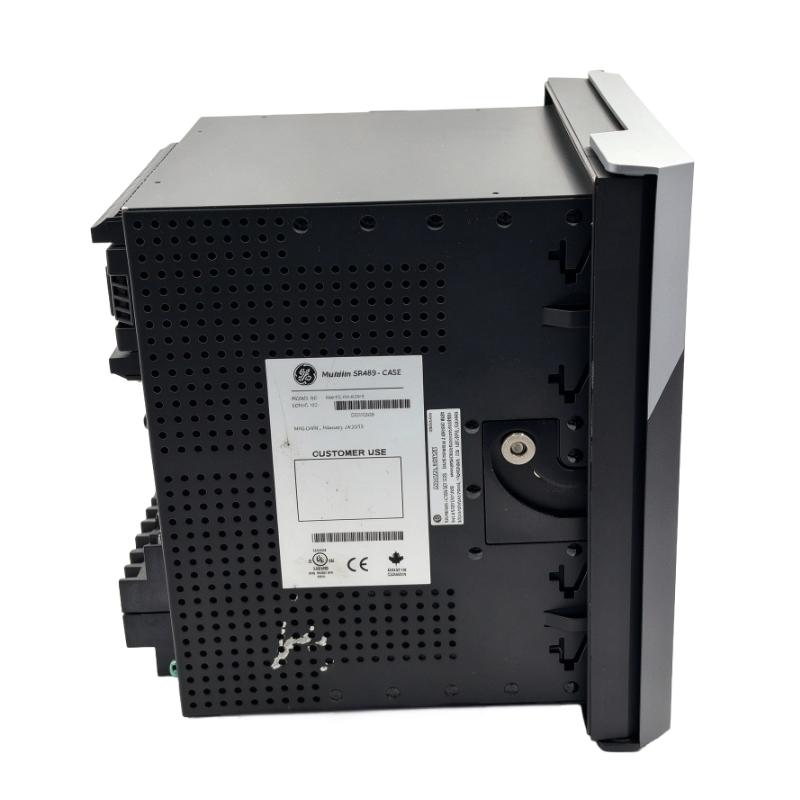

The GE SR489-P1-HI-A20-E Generator Management Relay is a GE Multilin 489 protection and monitoring device for generator installations that require integrated electrical protection, metering and operating-condition supervision. It evaluates generator measurements against configured settings and coordinates alarm or trip responses through assigned relay outputs.

This model combines 1 A phase current transformer inputs, high-range auxiliary power, 4–20 mA analog outputs, and an enhanced display. The P1 configuration is intended for phase CT secondary circuits rated at 1 A. The HI power option accommodates a higher-range AC or DC auxiliary supply, while the A20 option supports analog transmission of selected measurements to compatible external equipment.

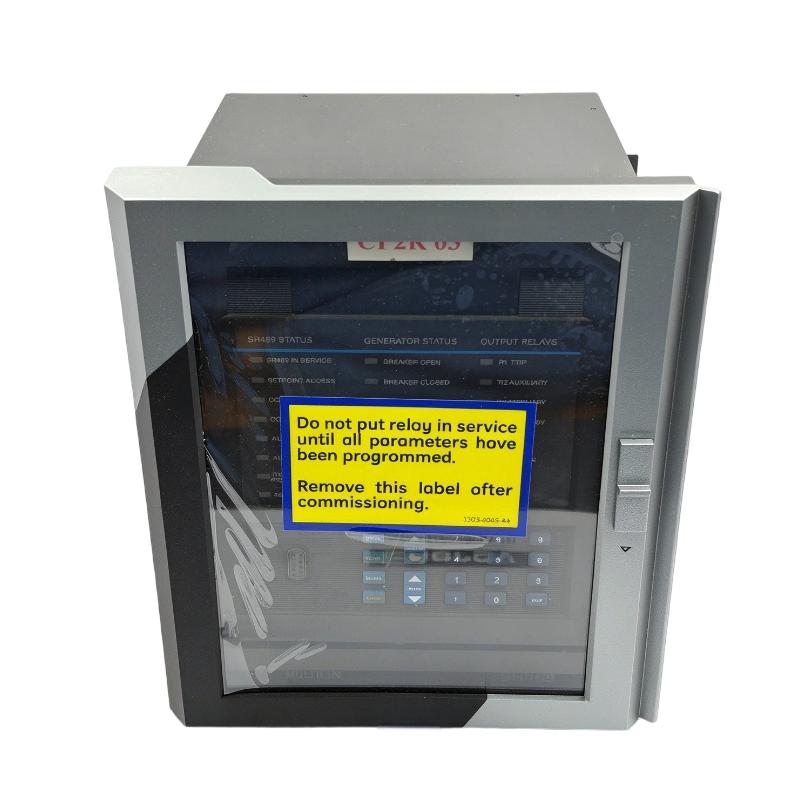

The enhanced display adds a larger LCD and improved keypad for local access to measurements, relay messages and settings. In a generator control panel, the relay can work alongside voltage transformers, temperature sensors, breaker-status contacts and supervisory systems. Its event information also helps maintenance personnel investigate protection operations and review operating conditions preceding a trip.

Technical Specifications

Product Features

• 1 A phase current inputs: Accommodates generator protection schemes using 1 A CT secondary circuits, with correct transformer ratios entered during configuration.
• High-range auxiliary supply: Supports AC or DC control power within the HI option’s specified input range.
• 4–20 mA analog outputs: Sends selected supported measurements to compatible panel meters, controllers or remote monitoring equipment.
• Enhanced local interface: Provides a larger LCD and improved keypad for viewing relay messages, measurements and settings.
• Configurable protection logic: Supports generator protection functions with application-specific settings and output assignments.
• Temperature monitoring capability: Uses supported connected sensors for configured generator thermal-monitoring functions.
• Serial data access: Supports communication with compatible engineering and supervisory systems.
• Event-based diagnostics: Provides operating and trip information that can assist with troubleshooting.

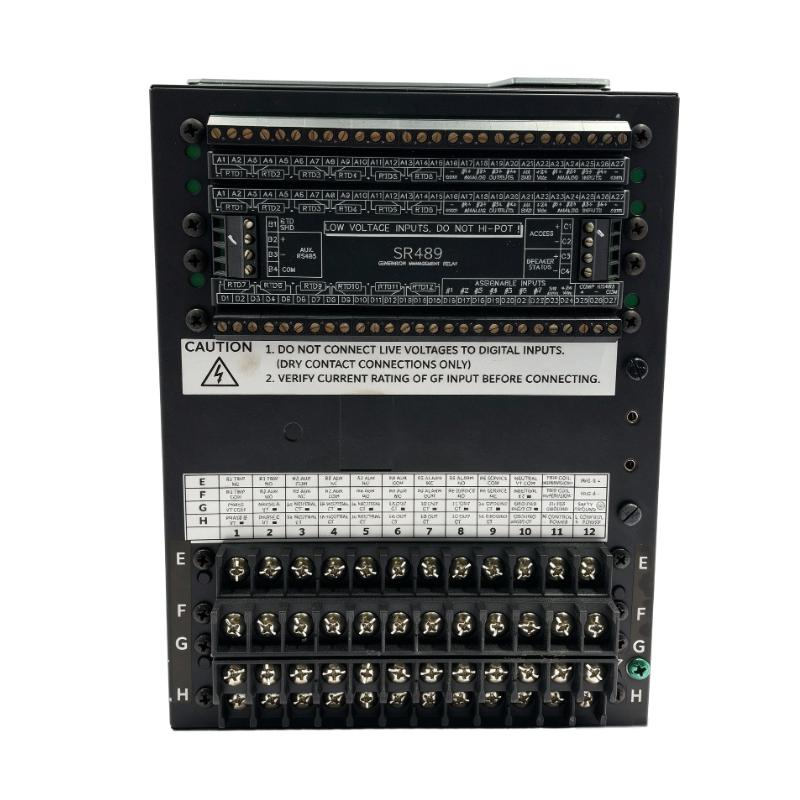

• Drawout relay construction: Separates the relay unit from its fixed case to support appropriate inspection and replacement procedures.
• Flexible system integration: Combines protection outputs, measurement data and communication interfaces within a generator control architecture.

Working Principle

The relay receives generator current signals from current transformers and voltage signals from voltage transformers. It processes these inputs to determine electrical operating values and compares them with the settings configured for the generator. For this P1 version, the phase CT secondary circuits must be rated at 1 A, and the programmed CT ratios must reflect the installed instrumentation.

Enabled protection elements evaluate measured conditions using their specified pickup levels and time delays. When a condition meets the programmed operating criteria, the relay can activate the associated trip or alarm output. Additional connected signals, including supported temperature measurements and external digital status inputs, can contribute to the protection and monitoring logic.

The A20 option supplies 4–20 mA analog outputs. A supported measured parameter can be assigned to an output channel for transmission to external monitoring equipment. Correct output scaling and receiving-device configuration are necessary for the remote value to correspond with the relay’s measurement.

The HI option determines the acceptable auxiliary supply range. During commissioning, the power source, CT and VT ratios, protection settings, output assignments and communication parameters must all be checked against the generator protection design.

Role in a Generator Protection and Control Architecture

The SR489-P1-HI-A20-E functions as the local generator protection and monitoring layer. It receives measurements from instrument transformers and connected sensors, evaluates configured conditions, and sends trip, alarm or measurement information to other parts of the generator system.

Industrial Applications

Installation and Maintenance

1. Confirm the order code: Verify that SR489-P1-HI-A20-E matches the required 1 A CT inputs, HI auxiliary power, A20 analog outputs and enhanced display.
2. Inspect the case and terminals: Check the fixed case, terminal condition and drawout connections before installing or replacing the relay.
3. Verify the control supply: Confirm that the available source is within 90–300 V DC or 70–265 V AC at 48–62 Hz.
4. Check CT secondary ratings: Ensure that the phase CT circuits are rated at 1 A and that the correct primary-to-secondary ratios are configured.
5. Verify phase identification and polarity: Compare CT wiring with the generator drawings to prevent incorrect measurements and unintended protection behavior.
6. Check voltage-transformer settings: Confirm the VT connection arrangement, secondary rating and programmed ratio used by the relay.
7. Inspect digital input wiring: Verify breaker-status contacts and other external signals against their configured input assignments.
8. Test the analog output circuits: Confirm that the receiving equipment accepts 4–20 mA signals and that channel assignments and scaling are correct.
9. Review temperature input connections: Check supported sensor types, terminal assignments and wiring for each enabled monitoring function.
10. Validate protection settings: Compare generator ratings, CT and VT ratios, pickup thresholds, time delays and trip assignments with the approved protection scheme.
11. Test communication and local controls: Check the enhanced display, keypad and required serial interfaces during commissioning.
12. Record commissioning results: Document the relay configuration, power supply, instrument-transformer ratios, protection settings, output assignments and functional test results.

Compatible System Components

Recommended Related Models

Key Advantages

• Matches generator protection systems using 1 A phase CT secondary circuits.
• Supports high-range AC or DC auxiliary power.
• Provides 4–20 mA analog outputs for external monitoring.
• Combines configurable generator protection, measurement and monitoring functions.
• Offers an enhanced display for local access to relay information.
• Supports serial communication and event review for system supervision and troubleshooting.

Technical FAQs

What happens if a 5 A phase CT circuit is connected to a relay configured for P1 inputs?

The P1 configuration is specified for 1 A phase CT secondaries. A 5 A CT circuit does not match this input option. Confirm the CT secondary rating and select the correct relay configuration before connecting the measurement circuit.

How can the enhanced display help during generator commissioning?

The enhanced display provides a larger LCD and improved keypad for local access to relay information. During commissioning, technicians can use the interface to review displayed measurements, messages and settings while checking the configured protection scheme.

What needs to be coordinated between the A20 outputs and a plant monitoring system?

The receiving equipment must accept 4–20 mA signals, and the selected relay parameter must be assigned and scaled correctly. Verify the signal range, loop wiring and correspondence between local readings and remote measurements during testing.

Which supply characteristics must be checked before energizing the HI version?

The HI option accepts 90–300 V DC or 70–265 V AC at 48–62 Hz. Verify the actual supply type, voltage and frequency before energizing the relay, and follow the applicable wiring and isolation procedures.
