Product Overview

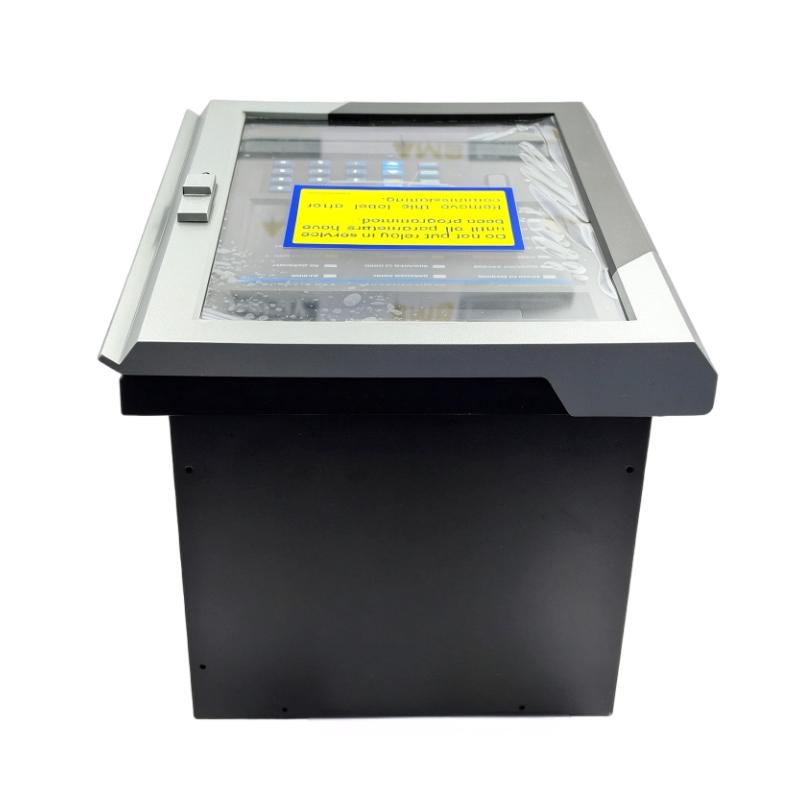

The GE SR489-CASE 489-P1-HI-A20-E Generator Management Relay belongs to the GE Multilin 489 generator protection family. It monitors generator electrical conditions, evaluates configured protection settings, and coordinates trip and alarm responses through assigned output relays. The relay is intended for generator installations where protection, metering, condition monitoring and event diagnostics need to be integrated into a single control-panel device.

This configuration combines 1 A phase current transformer inputs, high-range auxiliary power, 4–20 mA analog outputs, and an enhanced display. The P1 option matches phase CT secondary circuits rated at 1 A. The HI option accepts a high-range AC or DC supply, while A20 supports analog transmission of selected measurements. The E option adds a larger LCD and improved keypad for local access to operating information and relay settings.

The 489 also supports generator temperature monitoring through connected RTD sensors, along with event records and diagnostic tools for investigating abnormal operating conditions. These functions help operators review protection activity and understand the measurements surrounding a generator trip.

Technical Specifications

Product Features

• 1 A phase CT inputs: Supports generator measurement circuits using 1 A current-transformer secondaries.
• High-range control power: Accepts 90–300 V DC or 70–265 V AC at 48–62 Hz.
• 4–20 mA analog outputs: Transmits selected supported measurements to compatible external meters, controllers or monitoring systems.

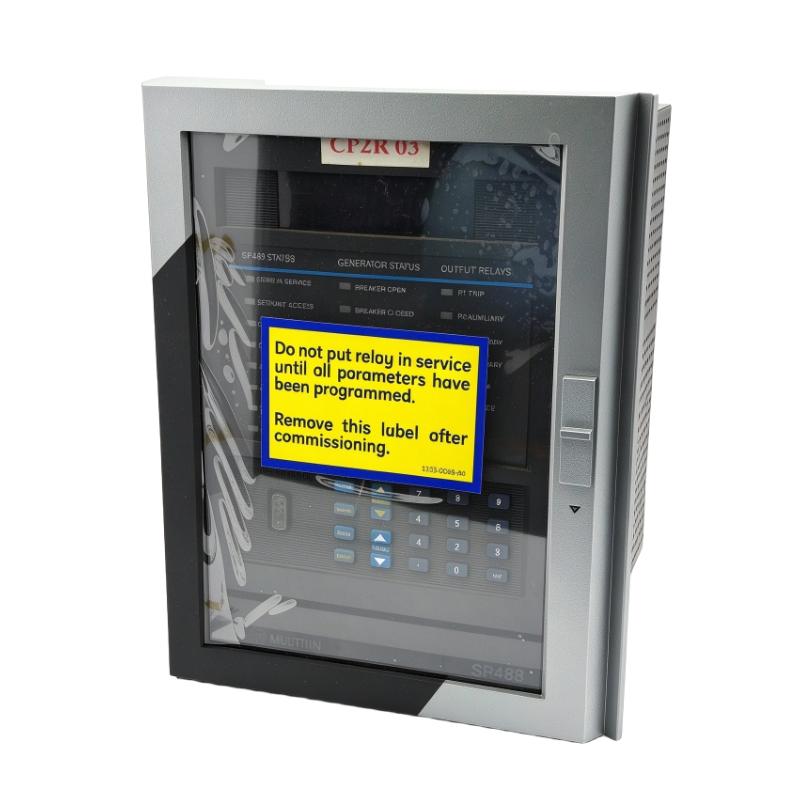

• Enhanced front-panel interface: Provides a larger LCD and improved keypad for viewing operating values, status messages and settings.
• Generator protection functions: Supports configurable protection elements for abnormal electrical and operating conditions.
• RTD-based thermal monitoring: Uses connected temperature sensors for configured stator and bearing monitoring points.
• Event and diagnostic records: Helps maintenance personnel examine recorded conditions and investigate the cause of protection operations.
• Serial communication: Supports data exchange with compatible supervisory and engineering systems.

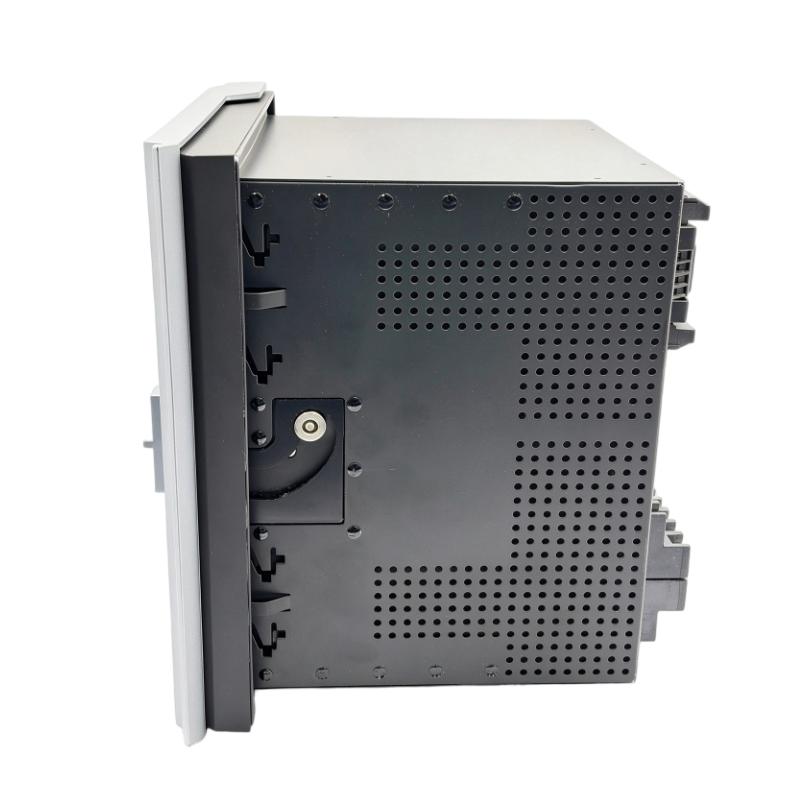

• Drawout construction: Allows the relay unit to be withdrawn from its case for inspection and replacement under the required isolation procedure.
• Configurable trip and alarm logic: Links enabled protection functions with assigned output relays according to the generator protection scheme.

Working Principle

The 489 receives current signals from generator current transformers and voltage signals from voltage transformers. It converts these inputs into electrical measurements and evaluates them against the configured generator settings. For the P1 version, phase CT secondary circuits must be rated at 1 A, and the programmed CT ratios must correspond to the installed transformers.

Enabled protection functions assess the measured values against their configured thresholds and timing characteristics. When a condition meets the operating criteria of a protection element, the relay can activate the assigned trip or alarm output. Connected RTD sensors provide additional temperature information for configured thermal monitoring and protection.

The A20 option provides 4–20 mA analog outputs for supported measurements. These signals can be sent to external monitoring equipment for remote indication or recording. The enhanced display provides local access to measurements, status messages and settings, while the communication interfaces support supervisory data exchange.

Correct CT and VT ratios, generator ratings, protection thresholds, output assignments and auxiliary power connections are essential for the relay to operate as intended. Commissioning should verify the measurement circuits and the complete trip and alarm paths.

Role in a Generator Protection and Control Architecture

The GE Multilin 489 operates as the local protection and monitoring layer between generator instrumentation, breaker-control circuits and plant supervisory equipment. It evaluates measured conditions at the relay and sends configured trip, alarm or measurement information to connected systems.

Industrial Applications

Installation and Maintenance

1. Verify the complete order code: Confirm that 489-P1-HI-A20-E matches the required 1 A CT inputs, high-range power supply, A20 outputs and enhanced display.
2. Inspect the case and relay assembly: Check case identification, terminal condition, drawout mechanism and connectors before installation.
3. Confirm auxiliary power: Verify that the supply falls within 90–300 V DC or 70–265 V AC at 48–62 Hz.
4. Check phase CT secondary ratings: Ensure that the installed phase CT circuits are rated at 1 A and that the programmed ratios match the connected transformers.
5. Verify CT polarity and phase assignment: Compare the wiring with the generator protection drawings to prevent incorrect measurements or unintended protection behavior.
6. Validate voltage input wiring: Check VT connections, phase relationships and programmed ratios for functions that use voltage measurements.
7. Inspect digital input circuits: Verify breaker-status contacts and other configured external signals against the control drawings.

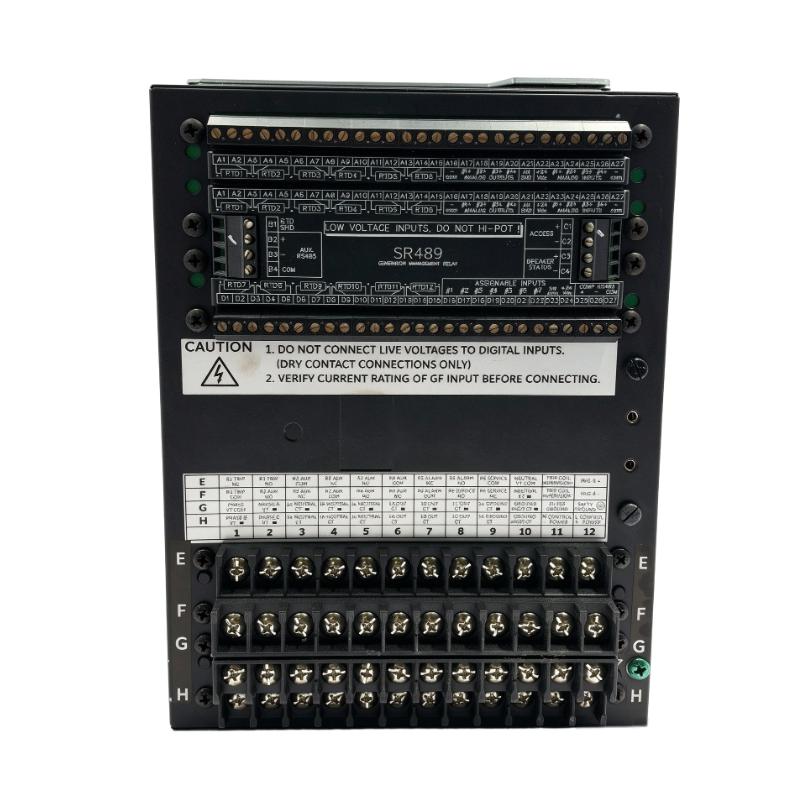

8. Test analog output loops: Confirm that receiving equipment accepts 4–20 mA signals and that channel assignments and scaling match the intended measurements.
9. Check RTD sensor connections: Verify sensor type, terminal assignment and wiring for each enabled temperature-monitoring point.
10. Review protection settings: Compare generator ratings, CT and VT ratios, pickup thresholds, time delays and output assignments with the approved protection scheme.
11. Test the enhanced interface and communications: Confirm that the display, keypad and required serial interfaces operate correctly during commissioning.
12. Record the final configuration: Document the order code, auxiliary supply, instrument-transformer ratios, protection settings, output assignments and functional test results.

Compatible System Components

Recommended Related Models

Key Advantages

• Matches generator protection systems using 1 A phase CT secondary circuits.
• Accepts high-range AC or DC auxiliary power.
• Provides 4–20 mA analog outputs for remote monitoring.
• Combines configurable generator protection, metering and temperature monitoring.
• Offers an enhanced local interface for viewing measurements and relay information.
• Supports serial communications and event review for system supervision and fault investigation.

Technical FAQs

How should the P1 configuration be verified when replacing an existing generator relay?

Confirm that the connected phase current transformers have 1 A secondary outputs, then compare their ratios and wiring with the relay configuration. Also verify the voltage inputs and programmed generator settings before enabling protection functions.

What is the benefit of the enhanced display when reviewing a generator disturbance?

The larger LCD and improved keypad make local access to relay messages, measurements and settings easier. Operators can use this information alongside event records to identify the protection element involved and review conditions around the disturbance.

How can the A20 outputs be incorporated into a plant monitoring scheme?

Assign a supported measured parameter to an analog output and configure the receiving device for a 4–20 mA signal. During commissioning, verify scaling and compare the remote reading with the relay’s displayed value.

What checks are important if a trip output does not operate during a protection test?

Verify that the relevant protection element is enabled, its threshold and delay are appropriate, and its trip assignment points to the intended output relay. Then test the output contacts and downstream breaker-control circuit using an approved commissioning procedure.
