Product Overview

The GE SR489-RELAY 489-P1-HI-A20-E Generator Management Relay is a microprocessor-based protection device for synchronous and induction generators. Within a generator control panel, it processes electrical measurements, evaluates configured protection elements, and coordinates alarm and trip outputs. Its monitoring and diagnostic functions also help operators investigate abnormal operating conditions and review generator events.

This order-code configuration combines 1 A phase current transformer inputs, a high-range auxiliary power supply, 4–20 mA analog outputs, and an enhanced display. The P1 input option is relevant when the generator’s phase CT secondary circuits are rated at 1 A. The HI supply option accommodates installations using higher-range AC or DC control power, while the A20 outputs allow selected measurements to be transmitted to compatible external equipment.

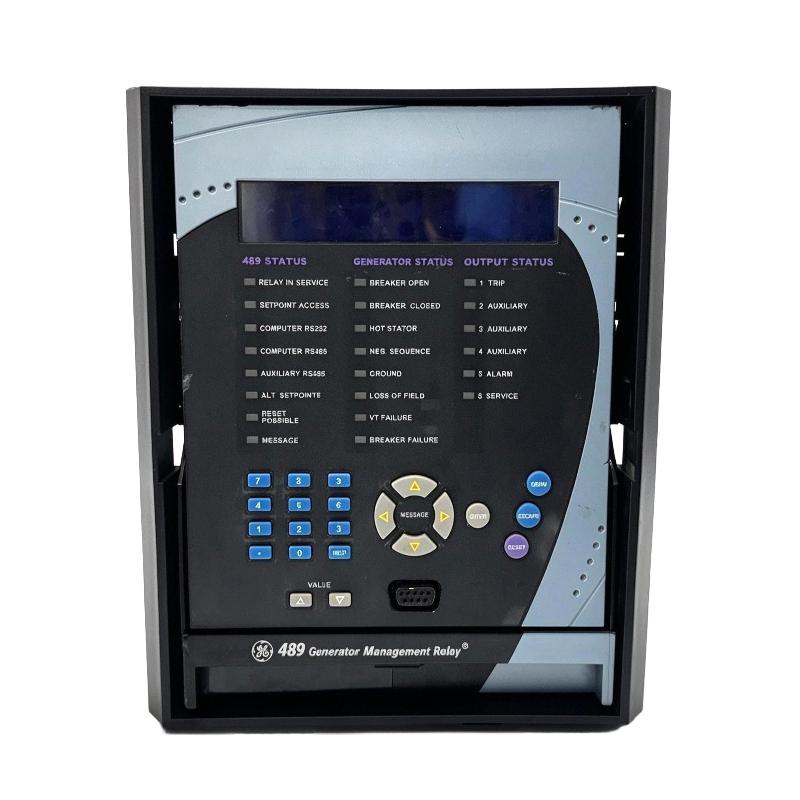

The enhanced display adds a larger LCD and improved keypad for local access to operating values and relay settings. Communication interfaces support integration with plant monitoring systems, while event records and diagnostic information provide additional context when investigating protection operations.

Technical Specifications

Product Features

• 1 A phase CT input configuration: Matches generator installations using 1 A current-transformer secondary circuits, with the appropriate CT ratios configured in the relay.
• High-range control power: Supports 90–300 V DC or 70–265 V AC at 48–62 Hz, allowing the relay to operate from compatible auxiliary supply systems.
• 4–20 mA analog outputs: Transmits configured measurement signals to compatible meters, controllers or plant monitoring equipment.
• Enhanced front-panel display: Uses a larger LCD and improved keypad for local viewing and access to relay information.
• Generator-specific protection logic: Supports configurable electrical protection elements for abnormal generator conditions.
• Temperature monitoring: Accepts supported RTD signals for configured stator, bearing and other temperature-monitoring applications.
• Serial communication: Provides access to supported measurements, status and configuration data through compatible communication interfaces.
• Event and diagnostic records: Helps maintenance personnel examine recorded operating conditions and identify the protection element associated with a trip.

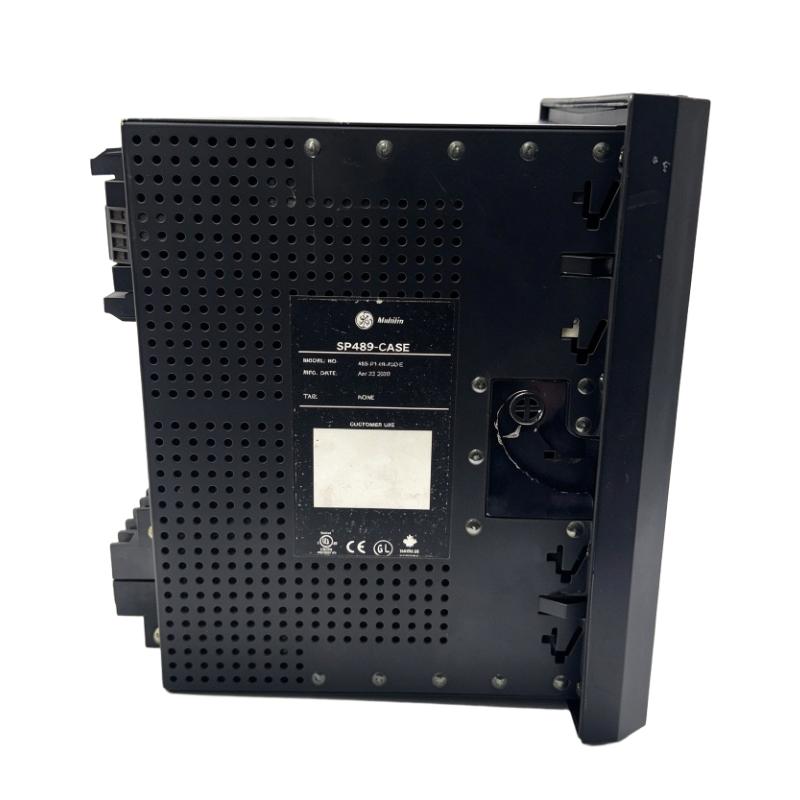

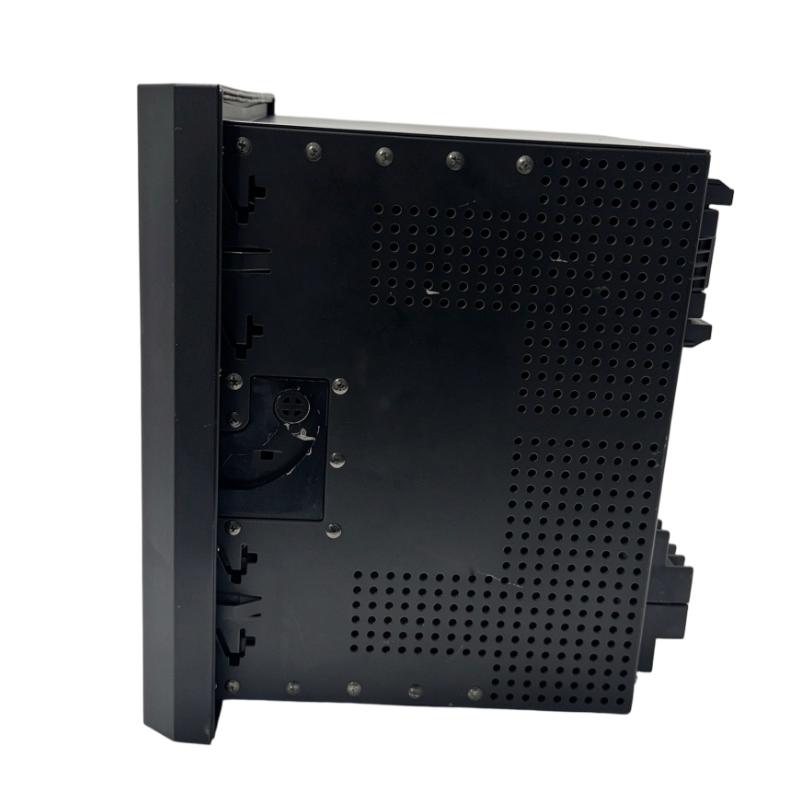

• Drawout construction: Separates the withdrawable relay unit from its fixed case, supporting inspection and replacement procedures when the system is safely isolated.
• Configurable output assignments: Allows protection elements to be associated with selected trip and alarm outputs according to the application requirements.

Working Principle

The SR489-RELAY 489-P1-HI-A20-E receives current signals from the generator’s current transformers and voltage signals from its voltage transformers. It converts these inputs into measured electrical quantities and evaluates them against the configured generator settings. The P1 version is intended for 1 A phase CT secondaries, so correct CT ratios, polarity and phase assignments are essential to accurate measurement and protection.

The relay executes enabled protection functions according to their programmed pickup levels and timing characteristics. When a qualifying condition occurs, it can activate the assigned trip or alarm outputs. Additional connected inputs, including RTD sensors, can contribute temperature information to enabled monitoring and protection functions.

The A20 option provides 4–20 mA analog outputs for selected supported measurements. These signals can be sent to compatible external equipment for remote indication, recording or supervisory monitoring. The relay’s serial communication interfaces provide another route for accessing supported operating information.

The HI power-supply option determines the acceptable auxiliary supply range. During commissioning, the supply, instrument-transformer settings, protection thresholds, output assignments and communication parameters must be checked against the generator protection design.

Role in a Generator Protection and Control Architecture

The relay occupies the local protection layer between the generator’s measurement circuits, breaker-control system and plant supervisory equipment. It evaluates measured conditions within the protection device and operates configured outputs when the programmed logic calls for a trip or alarm.

Industrial Applications

Installation and Maintenance

1. Verify the complete order code: Confirm that SR489-RELAY 489-P1-HI-A20-E matches the required current input, control power, analog output and enhanced-display options.
2. Inspect the fixed case and relay unit: Check the case identification, terminal condition, drawout mechanism and connector interfaces before installation.
3. Confirm the auxiliary supply: Verify that the available source falls within 90–300 V DC or 70–265 V AC at 48–62 Hz.
4. Validate phase CT compatibility: Confirm that the connected phase CT secondary circuits are rated at 1 A and that their ratios match the relay settings.
5. Check CT polarity and phase assignment: Compare the wiring with the protection drawings to avoid incorrect current measurements or unintended protection responses.
6. Verify voltage measurement circuits: Check voltage-transformer connections, phase relationships and programmed ratios before enabling voltage-dependent protection functions.

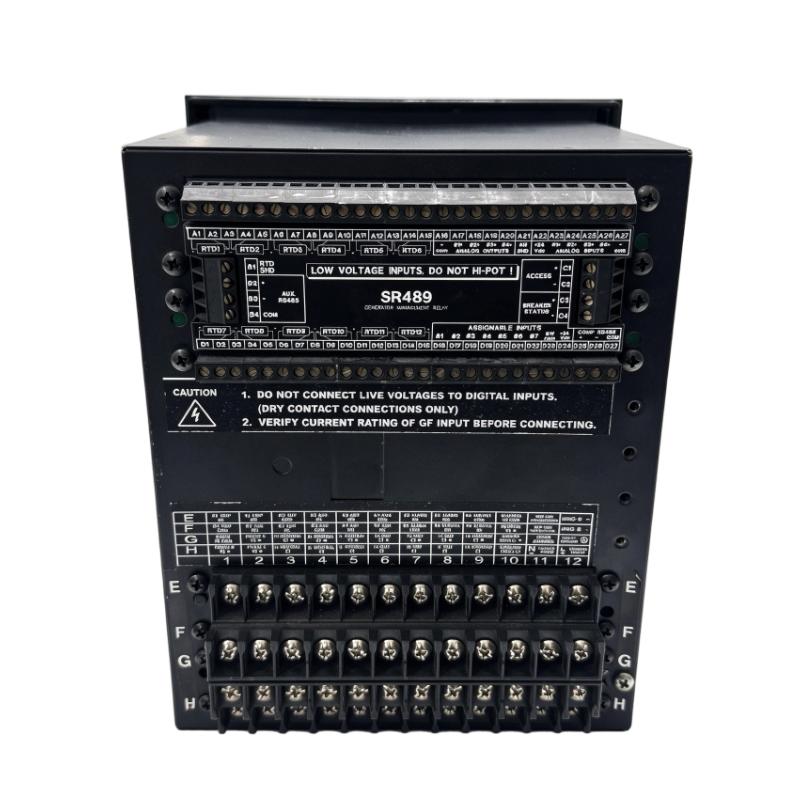

7. Inspect external input wiring: Confirm the connection and operating state of breaker auxiliary contacts, interlocks and other configured digital inputs.
8. Test the A20 output loops: Verify that the receiving equipment accepts 4–20 mA signals and that each configured output is assigned and scaled correctly.
9. Check RTD sensor circuits: Confirm supported sensor types, terminal assignments and wiring for the enabled temperature-monitoring functions.
10. Review protection logic and setpoints: Verify generator ratings, instrument-transformer ratios, pickup thresholds, time delays and output assignments against the approved protection scheme.
11. Test communication and front-panel operation: Confirm that the enhanced display, keypad and required serial communication interface operate correctly during commissioning.
12. Document the commissioned settings: Record the order code, auxiliary supply, CT and VT ratios, protection settings, output assignments and functional test results.

Compatible System Components

Recommended Related Models

Key Advantages

• Matches generator protection systems using 1 A phase CT secondary circuits.
• Accepts high-range AC or DC auxiliary power.
• Provides 4–20 mA analog outputs for compatible remote monitoring.
• Combines configurable electrical protection, metering and temperature monitoring.
• Offers an enhanced local display for viewing measurements and relay information.
• Supports serial communication and event-based troubleshooting within a generator protection system.

Technical FAQs

How does the E option affect local operation of the SR489-RELAY 489-P1-HI-A20-E?

The E option specifies an enhanced display with a larger LCD and improved keypad. It changes the local operator interface; the P1, HI and A20 codes continue to define the phase CT input, auxiliary power and analog-output configuration.

What should be checked if the relay’s current measurements do not match an external meter?

Check the phase CT secondary rating, CT ratio settings, polarity, phase assignment and external meter scaling. This model uses the P1 configuration for 1 A phase CT secondaries, so a mismatch between the installed CTs and the configured input can lead to incorrect measurements.

How can the A20 output be used to monitor a generator parameter remotely?

Assign a supported measured parameter to the required analog output channel, then configure the receiving device for a 4–20 mA signal. During commissioning, compare the local relay reading with the remote value across the intended operating range.

Which configuration checks are most important after replacing this relay?

Confirm the HI auxiliary supply range, 1 A CT input configuration, voltage-transformer ratios, enabled protection functions, trip assignments and communication settings. Also test the enhanced display and the A20 output loops before returning the generator to normal service.
