Product Overview

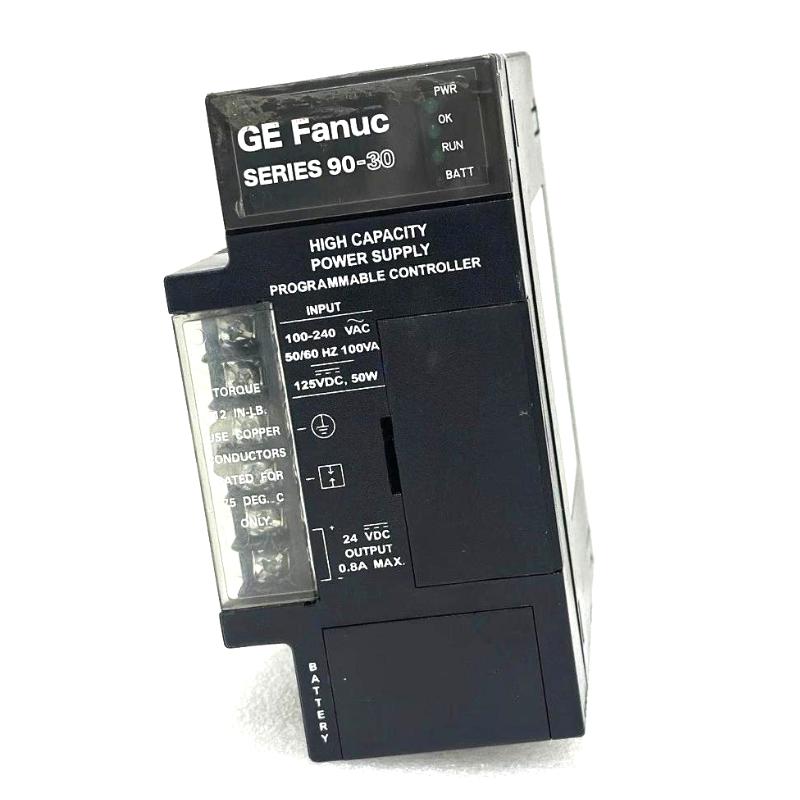

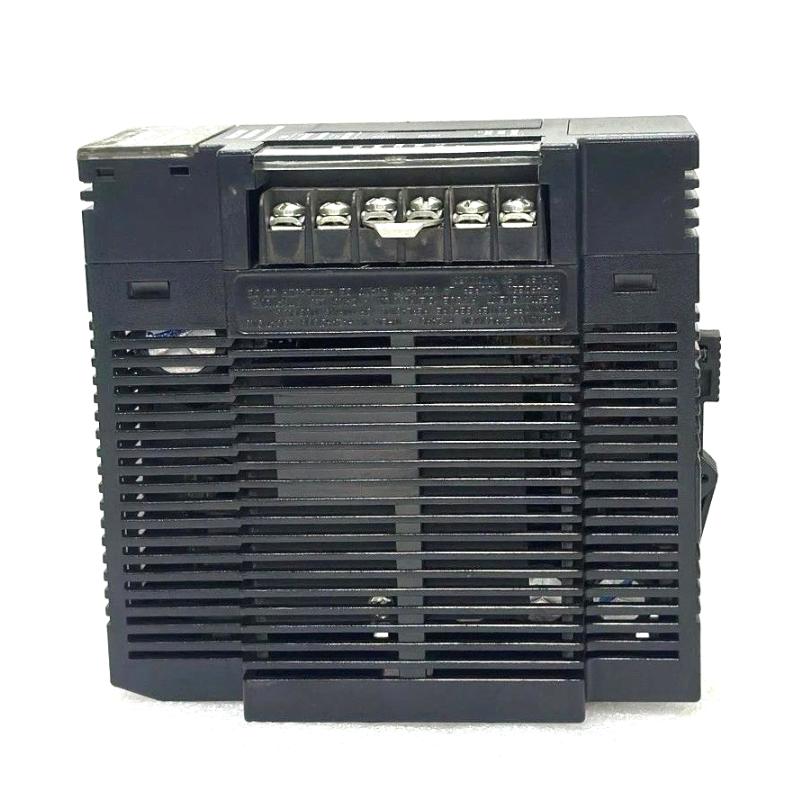

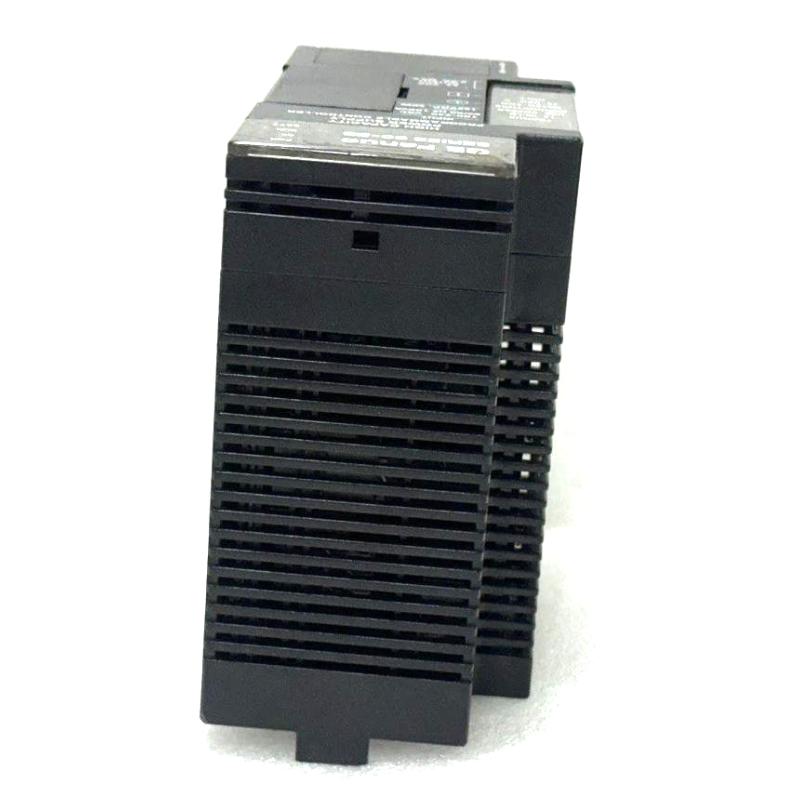

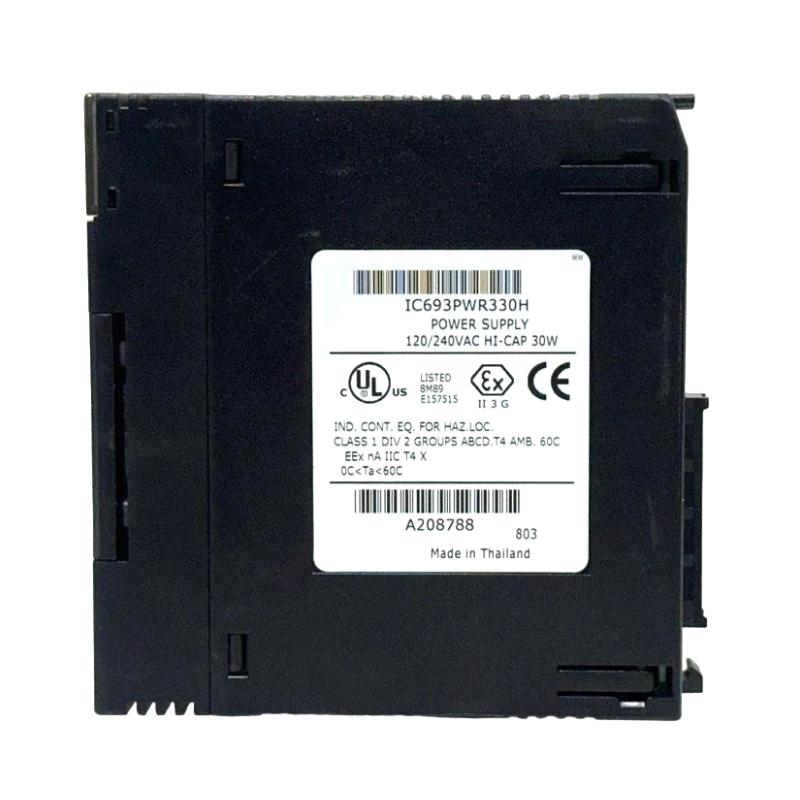

The GE IC693PWR330H is a high-capacity power supply for the GE Series 90-30 PLC platform. It supplies the operating power required by the PLC rack and connected control-system hardware, making it suitable for automation systems with higher power requirements than standard-capacity configurations.
In a Series 90-30 installation, the power supply is positioned at the rack level and works with the PLC CPU and installed I/O modules. Its role is independent of the control program itself, but stable power is essential for maintaining normal operation of the controller, I/O modules, and other rack-mounted components.
The IC693PWR330H is applicable to machine automation, production equipment, material-handling systems, process machinery, and industrial control panels. The high-capacity configuration is useful when the total power demand of the installed Series 90-30 rack requires additional supply capacity.
For maintenance and replacement, the power supply should be evaluated according to the complete rack load. The connected I/O modules, CPU, expansion equipment, wiring, and incoming power conditions should all be considered when diagnosing power-related faults.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | IC693PWR330H |
| Product Family | GE Series 90-30 |
| Product Type | High Capacity Power Supply |
| Primary Function | PLC rack power supply |
| System Role | Power supply module |
| Application | Industrial automation and PLC control systems |
| Dimensions | 129 × 52 × 117 mm |
| Weight | 0.544 kg |
Product Features
- High-capacity power supply for GE Series 90-30 PLC systems
- Provides rack-level power for compatible control-system hardware
- Suitable for systems with increased rack power requirements
- Supports Series 90-30 CPU and I/O configurations
- Applicable to machine and industrial automation
- Suitable for control panels with multiple installed I/O modules
- Provides a dedicated power interface within the PLC rack
- Practical for replacement and maintenance of Series 90-30 control systems
Working Principle
The IC693PWR330H converts the incoming electrical supply into the operating power required by the Series 90-30 PLC rack. The supplied power is distributed to the controller and installed rack components through the PLC backplane.
Incoming Power → IC693PWR330H → Series 90-30 Backplane → CPU / I/O Modules
The power supply must maintain the required electrical conditions for the connected PLC hardware. If the supply is interrupted or operating outside the expected conditions, the controller and associated I/O modules may stop operating or report power-related diagnostics.
When troubleshooting a Series 90-30 rack, power should be checked before replacing individual I/O modules. Incoming power, power-supply status, rack connections, total module load, and backplane conditions should be evaluated together.
Role in a Series 90-30 Control Architecture
The IC693PWR330H occupies the power layer of the Series 90-30 PLC architecture. It supplies the rack-mounted control hardware, allowing the CPU and I/O modules to operate as an integrated control system.
Incoming Power → IC693PWR330H → PLC Backplane → CPU + I/O Modules → Field Devices
| System Element | Function |
|---|---|
| Incoming Power | Supplies electrical input to the PLC system |
| IC693PWR330H | Converts and supplies rack operating power |
| PLC Backplane | Distributes power and system connections |
| Series 90-30 CPU | Executes control logic |
| I/O Modules | Interface field inputs and outputs |
| Field Devices | Provide process signals or receive commands |
Industrial Applications
| Application | Typical Use |
|---|---|
| Machine Automation | Power supply for Series 90-30 PLC control racks |
| Manufacturing Equipment | Supporting PLC CPU and I/O modules in production machinery |
| Material Handling | Powering control hardware for conveyors and handling systems |
| Process Equipment | Supplying rack-mounted PLC control components |
| Industrial Control Panels | Rack-level power distribution for PLC installations |
| Production Lines | Supporting expanded Series 90-30 I/O configurations |
Installation and Maintenance
- Confirm that the IC693PWR330H is suitable for the existing Series 90-30 rack configuration.
- Disconnect and isolate the incoming power before replacing the module.
- Verify the incoming power wiring before energizing the replacement.
- Check the rack backplane connection for contamination or physical damage.
- Review the total power demand of the installed CPU and I/O modules.
- Inspect the power-supply mounting and electrical connections.
- Verify that connected modules are correctly seated in the rack.
- Check power-related diagnostics after startup.
- Investigate intermittent PLC resets for possible power or connection problems.
- Check incoming voltage stability when the PLC shuts down unexpectedly.
- Verify the rack operation after replacing the power supply.
- Perform a complete PLC and I/O functional test before returning the equipment to normal operation.
Related Components
| Component | Function |
|---|---|
| GE Series 90-30 CPU | Executes PLC control logic |
| Series 90-30 I/O Modules | Interfaces field signals |
| Series 90-30 Backplane | Provides rack connections and power distribution |
| PLC Rack | Houses the CPU, power supply, and I/O modules |
| Digital I/O Module | Handles discrete input and output signals |
| Analog I/O Module | Handles continuous process signals |
| Expansion Rack | Extends the available PLC I/O capacity |
| Field Devices | Provide inputs and receive control outputs |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| GE IC693PWR330H | High Capacity Power Supply | Series 90-30 rack power |
| GE Series 90-30 Power Supplies | PLC Power Supply Modules | PLC rack power |
| GE Series 90-30 CPU Modules | PLC CPU Modules | Control logic execution |
| GE Series 90-30 Digital I/O | Digital I/O Modules | Discrete signal acquisition/control |
| GE Series 90-30 Analog I/O | Analog I/O Modules | Process measurement |
| GE Series 90-30 Expansion Modules | Expansion Modules | Extended PLC configurations |
| GE Series 90-30 Racks | PLC Rack Components | Module installation |
| GE Series 90-30 Communication Modules | Communication Modules | PLC networking |
Key Advantages
- High-capacity power supply for Series 90-30 PLC systems
- Supports rack configurations with increased power requirements
- Supplies power to CPU and installed I/O hardware
- Suitable for industrial machine and process control
- Centralized rack-level power architecture
- Practical for Series 90-30 maintenance and replacement applications
Technical FAQs
What is the function of the IC693PWR330H in a Series 90-30 rack?
The IC693PWR330H supplies operating power to the Series 90-30 rack and its compatible control hardware. It supports the power requirements of the CPU and installed I/O modules through the rack backplane.
Why would a Series 90-30 system require a high-capacity power supply?
A rack containing multiple I/O modules or other connected hardware may have a greater power demand. A high-capacity power supply can be selected when the rack’s total power requirement exceeds the capacity appropriate for a lower-capacity configuration.
What symptoms can indicate a problem with the IC693PWR330H?
Unexpected PLC resets, loss of rack operation, power-related diagnostics, or intermittent shutdowns can indicate a power-supply problem. Incoming power, rack connections, module loading, and the backplane should also be checked before concluding that the power supply has failed.
What should be checked before replacing the IC693PWR330H?
First verify the incoming power and determine whether the fault affects the entire rack or only specific modules. Then check the rack configuration, module connections, and power demand. After replacement, verify PLC startup, CPU operation, I/O status, and overall control-system functionality.
