Product Overview

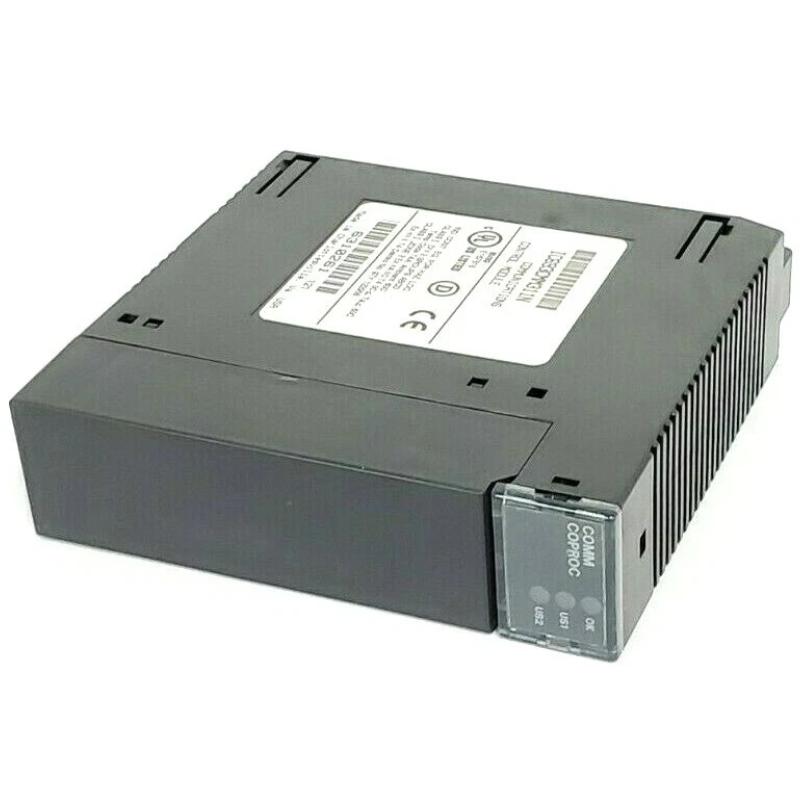

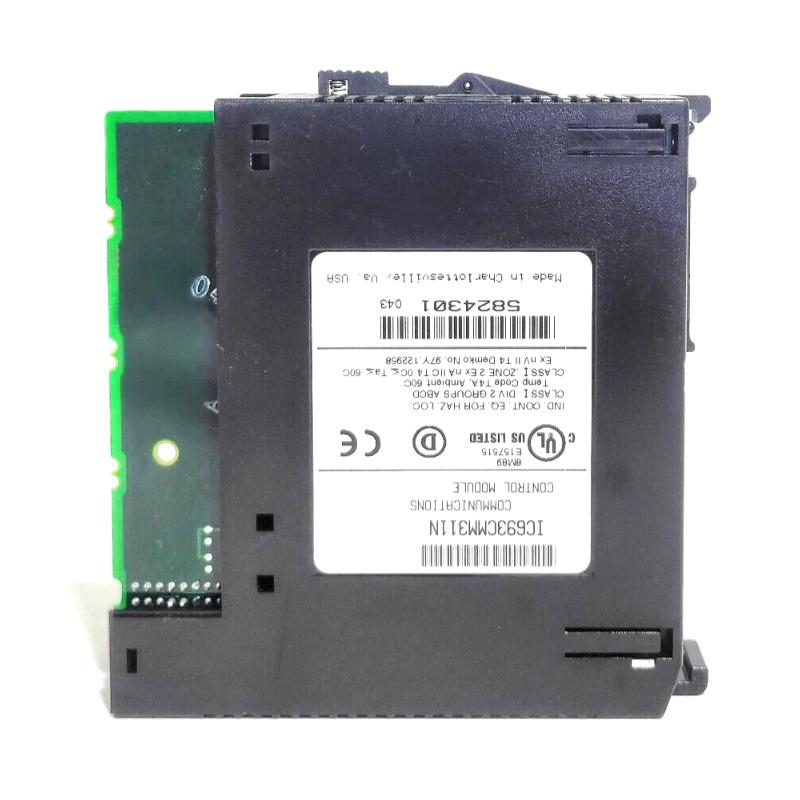

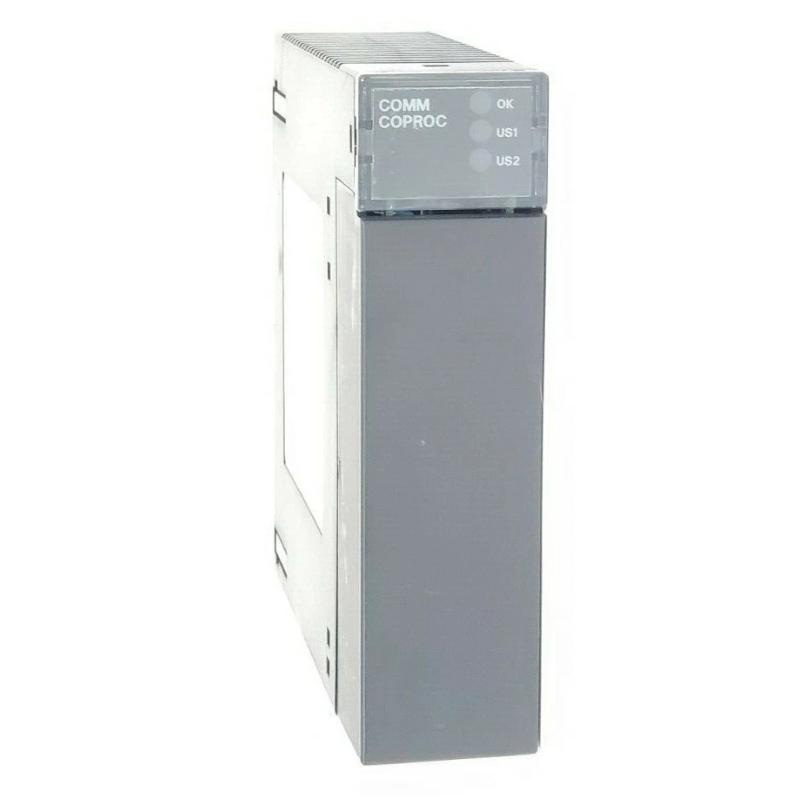

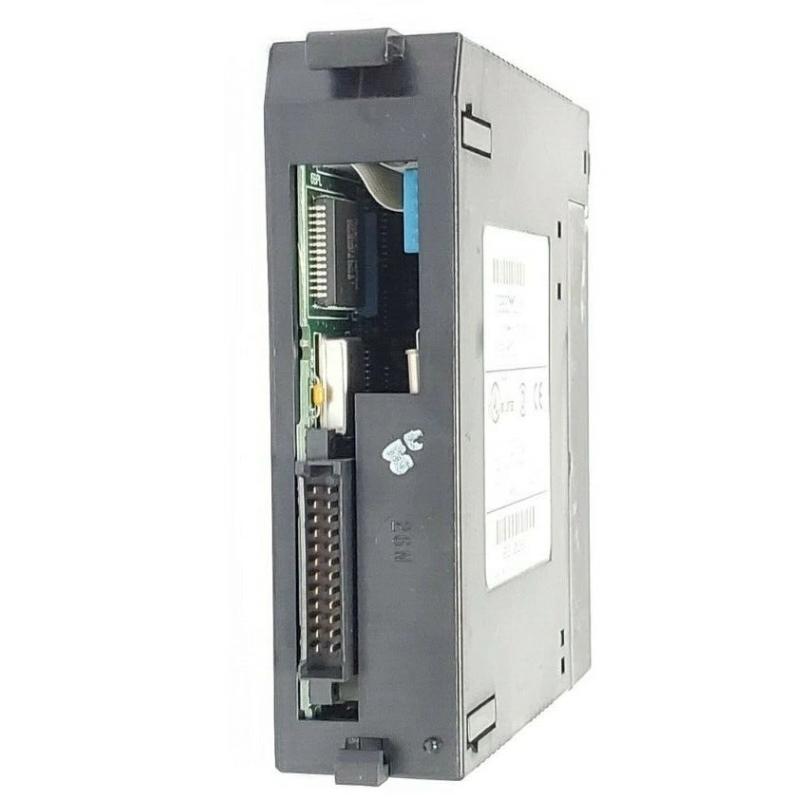

The GE IC693CMM311N is a Series 90-30 Communications Coprocessor Module used to add dedicated communication functions to a GE Series 90-30 PLC system. It handles communication tasks that would otherwise need to be managed directly by the main PLC processor, making it suitable for control architectures that require additional data exchange with external equipment.
The module can be used in applications where the Series 90-30 controller needs to communicate with other automation devices, supervisory systems, or intelligent equipment. Communication data may include controller information, equipment status, production data, and other application-specific information.
In a manufacturing system, the IC693CMM311N can support communication between the PLC and external automation equipment. In a process-control installation, it can be used where controller information must be exchanged with other parts of the control system.
For replacement work, engineers should verify the complete module number, PLC rack configuration, communication requirements, existing software configuration, and connected devices before installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE |
| Model | IC693CMM311N |
| Product Family | Series 90-30 |
| Product Type | Communications Coprocessor Module |
| Primary Function | PLC Communication Processing |
| System Role | Communication Interface |
| Application | Industrial Automation / PLC Communication |
| Installation | GE Series 90-30 PLC System |
| Dimensions | 125 × 160 × 25 mm |
| Weight | 0.4 kg |
Product Features
The IC693CMM311N provides dedicated communication processing within the GE Series 90-30 PLC platform.
Key characteristics include:
- GE Series 90-30 Communications Coprocessor Module
- Model IC693CMM311N
- Provides additional communication processing for the PLC system
- Supports data exchange between the Series 90-30 and external devices
- Suitable for industrial PLC communication architectures
- Useful for supervisory and controller-level data exchange
- Applicable to manufacturing and process-control systems
- Suitable for existing Series 90-30 installations
- Useful for communication expansion and replacement projects
- Helps separate communication processing from the primary PLC control logic
The module should be evaluated according to the communication functions required by the existing application and the configuration of the Series 90-30 controller.
Working Principle
The IC693CMM311N handles communication-related processing within the Series 90-30 control system.
Series 90-30 CPU → IC693CMM311N → Communication Network / External Device
The PLC controller manages the main application logic and generates the data required for external communication. The communications coprocessor processes the applicable communication tasks and exchanges data with connected equipment according to the configured system arrangement.
Typical information can include:
- Controller data
- Equipment status
- Production information
- Control-related information
- Communication status
- Application data
The communication sequence depends on the configured Series 90-30 application and the external devices connected to the system.
Role in a Series 90-30 Control Architecture
The IC693CMM311N operates within the communication layer of the Series 90-30 PLC architecture.
Series 90-30 I/O → CPU → IC693CMM311N → External Communication Equipment
| System Element | Function |
|---|---|
| IC693CMM311N | Processes communication-related data |
| Series 90-30 CPU | Executes the main PLC application |
| Series 90-30 I/O Modules | Interface with field devices |
| Communication Network | Carries data between automation devices |
| HMI | Displays controller and equipment information |
| Supervisory Computer | Receives and processes PLC data |
| Engineering Workstation | Supports system configuration and maintenance |
| External Automation Device | Exchanges application data with the PLC system |
Industrial Applications
| Application | Typical Use |
|---|---|
| Manufacturing Automation | Communication between PLC systems and external equipment |
| Machine Control | Exchanging machine information with connected automation devices |
| Process Control | Transferring controller and equipment information |
| Production Lines | Sharing operating and production data |
| Material Handling | Communication of equipment status and control information |
| Packaging Machinery | Data exchange between PLC and supervisory equipment |
| Utility Systems | Controller communication with monitoring equipment |
| Legacy PLC Systems | Maintaining communication functions in Series 90-30 installations |
Installation and Maintenance
- Confirm the complete IC693CMM311N model before replacement.
- Check the existing Series 90-30 rack and CPU configuration.
- Record the current communication configuration before removing the module.
- Identify all external devices associated with the communication system.
- Check communication wiring and network connections.
- Verify applicable communication settings and addressing.
- Install the module according to the approved Series 90-30 maintenance procedure.
- Confirm that the PLC recognizes the communications coprocessor.
- Test communication with the connected external equipment.
- Check controller and communication diagnostics after installation.
- Verify that required data is being exchanged correctly.
- Confirm HMI, supervisory, or other connected applications after commissioning.
- Record the final configuration for future maintenance.
When communication is unavailable, check the PLC configuration, coprocessor status, communication connection, external network equipment, and remote device before determining that the module has failed.
Related Components
| Component | Function |
|---|---|
| GE Series 90-30 CPU | Executes PLC application logic |
| GE IC693CMM311N | Provides communication processing |
| Series 90-30 I/O Modules | Handle field signal acquisition and control |
| Communication Network | Transfers data between connected systems |
| HMI | Provides operator monitoring |
| SCADA System | Provides supervisory data collection and monitoring |
| Engineering Workstation | Supports configuration and maintenance |
| External Automation Equipment | Exchanges data with the PLC system |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| GE IC693CPU Series | Series 90-30 CPU Module | PLC control and application execution |
| GE IC693CMM Series | Series 90-30 Communication Modules | PLC communication and networking |
| GE IC693PWR Series | Series 90-30 Power Supply | PLC system power |
| GE IC693MDL Series | Series 90-30 I/O Modules | Digital and analog field interfaces |
| GE Series 90-30 | PLC Platform | Machine and process automation |
| Series 90-30 Communication Products | Communication Modules | Controller data exchange |
Key Advantages
- GE Series 90-30 Communications Coprocessor Module.
- Model IC693CMM311N.
- Provides dedicated communication processing for the PLC system.
- Supports data exchange with external automation equipment.
- Suitable for supervisory and controller-level communication.
- Applicable to manufacturing and process-control systems.
- Useful for maintaining existing Series 90-30 installations.
- Suitable for communication expansion and replacement applications.
Technical FAQs
What is the purpose of the GE IC693CMM311N Communications Coprocessor Module?
The IC693CMM311N handles communication-related processing within a Series 90-30 PLC system. It supports data exchange between the PLC architecture and compatible external automation equipment according to the configured application.
How does a communications coprocessor differ from the main Series 90-30 CPU?
The CPU executes the primary PLC control program, while the communications coprocessor handles designated communication functions. Separating these tasks can help the control application and communication processing operate as distinct functions within the PLC architecture.
What should be checked when an IC693CMM311N communication function stops working?
The engineer should check the PLC configuration, module status, communication settings, physical connections, external network equipment, and the connected device. Reviewing the communication path from the Series 90-30 system to the remote equipment can help identify whether the fault is related to hardware, configuration, or the network.
Is the IC693CMM311N suitable for maintaining an existing Series 90-30 control system?
It can be considered for maintenance or replacement work involving compatible Series 90-30 communication architectures. Before installation, the existing controller configuration, communication requirements, software, connected equipment, and module compatibility should be verified.
