Product Overview

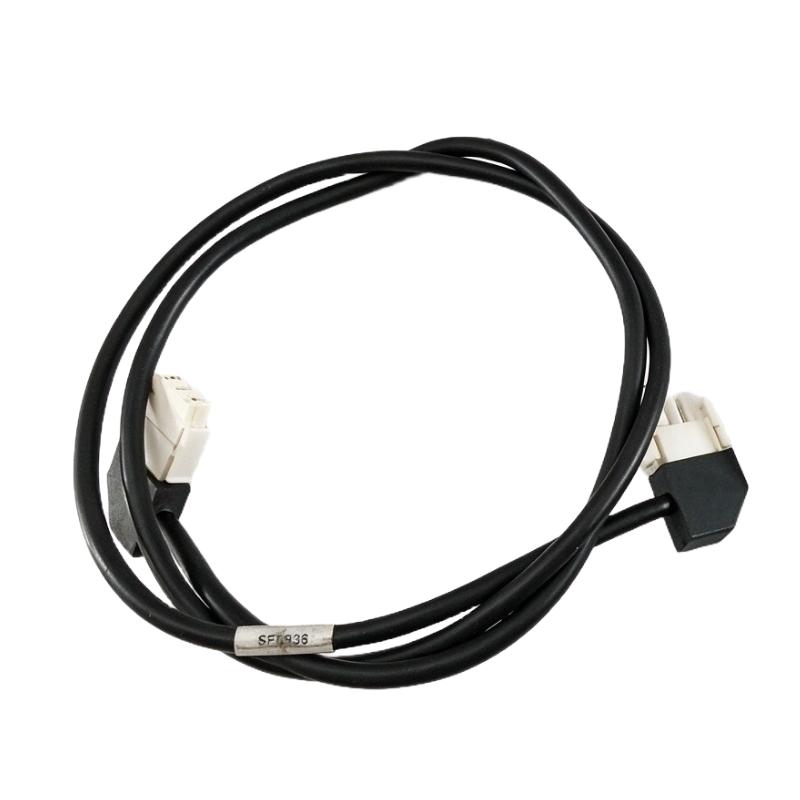

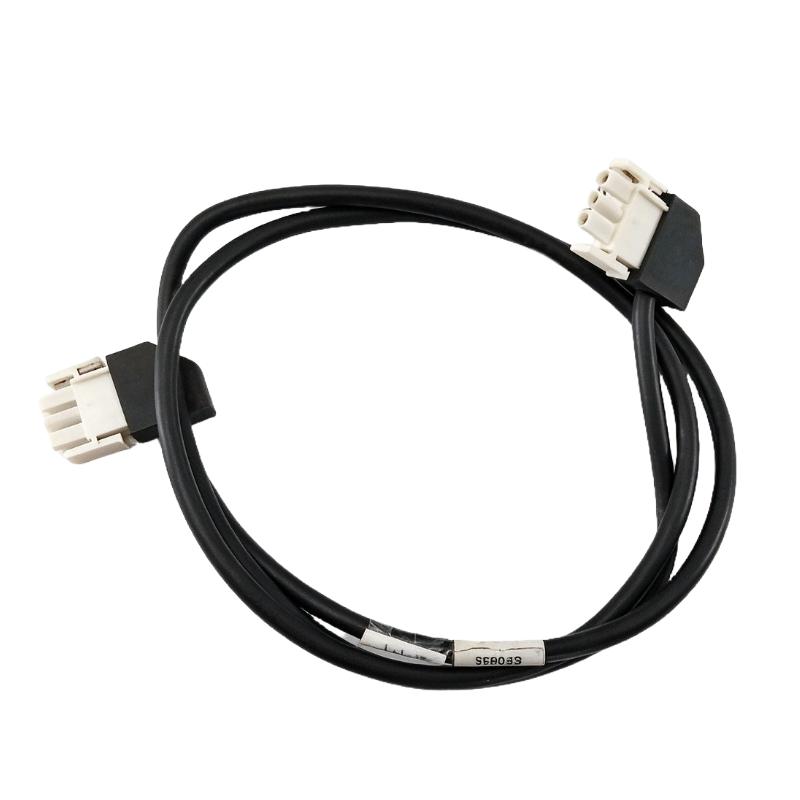

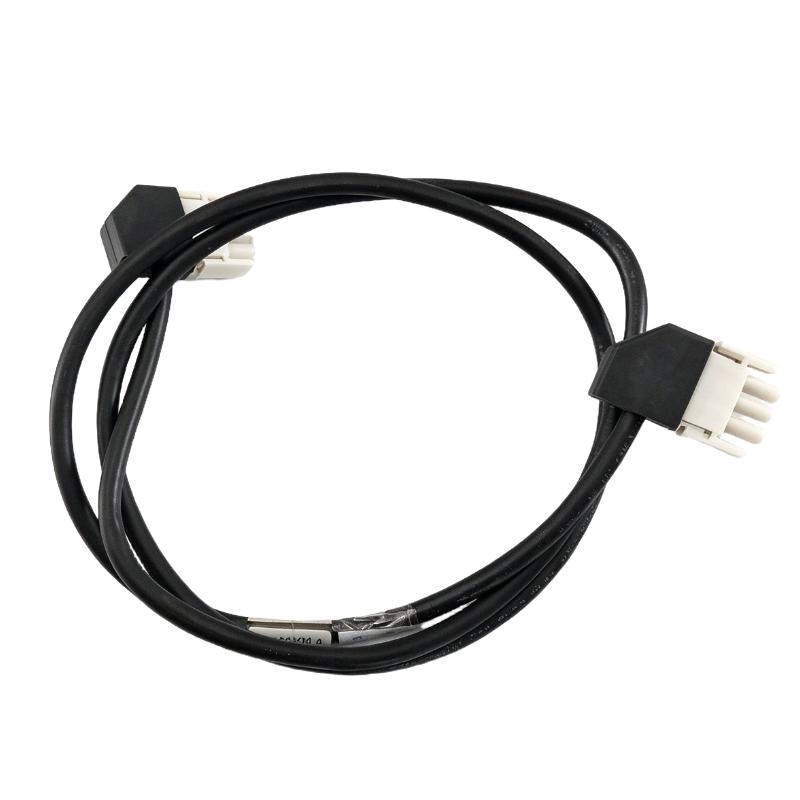

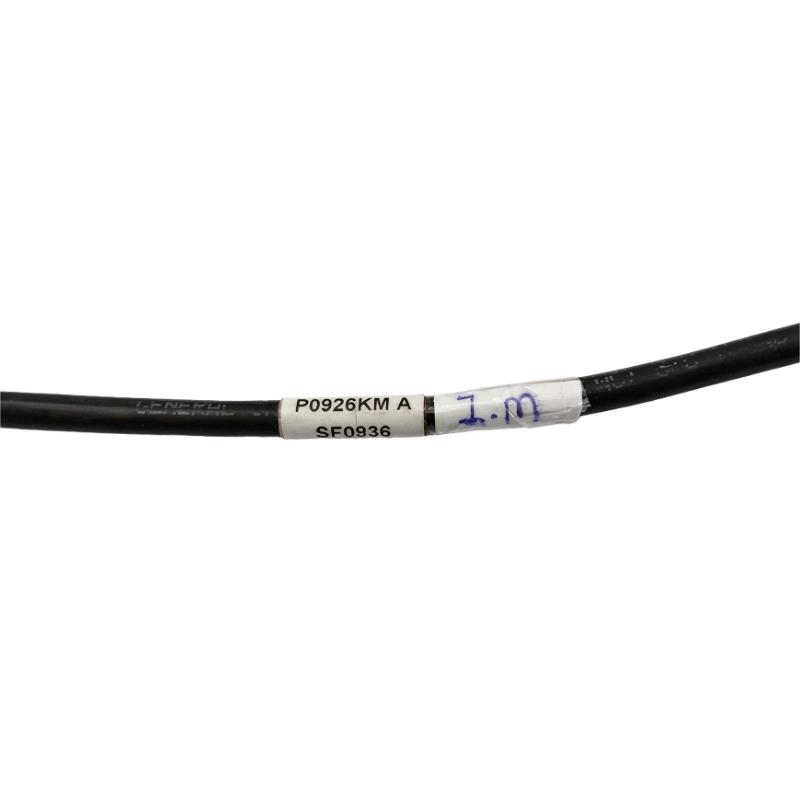

The Foxboro P0926KM is an I/A Series power supply cable used to connect compatible Foxboro 200 Series power supplies to modular baseplates. It carries the DC output from the power supply to the baseplate, where the subsystem distributes power to installed fieldbus modules and associated control hardware.
The P0926KM has a cable length of 1.2 meters, providing additional routing distance compared with shorter cables in the same baseplate power-cable family. This can be useful when the power supply and receiving baseplate occupy different positions within a control cabinet. The cable is part of the output-power connection, not the input cable between an incoming power terminal block and the power supply.
The newer cable designation RH926KM supersedes P0926KM for the corresponding modular-baseplate connection. When replacing the older cable, the baseplate family, power supply model and connector arrangement should be checked to ensure the cable matches the existing installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Foxboro |
| Model | P0926KM |
| Product Series | I/A Series |
| Product Type | Power Supply Cable |
| Cable Function | Power supply output to modular baseplate |
| Cable Length | 1.2 meters |
| Cable Construction | 16 AWG shielded cable |
| System Application | Foxboro 200 Series control subsystem |
| Compatible Equipment | Compatible Foxboro power supplies and modular baseplates |
| Newer Cable Designation | RH926KM |
| Shipping Weight | 3 kg |
Product Features
- 1.2-meter cable length: Provides additional routing distance for compatible power supply and baseplate layouts.
- Dedicated power connection: Carries the power supply’s DC output to the modular baseplate.
- 16 AWG shielded construction: Matches the specified cable construction for this baseplate power-cable family.
- I/A Series integration: Supports compatible Foxboro 200 Series control-system power distribution.
- Defined replacement reference: The P0926KM part number identifies the older cable configuration, while RH926KM is its newer designation.
- Cabinet wiring flexibility: Supports power-cable routing between components installed at different positions within the cabinet.
- Modular system support: Can be used in compatible subsystem configurations that distribute power to multiple baseplates within the specified supply limits.
- Maintenance identification: Helps technicians distinguish output-power cables from input terminal block cables and signal interconnections.
Working Principle
The P0926KM provides the electrical path between the output connector of a compatible power supply and the power input of a modular baseplate. When correctly connected, the cable carries the supply’s DC output to the baseplate’s power-distribution interface.
The cable does not convert voltage or regulate the output. The power supply performs those functions, while the baseplate distributes the available power to the connected modules according to the subsystem design. Correct connector engagement and cable selection are necessary to maintain the intended electrical path.
Where a power supply serves multiple baseplates, the total connected load must remain within the supply’s rated capacity. The permitted cable arrangement and the compatibility of the connected baseplates also need to be considered. A longer cable provides routing reach; it does not increase the power supply’s output capacity.
Role in a Foxboro I/A Series Power Distribution Architecture
The P0926KM forms the connection between a compatible Foxboro power supply and a modular baseplate. The supply generates the DC output, the cable transfers that output, and the baseplate provides the electrical interface for the installed control modules.
| System Component | Function | Relationship to the P0926KM |
|---|---|---|
| Foxboro P0926KM | Transfers power-supply output to a baseplate | Provides the output-power connection |
| Foxboro FPS400-24 Power Supply | Supplies 24 V DC output power | Feeds the baseplate through the cable |
| Modular Baseplate | Provides mounting and electrical interfaces for modules | Receives power through the output cable |
| Fieldbus Modules (FBMs) | Interface field signals with the control system | Receive operating power through the configured baseplate |
| Field Control Processor, Where Applicable | Executes control and communication functions | Operates within the associated control-system architecture |
| Additional Baseplate Power Cables | Carry power to other compatible baseplates | Extend power distribution within the specified system limits |
| DC Input Terminal Block Cable | Connects incoming DC power to the supply | Performs a separate input-side function |
| Control Cabinet | Houses and organizes control equipment | Provides mounting and cable-routing infrastructure |
Industrial Applications
| Application | Power Distribution Requirement | Role of the P0926KM |
|---|---|---|
| Process Automation Cabinets | Power delivery to modular control-system baseplates | Connects the power supply output to the baseplate |
| Oil and Gas Facilities | Organized power wiring for process-control hardware | Supports compatible Foxboro subsystem power distribution |
| Chemical Processing Plants | DC power connections for fieldbus modules | Provides the specified output-power path |
| Power Generation Control | Power distribution to compatible control-system hardware | Connects the supply to the receiving baseplate |
| Water and Wastewater Automation | Cabinet-based control-system power connections | Supports the designated baseplate power path |
| Industrial Process Monitoring | Power delivery to modular field I/O equipment | Carries power to compatible baseplates |
| Control-System Expansion | Addition of baseplates within a supported subsystem | Provides extra routing distance for the planned layout |
| Maintenance and Repair | Replacement of a damaged or unsuitable output cable | Restores the power connection when P0926KM is the specified part |
Installation and Maintenance
- Verify the cable part number: Confirm that P0926KM is the specified cable for the installed power supply and baseplate configuration.
- Identify the baseplate type: Check the baseplate model and connection arrangement before installing the cable.
- Isolate the power supply: Follow the site’s electrical isolation and lockout procedures before disconnecting or replacing the cable.
- Inspect the connectors: Check for damaged housings, bent contacts, contamination or other conditions that could affect the connection.
- Confirm connector compatibility: Ensure both cable ends match their designated interfaces without forcing or modifying the connectors.
- Plan the cable route: Use the 1.2-meter length to reach the connection points without excessive tension or unnecessary strain.
- Prevent mechanical damage: Avoid sharp bends, crushing, abrasion and contact with hot surfaces or moving equipment.
- Maintain cabinet organization: Route the cable so it does not obstruct module access, ventilation paths or other service points.
- Secure both connections: Confirm that the connectors are fully seated and any applicable retaining features are engaged.
- Verify power-system capacity: Check that the connected baseplates and installed modules remain within the power supply’s specified output limits.
- Inspect before energizing: Check the cable jacket, connector seating and routing before restoring power.
- Record the replacement: Document the installed cable part number and any connector or wiring issues for future maintenance.
Related Components
| Component | Function | Relationship to the P0926KM |
|---|---|---|
| Foxboro FPS400-24 Power Supply | Supplies DC output power | Provides the output connected to the baseplate through the cable |
| Foxboro Modular Baseplate | Houses and electrically connects compatible modules | Receives power through the P0926KM |
| Foxboro RH926KM | Newer baseplate power supply cable designation | Supersedes P0926KM for the corresponding cable configuration |
| Foxboro P0926KL | Baseplate power supply cable, 0.9-meter variant | Provides a shorter cable option for compatible installations |
| Foxboro RH926KL | Newer 0.9-meter baseplate power cable | Related shorter-length cable variant |
| Foxboro P0926KN | Baseplate power supply cable, 1.5-meter variant | Provides a longer cable option |
| Foxboro RH926KN | Newer 1.5-meter baseplate power cable | Related longer-length cable variant |
| Foxboro RH923NG | Power-distribution Y-cable | Provides additional physical power connections in compatible installations |
| Foxboro RH923DG | DC input terminal block cable | Connects the input terminal block to the power supply rather than the supply to a baseplate |
Recommended Related Models
| Model | Product Type | Relationship | Selection Consideration |
|---|---|---|---|
| Foxboro P0926KM | I/A Series Power Supply Cable | Main product | 1.2-meter cable for compatible modular baseplates |
| Foxboro RH926KM | I/A Series Power Supply Output Cable | Newer designation | Corresponding 1.2-meter cable configuration |
| Foxboro P0926KL | I/A Series Power Supply Cable | Shorter cable variant | 0.9-meter length for compatible installations |
| Foxboro RH926KL | I/A Series Power Supply Output Cable | Newer shorter-length variant | Verify the baseplate and connector configuration |
| Foxboro P0926KN | I/A Series Power Supply Cable | Longer cable variant | 1.5-meter length for compatible installations |
| Foxboro RH926KN | I/A Series Power Supply Output Cable | Newer longer-length variant | Confirm the required routing distance |
| Foxboro RH923NG | I/A Series Power Distribution Y-Cable | Related distribution component | Used to provide additional physical power connections in compatible FPS400 installations |
Key Advantages
- Provides a defined 1.2-meter connection between compatible power supplies and modular baseplates.
- Uses the specified 16 AWG shielded cable construction.
- Supports organized DC power distribution in Foxboro 200 Series control cabinets.
- Has a corresponding newer designation, RH926KM, for replacement planning.
- Keeps baseplate output-power wiring distinct from input-terminal-block and signal connections.
Technical FAQs
Which Foxboro equipment is the P0926KM intended to connect?
The P0926KM is a baseplate power cable used between a compatible Foxboro power supply and a modular baseplate. The power supply and baseplate models should be checked against the installed subsystem configuration.
How does P0926KM differ from P0926KL?
Both belong to the modular-baseplate power cable family, but P0926KM is 1.2 meters long, whereas P0926KL is 0.9 meters. The choice depends on the physical routing distance and the cable length specified for the installation.
Can the P0926KM be replaced by RH926KM?
RH926KM supersedes P0926KM for the corresponding 1.2-meter modular-baseplate power cable configuration. Confirm the baseplate type and connector arrangement before replacement.
What should be checked if a baseplate loses power after cable replacement?
Check that the installed cable is the correct output-power variant and that both connectors are fully seated. Also inspect the power supply’s status, the baseplate connection and the overall subsystem load. Isolate the equipment before disconnecting or inspecting electrical connections.
