Product Overview

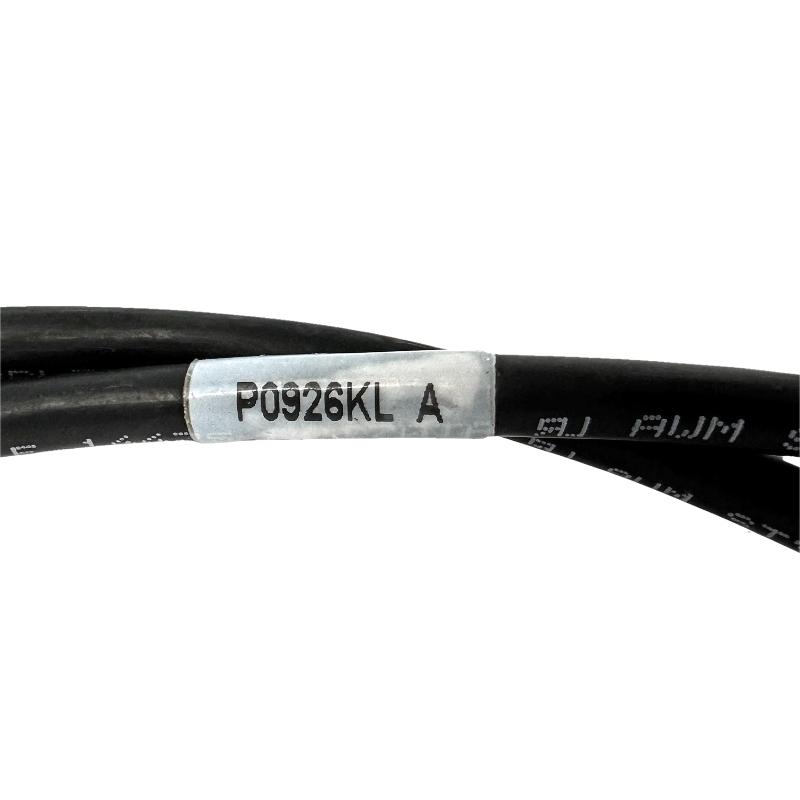

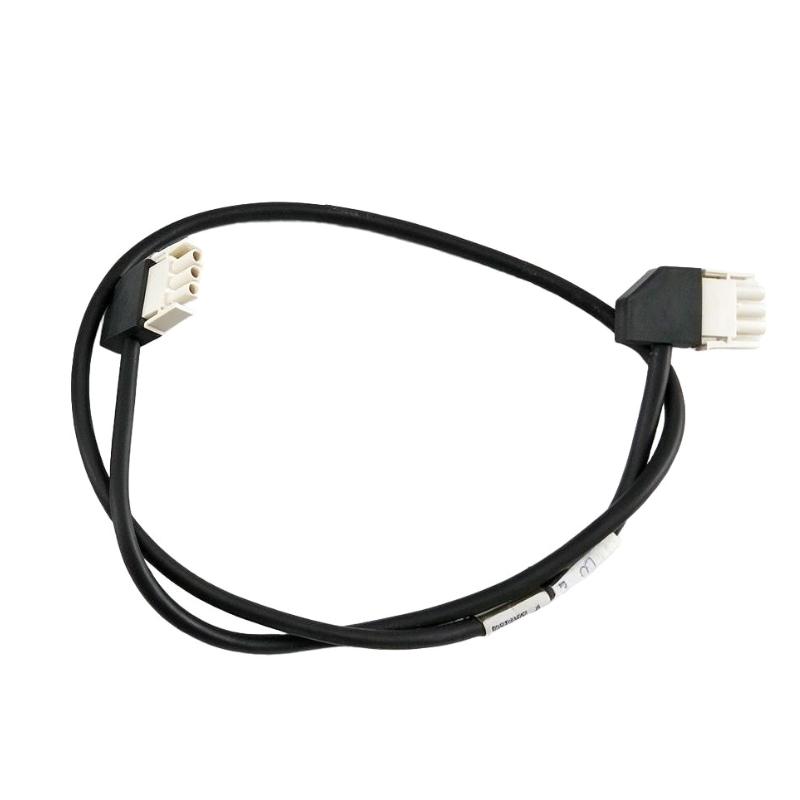

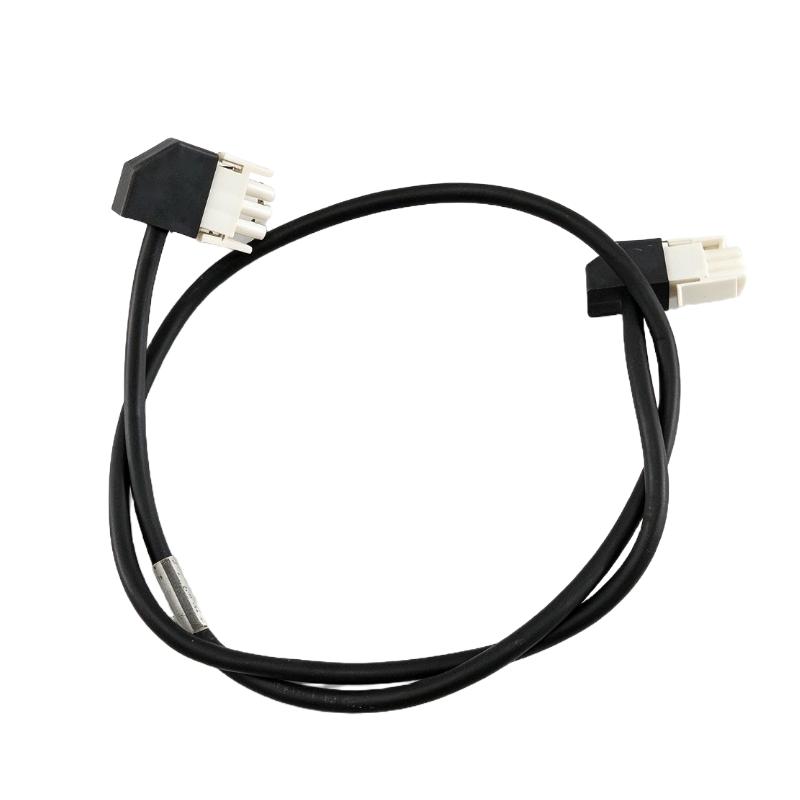

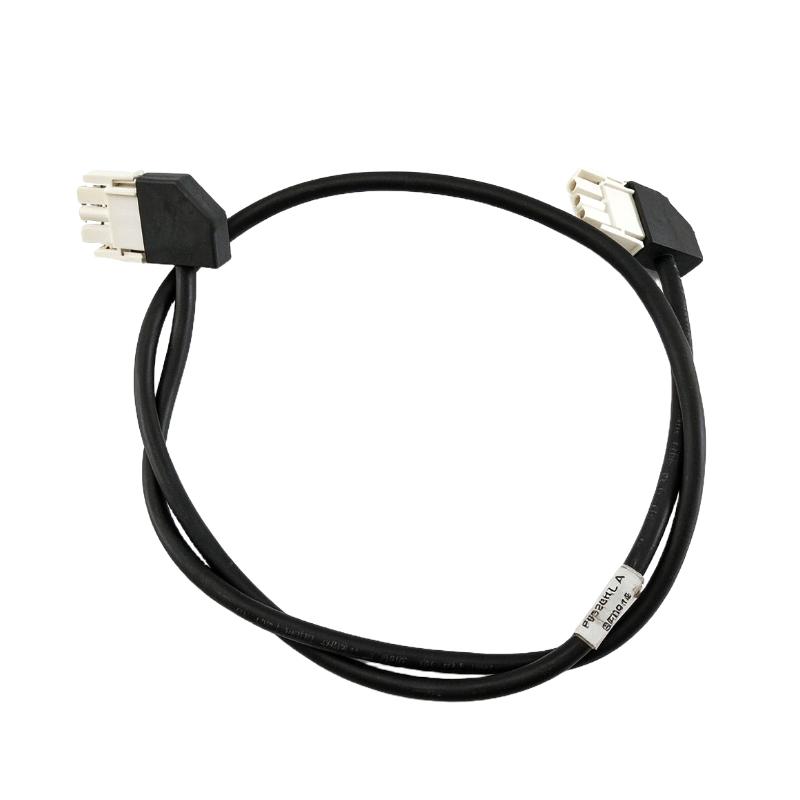

The Foxboro P0926KL is an I/A Series power supply output cable used to connect compatible Foxboro 200 Series power supplies to modular baseplates. It forms part of the subsystem’s power-distribution arrangement, carrying the supply output to the baseplate where fieldbus modules and related control hardware receive their operating power.
With a cable length of 0.9 meters, the P0926KL suits cabinet layouts where the power supply and receiving baseplate are positioned within a short distance of one another. Its role differs from a DC input terminal block cable, which connects incoming power to the power supply itself. The P0926KL instead serves the downstream connection between the supply and the baseplate.
This cable is associated with the older P0926KL part designation. The corresponding newer cable designation is RH926KL, also specified at 0.9 meters for compatible modular baseplates. When maintaining an existing installation, the baseplate family and connector arrangement should be checked before choosing a replacement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Foxboro |
| Model | P0926KL |
| Product Series | I/A Series |
| Product Type | Power Supply Output Cable |
| Cable Function | Power supply to modular baseplate connection |
| Cable Length | 0.9 meters |
| Cable Construction | Shielded power cable |
| Conductor Size | 16 AWG |
| System Application | Foxboro 200 Series control subsystem |
| Compatible Equipment | Compatible 200 Series power supplies and modular baseplates |
| Newer Cable Designation | RH926KL |
| Shipping Weight | 3 kg |
Product Features
- Dedicated output-power connection: Connects a compatible power supply to its designated modular baseplate.
- 0.9-meter cable length: Supports short-distance power connections inside control cabinets.
- Shielded cable construction: Uses a shielded cable arrangement for the intended industrial power-distribution application.
- 16 AWG conductors: Matches the conductor specification listed for this cable family.
- 200 Series subsystem integration: Supports power connections between compatible Foxboro power supplies and modular baseplates.
- Defined cable identification: The P0926KL designation distinguishes this cable from input-terminal-block cables and other baseplate cable lengths.
- Replacement planning: The newer RH926KL designation provides a reference when reviewing cable replacement requirements.
- Organized cabinet wiring: A dedicated cable assembly helps maintain an orderly power connection between system components.
Working Principle
The P0926KL establishes an electrical path from the output connector of a compatible Foxboro power supply to the corresponding connector on a modular baseplate. Once connected correctly, the cable carries the supply’s output power to the baseplate power-distribution interface.
The cable does not convert or regulate voltage. Those functions are handled by the power supply, while the baseplate distributes power to the installed control-system hardware according to its design. The cable’s conductor arrangement, connectors and length must therefore match the intended system configuration.
During commissioning or maintenance, technicians should verify the cable part number, connector seating and routing before restoring power. The connected baseplate and installed modules must remain within the power supply’s specified capacity. The cable should not be treated as interchangeable with a DC input cable or an alarm-status relay output cable.
Role in a Foxboro I/A Series Power Distribution Architecture
The P0926KL connects the power supply output to a compatible modular baseplate in a Foxboro 200 Series control subsystem. The power supply generates the required DC output, the cable transfers that output, and the baseplate distributes power to the associated modules.
| System Component | Function | Relationship to the P0926KL |
|---|---|---|
| Foxboro P0926KL | Transfers power-supply output to a baseplate | Provides the cable connection between the two components |
| Foxboro FPS400-24 Power Supply | Supplies 24 V DC output power | Feeds the baseplate through the designated cable |
| Modular Baseplate | Provides mounting and electrical interfaces for modules | Receives power through the output cable |
| Fieldbus Modules (FBMs) | Interface field signals with the control system | Receive operating power through the configured subsystem |
| Field Control Processor (FCP), Where Applicable | Executes control and communication functions | Operates within a compatible system power architecture |
| Redundant Power Supply, Where Configured | Provides an alternative power source | May use a separate compatible cable and connection |
| Control Cabinet | Houses power and control hardware | Supports cable routing and component mounting |
| Cabinet Power Distribution | Organizes incoming and distributed power connections | Separates supply input wiring from baseplate output wiring |
Industrial Applications
| Application | Power Connection Requirement | Role of the P0926KL |
|---|---|---|
| Foxboro I/A Series Control Cabinets | Power connection between a supply and modular baseplate | Transfers output power to the baseplate |
| Process Automation Systems | Distributed power for control-system modules | Supports the configured baseplate power path |
| Oil and Gas Facilities | Organized power wiring within process-control cabinets | Connects compatible power and baseplate hardware |
| Chemical Processing Plants | Power distribution for process-control equipment | Forms part of the subsystem’s output-power connection |
| Power Generation Control | DC power delivery to compatible control-system baseplates | Connects the supply output to the receiving baseplate |
| Water and Wastewater Automation | Cabinet-based control-system power distribution | Supports the designated baseplate connection |
| Control-System Expansion | Addition of compatible baseplates within a subsystem | Provides a specified cable length for the planned layout |
| Maintenance and Replacement | Replacement of a damaged or incorrectly identified output cable | Restores the power connection when the P0926KL is the required part |
Installation and Maintenance
- Verify the cable part number: Confirm that P0926KL is the specified output cable for the intended power supply and baseplate configuration.
- Identify the baseplate family: Check whether the receiving baseplate belongs to the compatible modular baseplate family before installation.
- Isolate the power supply: Follow site lockout and electrical isolation procedures before disconnecting or replacing the cable.
- Inspect both connectors: Check for damaged housings, bent contacts, contamination or other conditions that could prevent proper mating.
- Confirm connector orientation: Align the connectors with their intended interfaces and avoid forcing a connection that does not seat correctly.
- Check the cable routing: Ensure the cable can reach both connection points without excessive tension or strain on the connectors.
- Avoid sharp bends and crushing: Route the cable away from cabinet edges, moving equipment and other potential sources of mechanical damage.
- Keep power wiring organized: Separate the output cable from unrelated wiring where required by the cabinet’s wiring practices and equipment instructions.
- Secure the connections: Confirm that each connector is fully seated and any applicable retaining mechanism is engaged.
- Check power-supply loading: Verify that the connected baseplate and installed modules remain within the power supply’s specified output capacity.
- Inspect before energizing: Check the cable jacket, connector seating and routing before restoring power to the subsystem.
- Record the installed cable variant: Document the part number and any replacement or connection issues to help prevent incorrect substitutions during future maintenance.
Related Components
| Component | Function | Relationship to the P0926KL |
|---|---|---|
| Foxboro FPS400-24 Power Supply | Supplies DC output power to the subsystem | Provides the output connected to the baseplate through the cable |
| Foxboro Modular Baseplate | Houses and electrically connects compatible modules | Receives power from the cable |
| Foxboro RH926KL | Newer baseplate power supply cable designation | Supersedes P0926KL for the specified 0.9-meter cable configuration |
| Foxboro P0926KK | Older baseplate power supply cable, 0.4-meter variant | Provides a shorter cable option for compatible baseplates |
| Foxboro RH926KK | Newer 0.4-meter baseplate power supply cable | Related shorter-length cable variant |
| Foxboro P0926KM | Older baseplate power supply cable, 1.2-meter variant | Provides a longer cable option for compatible baseplates |
| Foxboro RH926KM | Newer 1.2-meter baseplate power supply cable | Related longer-length cable variant |
| Foxboro RH923NG | Power-distribution Y-cable | Supports additional power connections in compatible FPS400 installations |
| Foxboro P0923DG / RH923DG | DC input terminal block cable | Connects the input terminal block to the power supply rather than the supply to a baseplate |
Recommended Related Models
| Model | Product Type | Relationship | Selection Consideration |
|---|---|---|---|
| Foxboro P0926KL | I/A Series Power Supply Output Cable | Main product | 0.9-meter output cable for compatible modular baseplates |
| Foxboro RH926KL | I/A Series Power Supply Output Cable | Newer designation | Listed as the successor to P0926KL at the same cable length |
| Foxboro P0926KK | I/A Series Power Supply Output Cable | Shorter cable variant | 0.4-meter cable for compatible modular baseplates |
| Foxboro RH926KK | I/A Series Power Supply Output Cable | Newer shorter-length variant | Check connector and baseplate compatibility |
| Foxboro P0926KM | I/A Series Power Supply Output Cable | Longer cable variant | 1.2-meter cable for compatible modular baseplates |
| Foxboro RH926KM | I/A Series Power Supply Output Cable | Newer longer-length variant | Check the required cable routing distance |
| Foxboro RH923NG | I/A Series Power Distribution Y-Cable | Related distribution component | Used to provide additional physical connections in compatible FPS400 installations |
Key Advantages
- Provides a defined 0.9-meter output-power connection for compatible Foxboro modular baseplates.
- Uses shielded 16 AWG cable construction.
- Supports organized power distribution within 200 Series control cabinets.
- Has a corresponding newer designation, RH926KL, for replacement planning.
- Keeps baseplate output wiring distinct from power-supply input and alarm-status wiring.
Technical FAQs
What does the P0926KL connect in a Foxboro control system?
The P0926KL connects a compatible power supply’s output to a modular baseplate. The baseplate then distributes power to the installed control-system hardware according to the subsystem configuration.
How does P0926KL differ from P0923DG?
P0926KL is a power supply output cable used between a power supply and a modular baseplate. P0923DG is a DC input terminal block cable used between the input terminal block and the power supply. They serve different connection points and should not be substituted for one another.
Is RH926KL the newer designation for P0926KL?
Yes. The newer cable designation RH926KL supersedes P0926KL for the listed 0.9-meter baseplate power connection. Before replacement, confirm that the installed baseplate family and connector arrangement match the intended cable configuration.
What should be checked if a baseplate loses power after cable replacement?
Check that the cable is the correct output-power variant, both connectors are fully seated, and the power supply is operating normally. Also verify the baseplate connection and subsystem loading. Isolate power before inspecting or reconnecting the cable.
