1. Product Overview

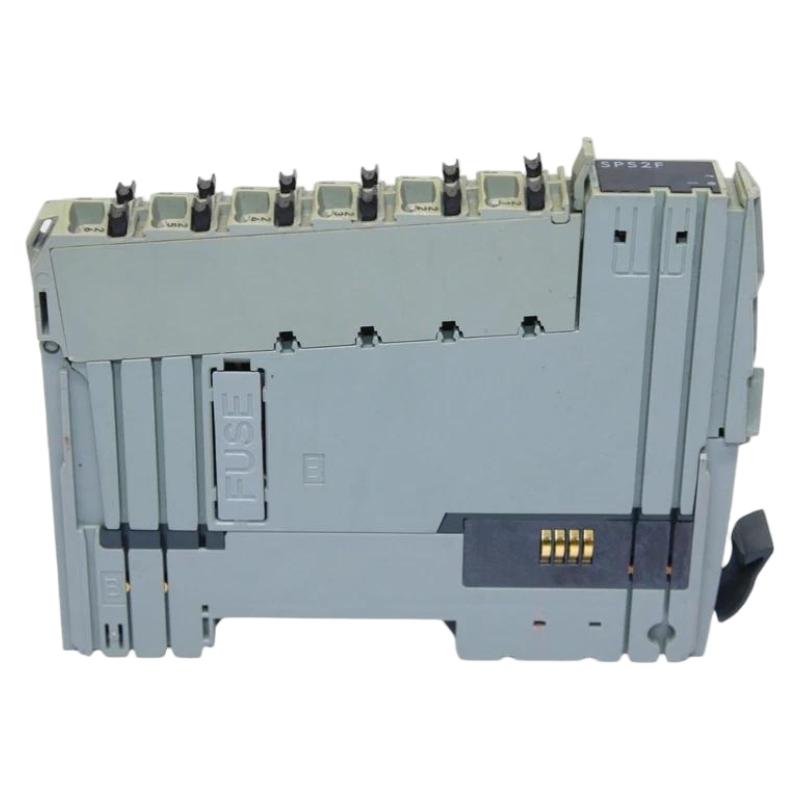

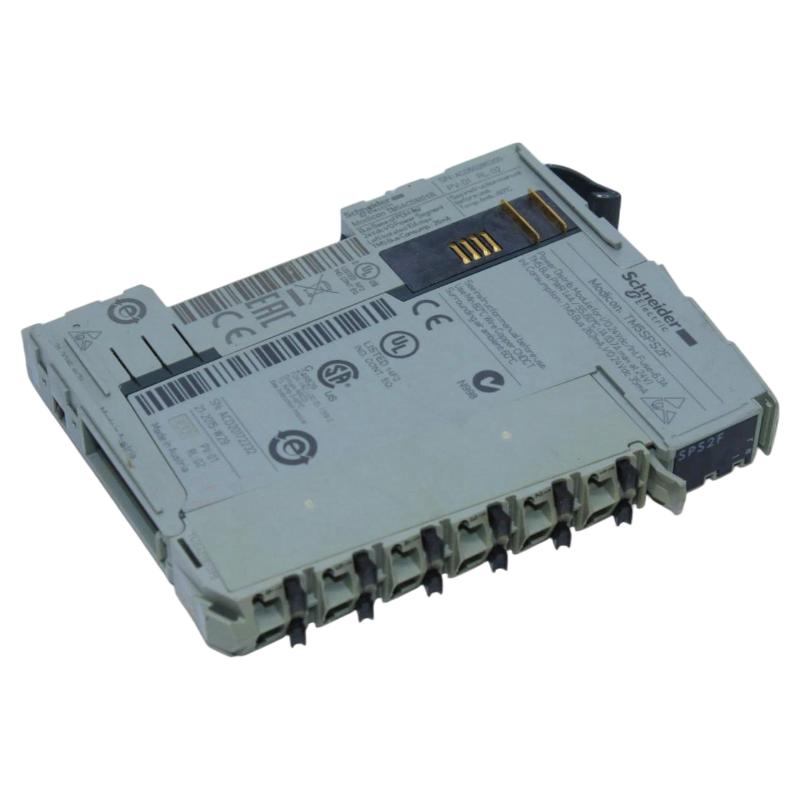

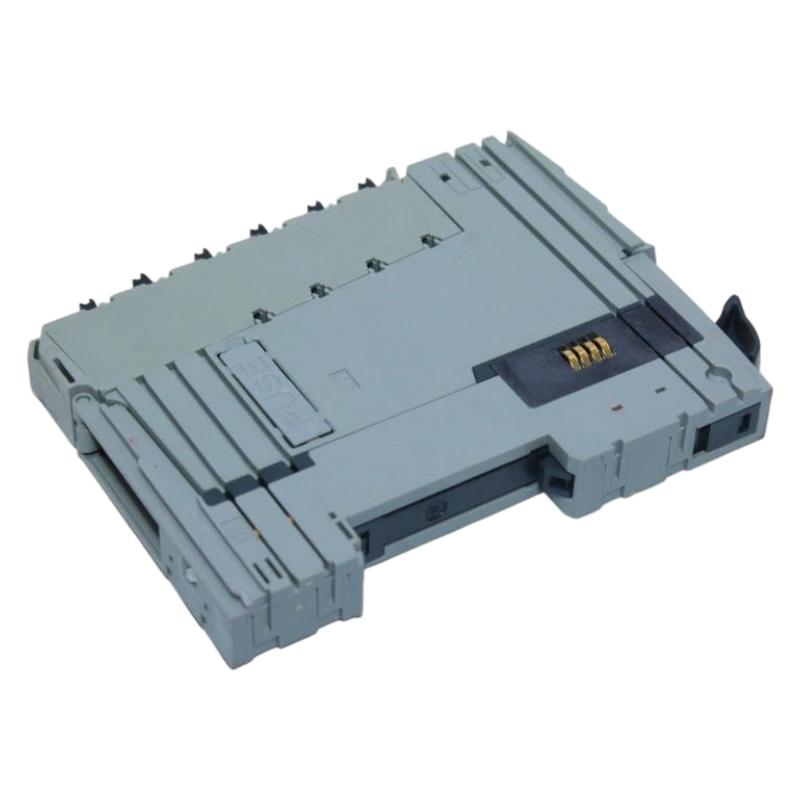

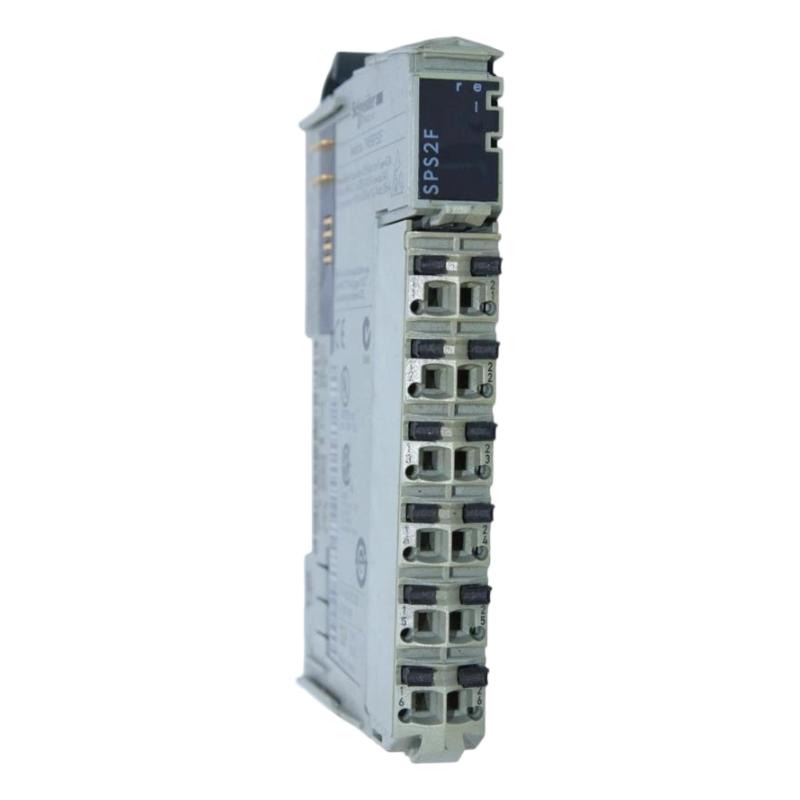

The Schneider Electric TM5SPS2F Power Distribution Module is a power distribution component in the Modicon TM5 modular automation system. It is designed to supply the TM5 internal power bus and distribute 24 V DC power to the I/O power segment. By combining these power distribution functions in one compact module, it helps support stable operation of modular PLC and distributed I/O configurations.

The TM5SPS2F incorporates an exchangeable 6.3 A slow-blow fuse for the 24 V DC I/O power segment. It also generates power for the TM5 internal bus, which supports the electronic components of compatible expansion modules. This makes the module suitable for automation systems that require organized power distribution, modular expansion, and convenient maintenance.

With dimensions of 99 × 12.5 × 75 mm and a weight of 0.03 kg, the TM5SPS2F is designed for installation in space-efficient control cabinets. Its compact form factor is particularly useful in machinery where multiple I/O modules must be installed within a limited panel area.

The TM5SPS2F is associated with Schneider Electric Modicon M258 and LMC058 controller systems, subject to the applicable hardware configuration and system requirements.

2. Technical Specifications

Electrical ratings and compatibility should be checked against the specific system configuration and applicable installation documentation before commissioning.

3. Function and Working Principle

The TM5SPS2F performs two main power distribution functions within a Modicon TM5 system.

3.1 Supplying the TM5 Power Bus

The module generates power for the TM5 internal power bus from a suitable external 24 V DC supply. This bus provides power to the electronic circuitry of supported TM5 expansion modules.

The generated bus current is specified as 1136 mA under the applicable normal temperature conditions. At ambient temperatures between 55°C and 60°C, the available current is reduced to 740 mA. Engineers must consider this temperature-dependent limitation when calculating the power requirements of a complete I/O assembly.

3.2 Distributing 24 V DC I/O Power

The second function is to distribute 24 V DC power to the I/O power segment. This segment supplies supported I/O-related circuits and connected field devices according to the system architecture.

The TM5SPS2F supports a maximum I/O power segment current of 6.3 A. An integrated, exchangeable slow-blow fuse provides short-circuit protection for this segment. Correct power-supply sizing, fuse selection, wiring, and grounding remain essential to reliable operation.

3.3 Supporting Modular Automation Architecture

By combining internal bus power generation with I/O power distribution, the TM5SPS2F helps organize power within a modular automation station. It can simplify cabinet layout and make it easier to identify and maintain power distribution sections.

However, the module does not replace the need for a properly sized external 24 V DC power supply or appropriate protection for the overall electrical installation.

4. Role in Industrial Automation Systems

A stable power distribution arrangement is essential for PLC-based control systems. If the power supplied to I/O modules or internal bus electronics becomes unstable, the system may experience communication interruptions, diagnostic alarms, or unexpected changes in equipment operation.

The TM5SPS2F helps address these requirements by providing a defined power distribution point for compatible TM5 configurations.

Its main system-level roles include:

• Internal bus power generation: Supplies the TM5 power bus for supported electronic modules.
• I/O power distribution: Provides a dedicated distribution path for the 24 V DC I/O power segment.
• Circuit protection: Uses an exchangeable slow-blow fuse to protect the I/O power segment.
• Modular cabinet design: Supports compact arrangements of PLC expansion and I/O equipment.
• Maintenance support: Allows technicians to inspect the power distribution section as part of system fault diagnosis.

The module should be selected as part of the complete system design rather than solely on the basis of its physical dimensions or nominal current rating.

5. Industrial Applications

Packaging Machinery

Packaging equipment commonly uses PLC-controlled sensors, actuators, and distributed I/O modules. The TM5SPS2F can support the power distribution architecture of compatible TM5 control systems used for sequencing, positioning, and machine-status monitoring.

Material Handling Systems

Conveyors, sorting equipment, and automated transfer systems often require multiple I/O modules distributed throughout a machine or production line. The module can help organize power distribution within an appropriate TM5 installation.

Manufacturing Equipment

In automated production machinery, the TM5SPS2F can support the internal bus and I/O power requirements of a compatible modular controller assembly. Proper power budgeting is important where several I/O modules and field devices operate simultaneously.

Motion Control Applications

Compatible controller platforms may be used in machinery requiring coordinated motion and I/O control. In these installations, the TM5SPS2F contributes to the power architecture, while motion drives, motors, and other equipment require their own correctly specified power arrangements.

Industrial Process Equipment

The module may be used in suitable machine-level process control panels where modular I/O interfaces connect sensors, switches, valves, and other field devices. Actual suitability depends on the system’s electrical design, environmental conditions, and controller compatibility.

6. Installation and System Integration

Correct installation is necessary to ensure that the TM5SPS2F operates reliably and does not introduce power-related faults into the automation system.

Step 1: Verify the Model and System Compatibility

Confirm that the module reference is TM5SPS2F and that it is suitable for the intended Modicon TM5 configuration. Check the controller family, bus base, terminal block, module arrangement, and available power capacity before installation.

Step 2: Isolate the Power Supply

Disconnect the relevant external power supplies before installing, removing, or rewiring the module. Verify that the circuit is de-energized using appropriate procedures and equipment.

Never connect the module directly to mains voltage. Use a suitable isolated 24 V DC supply that meets the system’s electrical and safety requirements.

Step 3: Install the Module in the Correct Assembly

Install the module using the designated TM5 bus base and terminal block specified for the system configuration. Ensure that the module is correctly seated and that the terminal connections are secure.

Do not force the module into an incompatible base or use a substitute terminal arrangement without confirming compatibility.

Step 4: Check Power Wiring and Protection

Verify the polarity and voltage of the 24 V DC supply. Inspect the wiring for loose terminals, damaged insulation, incorrect conductor sizing, or accidental connections to unused terminals.

The I/O power segment is rated for a maximum of 6.3 A. The actual connected load must remain within this limit and any additional constraints imposed by the installation.

Step 5: Check Grounding and EMC Practices

Follow the applicable wiring instructions for connecting the 0 V DC reference and functional earth. Correct grounding and cable routing help reduce electromagnetic interference that can affect sensitive control electronics.

Separate power and signal wiring where required by the system design, and avoid routing low-level signals alongside sources of substantial electrical noise.

Step 6: Restore Power and Inspect Indicators

After completing the wiring inspection, restore power according to the machine’s commissioning procedure. Check the module status indicators and confirm that the controller recognizes the expected hardware configuration.

Investigate abnormal status indications before returning the equipment to normal operation.

7. Troubleshooting Common Problems

Problem 1: The Module Does Not Start Normally

Possible causes:

• The external 24 V DC supply is absent or outside the permitted range.
• The supply wiring is loose or incorrectly connected.
• The module is not properly seated.
• The bus base or terminal block is incompatible or incorrectly installed.

Recommended checks:

1. Measure the supply voltage at the appropriate connection points.
2. Inspect polarity and terminal tightness.
3. Check module seating and the surrounding TM5 assembly.
4. Review the controller’s hardware diagnostics and module indicators.

Problem 2: Red Error Indicator or Power Bus Overload

A red diagnostic indication may be associated with an overloaded TM5 power bus, insufficient voltage on the I/O power segment, or low input voltage for the TM5 bus.

Recommended checks:

• Measure the external supply voltage under load.
• Calculate the total current demand of the connected modules.
• Check whether the TM5 bus current limit is exceeded.
• Inspect the wiring for high-resistance connections or short circuits.
• Verify that the installation’s ambient temperature is within the specified operating limits.

Do not assume that every red indicator represents the same fault. Interpret the exact LED pattern using the applicable product diagnostics.

Problem 3: I/O Modules or Field Devices Lose Power

Possible causes:

• The I/O power segment is overloaded.
• The exchangeable 6.3 A fuse has opened.
• The external supply voltage is too low.
• A wiring fault or short circuit is present.

Recommended checks:

1. Isolate the equipment before inspecting the fuse or wiring.
2. Check the I/O power segment load against the rated limit.
3. Inspect the fuse and replace it only with the correct specified type and rating.
4. Check the field wiring for short circuits and damaged insulation.
5. Reapply power and verify stable operation.

Never bypass the fuse or install a fuse with a higher rating to suppress repeated trips.

Problem 4: Intermittent Controller or I/O Faults

Intermittent problems may result from unstable power, loose connections, excessive electrical noise, overheating, or an overloaded bus.

Inspect the power supply under operating load, verify all terminal connections, review controller diagnostics, and check the cabinet’s ventilation and grounding arrangements. If the problem occurs only when certain actuators operate, investigate voltage dips and transient loads.

Problem 5: The Replacement Module Does Not Operate Correctly

A module that physically fits may still be unsuitable for the intended application. Confirm the complete part number, fuse specification, bus function, power rating, terminal arrangement, and compatibility with the existing controller and bus base.

Do not assume that TM5SPS2F is interchangeable with TM5SPS2 or other power distribution modules without checking their electrical ratings and protection arrangements.

8. Compatible System Components

The TM5SPS2F is intended for use within a compatible Modicon TM5 system. The following components and equipment categories should be evaluated during system integration.

The exact bill of materials must be confirmed against the intended hardware configuration. Not every component listed is required in every installation.

9. Replacement and Alternative Selection

When sourcing a replacement for the TM5SPS2F, matching the original model number is generally the clearest way to preserve the intended electrical and mechanical configuration.

Other TM5 power distribution modules may have different current ratings, fuse arrangements, or bus-power functions. A substitute should only be selected after checking the relevant specifications and the requirements of the complete automation system.

10. Key Advantages of the Schneider TM5SPS2F

Integrated Power Distribution

The module supports both TM5 internal bus power generation and 24 V DC I/O power distribution, helping organize the power architecture of compatible modular control systems.

Exchangeable Fuse Protection

The I/O power segment uses an exchangeable 6.3 A slow-blow fuse. This provides a defined protection arrangement and supports maintenance when a fault has been identified and corrected.

Compact Installation

Its 12.5 mm width and 99 × 12.5 × 75 mm dimensions support space-efficient panel designs where multiple modular components must be installed.

Clear Diagnostic Support

The module’s status indicators help technicians identify operating states and investigate possible power-related faults alongside controller diagnostics and electrical measurements.

Integration with Modular Automation

When used with compatible TM5 components, the TM5SPS2F supports modular machine-control architectures that require structured power distribution for internal electronics and I/O circuits.

11. Technical FAQs

Q1: What is the Schneider TM5SPS2F?

The TM5SPS2F is a Modicon TM5 power distribution module designed to supply the TM5 internal power bus and the 24 V DC I/O power segment.

Q2: What is the rated supply voltage?

The rated supply voltage is 24 V DC. The actual supply arrangement and permitted operating range should be checked against the applicable product specifications.

Q3: What is the maximum I/O power segment current?

The specified maximum current for the 24 V DC I/O power segment is 6.3 A. The load must remain within the module’s rating and the limits of the overall installation.

Q4: Does the TM5SPS2F have fuse protection?

Yes. It uses an exchangeable 6.3 A slow-blow fuse for the I/O power segment. Always use the specified fuse type and rating.

Q5: What are the dimensions and weight?

The stated dimensions are 99 × 12.5 × 75 mm, and the weight is 0.03 kg.

Q6: Which controller systems can use this module?

The TM5SPS2F is associated with Modicon M258 and LMC058 controller families. Confirm compatibility with the exact controller, bus base, terminal block, and system configuration before installation.

Q7: Can the TM5SPS2F replace the TM5SPS2 directly?

Not automatically. Although both models provide TM5 bus power, their I/O power segment ratings and fuse arrangements differ. Confirm the current requirements, protection specifications, and hardware configuration before selecting a replacement.

Q8: What should be checked if the module reports a power fault?

Check the 24 V DC supply, wiring polarity, fuse condition, connected load, TM5 bus current demand, module seating, and controller diagnostics. Follow the required electrical isolation procedures before inspecting wiring or replacing a fuse.

12. Conclusion

The Schneider Electric TM5SPS2F Power Distribution Module is a compact component for power management in compatible Modicon TM5 automation systems. By supplying the internal TM5 power bus and distributing 24 V DC power to the I/O segment, it supports modular PLC and distributed I/O architectures used in industrial machinery.

Its 6.3 A I/O power segment rating, exchangeable fuse, and compact 99 × 12.5 × 75 mm dimensions make it suitable for appropriately designed control cabinets. Reliable performance depends on correct system selection, supply sizing, wiring, grounding, load calculations, and maintenance.

When purchasing or replacing a TM5SPS2F, verify the full model reference and the electrical requirements of the existing installation to ensure the module is appropriate for the intended application.
