Product Overview

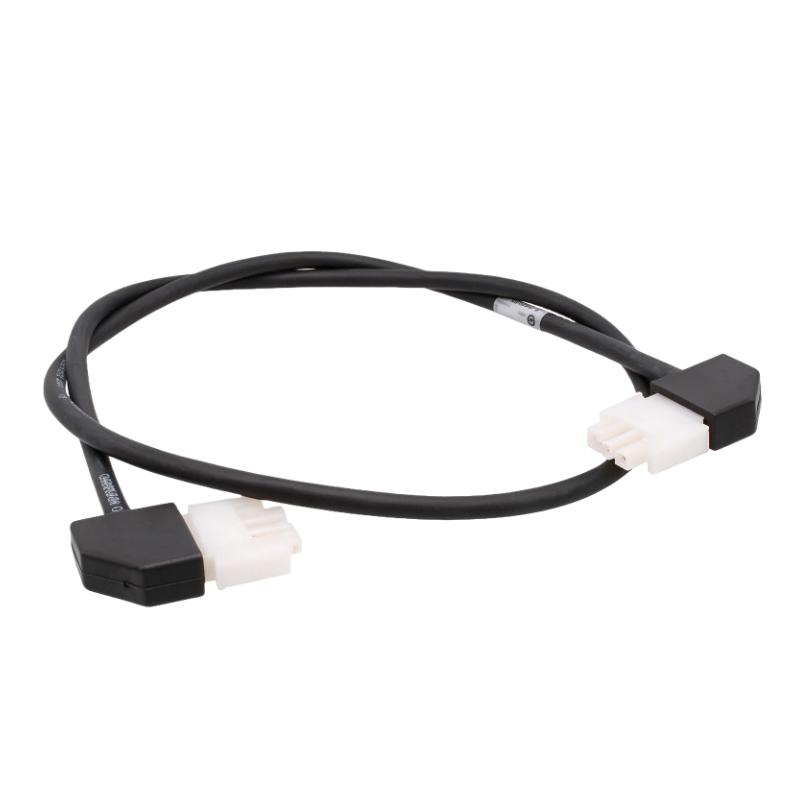

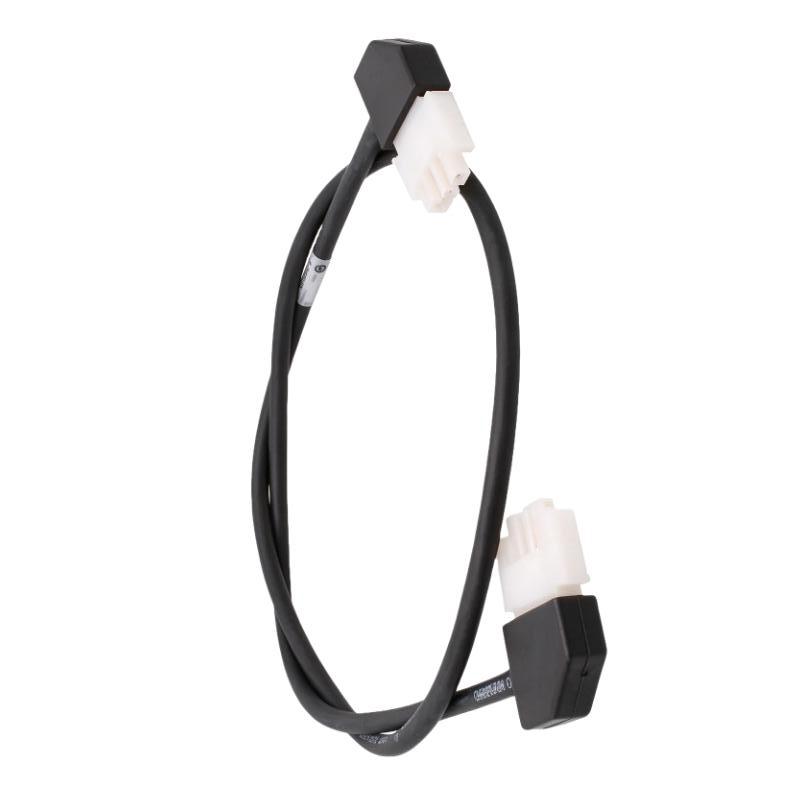

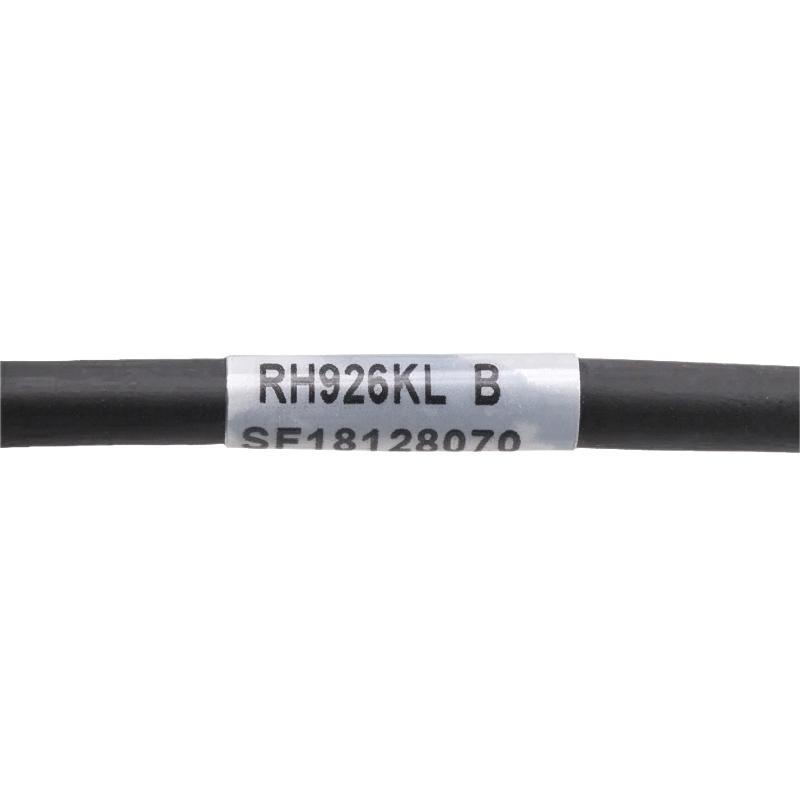

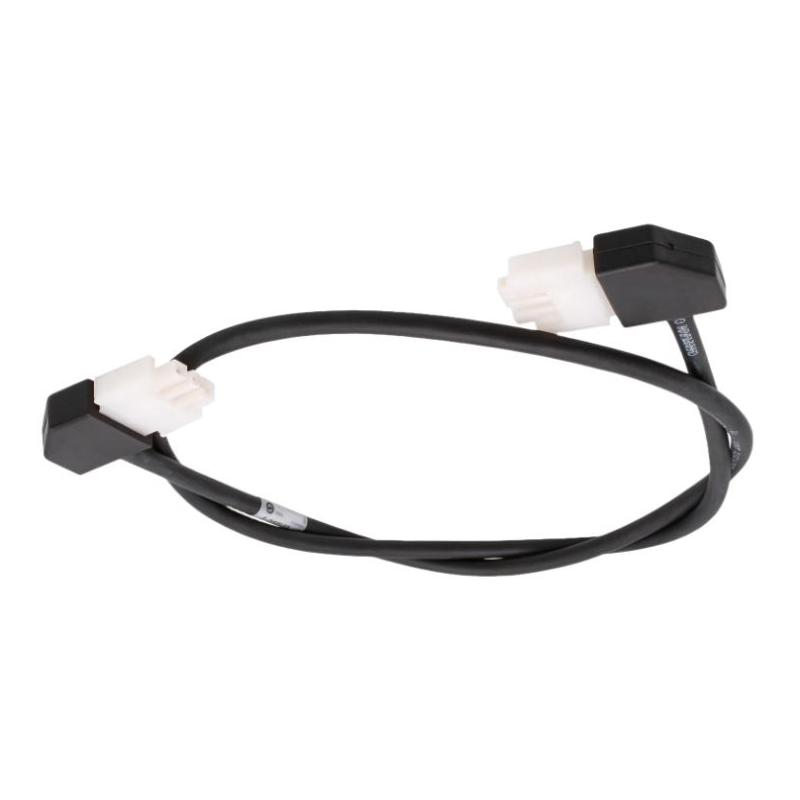

The Foxboro RH926KL is an I/A Series power supply output cable used to connect compatible Foxboro 200 Series power supplies to modular baseplates. It carries the power supply’s DC output to the baseplate, where the electrical distribution arrangement supplies compatible fieldbus modules and other control-system hardware.
The RH926KL has a cable length of 0.9 meters, making it suitable for cabinet layouts where the power supply and receiving baseplate are installed within a relatively short distance. It belongs to the modular-baseplate power cable family and is distinct from cables used to connect incoming power to the supply’s input terminal block.
The RH926KL supersedes the earlier P0926KL designation. Although the two part numbers are closely related, replacement selection should still account for the installed power supply, baseplate type and connector arrangement. Correct cable identification helps maintain the intended power path during cabinet expansion, equipment replacement and routine maintenance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Foxboro |
| Model | RH926KL |
| Legacy Model | P0926KL |
| Product Series | I/A Series |
| Product Type | Power Supply Output Cable |
| Cable Function | Power supply to modular baseplate connection |
| Cable Length | 0.9 meters |
| Cable Construction | 16 AWG shielded cable |
| Compatible Equipment | Compatible Foxboro 200 Series power supplies and modular baseplates |
| Power Distribution Application | DC output distribution to baseplates |
| Maximum Cable Quantity | Up to six compatible cables per power supply, subject to system configuration |
| Shipping Weight | 3 kg |
Product Features
- Dedicated output-power connection: Transfers power from a compatible supply to its designated modular baseplate.
- 0.9-meter cable length: Supports short-distance connections within industrial control cabinets.
- 16 AWG shielded construction: Matches the specified cable construction for the modular-baseplate power cable family.
- Modular-baseplate compatibility: Supports power distribution to compatible Foxboro 200 Series baseplates.
- Updated part identification: RH926KL supersedes the legacy P0926KL designation for the corresponding cable configuration.
- Multiple connection support: Compatible power supplies can support multiple baseplate power cables within the specified system limits.
- Cabinet wiring organization: Provides a defined cable assembly for arranging power connections between system components.
- Maintenance replacement: Offers a specific part reference for replacing an existing cable when the installed configuration requires RH926KL.
Working Principle
The RH926KL establishes an electrical connection between the output interface of a compatible Foxboro power supply and the power input of a modular baseplate. Once the connectors are correctly seated, the cable carries the supply’s DC output to the baseplate’s power-distribution interface.
The cable does not regulate voltage or perform power conversion. These functions are handled by the power supply, while the baseplate distributes the available power to compatible modules according to the subsystem design. The cable must therefore match the intended connection points and power-system configuration.
When several baseplates are connected to one supply, the overall arrangement must remain within the power supply’s output capacity and the applicable system requirements. Cable quantity alone does not determine the available power for each baseplate; the connected equipment and supply ratings must also be considered.
Role in a Foxboro I/A Series Power Distribution Architecture
The RH926KL serves as the connection between a compatible power supply and a modular baseplate. The supply generates the required DC output, the cable carries that output to the baseplate, and the baseplate provides the electrical interface for the installed control modules.
| System Component | Function | Relationship to the RH926KL |
|---|---|---|
| Foxboro RH926KL | Transfers power-supply output to a baseplate | Provides the power connection between the supply and baseplate |
| Foxboro FPS400-24 Power Supply | Supplies 24 V DC output power | Feeds the connected baseplate through the cable |
| Modular Baseplate | Provides mounting and electrical interfaces for modules | Receives power through the output cable |
| Fieldbus Modules (FBMs) | Interface field signals with the control system | Receive power through the configured baseplate arrangement |
| Field Control Processor, Where Applicable | Executes control and communication functions | Operates within the associated control-system architecture |
| Additional Baseplate Power Cables | Carry power to other compatible baseplates | Extend the power distribution arrangement within system limits |
| Power Supply Input Cable | Connects incoming power to the supply | Performs a different function from the RH926KL |
| Control Cabinet | Houses and organizes power and control equipment | Provides cable routing and component mounting |
Industrial Applications
| Application | Power Distribution Requirement | Role of the RH926KL |
|---|---|---|
| Process Automation Cabinets | DC power delivery to modular control-system baseplates | Connects the power supply to the receiving baseplate |
| Oil and Gas Facilities | Organized power connections within process-control cabinets | Supports compatible Foxboro subsystem power distribution |
| Chemical Processing Plants | Power delivery to fieldbus module assemblies | Provides the designated output-power connection |
| Power Generation Control | DC power distribution to compatible control hardware | Connects the supply output to a modular baseplate |
| Water and Wastewater Automation | Cabinet-based control-system power distribution | Supports the configured baseplate power path |
| Industrial Process Monitoring | Power connections for fieldbus modules and associated hardware | Supplies power through the designated baseplate interface |
| Control-System Expansion | Addition of compatible baseplates | Supports the planned power-cable routing arrangement |
| Maintenance and Repair | Replacement of an existing output cable | Restores the connection when RH926KL is the required cable variant |
Installation and Maintenance
- Verify the cable part number: Confirm that RH926KL matches the required output cable specification for the installed power supply and baseplate.
- Identify the baseplate type: Check the baseplate model and connection arrangement before fitting the cable.
- Isolate the power supply: Follow the site’s electrical isolation and lockout procedures before disconnecting or replacing the cable.
- Inspect the connectors: Check for damaged housings, bent contacts, contamination or other conditions that could prevent proper mating.
- Confirm connector compatibility: Ensure both ends match their designated interfaces without forcing or modifying the connectors.
- Check cable routing: Plan the route between the supply and baseplate to avoid excessive tension and interference with adjacent equipment.
- Prevent mechanical damage: Avoid sharp bends, crushing, abrasion and contact with hot surfaces or moving components.
- Maintain cabinet organization: Route the cable so that it does not obstruct module access, ventilation paths or other maintenance points.
- Secure both connections: Ensure the connectors are fully seated and any applicable retaining features are engaged.
- Verify power-system capacity: Check that the connected baseplates and installed modules remain within the power supply’s specified output limits.
- Inspect before energizing: Confirm that the cable jacket, connector seating and routing are in acceptable condition before restoring power.
- Document the replacement: Record the installed part number and any connector or wiring issues to support future maintenance and spare-parts identification.
Related Components
| Component | Function | Relationship to the RH926KL |
|---|---|---|
| Foxboro FPS400-24 Power Supply | Supplies DC output power | Provides the output connected to the baseplate through the cable |
| Foxboro Modular Baseplate | Houses and electrically connects compatible modules | Receives power through the RH926KL |
| Foxboro P0926KL | Legacy power supply output cable designation | Superseded by RH926KL for the corresponding configuration |
| Foxboro RH926KK | Modular-baseplate power cable, 0.4-meter variant | Provides a shorter cable option for compatible installations |
| Foxboro RH926KM | Modular-baseplate power cable, 1.2-meter variant | Provides a longer cable option for compatible installations |
| Foxboro RH926KN | Modular-baseplate power cable, 1.5-meter variant | Supports a longer routing distance |
| Foxboro RH926KP | Modular-baseplate power cable, 1.8-meter variant | Supports another cable-length requirement |
| Foxboro RH926KQ | Modular-baseplate power cable, 2.1-meter variant | Supports longer routing between compatible components |
| Foxboro RH923NG | Power-distribution Y-cable | Provides additional physical power connections in compatible installations |
| Foxboro RH923DG | DC input terminal block cable | Connects the input terminal block to the power supply rather than the supply to the baseplate |
Recommended Related Models
| Model | Product Type | Relationship | Selection Consideration |
|---|---|---|---|
| Foxboro RH926KL | I/A Series Power Supply Output Cable | Main product | 0.9-meter cable for compatible modular baseplates |
| Foxboro P0926KL | I/A Series Power Supply Output Cable | Legacy designation | Corresponding earlier cable reference |
| Foxboro RH926KK | I/A Series Power Supply Output Cable | Shorter cable variant | 0.4-meter length for compatible installations |
| Foxboro RH926KM | I/A Series Power Supply Output Cable | Longer cable variant | 1.2-meter length for compatible installations |
| Foxboro RH926KN | I/A Series Power Supply Output Cable | Longer cable variant | 1.5-meter length for compatible installations |
| Foxboro RH926KP | I/A Series Power Supply Output Cable | Longer cable variant | 1.8-meter length for compatible installations |
| Foxboro RH926KQ | I/A Series Power Supply Output Cable | Longer cable variant | 2.1-meter length for compatible installations |
| Foxboro RH923NG | I/A Series Power Distribution Y-Cable | Related distribution component | Used to add physical power connections in compatible FPS400 installations |
Key Advantages
- Provides a defined 0.9-meter connection between compatible power supplies and modular baseplates.
- Uses the specified 16 AWG shielded cable construction.
- Supports organized DC power distribution within Foxboro 200 Series control cabinets.
- Provides a current part-number reference corresponding to the earlier P0926KL designation.
- Keeps baseplate output-power wiring distinct from input-terminal-block and signal connections.
Technical FAQs
Which Foxboro equipment is the RH926KL intended to connect?
The RH926KL connects a compatible Foxboro 200 Series power supply to a modular baseplate. The power supply model and baseplate type should be checked to confirm that the cable belongs to the intended power-distribution arrangement.
How does RH926KL differ from RH926KK and RH926KM?
The principal distinction is cable length. RH926KL is 0.9 meters, RH926KK is 0.4 meters, and RH926KM is 1.2 meters. Selection should account for the cabinet layout and the required connection distance while retaining the correct cable family.
Can the RH926KL replace the older P0926KL cable?
RH926KL supersedes P0926KL for the corresponding modular-baseplate power cable configuration. Before replacement, verify the installed baseplate type and connection arrangement rather than relying on the part-number relationship alone.
What should be investigated if a baseplate does not receive power after installation?
Check that the correct cable variant is installed and that both connectors are fully seated. Also inspect the power supply’s status, the baseplate connection and the overall subsystem power demand. Isolate the equipment before disconnecting or inspecting electrical connections.
