Bently Nevada 3500/91-01-01-00 — Product Specifications, Technical Description, Industrial Applications, Advantages, and Recommended Models

1. Product Overview

The Bently Nevada 3500/91-01-01-00 is a model designation associated with the 3500 machinery protection and condition monitoring product family. When evaluating this model, the first priority is to establish its precise function, configuration, and compatibility with the existing monitoring system.

The 3500 product family is designed for industrial machinery monitoring, including the collection, processing, and communication of operating-condition data. Depending on the installed module, the system can support vibration monitoring, shaft-position measurements, temperature monitoring, speed measurements, alarm handling, and communication with external plant systems.

A model in this family should not automatically be treated as a sensor or a standalone protection device. Many 3500 modules are designed to operate within a rack-based system and depend on compatible rack hardware, power supplies, configuration software, and associated modules.

For the specific designation 3500/91-01-01-00, the complete ordering code should be verified before assigning detailed electrical, communication, or physical specifications. The exact function of the 3500/91 module and the meanings of the three suffix fields should not be inferred solely from the model number.

The following guide covers the product identification, relevant technical considerations, potential industrial applications, selection criteria, and ten related models. Unconfirmed values are identified explicitly instead of being presented as guaranteed specifications.

2. Brand and Product Series

The dimensions and weights above describe the main gateway module and its associated I/O module separately. The combined assembly weight is approximately 1.18 kg before adding cables, accessories, and packaging.

The complete ordering suffix should be checked against the applicable configuration documentation to confirm the exact communication interface and approval options.

3. Detailed Technical Specifications

3.1 Main Hardware Parameters

3.2 Communication Parameters

The 3500/91 is a communication gateway rather than a direct vibration or temperature sensor. Its primary task is to make selected monitoring information available to compatible external systems.

The gateway does not automatically transmit every measurement from every installed module. The information available to an external system depends on the supported data set, configuration, protocol, and communication mapping.

3.3 Physical Installation Parameters

The combined module weight is calculated from the separate main-module and I/O-module figures. It excludes external switches, cables, termination accessories, and packaging.

4. Product Introduction

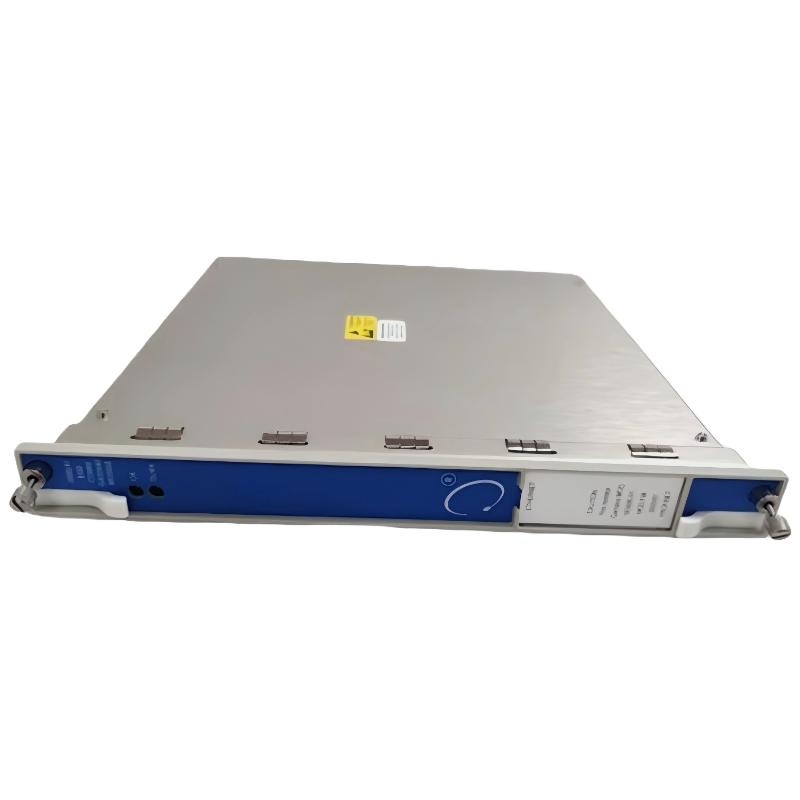

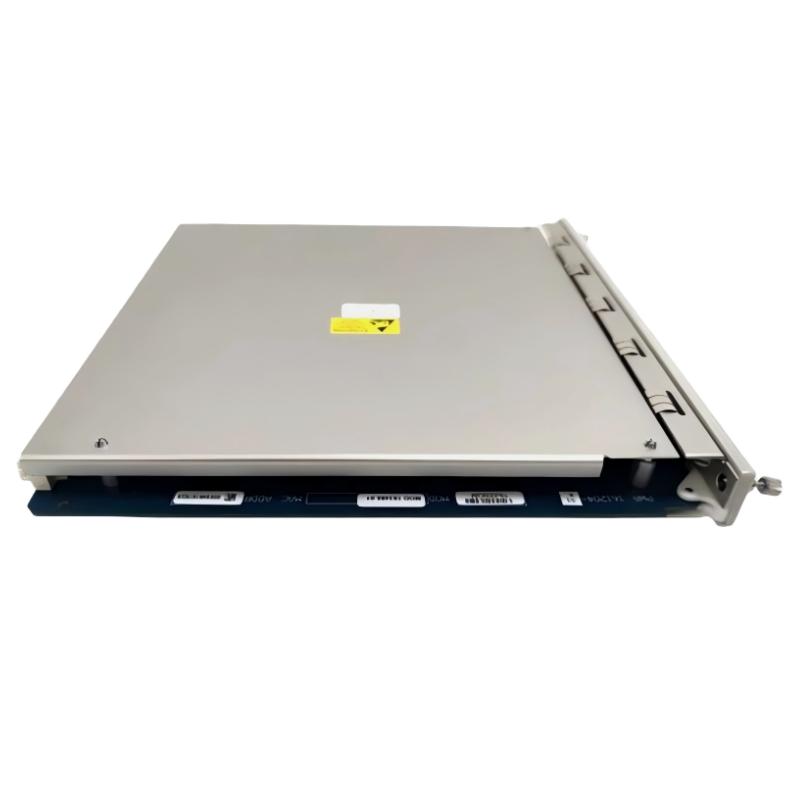

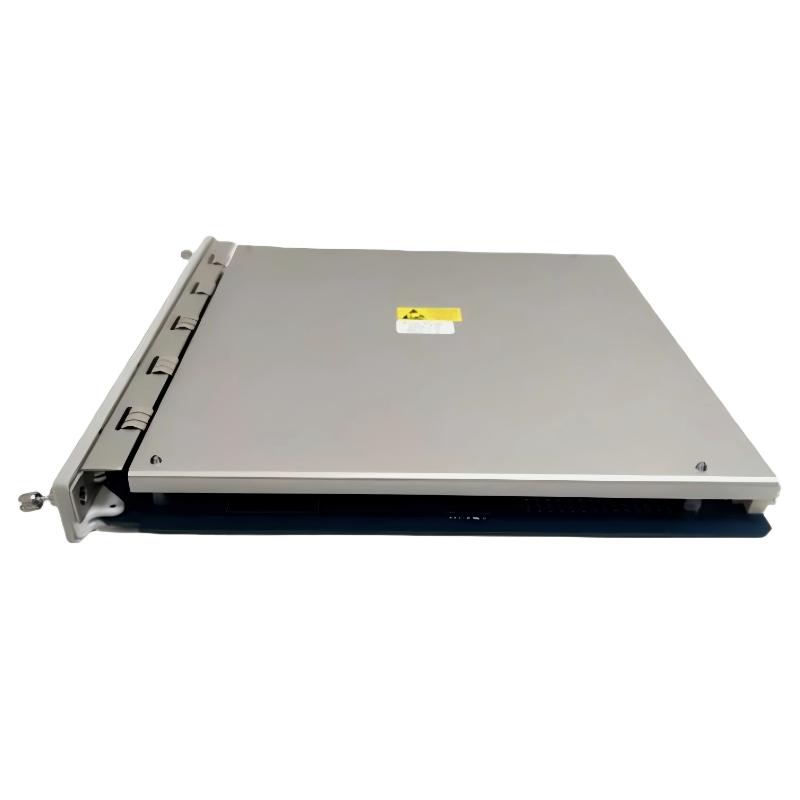

4.1 What Is the 3500/91 Communication Gateway?

The 3500/91 is an EGD communication gateway designed to connect the 3500 machinery protection platform with compatible external systems.

Industrial machinery protection systems collect information from sensors and monitoring modules. Although this information is useful locally, plant operators may also need it in a distributed control system, supervisory monitoring platform, or centralized equipment information system.

The gateway provides a communication path for transferring supported information from the 3500 rack to those external systems. This allows machinery measurements and system status information to be used alongside other plant operating data.

For example, a plant operator may need to review a compressor’s vibration measurement, operating status, and alarm condition without accessing the machinery protection rack directly. A properly configured communication gateway can make supported information available through the plant’s established monitoring architecture.

4.2 How the Gateway Works

The gateway acts as a communication interface. It does not replace the monitoring modules that acquire and process the original sensor signals.

4.3 Role in Machinery Protection

Machinery protection depends on accurate measurements, correctly configured alarm limits, and a suitable protection architecture.

The 3500/91 supports the communication side of that architecture. It can make selected monitoring information available to other systems so that operators can review equipment conditions and incorporate machinery data into wider plant operations.

The gateway should not be regarded as a replacement for the rack’s monitoring and protection functions. The actual protection response depends on the complete installed system and its configured logic.

4.4 Role in Data Integration

A plant may contain many rotating machines, each with its own monitoring requirements. Without suitable communication interfaces, information from different racks can be difficult to consolidate.

A gateway can help connect machinery monitoring data with the plant’s existing control or information infrastructure. Depending on the configuration, the transferred data can support operating displays, alarm summaries, historical trends, and maintenance analysis.

The available data and update behavior must be confirmed during engineering design. A communication gateway does not by itself guarantee compatibility with every external control system.

5. Industrial Applications

5.1 Oil and Gas

Oil and gas facilities often operate compressors, turbines, pumps, and other rotating equipment that require continuous condition monitoring.

The 3500/91 can support the transfer of selected machinery monitoring information to compatible external systems, helping operators review equipment conditions within the wider plant environment.

Typical applications include gas compression stations, production facilities, processing plants, and transmission installations.

5.2 Petrochemical Plants

Petrochemical facilities frequently use multiple machinery protection racks across different process units.

A communication gateway can make selected equipment measurements and alarm information available to compatible plant systems, helping maintenance personnel compare operating conditions and identify equipment that requires attention.

5.3 Refineries

Refineries depend on reliable operation of compressors, pumps, turbines, and other rotating machinery.

The 3500/91 can support integration between compatible machinery monitoring racks and plant-level monitoring systems. This helps operators review equipment status alongside process information.

5.4 Power Generation

Power plants use machinery monitoring systems to observe critical rotating equipment.

When installed in a compatible configuration, the gateway can transfer selected monitoring information to external systems for operational display and condition assessment.

The gateway itself does not measure vibration, shaft displacement, or temperature; those measurements originate from the relevant monitoring modules.

5.5 Industrial Manufacturing

Large manufacturing facilities may operate motors, pumps, compressors, fans, and other rotating equipment.

A communication gateway can help centralize supported monitoring information, making it easier for maintenance teams to review machinery status and coordinate inspections.

5.6 Centralized Machinery Monitoring

Facilities with multiple monitoring racks may need a consistent method of transmitting equipment information to a central system.

The 3500/91 can be considered when its supported communication protocols match the plant network and the external system can interpret the configured data.

The number of racks, network architecture, update requirements, and supported data points should all be considered during selection.

6. Main Product Advantages

6.1 Communication Between Machinery and Plant Systems

The primary advantage of the 3500/91 is its role as a gateway between the 3500 machinery protection platform and compatible external systems.

This reduces the need for operators to access each monitoring rack separately when the required information is available through the configured communication interface.

6.2 Support for Industrial Data Integration

Communication functionality can make machinery measurements more useful to operations and maintenance personnel.

When supported data is available in a compatible plant system, it can be reviewed alongside process conditions, operating records, and maintenance information.

6.3 Support for Multiple Communication Environments

The 3500/91 family supports EGD and is associated with Modbus and Modbus/TCP communication capabilities.

This can provide flexibility when integrating machinery monitoring equipment with existing plant networks. However, the exact protocols and interfaces available on the selected configuration must be confirmed.

6.4 Rack-Based Integration

The gateway is designed to work within the compatible 3500 rack architecture.

For an existing installation, this can provide a more consistent integration approach than introducing an unrelated standalone controller solely for collecting monitoring data.

Compatibility depends on the installed hardware, software, and communication configuration.

6.5 Access to Monitoring Status

Where supported and correctly configured, the gateway can communicate selected measurement values and system-status information.

This can help operators identify equipment conditions that need further investigation and can support the creation of centralized monitoring displays.

6.6 Reduced Manual Data Collection

When monitoring data is automatically transferred to a compatible external system, staff may spend less time manually collecting information from individual racks.

The practical benefit depends on which data is exposed, the reliability of the network, and the quality of the receiving system’s displays and alarms.

6.7 Support for Condition-Based Maintenance

Centralized machinery data can help maintenance teams compare trends and prioritize inspections.

For example, a change in vibration level may be easier to investigate when the relevant machine status and operating information are available in the same monitoring environment.

The gateway enables communication; the quality of the maintenance decision still depends on the measurement data and engineering assessment.

6.8 Compact Modular Design

The main module occupies one full-height front slot in the compatible rack, while its I/O module occupies a rear slot.

This modular approach supports integration within the existing rack layout without requiring the gateway to be installed as an entirely separate cabinet-mounted controller.

7. Five Related Models in the 3500 Series

The following models are relevant when planning a communication architecture or expanding the monitoring capabilities of an existing 3500 installation.

The physical values listed for the 3500/92 are representative of the standard module envelope and should be checked against the precise ordering code. The remaining modules require verification of their own physical specifications rather than inheriting the 3500/91 dimensions and weight.

7.1 3500/92 Communication Gateway

The 3500/92 is the closest alternative to consider when the primary requirement is communication between a 3500 rack and an external plant system.

It supports integration with compatible process control and automation networks. Its communication configuration can provide a defined set of monitoring data through a Modbus map.

The choice between the 3500/91 and 3500/92 depends on the required protocol, external-system compatibility, available configuration options, and the data that must be transferred.

Best suited for: applications where the required communication interface and data mapping match the 3500/92 capabilities.

7.2 3500/22M Transient Data Interface

The 3500/22M is a transient data interface module used within compatible 3500 monitoring systems.

Its role differs from that of the 3500/91. The 3500/22M supports rack communication and transient-data functions, while the 3500/91 serves as a communication gateway to external systems.

It may be relevant when an installation requires the associated rack interface or data access functionality. Compatibility and system architecture should be checked before adding or replacing this module.

Best suited for: compatible 3500 installations requiring transient-data interface functionality.

7.3 3500/25 Enhanced Keyphasor Module

The 3500/25 processes compatible keyphasor signals that provide rotational reference information.

It does not replace the communication gateway, but its measurement information may be relevant to the wider monitoring system. Rotational-reference data can help engineers interpret machinery behavior and correlate measurements with operating conditions.

Best suited for: installations requiring compatible rotational-reference signal processing.

7.4 3500/32M Four-Channel Relay Module

The 3500/32M provides four relay channels for configured alarm and control applications.

In a monitoring system, relay outputs may be used to communicate selected status conditions to external equipment. The actual response depends on the configured logic and the receiving equipment.

Best suited for: installations requiring relay-based alarm or control interfaces.

7.5 3500/50M Tachometer Module

The 3500/50M is designed for rotational-speed monitoring using compatible inputs.

Speed data can complement vibration and other machinery measurements by helping engineers understand how operating speed relates to changes in equipment condition.

Best suited for: compatible machinery installations that require rotational-speed information.

8. Five Popular Bently Nevada Models for Broader Monitoring

These five models cover important measurement functions commonly used alongside communication gateways in machinery protection systems.

8.1 3500/42M Proximitor/Seismic Monitor

The 3500/42M supports compatible proximity and seismic measurement applications.

It can be used to monitor selected vibration and position-related parameters on suitable machinery. When integrated with a communication gateway, supported measurements can be made available to external monitoring systems.

The gateway and monitor perform different functions: the 3500/42M processes its measurement inputs, while the 3500/91 handles supported data communication.

8.2 3500/40M Proximitor Monitor

The 3500/40M processes compatible proximity-probe signals used in machinery condition monitoring.

Such measurements can help assess shaft vibration and relative shaft position in suitable installations. They can be used alongside other monitoring information to investigate changes in machine behavior.

The correct probe type, electrical compatibility, and monitor configuration must be confirmed before installation.

8.3 3500/65 Temperature Monitor

The 3500/65 is used for compatible temperature-monitoring applications.

Temperature measurements can help identify thermal trends and support investigations into bearing conditions, lubrication performance, and other monitored operating parameters.

When the temperature data is available through a compatible rack communication arrangement, it can be included in the external system’s monitoring displays.

8.4 3500/72M Reciprocating Rod-Position Monitor

The 3500/72M is intended for rod-position monitoring in compatible reciprocating machinery applications.

Rod-position data can provide information about piston-rod movement and support investigation of abnormal mechanical behavior.

For facilities operating reciprocating compressors, this measurement function can complement the broader monitoring architecture and provide additional information for maintenance decisions.

8.5 3500/77M Reciprocating Cylinder Pressure Monitor

The 3500/77M monitors compatible cylinder-pressure signals and calculates variables associated with reciprocating compressor operation.

Its measurements can support assessment of pressure behavior and selected mechanical loading parameters. The information can be useful in compressor installations where cylinder pressure is a critical operating variable.

The 3500/77M is a measurement module, not a communication gateway. Its role is complementary to the 3500/91.

9. Comparison of the Recommended Models

The most appropriate choice depends on the intended function. If the objective is communication between a compatible 3500 rack and an external control system, the 3500/92 is the closest model to evaluate alongside the 3500/91.

If the requirement is to acquire new vibration, temperature, speed, or pressure measurements, the appropriate monitoring module must be selected first. A communication gateway cannot replace the measurement hardware.

10. Installation and Commissioning Considerations

10.1 Confirm the Exact Ordering Configuration

The complete designation 3500/91-01-01-00 should be checked against the required protocol, interface, and approval configuration.

Do not assume that a suffix used on a different 3500/91 ordering code has the same meaning for every configuration.

10.2 Verify Rack Compatibility

Confirm the rack model, available slot, power-supply arrangement, and installed system interface modules.

The 3500/91 is intended for compatible rack installation. It should not be treated as a standalone Ethernet controller.

10.3 Check the External I/O Module

The associated I/O module provides the physical interface required for the selected communication arrangement.

Its connector type, supported interface, and compatibility with the main module should be checked before replacement or commissioning.

10.4 Configure Network Parameters

Depending on the selected protocol and installation, the configuration process may involve network addressing, communication settings, and data mapping.

The receiving control or monitoring system must be configured to interpret the transmitted data correctly.

10.5 Verify Data Mapping

A gateway may expose only selected measurements and status information.

Before commissioning, verify that the required variables are available and that the external system maps each value to the correct equipment, channel, and measurement type.

10.6 Test Communication and Alarm Reporting

Commissioning should include confirmation that the gateway communicates correctly with the external system and that the expected measurements and status conditions are received.

Alarm and protection functions should be validated according to the site’s approved procedures. Communication availability alone does not prove that the complete machinery protection function is working correctly.

11. Maintenance and Troubleshooting

Troubleshooting should begin by separating a measurement problem from a communication problem. If a value is incorrect at the monitoring module itself, replacing the gateway may not resolve the issue.

Likewise, if the rack displays the correct measurement but the external system displays an incorrect value, the problem may be associated with communication settings, data mapping, or external-system interpretation.

12. Procurement Checklist

13. Final Product Summary

The Bently Nevada 3500/91-01-01-00 is an EGD communication gateway module within the 3500 machinery protection series. Its principal purpose is to transfer supported monitoring information from a compatible 3500 rack to external control, monitoring, and plant information systems.

The gateway supports industrial data integration and can help operators review selected machinery measurements and system-status information through an established plant monitoring architecture. It does not independently measure vibration, temperature, shaft displacement, or cylinder pressure; those measurements originate from the corresponding monitoring modules.

The main module has nominal dimensions of 241.3 × 24.4 × 241.8 mm and a weight of 0.79 kg. The associated I/O module has nominal dimensions of 241.3 × 24.4 × 99.1 mm and a weight of 0.39 kg. These values refer to the individual hardware components and exclude external accessories and packaging.

The 3500/92 is the most relevant alternative when evaluating another communication gateway. The 3500/22M may be relevant for rack communication and transient-data requirements, while the 3500/25, 3500/32M, and 3500/50M provide timing, relay, and speed-monitoring functions.

For a wider machinery monitoring installation, the 3500/42M, 3500/40M, 3500/65, 3500/72M, and 3500/77M provide complementary measurement functions.

The key selection criteria are the exact ordering configuration, communication protocol, rack compatibility, supported data, and physical installation requirements. Before purchasing a replacement, confirm the complete model number and associated I/O module rather than relying on the general 3500/91 designation alone.
