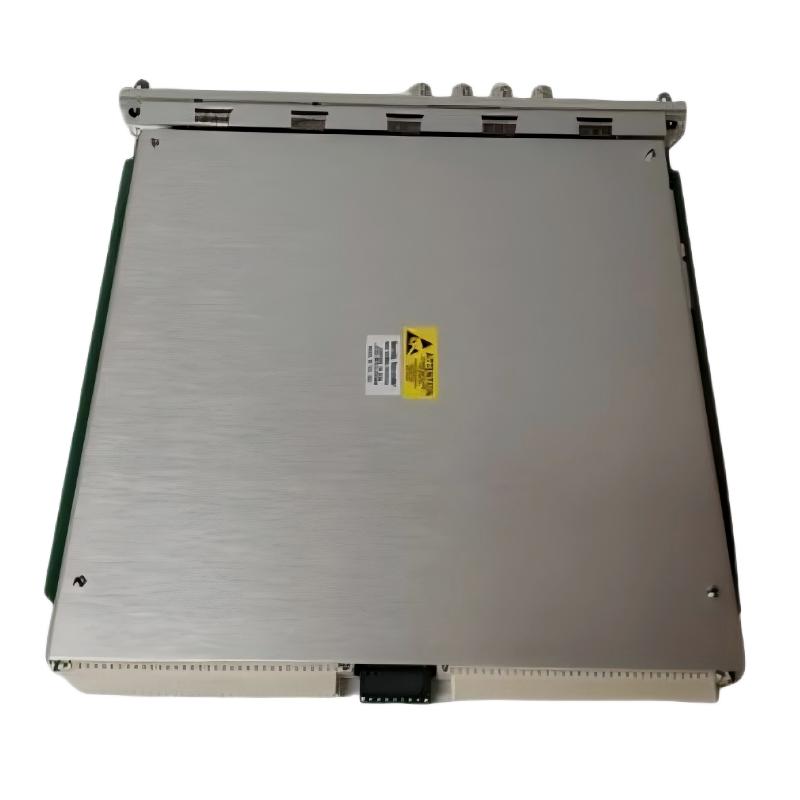

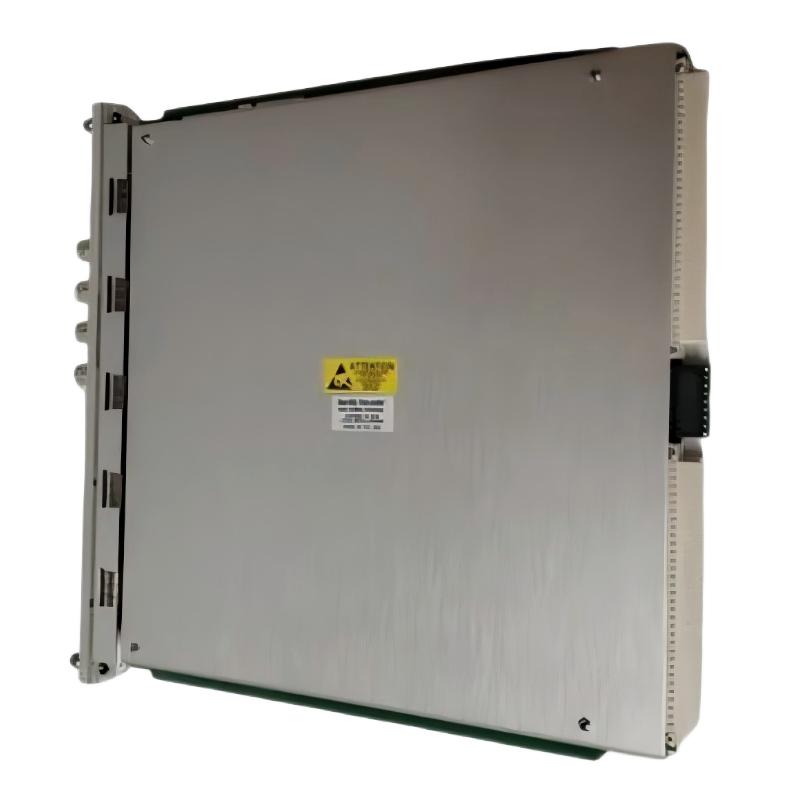

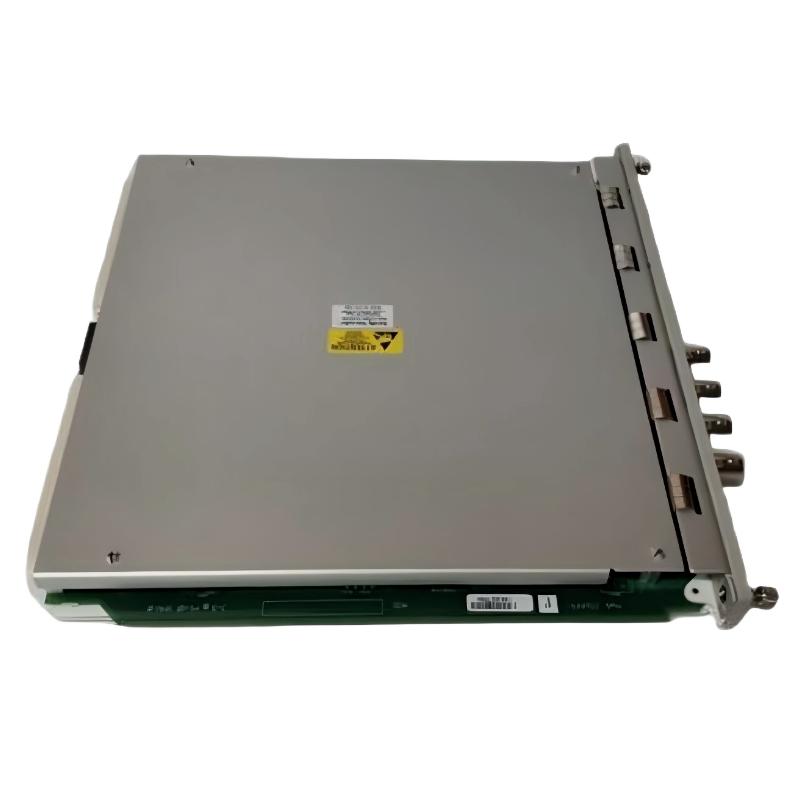

Bently Nevada 3500/77M-03-00 (176449-07) Product Specifications, Technical Overview, Applications, Advantages, and Related Models

1. Product Overview

The Bently Nevada 3500/77M-03-00, part number 176449-07, is a model designation associated with the Bently Nevada 3500 machinery protection and condition monitoring platform. When preparing technical documentation for this model, it is important to distinguish the module’s exact configuration from the capabilities of the overall 3500 system.

The 3500 platform is designed to monitor machinery operating conditions, identify abnormal mechanical behavior, and provide signals that can support alarms, protective actions, and maintenance decisions. It is commonly associated with industrial equipment that requires continuous monitoring and reliable operating-condition assessment.

For procurement, maintenance, and engineering purposes, the full model designation and part number should be retained together. Similar-looking part numbers may refer to different hardware revisions, configurations, or accessories, so the exact module specifications should be confirmed against the applicable equipment documentation before installation or replacement.

This description provides a structured technical overview, typical industrial applications, key platform advantages, and related model recommendations. Exact dimensions, mass, electrical ratings, and configuration-specific features for part number 176449-07 are not independently verified here. Those values are explicitly identified rather than presented as confirmed manufacturer specifications.

2. Product Identification and Basic Information

The dimensions and weight above refer to the monitor module itself. The rear I/O module, termination accessories, wiring, and packaging have separate physical specifications and should not be included in the monitor’s stated mass.

3. Detailed Product Introduction

3.1 Product Function

The 3500/77M is a reciprocating cylinder pressure monitoring module intended for machinery installations where pressure behavior inside compressor cylinders is an important indicator of operating condition.

Unlike a general-purpose vibration monitor, which focuses on shaft motion, bearing vibration, or casing vibration, this module concentrates on dynamic cylinder-pressure signals. It processes signals from compatible pressure transducers and calculates operating variables that help engineers assess cylinder performance and mechanical loading.

Reciprocating compressors produce cyclic pressure changes as their pistons move through suction and compression stages. Those pressure changes are expected, but unusual patterns can indicate valve leakage, changes in gas loading, abnormal operating conditions, or developing mechanical problems.

By monitoring pressure signals over time, the module can help maintenance personnel identify deviations from established operating patterns and determine when additional inspection is necessary.

3.2 Monitoring and Measurement Capabilities

The monitor supports up to four pressure-measurement channels. Depending on the installed transducers and configured measurement ranges, it can derive several useful operating variables.

The exact variables available in a working installation depend on the module configuration, sensor arrangement, and associated timing or crank-angle information. The monitor does not independently measure every listed quantity using a separate physical sensor; several variables are calculated from the input signals and configured measurement information.

3.3 Signal Processing and Monitoring

The module accepts compatible positive-voltage pressure-transducer signals and conditions them for monitoring and calculation.

Its specified frequency response extends from 0 to 5.5 kHz on configured pressure channels, allowing it to process dynamic pressure changes associated with reciprocating machinery. This is important because the shape and timing of a pressure waveform can be as useful as its average value.

The module also provides buffered transducer outputs for diagnostic purposes. These outputs allow qualified personnel to examine the input signal with suitable test equipment without relying exclusively on calculated values shown by the monitoring system.

Front-panel indicators provide information about the module’s operating state, communication status, and bypass condition. These indicators are useful during commissioning, routine inspection, and troubleshooting.

3.4 Integration With the 3500 System

The 3500/77M is intended to operate as part of a compatible 3500 rack-based monitoring and protection installation.

A typical installation includes the monitor module, a compatible rear I/O module, approved pressure transducers, suitable field wiring, and the necessary configuration software. Depending on the installation, additional timing components may be required to relate pressure measurements to crank position.

The complete installation must be checked as a system. Matching the front module alone does not guarantee compatibility with existing termination hardware, wiring arrangements, firmware, or protection logic.

For a replacement project, the existing rack configuration and installed rear I/O module should be identified before an order is placed.

4. Technical Specifications in Detail

The following table consolidates the principal performance and installation parameters for the 3500/77M, part number 176449-07.

4.1 Pressure Scaling

The module’s pressure scaling must match the characteristics of the installed transducer. The following values represent the documented scaling options associated with the 3500/77M family.

These scaling factors are associated with the specified transducer voltage-to-pressure relationship. The actual range must be selected according to the transducer’s calibration information and the intended measurement application.

A mismatch between the configured scaling and the installed transducer can produce incorrect pressure readings even when the monitor itself is functioning normally.

4.2 Physical Dimensions and Weight

For equipment planning, the monitor’s physical dimensions are approximately 241.3 mm high, 24.4 mm wide, and 241.8 mm deep.

The stated monitor weight is 0.91 kg. This is the module’s listed mass, not the shipping weight of a complete replacement package.

The corresponding I/O module is a separate component. Its dimensions and mass depend on the selected termination arrangement, so the combined installed mass should be calculated from the actual hardware configuration rather than inferred from the monitor specification alone.

5. Product Applications

5.1 Oil and Gas Industry

In oil and gas production, reciprocating compressors are used for gas gathering, gas boosting, transmission, reinjection, and other pressure-management processes.

Cylinder pressure is an important operating parameter because it reflects gas compression behavior and can help reveal changes in process conditions. The 3500/77M can monitor selected cylinder-pressure signals and provide calculated values for comparison against configured alarm limits.

Typical applications include:

• Natural gas compression stations.

• Gas processing and gathering facilities.

• Compressor trains in production installations.

• Gas reinjection and pressure-boosting systems.

• Continuous-duty reciprocating compressor packages.

The module is particularly relevant when operators need more information than general vibration measurements can provide.

5.2 Petrochemical and Chemical Processing

Petrochemical plants often operate compressors under changing process loads, gas compositions, and discharge-pressure requirements.

Pressure monitoring can help engineers recognize changes in compressor performance and identify operating conditions that require further investigation. When combined with vibration, temperature, flow, and process-pressure data, cylinder-pressure measurements can contribute to a more complete equipment assessment.

Typical applications include process-gas compression, hydrogen-related compression duties, chemical feed-gas systems, and other compatible reciprocating compressor installations.

5.3 Refining and Industrial Gas Systems

Refineries and industrial gas facilities depend on compressors to maintain stable process conditions and reliable equipment operation.

The monitor can support the assessment of cylinder pressure, compression ratio, and calculated rod-loading variables. These measurements can be useful when investigating recurring operating alarms, abnormal loading, or performance changes after maintenance.

The appropriate pressure range and sensor configuration must be selected for the particular compressor and process conditions.

5.4 Fertilizer and Ammonia Production

Reciprocating compressors may operate in high-pressure gas applications associated with fertilizer and ammonia production.

In these installations, abnormal pressure behavior can have implications for compressor performance, mechanical loading, and process reliability. Monitoring cylinder-pressure patterns can help engineers distinguish normal load variations from changes that warrant inspection.

The module’s suitability for any specific high-pressure application depends on the transducer ratings, installation approvals, and the compressor manufacturer’s requirements.

5.5 Power Generation and Utility Facilities

Some power-generation and utility facilities use reciprocating compressors for fuel-gas handling, auxiliary systems, and other plant services.

Where reciprocating machinery is installed, cylinder-pressure monitoring can provide supplementary information about operating performance. It can also help maintenance teams establish historical operating patterns and investigate changes following repairs or adjustments.

The 3500/77M is not a universal vibration or temperature monitor; its value lies in applications where compatible cylinder-pressure measurements are required.

6. Product Advantages

6.1 Dedicated Cylinder-Pressure Monitoring

The principal advantage of the 3500/77M is its focus on reciprocating compressor pressure signals.

A general vibration monitor can identify many mechanical abnormalities, but vibration data alone may not fully describe cylinder compression behavior. Cylinder-pressure monitoring adds another measurement perspective, helping engineers investigate issues that may not be obvious from vibration readings alone.

6.2 Multi-Channel Measurement

The monitor supports up to four pressure channels.

This allows several selected pressure points to be monitored through a single module. Depending on the compressor layout, these channels can be allocated to cylinders or measurement locations that are particularly important to the operating strategy.

Multi-channel monitoring can also reduce the need to treat each measurement point as a completely separate monitoring installation.

6.3 Dynamic Signal Response

The specified 0–5.5 kHz frequency response supports the analysis of changing pressure signals rather than only slow process-pressure variations.

This is useful in reciprocating machinery because the pressure waveform changes throughout each operating cycle. Its timing, shape, and peak values can help engineers assess compressor behavior and investigate developing problems.

6.4 Calculation of Useful Operating Variables

The monitor can derive variables such as maximum and minimum cylinder pressure, compression ratio, and peak rod compression and tension.

These calculated parameters can provide a more useful operating picture than a single pressure reading. They help maintenance personnel compare operating conditions with established limits and investigate changes in mechanical loading.

The usefulness of each variable depends on correct sensor scaling, configuration, and any required timing information.

6.5 Integration With a Machinery Protection Platform

The 3500/77M is designed for integration into the 3500 rack architecture.

For sites that already use compatible 3500 equipment, adding or replacing a monitor can preserve a common platform for equipment monitoring and maintenance.

However, rack compatibility should not be confused with universal interchangeability. I/O hardware, software versions, configuration requirements, and approval conditions must be checked before replacement.

6.6 Diagnostic Visibility

Front-panel status indicators and buffered transducer outputs support routine inspection and troubleshooting.

Technicians can check whether the module indicates normal operation, communication activity, or bypass status. Qualified personnel can also examine buffered signals using appropriate diagnostic instruments.

These features can make it easier to separate sensor or wiring problems from configuration issues or abnormal compressor behavior.

6.7 Support for Condition-Based Maintenance

Historical pressure data and calculated variables can help maintenance teams identify changes in equipment behavior.

When the module is used alongside vibration, temperature, lubrication, and process measurements, it can support maintenance decisions based on observed condition rather than fixed service intervals alone.

This approach may help prioritize inspections and reduce unnecessary intervention, although actual savings depend on the installation, operating conditions, and maintenance program.

7. Limitations and Selection Considerations

Although the 3500/77M provides useful monitoring capabilities, several considerations should be addressed before purchasing or installing it.

The monitor should not be treated as a standalone substitute for a complete compressor protection strategy. Correct sensor installation, configuration, alarm management, and integration with the overall machinery protection system remain essential.

8. Five Same-Series or Closely Related Models

The following five models are relevant when evaluating alternatives within the 3500 platform. They perform different monitoring or system functions, so they should be selected according to the required measurement rather than treated as direct replacements for the 3500/77M.

For physical specifications, the table distinguishes the known 3500 rack-module envelope from model-specific values that require confirmation. Similar rack dimensions do not establish electrical or functional interchangeability.

8.1 Model 3500/72M

The 3500/72M is a particularly relevant related model for reciprocating machinery. Its focus is rod-position monitoring rather than cylinder-pressure measurement.

Rod-position information can help assess piston-rod movement and identify changes that warrant further mechanical investigation. It complements cylinder-pressure measurements because pressure behavior and rod movement describe different aspects of compressor operation.

Recommended when: the application requires rod-position monitoring or a broader reciprocating-compressor monitoring arrangement.

8.2 Model 3500/42M

The 3500/42M is a versatile proximity and seismic monitoring module used in machinery protection applications.

It is relevant when the installation requires vibration, shaft-motion, or related dynamic measurements. These measurements complement cylinder-pressure data when engineers need to examine both process-related behavior and mechanical response.

Recommended when: the primary requirement is compatible proximity or seismic measurement rather than cylinder pressure.

8.3 Model 3500/40M

The 3500/40M is designed for proximity-probe monitoring.

It is commonly associated with measurements used to assess shaft vibration and relative shaft position in compatible rotating machinery. In a compressor installation, it may provide complementary information about mechanical behavior that cannot be obtained from pressure measurements alone.

Recommended when: the monitoring objective centers on proximity-probe signals.

8.4 Model 3500/45

The 3500/45 family is associated with differential expansion and related position measurements.

Such measurements are important in machinery where relative movement between a shaft, casing, or other mechanical reference points must be monitored. This is a different measurement function from cylinder-pressure monitoring.

Recommended when: the application requires compatible expansion or position measurements.

8.5 Model 3500/65

The 3500/65 is a temperature-monitoring module intended for compatible temperature sensors.

Temperature measurements can help assess bearing conditions, lubrication performance, and other thermal operating characteristics when suitable sensors are installed.

Recommended when: the system requires multi-channel temperature monitoring to complement pressure or vibration measurements.

8.6 Physical Specification Notes for the Related Models

A standard full-height 3500 monitor module may occupy an envelope close to 241.3 × 24.4 × 241.8 mm, but this should not be applied automatically to every model or hardware revision.

Likewise, the 0.91 kg mass specified for the 3500/77M should not be copied into the specifications of other modules. Exact dimensions and weights should be confirmed using the complete ordering number, revision, and associated I/O configuration before preparing a bill of materials or shipping estimate.

9. Five Popular Bently Nevada Models for Industrial Applications

The following five models cover several widely used functions within the same machinery monitoring ecosystem. They are suitable candidates for comparison when planning a new monitoring system, expanding an existing rack, or selecting replacement parts.

The physical dimensions and weights of these alternatives are not confirmed here for every ordering variant. To avoid confusing nominal rack-module dimensions with verified model-specific measurements, the physical specification fields identify what must be confirmed before procurement.

9.1 3500/25 Enhanced Keyphasor Module

The 3500/25 is intended for keyphasor signal processing. A keyphasor signal provides a rotational reference that helps correlate machinery measurements with shaft position or rotational timing.

In reciprocating machinery, suitable timing information can also be important when pressure measurements must be associated with the compressor’s operating cycle. However, the specific timing arrangement required by a 3500/77M installation must be verified separately.

Its main advantages include rotational reference processing, support for synchronized measurement applications, and integration with compatible 3500 monitoring configurations.

9.2 3500/32 Four-Channel Relay Module

The 3500/32 provides relay outputs for configured monitoring and protection logic.

Relays can be used to transmit selected alarm or status conditions to external control or annunciation equipment. Depending on the system design, these outputs may support alarm indication, interlocking, or other configured responses.

This module does not replace the cylinder-pressure monitor. Instead, it can form part of the wider protection architecture in which monitoring measurements are used to initiate configured actions.

Selection should include verification of relay contact ratings, logic configuration, output wiring, and the requirements of the external equipment.

9.3 3500/50M Tachometer Module

The 3500/50M is designed for rotational-speed monitoring using compatible input signals.

Speed information is useful for interpreting vibration data, evaluating operating changes, and checking whether machinery is running within its intended operating range. In reciprocating compressor installations, speed can also help explain changes in the timing and frequency of pressure events.

The tachometer module is therefore a useful complementary product where rotational-speed information is needed alongside pressure and vibration monitoring.

9.4 3500/61 Temperature Monitor

The 3500/61 is associated with temperature monitoring in compatible machinery installations.

Temperature measurements can help maintenance personnel evaluate thermal trends, bearing conditions, lubrication performance, and other monitored operating parameters. The actual measurement capability depends on the installed version, sensor type, and configuration.

When used alongside the 3500/77M, temperature data can provide additional context for investigating compressor performance changes.

9.5 3500/92 Communication Gateway Module

The 3500/92 provides communication functionality for exchanging monitoring-system information with compatible external systems.

Depending on the configuration, this can support integration with plant monitoring, supervisory control, or data collection infrastructure. The exact communication protocols, interfaces, and supported data points must be checked for the selected version.

For facilities that need to consolidate information from several machinery protection racks, a compatible communication module can help make monitoring data more accessible to operations and maintenance personnel.

10. Comparison of the Recommended Models

The following table summarizes the main differences between the requested 3500/77M and the related and popular alternatives.

11. Recommended Selection Strategy

The best model depends on the specific problem that needs to be monitored.

– For cylinder pressure: select the 3500/77M and verify its compatible transducers, I/O hardware, and configuration.

– For reciprocating rod movement: evaluate the 3500/72M alongside the existing compressor instrumentation.

– For shaft vibration and proximity measurements: evaluate the 3500/42M or 3500/40M according to the required sensor type and measurement function.

– For expansion or position measurements: consider the 3500/45 after confirming the required measurement configuration.

– For temperature monitoring: consider the 3500/65 or 3500/61 according to the desired channels and outputs.

– For rotational reference or speed: consider the 3500/25 or 3500/50M, depending on the required function.

– For relay-based alarm outputs: evaluate the 3500/32 against the protection logic and external wiring requirements.

– For data integration: evaluate the 3500/92 against the communication requirements of the installed system.

These models serve different functions and should not be regarded as interchangeable simply because they belong to the same product family.

12. Procurement and Replacement Checklist

Before ordering the 3500/77M-03-00, part number 176449-07, or any alternative model, the following items should be checked.

For a replacement project, matching the part number and checking the installed I/O configuration are particularly important. An apparently similar module may not provide the same measurement function or support the same hardware arrangement.

13. Final Product Summary

The Bently Nevada 3500/77M-03-00, part number 176449-07, is associated with the 3500 machinery protection platform and is designed for reciprocating cylinder-pressure monitoring.

Its principal technical characteristics include up to four compatible pressure-input channels, a 0–5.5 kHz frequency response, specified pressure accuracy of ±0.5% of full scale at 25°C, and calculated variables that support assessment of compressor operating conditions and rod loading.

The monitor has stated dimensions of 241.3 × 24.4 × 241.8 mm and a listed weight of 0.91 kg. These figures apply to the monitor module itself, not the complete rack assembly or shipping package.

The most relevant related model is the 3500/72M when additional reciprocating rod-position information is required. The 3500/42M and 3500/40M are relevant for complementary vibration and proximity measurements, while the 3500/65 and 3500/61 support temperature monitoring. The 3500/25, 3500/32, 3500/50M, and 3500/92 provide timing, relay, speed-monitoring, and communication functions, respectively.

For engineering selection, the decisive factors are the measurement objective, sensor compatibility, existing rack configuration, and required physical specifications. Exact dimensions and weight for each recommended alternative should be obtained for its complete part number before purchase or installation.
