1. Product Overview

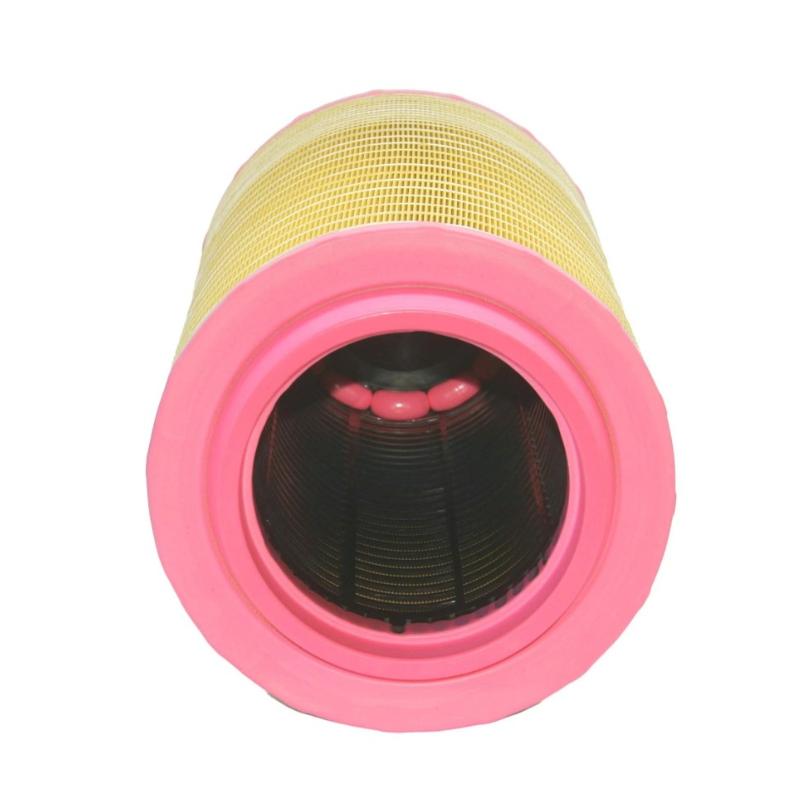

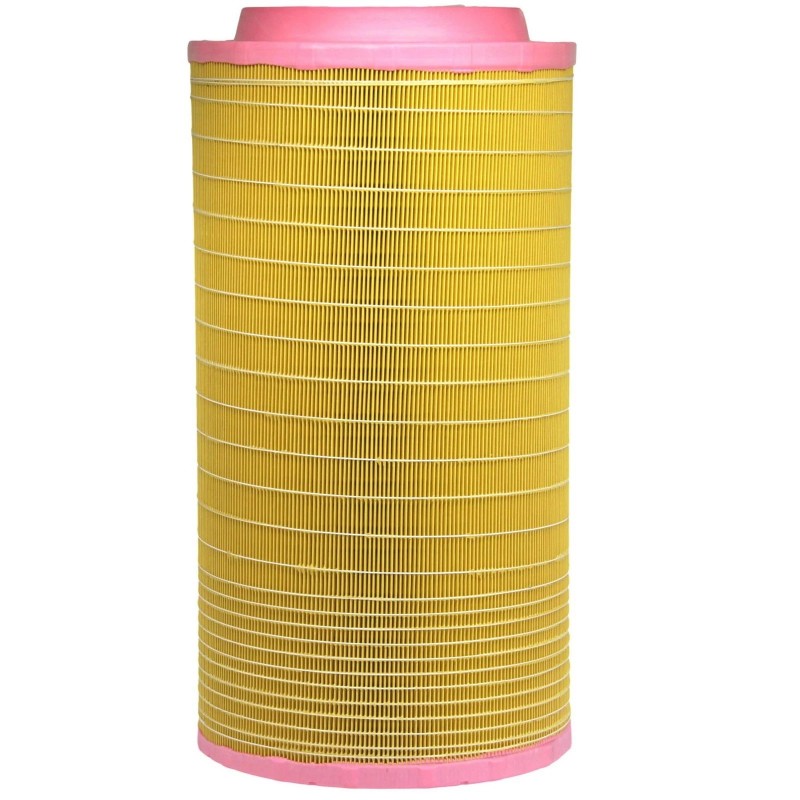

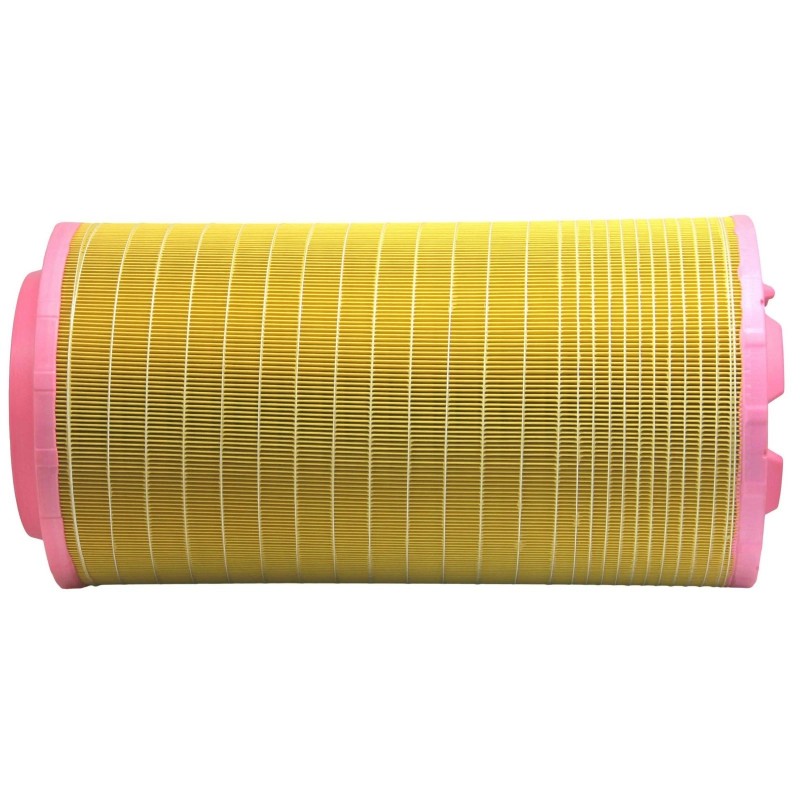

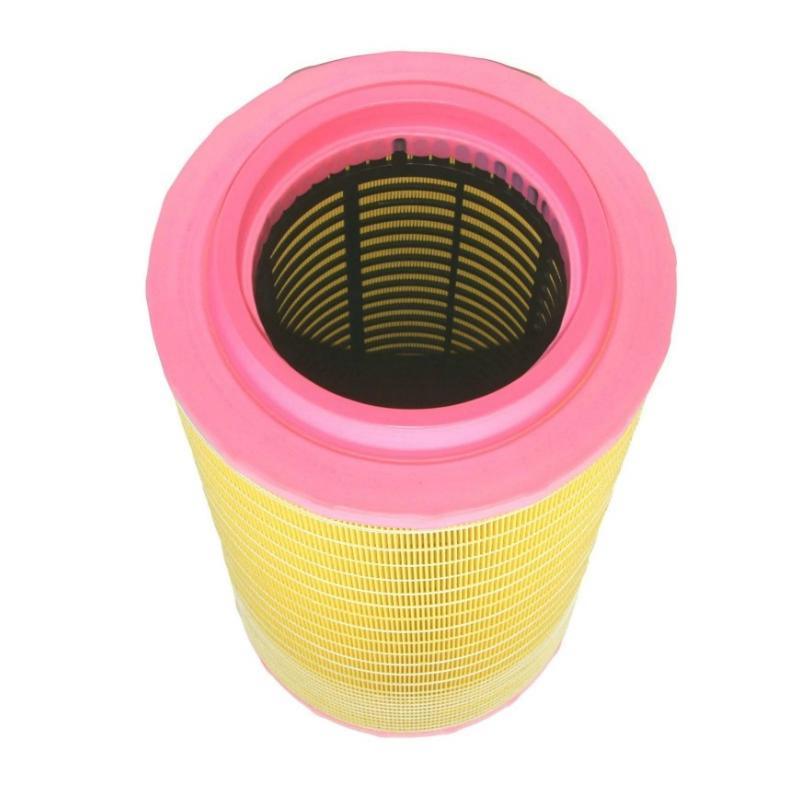

The Ingersoll Rand 23429822 Air Filter is an industrial air filtration component designed for compatible compressed-air equipment. As part of the compressor intake system, the air filter helps remove airborne dust and other particulate contaminants before they enter the compressor. Effective intake filtration is essential for protecting internal components, maintaining airflow, and supporting reliable compressor operation.

Industrial rotary screw compressors draw substantial quantities of ambient air during operation. Depending on the installation environment, this air may contain dust, dirt, fibers, and other suspended particles. Without effective filtration, contaminants can enter the compressor and contribute to wear, deposits, reduced operating efficiency, and increased maintenance requirements.

The 23429822 air filter is associated with selected Ingersoll Rand rotary screw compressor models, including certain R90 and R110 configurations. Compatibility depends on the specific equipment version and serial-number range, so buyers should verify the required part number before placing an order.

The supplied product information identifies the item as Ingersoll Rand 47556402001 / 23429822 Air Filter, with an outer diameter of 267 mm and a weight of 3.6 kg. Because the relationship between these two numbers has not been independently established, they should be checked against the actual product label and applicable parts documentation.

For industrial maintenance teams, choosing the correct air filter is an important part of preventive maintenance. A suitable replacement helps preserve the intended intake filtration performance and supports the long-term reliability of compressors used in manufacturing, process industries, and other applications that depend on compressed air.

2. Technical Specifications

Specification note: The outer diameter and weight above follow the supplied product details. Published listings for 23429822 show variations in height, inner diameter, and weight, which may reflect differences in measurement methods, packaging, or replacement-filter specifications. Confirm the complete dimensions and the relationship between part numbers 47556402001 and 23429822 before ordering.

3. Function and Working Principle

3.1 Filtering Ambient Air Before Compression

An air compressor needs a continuous supply of air to produce compressed air for industrial equipment. The intake filter is positioned in the air path so that incoming air passes through the filter media before entering the compressor.

As air flows through the filter element, the media captures or retains particles according to its filtration characteristics. The filtered air then continues toward the compressor’s intake system.

The filter’s effectiveness depends on the filter media, sealing arrangement, condition of the element, and compatibility with the compressor housing. A filter that is incorrectly installed or poorly sealed may allow unfiltered air to bypass the media.

3.2 Protecting Internal Compressor Components

Dust and abrasive particles can contribute to wear and contamination within a compressor. In oil-injected rotary screw compressors, intake contaminants may also affect the cleanliness of the internal compression system and associated lubricant.

A correctly selected and installed air filter helps reduce this contamination risk. It supports the compressor’s overall protection strategy, alongside suitable lubrication, oil filtration, separation, cooling, and scheduled maintenance.

Air filtration cannot eliminate every source of contamination, and it does not replace the need for other filters or maintenance procedures. Its primary role is to help control contaminants entering through the intake air path.

3.3 Maintaining Adequate Airflow

The filter must remove contaminants while allowing sufficient airflow for the compressor’s intended operating conditions. As dust accumulates in the filter media, airflow resistance can increase.

When restriction becomes excessive, the compressor may have to draw air through a more resistant intake path. Depending on the system design and operating conditions, this can affect compressor performance and energy consumption.

Regular inspection and replacement according to the manufacturer’s requirements help prevent the filter from remaining in service after its condition has deteriorated beyond acceptable limits.

3.4 Supporting Consistent Filtration

Correct fit is essential for proper filter performance. The outer diameter alone does not determine whether a filter is suitable. Inner diameter, overall height, sealing surfaces, filter-housing configuration, and filtration specifications must also match the intended application.

Using the correct 23429822 element for a compatible compressor helps maintain the intended intake arrangement. Buyers should avoid selecting a replacement solely because its external dimensions appear similar.

4. Role in Industrial Compressed-Air Systems

Compressed air is widely used in industrial facilities to operate pneumatic actuators, production tools, packaging machinery, material-handling systems, and automated equipment. The compressor’s intake filtration system helps protect the machinery responsible for supplying this air.

The Ingersoll Rand 23429822 air filter is a maintenance component rather than a control module or pressure-regulating device. It does not independently regulate compressor pressure or control loading and unloading. Instead, it supports reliable operation by reducing the amount of airborne contamination entering the compressor.

Its role is particularly important in installations where compressors operate for long periods or supply multiple production areas.

A properly managed intake filtration program can help maintenance teams:

• Reduce the risk of intake-related contamination.
• Maintain the intended airflow through the compressor.
• Identify filter restriction before it becomes a larger maintenance concern.
• Schedule replacement work in a planned manner.
• Improve spare-parts availability.
• Support consistent compressor maintenance records.

The effectiveness of the filtration system depends on the installation environment, filter condition, maintenance practices, and the suitability of the selected element.

5. Industrial Applications

5.1 Manufacturing Plants

Manufacturing facilities use compressed air for assembly equipment, pneumatic tools, automated actuators, packaging machines, and material-handling systems. In these environments, compressor reliability can influence production continuity.

A suitable intake filter helps protect the compressor from airborne particles present in the surrounding environment. Regular inspection is especially important in workshops where machining, material handling, or other activities generate dust.

5.2 Automotive and Component Manufacturing

Automotive and component manufacturing plants may operate central compressed-air systems to supply assembly lines, pneumatic tooling, and production equipment.

Maintaining the intake filter helps support the condition of the compressor and reduces the risk of avoidable contamination entering through the air intake. The correct filter should be selected according to the compressor configuration rather than the production application alone.

5.3 Packaging and Material Handling

Packaging lines often rely on compressed air for actuators, gripping mechanisms, product diversion, and other automated movements. A dependable compressed-air supply helps maintain consistent machine operation.

Air filter maintenance forms part of the broader compressor maintenance program that supports this supply.

5.4 Process Industries

Process plants may use compressed air for pneumatic equipment, control-valve actuation, conveying systems, and general utility services. Depending on the environment, intake air can contain varying amounts of dust and other contaminants.

The appropriate filter type and maintenance interval should reflect the compressor manufacturer’s instructions and the actual conditions at the installation site.

5.5 Compressor Rooms and Utility Systems

Central compressor rooms may supply air to multiple departments. A filter-related problem can affect compressor performance and, in some circumstances, contribute to wider plant operating issues.

Keeping the correct replacement element in stock can help maintenance teams complete scheduled servicing without unnecessary delays.

5.6 Industrial Equipment Maintenance Services

Maintenance contractors and compressed-air service providers often manage equipment from different manufacturers and product generations. Accurate part-number identification helps technicians distinguish between similar-looking filter elements and reduces the risk of installing an incompatible component.

For procurement teams, maintaining records of the compressor model, serial number, installed filter, and replacement history helps improve purchasing accuracy.

6. Installation and System Integration

6.1 Confirm the Compressor Configuration

Before purchasing the filter, identify the compressor’s complete model designation and serial number. Some compressor families have multiple revisions, configurations, or production ranges that may require different parts.

Although 23429822 is associated with selected R90–R110 series compressors, this does not mean it is compatible with every machine in those families.

6.2 Verify the Filter Dimensions

Check the outer diameter, inner diameter, overall height, sealing design, and housing requirements against the applicable parts documentation.

The supplied outer diameter is 267 mm. Because the complete dimensions were not provided, do not use this measurement alone to confirm compatibility.

6.3 Prepare the Compressor for Maintenance

Before opening the intake filter housing, follow the manufacturer’s shutdown and isolation procedure. Prevent unexpected startup and ensure that maintenance personnel can safely access the filter assembly.

Observe all relevant instructions for hot surfaces, stored pressure, electrical isolation, and other equipment-specific hazards.

6.4 Remove the Existing Filter

Open the designated filter housing using the approved service procedure. Carefully remove the existing filter and inspect the housing, sealing surfaces, and surrounding intake components.

Avoid allowing accumulated dust or debris to fall into the clean-air side of the intake system. If contamination is found, clean the housing using an approved method.

6.5 Inspect and Install the Replacement

Before installation, compare the replacement element with the removed filter and confirm that the part number, dimensions, sealing surfaces, and configuration are correct.

Install the element in the specified orientation and ensure that the sealing surfaces are correctly seated. A filter that is loose, damaged, distorted, or incorrectly positioned may permit unfiltered air to bypass the media.

Do not modify the filter or housing to force an apparent fit.

6.6 Close the Housing and Inspect the Assembly

Reassemble the housing according to the manufacturer’s instructions. Ensure that covers, fasteners, seals, and any associated restriction indicators are correctly installed.

After maintenance, complete the required checks and verify that the compressor operates normally. Record the replacement date, part number, equipment identification, and any observations about the condition of the removed filter.

7. Compatible System Components

The air filter operates as part of a larger compressed-air system. Related components may include the following:

This table describes associated system components. It is not a list of items included with the 23429822 air filter.

8. Recommended Alternatives and Replacement Considerations

When the original filter is unavailable, the replacement should be selected using the compressor’s parts documentation and the complete filter specifications.

Cross-reference catalogues list several alternative filter references for 23429822. These references can assist with sourcing, but a cross-reference should not be treated as a universal guarantee of compatibility.

Before selecting an alternative, verify the following:

• Overall height and outer diameter.
• Inner diameter and sealing arrangement.
• Filter-media and filtration requirements.
• Airflow capacity and acceptable restriction.
• Compressor model and serial-number applicability.
• Supplier documentation and product traceability.

For critical industrial installations, using a verified part number and documented replacement specification is preferable to selecting a filter based only on external appearance.

9. Key Advantages of Correct Air Filter Maintenance

Improved Contamination Control

A suitable intake filter helps reduce the entry of airborne particles into the compressor, supporting the protection of internal components.

Support for Consistent Airflow

Maintaining the filter in acceptable condition helps prevent excessive restriction in the intake path.

Reduced Risk of Avoidable Wear

By helping control particulate contamination, the filter contributes to the compressor’s overall maintenance and protection strategy.

Better Preventive Maintenance Planning

Tracking filter condition and replacement history allows maintenance teams to schedule service work and manage spare-parts inventory more effectively.

Improved Procurement Accuracy

Confirming the part number and equipment configuration reduces the risk of ordering a filter that does not fit or meet the intended requirements.

Support for Equipment Reliability

Intake filtration is one part of a complete compressor maintenance program. Its benefits are strongest when combined with proper lubrication, oil filtration where applicable, cooling-system maintenance, and routine equipment inspections.

Actual service life and operating results depend on environmental conditions, compressor usage, filter quality, and maintenance practices.

10. Technical FAQs

Q1. What is the Ingersoll Rand 23429822 air filter used for?

It is an air filter element used in compatible compressor intake systems. Its purpose is to help remove airborne contaminants before air enters the compressor.

Q2. What is the outer diameter of this filter?

The supplied specification lists an outer diameter of 267 mm. Other dimensions should be confirmed against the applicable product documentation.

Q3. Which compressors use part number 23429822?

Product listings associate 23429822 with selected Ingersoll Rand R90–R110 series rotary screw compressors. Exact compatibility should be confirmed using the compressor model and serial number.

Q4. Is 47556402001 the same part number as 23429822?

The supplied product information includes both numbers, but their relationship should be verified before publication or ordering. Confirm the designation on the product label or in the applicable parts documentation.

Q5. How often should the air filter be replaced?

The replacement interval depends on the compressor manufacturer’s maintenance schedule, operating hours, and environmental conditions. Dusty installations may require more frequent inspection and servicing.

Q6. What happens if the air filter becomes clogged?

A restricted filter can increase intake resistance and may affect airflow and compressor performance. Follow the manufacturer’s procedure for checking filter restriction and determining when replacement is required.

Q7. Can a similar-sized filter be used as a replacement?

Not without verifying the complete specifications. Outer diameter alone is insufficient. Height, inner diameter, sealing configuration, filtration performance, and compatibility must also match.

Q8. Does the air filter remove moisture from compressed air?

The intake filter primarily captures airborne particulate contaminants. It is not a substitute for downstream moisture separation, air drying, or condensate management equipment.

Q9. Does this filter include an oil filter or separator?

No such inclusion is indicated in the supplied product description. The air filter should be treated as a separate component unless the supplier explicitly confirms that it is part of a larger kit.

Q10. What information should be provided when requesting a quotation?

Provide the part number, required quantity, compressor model, serial number, and any available information from the existing filter label. This helps the supplier confirm the correct item and reduce the risk of an incorrect order.

11. Procurement and Maintenance Recommendations

For industrial buyers, correct identification is the first step in purchasing the Ingersoll Rand 23429822 Air Filter. Before placing an order, verify the compressor configuration and confirm whether 47556402001 is a separate reference or a related product identifier.

A practical procurement checklist includes:

• Confirm the compressor model and serial number.
• Verify the filter part number against the applicable parts list.
• Check all required dimensions, including height and inner diameter.
• Confirm the sealing design and filter-housing compatibility.
• Verify the replacement specification for any alternative product.
• Confirm the supplied product’s packaging, condition, and traceability.
• Store the filter in a clean, dry environment in accordance with supplier instructions.
• Record the replacement date and operating hours where applicable.
• Inspect the filter more frequently when operating in dusty environments.

For export orders, ensure that the product title, part number, dimensions, and weight match the actual item being shipped. Where the secondary number has not been verified, list it as an additional reference only after confirming its relationship to the primary part number.

12. Conclusion

The Ingersoll Rand 23429822 Air Filter is an industrial compressor intake filter intended to help control airborne contamination and support reliable operation of compatible compressed-air equipment. Correct filter selection and timely maintenance help preserve intake airflow and protect the compressor as part of a broader preventive maintenance program.

The supplied product details specify an outer diameter of 267 mm and a weight of 3.6 kg. However, the relationship between 47556402001 and 23429822 should be confirmed, and the complete dimensions should be checked before ordering.

For maintenance departments, service providers, and industrial spare-parts distributors, matching the filter to the correct compressor model and serial number is essential. Accurate part identification, appropriate installation, and regular inspection help support effective maintenance and dependable compressor operation.
