Product Overview

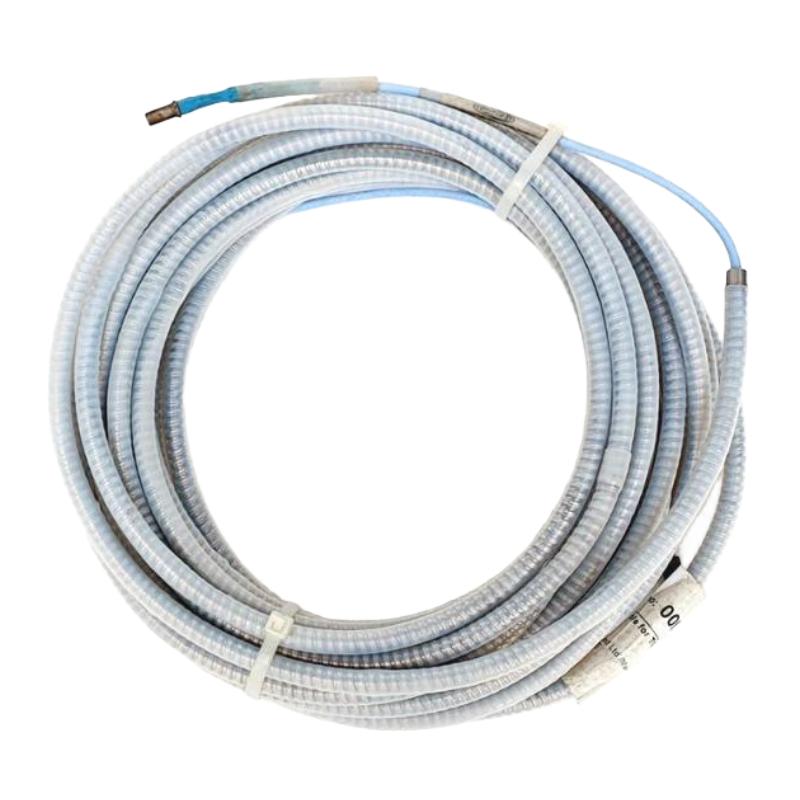

The Bently Nevada 330130-80-00-CN 3300 XL Standard Extension Cable is an extension cable used in compatible 3300 XL proximity transducer systems for rotating machinery monitoring. It connects a proximity probe to its associated Proximitor sensor, carrying the electrical signal required for shaft vibration and relative displacement measurements.

In industrial machinery, proximity probes are commonly installed near bearings to monitor the movement of a rotating shaft. The probe detects changes in the gap between its sensing tip and the shaft surface, while the Proximitor sensor conditions the resulting electrical response. The extension cable completes the connection between these components and must match the electrical requirements of the transducer system.

This configuration specifies an 8-meter cable, a standard cable construction, and a country-specific approval option. The standard cable uses a shielded triaxial construction with fluorinated ethylene propylene (FEP) insulation. Its electrical characteristics are important because the extension cable forms part of the calibrated measurement circuit rather than serving as an ordinary signal lead.

The 330130 cable family is used with compatible 3300 XL proximity probes and Proximitor sensors. When selecting a replacement, technicians must verify the total system length, cable option, connector arrangement, and applicable approval requirements. A cable that fits mechanically may still be unsuitable if its electrical configuration does not match the installed system.

For example, a centrifugal compressor may use proximity probes to measure shaft movement at several bearing locations. The extension cables connect these probes to their respective Proximitor sensors, allowing the monitoring system to receive signals for vibration trending and shaft-position evaluation. Similar arrangements are used on turbines, generators, industrial pumps, and other critical rotating equipment.

Cable condition can directly affect measurement quality. Damaged insulation, contaminated connectors, excessive bending, or an incompatible cable configuration may introduce signal problems that resemble changes in machine vibration. Maintaining the complete transducer circuit helps technicians distinguish electrical faults from genuine changes in shaft behavior.

The 330130-80-00-CN is therefore best understood as a system-matched component of a proximity measurement circuit. Its selection should be based on the existing probe and Proximitor configuration, not simply on the required cable reach.

Technical Specifications

Product Features

• 8-meter cable length: Provides the specified cable reach for installations using a compatible 3300 XL transducer arrangement.
• Standard cable construction: Uses the standard cable option rather than the armored or FluidLoc variants.
• FEP insulation: Provides electrical insulation suitable for the specified cable construction.
• 75 Ω triaxial design: Maintains the electrical characteristics required by the compatible proximity measurement circuit.
• Shielded signal path: Helps limit the influence of electrical interference on low-level measurement signals.
• Miniature coaxial connectors: Connect the extension cable to the corresponding probe and Proximitor interfaces.
• Connector protector option 00: Identifies the configuration without factory-installed connector protectors.
• Country-specific approval option: Identifies the selected CN approval configuration, which must be checked against the installation requirements.
• Proximity system integration: Supports signal transmission between compatible probes and Proximitor sensors.
• Measurement-chain compatibility: Requires the probe, extension cable, and Proximitor sensor to form the correct total-length system.
• Machinery monitoring support: Carries the electrical response used for shaft vibration and relative position measurements.

Working Principle

The 330130-80-00-CN carries the electrical signal between a compatible 3300 XL proximity probe and its Proximitor sensor. It does not independently measure shaft displacement or calculate vibration. Instead, it maintains the electrical connection needed for the transducer system to convert changes in probe-to-target distance into a usable monitoring signal.

Proximity Probe → 330130 Extension Cable → Proximitor Sensor → Machinery Monitoring Module

The proximity probe operates using eddy-current sensing. As the distance between the probe tip and a conductive shaft changes, the electrical response of the sensing circuit changes. The extension cable carries this response to the Proximitor sensor, which conditions the signal for the receiving monitoring equipment.

The cable’s electrical properties, including impedance and capacitance, affect the behavior of the complete measurement circuit. The specified 75 Ω triaxial construction and typical capacitance of 69.9 pF/m are therefore relevant to system compatibility. Substituting an arbitrary coaxial cable can alter the expected response even when the connectors appear to fit.

The 8-meter cable length is one part of the overall transducer system length. In a conventional 3300 XL 8 mm configuration, the probe length and extension cable length must add up to the total length for which the Proximitor sensor is configured. For example, an 8-meter extension cable is commonly paired with a compatible 1-meter probe and a 9-meter system-length Proximitor sensor. The actual combination must be verified against the installed component specifications.

The standard cable construction uses FEP insulation and does not include the additional mechanical protection associated with armored cable options. It is consequently important to route the cable where it will not be crushed, sharply bent, pulled excessively, or exposed to damaging contact with moving machinery.

Connector condition is equally important. Loose connections, contamination, damaged contacts, or poor mechanical engagement can interrupt the signal or introduce unstable readings. Because the specified 00 cable option does not include factory-installed connector protectors, the connection arrangement should be checked against the installation requirements.

If a monitoring channel develops an unexpected fluctuation, the cable should be assessed alongside the probe, Proximitor sensor, and monitoring module. A fault in any part of the measurement chain can affect the displayed result, so replacing the cable without checking system compatibility may not resolve the underlying problem.

Role in a 3300 XL Machinery Monitoring System

The Bently Nevada 330130-80-00-CN occupies the signal-transmission section between the proximity probe and the Proximitor sensor. Its purpose is to maintain the electrical characteristics required for the connected transducer system.

Rotating Shaft → 3300 XL Proximity Probe → 330130 Extension Cable → Proximitor Sensor → Monitoring Module → Operator Interface

Industrial Applications

Installation and Maintenance

1. Confirm the part number: Verify the cable reference, length option, connector arrangement, and approval suffix against the installed transducer system.
2. Check total system length: Confirm that the probe length and extension cable length match the total-length configuration required by the Proximitor sensor.
3. Verify cable compatibility: Ensure that the cable is suitable for the installed 3300 XL proximity probe and Proximitor sensor rather than selecting it solely by connector appearance.
4. Inspect the cable before installation: Check the outer insulation and connector ends for cuts, crushing, contamination, or other visible damage.
5. Plan the cable route: Select a path that avoids moving machinery, sharp edges, excessive heat, and unnecessary exposure to electrical interference.
6. Maintain the minimum bend radius: Follow the applicable installation specifications and avoid tight bends that could damage the cable structure or affect its electrical characteristics.
7. Connect the probe end: Align and secure the connector according to the applicable instructions without twisting or forcing the contact assembly.
8. Connect the Proximitor end: Ensure that the sensor-side connector is fully engaged and that the connection is mechanically secure.
9. Check connector protection: Account for the absence of factory-installed connector protectors in the specified option and use only an approved protection arrangement where required.
10. Verify approval requirements: Confirm that the CN approval configuration is appropriate for the installation and that the complete transducer system meets the applicable site requirements.
11. Test the measurement circuit: After installation, verify the Proximitor output and monitoring-channel response using the established commissioning procedure.
12. Record maintenance results: Document the cable reference, system-length combination, inspection findings, and any signal abnormalities observed during testing.

Related Components

Recommended Related Models

Key Advantages

• Provides an 8-meter signal connection for compatible 3300 XL transducer systems.
• Uses standard FEP-insulated triaxial cable construction.
• Maintains the specified electrical characteristics for the matched measurement circuit.
• Supports probe-to-Proximitor signal transmission for shaft vibration and displacement monitoring.
• Uses miniature coaxial connectors for the specified transducer arrangement.
• Offers a country-specific approval configuration for applications requiring verification of the relevant approval conditions.

Technical FAQs

How is the correct Proximitor sensor selected for an 8-meter extension cable?

The probe length and extension cable length must add up to the total system length specified for the Proximitor sensor. An 8-meter extension cable is commonly used with a compatible 1-meter probe in a 9-meter system, but the actual combination should be verified against the installed component configuration.

What is the difference between standard and armored extension cables?

A standard extension cable uses the specified insulated cable construction without the additional armor used in armored versions. An armored option may be preferable where mechanical contact or abrasion is a concern, provided the selected cable remains compatible with the transducer system.

Does the CN suffix automatically establish suitability for every hazardous area?

No. The CN suffix identifies a country-specific approval configuration. The applicable approval documentation and installation conditions must be checked for the intended location, and the complete transducer system must meet the relevant requirements.

What can cause an unstable signal even when the extension cable is connected?

Possible causes include loose or contaminated connectors, cable damage, an incorrect total system length, a mismatched Proximitor sensor, or a problem with the probe or monitoring channel. Inspecting the complete measurement chain helps isolate the source of the abnormal signal.
