Product Overview

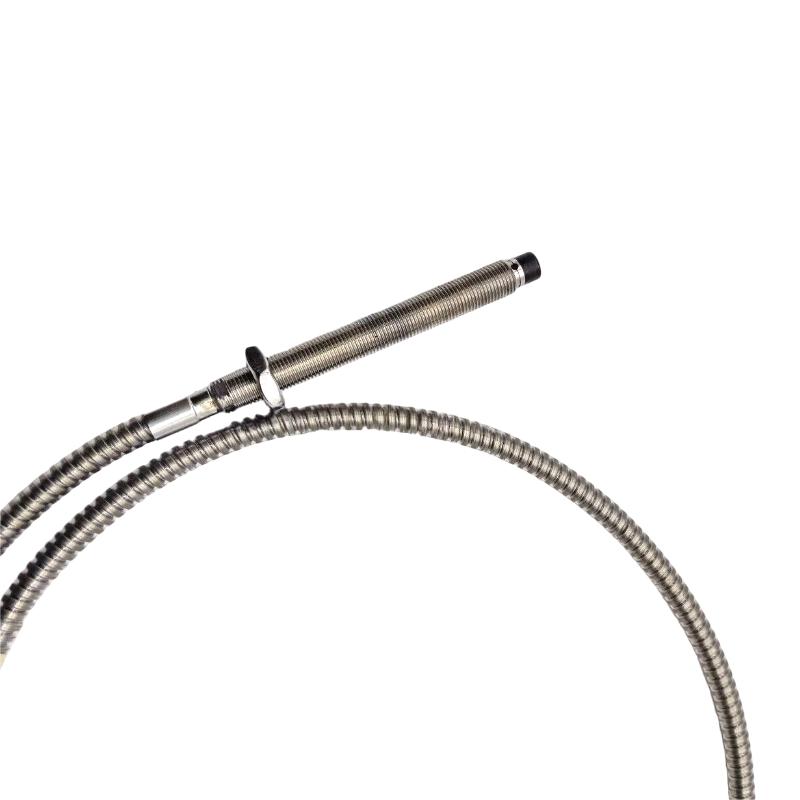

The Bently Nevada 330104-00-09-10-11-00 is a 3300 XL 8 mm proximity probe used to measure relative shaft vibration and displacement in rotating machinery. It operates through eddy-current sensing, detecting changes in the gap between the probe tip and a conductive target. When connected to a compatible extension cable and Proximitor sensor, it supplies the displacement-related signal used by a machinery monitoring system.

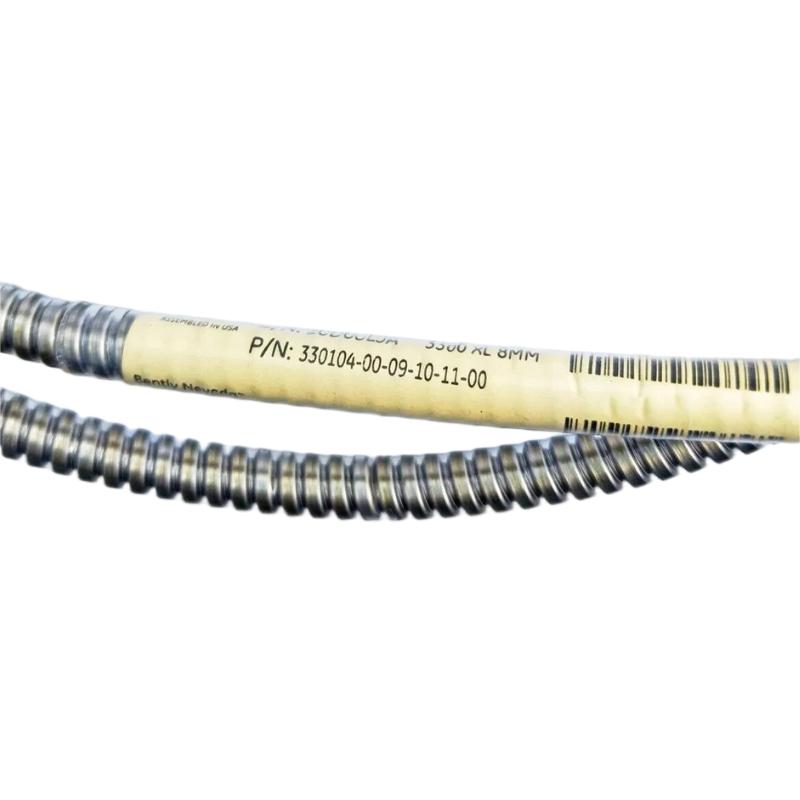

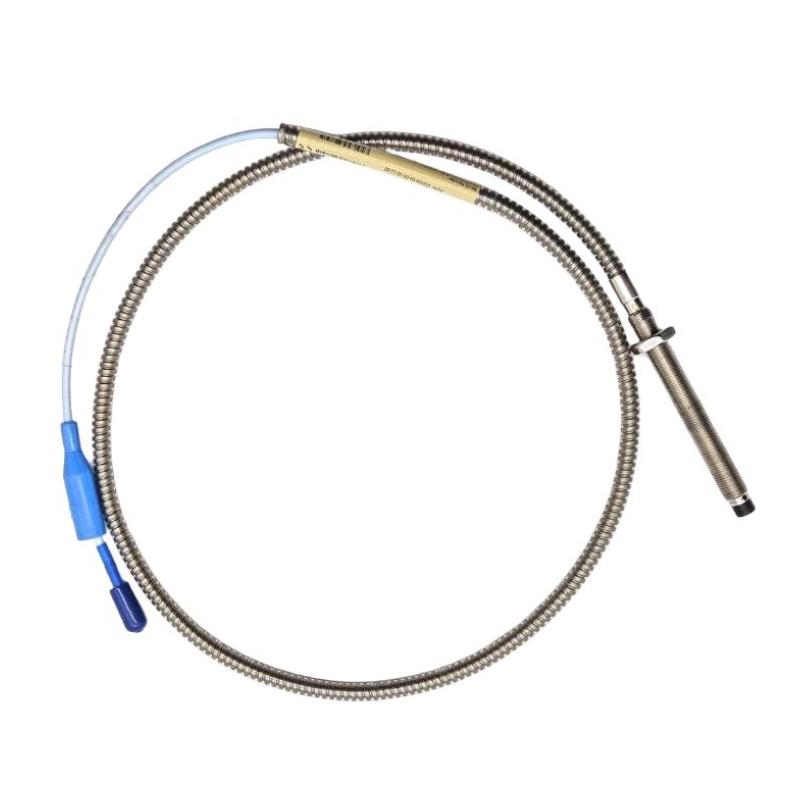

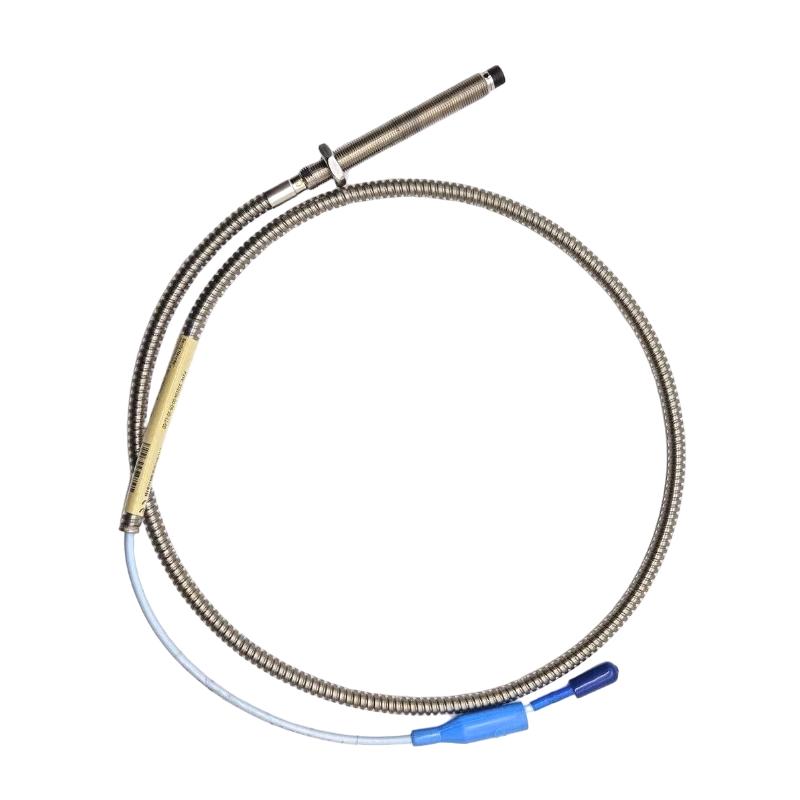

This configuration belongs to the 330104 family, which uses an M10 × 1 metric mounting thread and an armored probe cable. The ordering code specifies a 90 mm case length, a 1-meter cable length, and a miniature coaxial ClickLoc connector with a connector protector. The cable option also specifies FluidLoc construction, which provides additional protection against fluid migration along the cable assembly.

These configuration details matter when replacing a probe in an existing installation. The mounting thread must match the machine’s probe holder, the case length must allow the required adjustment, and the cable and connector arrangement must match the installed transducer system. A probe with the same sensing-tip diameter is not necessarily a direct substitute if its mounting or electrical configuration differs.

The 3300 XL 8 mm proximity system has a nominal linear measurement range of 2 mm and a scale factor of 7.87 V/mm (200 mV/mil). These characteristics support relative shaft vibration and position measurements when the probe is installed and calibrated as part of a compatible system.

For example, probes mounted near the bearings of a centrifugal compressor can detect changes in shaft movement as speed, process pressure, and mechanical loading vary. The monitoring system evaluates the resulting signals to track vibration trends and identify departures from established operating conditions. Similar installations are used on turbines, generators, pumps, and other rotating machines.

The probe itself does not calculate vibration severity or diagnose mechanical faults. It detects changes in the probe-to-target gap and passes the resulting signal through the transducer circuit. Compatible monitoring equipment performs the measurement processing and can use the results for trending, alarms, and machinery protection.

Technical Specifications

Product Features

• 8 mm sensing tip: Supports non-contact displacement measurement in the 3300 XL 8 mm proximity transducer system.
• M10 × 1 mounting thread: Fits compatible metric probe mounting provisions.
• 90 mm case length: Defines the specified probe body configuration for mounting and adjustment.
• Armored cable construction: Provides additional mechanical protection for the probe lead.
• FluidLoc cable option: Helps limit fluid migration along the cable assembly.
• 1-meter integral cable: Defines the cable length for the specified probe configuration.
• ClickLoc connector: Uses a locking coaxial connection intended to resist loosening during operation.
• Connector protector: Provides additional protection around the connector interface.
• 2 mm linear measurement range: Supports shaft-displacement measurements within the specified linear region.
• 7.87 V/mm nominal scale factor: Establishes the standard output sensitivity for the compatible transducer system.
• Non-contact measurement: Detects shaft movement without touching the rotating target.
• Monitoring-system integration: Supplies signals for compatible vibration and position monitoring channels.

Working Principle

The 330104-00-09-10-11-00 uses eddy-current sensing to measure the distance between its probe tip and a conductive target, typically a rotating shaft. An alternating electromagnetic field interacts with the target surface, and changes in the gap alter the electrical response of the transducer circuit.

Rotating Shaft → 3300 XL 8 mm Probe → Extension Cable → Proximitor Sensor → Machinery Monitoring Channel

When the shaft moves toward or away from the probe, the gap changes. The compatible Proximitor sensor converts this response into an output related to displacement. The monitoring channel processes the signal according to its configured measurement function, allowing the system to display shaft vibration or relative position.

The nominal scale factor is 7.87 V/mm, equivalent to 200 mV/mil, and the nominal linear measurement range is 2 mm. These values apply to the specified transducer arrangement under its intended operating conditions. Correct calibration and probe-gap adjustment are necessary to obtain meaningful measurements.

During installation, the probe is positioned at the required gap from the shaft. The initial gap establishes the operating point within the linear range, allowing the monitoring system to detect movement in either direction. An incorrect setting can reduce the available measurement range or produce inaccurate displacement readings.

The 1-meter integral cable forms part of the electrical circuit. The extension cable and Proximitor sensor must be compatible with the selected 3300 XL 8 mm configuration. Cable length is an electrical design parameter, so a replacement should not be selected solely according to whether it physically reaches the monitoring cabinet.

The armored and FluidLoc cable options address different installation concerns. Armor helps protect against mechanical damage, while FluidLoc construction helps restrict fluid migration along the cable. Neither feature removes the need to inspect the cable, maintain the specified bend radius, and secure the connector properly.

If the output becomes unstable, the cause may lie in the probe gap, mounting hardware, cable connections, target surface, or signal-conditioning equipment. Checking the complete measurement chain helps distinguish instrumentation problems from actual changes in shaft movement.

Role in a 3300 XL Machinery Monitoring System

The Bently Nevada 330104-00-09-10-11-00 provides a local shaft-displacement signal for a compatible 3300 XL monitoring system. It is mounted near the designated measurement point and connected to the appropriate extension cable and Proximitor sensor.

Shaft Surface → 3300 XL 8 mm Probe → Extension Cable → Proximitor Sensor → Monitoring Module → Operator Interface

Industrial Applications

Installation and Maintenance

1. Confirm the mounting provision: Verify that the installation accepts the M10 × 1 thread and accommodates the specified 90 mm case configuration.
2. Inspect the target surface: Ensure that the shaft surface is conductive and suitable for eddy-current proximity measurement.
3. Check the measurement location: Position the probe at the designated point and align it with the intended shaft surface.
4. Set the initial probe gap: Follow the applicable 3300 XL 8 mm installation procedure and the requirements of the receiving monitoring channel.
5. Secure the probe mounting: Tighten the mounting and locking hardware according to the applicable installation instructions to prevent movement during operation.
6. Inspect the armored cable: Check the armor and outer jacket for crushing, abrasion, sharp bends, or other damage.
7. Check FluidLoc cable condition: Inspect the cable assembly for signs of deterioration, fluid exposure, or damage that could compromise its protective function.
8. Route the cable correctly: Maintain the specified bend radius and avoid excessive pulling force, crushing, and contact with moving machinery.
9. Secure the ClickLoc connection: Ensure that the connector is correctly engaged and that the connector protector is fitted as intended.
10. Verify transducer compatibility: Confirm that the extension cable and Proximitor sensor match the required 3300 XL 8 mm system configuration.
11. Establish baseline measurements: Record the initial vibration or position readings under known operating conditions for future comparison.
12. Investigate abnormal readings: Check the probe gap, mounting security, cable condition, connector, extension cable, and Proximitor sensor before attributing unusual readings to a mechanical fault.

Related Components

Recommended Related Models

Key Advantages

• Measures shaft displacement without contact with the rotating target.
• Uses an 8 mm sensing tip and a nominal 2 mm linear measurement range.
• Provides an M10 × 1 metric mounting thread.
• Combines armored cable construction with the FluidLoc cable option.
• Includes a ClickLoc connector with a connector protector.
• Integrates with compatible 3300 XL 8 mm extension cables, Proximitor sensors, and monitoring equipment.

Technical FAQs

What does the FluidLoc cable option add to this probe configuration?

FluidLoc cable construction helps restrict fluid migration along the cable assembly. It is useful where the cable may encounter fluids, but it does not replace appropriate installation practices or inspection of the cable jacket and connection points.

How should the 90 mm case configuration be considered when replacing a probe?

The case-length option determines the specified probe body configuration and affects how the probe fits into the mounting arrangement. The replacement must provide sufficient adjustment to establish the required gap while matching the existing M10 × 1 mounting provision.

Why must the extension cable and Proximitor sensor be compatible with this probe?

The probe, extension cable, and Proximitor sensor form a calibrated electrical measurement circuit. Using the correct system components helps maintain the intended scale factor and measurement response.

What should be investigated if shaft vibration readings change after probe replacement?

First verify the probe gap, mounting security, cable routing, connector engagement, and transducer compatibility. Also check whether the monitoring channel is configured correctly. These checks help determine whether the changed reading represents actual shaft movement or a problem in the measurement circuit.
