1. Product Overview

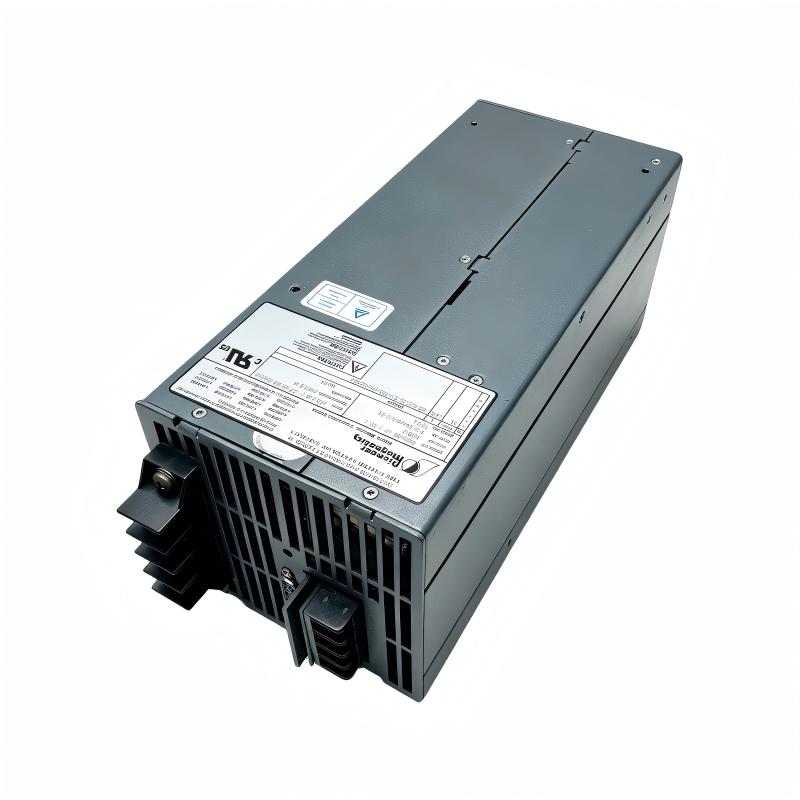

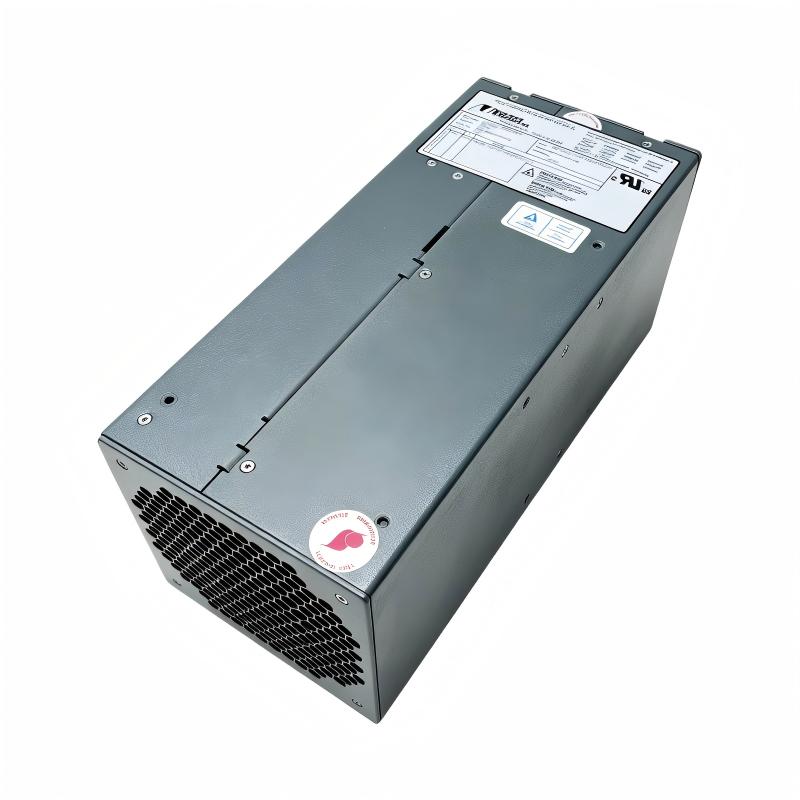

The PM3398B-6P-1-3P-E is an industrial AC-to-DC power supply associated with Pioneer Magnetics and used in industrial equipment and control-system power applications. It is commonly listed as an Allen-Bradley-related spare part for compatible industrial installations. The module is designed to convert AC input power into regulated DC power for equipment that requires a high-capacity internal power source.

Industrial power supplies play a critical role in maintaining the operation of automation systems. They provide the electrical energy needed by electronic assemblies and other connected loads. A suitable power supply must deliver the required voltage and current while remaining compatible with the equipment’s electrical, mechanical, and environmental requirements.

Available product records identify the PM3398B-6P-1-3P-E with a 120–240 V AC input, a 23 A input rating, and a 50/60 Hz operating frequency. Related documentation for the PM3398B platform identifies a nominal 56 V DC output, approximately 26.8 A output current, and output power around 1500 W. Because online records for closely related configurations do not always agree, the output specifications should be verified against the nameplate and technical documentation for the exact unit before installation or replacement.

With dimensions of 280 × 195 × 100 mm and a weight of 5.01 kg, as supplied, this power supply should be evaluated for the available installation space, mounting arrangement, cable access, and ventilation requirements. Its intended application should also be confirmed before connecting it to any industrial equipment.

The PM3398B-6P-1-3P-E may be considered by maintenance engineers, industrial spare-parts distributors, and equipment operators seeking a replacement power supply for a compatible existing installation. Correct identification is particularly important for legacy equipment, where the original supply may have been discontinued and a suitable replacement must match both the electrical interface and the physical configuration.

2. Technical Specifications

Important specification note: The model-specific input information is better supported than some of the conflicting output details found in secondary listings. Confirm the exact output voltage, current, terminal arrangement, and power rating from the installed unit’s nameplate or applicable manufacturer documentation before ordering or commissioning a replacement.

3. Function and Working Principle

3.1 AC-to-DC Power Conversion

The main function of the PM3398B-6P-1-3P-E is to convert incoming alternating current into direct current for compatible industrial equipment.

Industrial equipment often contains electronic circuits that require a stable DC supply. Depending on the equipment design, this power may support control electronics, internal power distribution, and other assemblies that operate from a specified DC bus.

An industrial AC-to-DC power supply typically performs several stages of conversion. The input circuitry receives AC power, the conversion stage transforms the electrical energy, and the output circuitry provides the required DC voltage. Regulation and protection functions help maintain suitable operating conditions within the design limits.

The exact circuit architecture and output behavior of the PM3398B-6P-1-3P-E should be confirmed using the documentation for the installed version. It should not be assumed to operate like a generic 24 V DIN-rail power supply.

3.2 Input Power Requirements

Available product records associate this model with a 120–240 V AC input and a 23 A current rating at 50/60 Hz. These values are important when checking the upstream electrical supply, wiring, protective devices, and installation requirements.

The input supply must match the unit’s approved voltage range and electrical configuration. Engineers should not infer that every unit can accept any voltage within a broadly advertised range without confirming the exact nameplate rating.

The supply circuit must also be designed for the actual input current, startup behavior, and applicable electrical regulations. Proper protection and grounding are essential in industrial installations.

3.3 DC Output and Connected Loads

Related PM3398B platform documentation identifies a nominal 56 V DC output, approximately 26.8 A, and output power around 1500 W. These figures describe a high-capacity power conversion assembly rather than a conventional low-power control supply.

However, the precise output specifications must be checked for the exact suffix and hardware version. Different configurations can have different electrical characteristics, and a similar model number does not guarantee identical output performance.

Before connecting a load, verify the required DC voltage, current demand, polarity, output isolation requirements, connector or terminal arrangement, and permitted operating conditions.

3.4 Output Regulation and Stability

Power supplies used in industrial systems need to maintain an appropriate output voltage as the input supply and connected load change within their permitted ranges.

Output stability matters because excessive voltage variation can affect the operation of connected electronic equipment. A power supply must therefore be selected according to the load’s voltage tolerance, current requirements, and transient behavior.

The detailed regulation, ripple, noise, and transient specifications should be obtained from the correct technical documentation. These values should not be estimated from a related model or a generic product description.

3.5 Protection and Fault Handling

Industrial power supplies may include protection against conditions such as overvoltage, excessive current, overheating, or short circuits. The exact protection functions and recovery behavior depend on the product configuration.

Maintenance teams should verify the protection specifications for the PM3398B-6P-1-3P-E before using it in a critical application. Protection features are not a substitute for correct circuit design, suitable upstream protection, and safe installation practices.

If the power supply trips, shuts down, or produces an abnormal output, investigate both the supply and the connected load. A downstream fault can trigger protective behavior even when the power supply itself is functioning correctly.

4. Role in Industrial Control Systems

4.1 Powering Industrial Electronic Assemblies

Industrial control equipment relies on stable electrical power to maintain operation. A power supply provides the energy required by the electronic assemblies for which it was designed.

The PM3398B-6P-1-3P-E should be evaluated within the equipment architecture it is intended to support. Its output must match the voltage and current requirements of the connected assembly, and its mechanical interface must fit the designated mounting arrangement.

4.2 Supporting Legacy Automation Equipment

Older industrial systems can remain in service for many years. Replacing the complete system may require significant engineering work, downtime, and commissioning.

For this reason, maintenance teams often need to identify and source the correct power supply for an existing installation. A model-specific replacement can help preserve the established equipment architecture when the original unit is no longer readily available.

The PM3398B-6P-1-3P-E may be relevant to such maintenance activities where the installed equipment documentation identifies this exact model.

4.3 Maintaining Power Availability

An unsuitable or failing power supply can interrupt the operation of connected equipment. Symptoms may include unexpected shutdowns, unstable operation, or failure to start.

Correct replacement selection is therefore important for maintaining equipment availability. Engineers should verify not only the nominal voltage but also the current capability, startup behavior, connector arrangement, mounting dimensions, and environmental requirements.

4.4 Supporting Maintenance and Troubleshooting

Power-supply diagnostics can help maintenance personnel distinguish between an input-power problem, an internal supply fault, and a downstream load issue.

Useful checks may include inspecting the input supply, checking for loose connections, measuring the output under approved test conditions, and evaluating the load for short circuits or excessive current demand.

Testing must follow the applicable safety procedures. The input voltage and available power levels can present serious electrical hazards.

5. Industrial Applications

5.1 Industrial Power Assemblies

High-capacity power supplies are used in equipment that requires a dedicated DC power source. The PM3398B-6P-1-3P-E may be considered for compatible assemblies where the specified input, output, and mechanical requirements match the installed unit.

The exact equipment application should be confirmed from the relevant system drawings and original documentation.

5.2 Factory Automation Equipment

Factory automation systems combine controllers, electronic assemblies, field devices, and machine components. Each part of the system must receive the correct power source.

A replacement power supply must be selected for the specific equipment it supports. A similar physical size or a broadly comparable power rating is not enough to establish suitability.

5.3 Industrial Drive and Control Equipment

Some industrial drive and control platforms use dedicated power supplies to energize internal electronics or designated DC power buses. Such supplies may have electrical requirements that differ from those of ordinary control-panel power supplies.

If the PM3398B-6P-1-3P-E is used in a drive-related installation, engineers should verify the intended connection point, output specifications, and system-specific requirements before replacement.

5.4 Maintenance of Older Equipment

Where an industrial machine has been in service for many years, the original power supply may be difficult to obtain. Maintenance teams may need to source new old stock, unused inventory, refurbished units, or professionally tested replacements.

The correct choice depends on the machine’s requirements, the condition of the available unit, the urgency of the repair, and the level of risk acceptable to the facility.

5.5 Industrial Equipment Refurbishment

During equipment refurbishment, the power supply should be inspected along with its wiring, connectors, mounting hardware, and surrounding components. Dust, corrosion, damaged insulation, and evidence of overheating may indicate that additional maintenance is needed.

A replacement should be approved only after its electrical and mechanical compatibility has been established.

6. Installation and System Integration

6.1 Verify the Exact Model

Before installation, confirm the complete model number: PM3398B-6P-1-3P-E. Similar PM3398B references may correspond to different configurations or suffixes.

Check the equipment bill of materials, electrical drawings, nameplate, and replacement instructions. Do not rely solely on a product listing that groups multiple model numbers together.

6.2 Confirm Input Voltage and Current

Verify the permitted AC input voltage, frequency, and current requirements from the actual unit documentation.

The input circuit should use appropriate wiring and protective devices for the intended installation. Installation and maintenance should be performed by qualified personnel using the required electrical safety procedures.

Never connect the unit based only on a voltage value copied from a related product listing.

6.3 Confirm the Output Requirements

Before connecting the output, verify the DC voltage, current rating, polarity, output isolation characteristics, and terminal arrangement.

The related PM3398B platform is documented with a nominal 56 V DC output, but this value should not be assumed to apply to every configuration without checking the exact unit.

The load must remain within the supply’s permitted operating limits. An undersized supply may experience overload, while an incorrect output voltage can damage connected equipment.

6.4 Check Mounting Dimensions

The supplied dimensions are 280 × 195 × 100 mm, and the supplied weight is 5.01 kg. Confirm these dimensions against the installation drawing and the available mounting space.

Allow sufficient clearance for connectors, wiring, ventilation, and maintenance access. Secure the unit using the mounting arrangement specified for the equipment.

6.5 Inspect Wiring and Connections

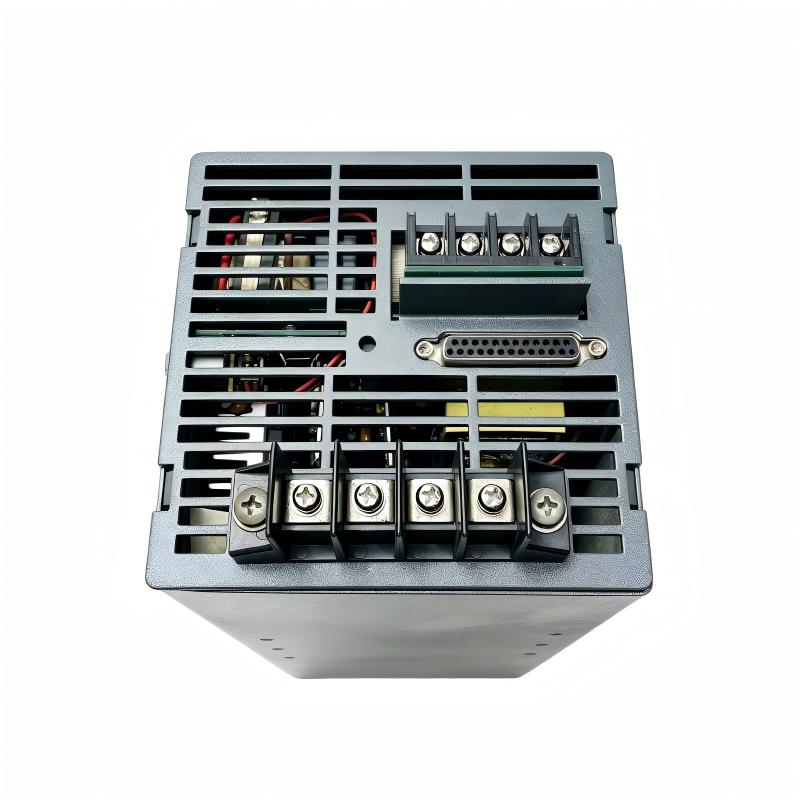

Inspect terminals, cable insulation, connector contacts, and grounding connections before commissioning. Loose or damaged connections can cause voltage drop, overheating, intermittent operation, or equipment shutdown.

Use the correct wiring diagram and terminal identification. Do not assume that terminal positions are identical across related power-supply models.

6.6 Commissioning and Functional Testing

After installation, verify the input supply and output voltage using approved procedures. Check the output under suitable operating conditions and confirm that the connected equipment starts and operates as expected.

Where the original system provides status indicators or diagnostic information, confirm that these indicate normal operation. Record the replacement model, test results, and any configuration changes.

If the output is unstable or the equipment fails to start, disconnect the unit according to the applicable safety procedure and investigate the input supply, connected load, wiring, and compatibility before returning the system to service.

7. Compatible System Components

The following table lists component categories that may be relevant during integration or replacement. Actual compatibility depends on the equipment in which the power supply is installed.

This table identifies general integration categories rather than guaranteeing compatibility with specific controllers, racks, or drive systems. The original equipment documentation should be used to establish the approved configuration.

8. Replacement Models and Selection Considerations

Replacement selection should be based on the original equipment requirements rather than the product name alone. A generic power supply with a similar output rating may not be suitable if its connector arrangement, regulation characteristics, isolation, or mechanical dimensions differ.

The PM3398B-6P-1-3P-E is reported as discontinued in some spare-parts catalogs. This makes accurate identification and condition verification particularly important.

Do not treat another PM3398B variant as an automatic substitute. Similar model numbers may have different suffixes, electrical specifications, or intended applications. Confirm any proposed replacement against the equipment manufacturer’s documentation before purchase or installation.

9. Key Advantages

Dedicated Industrial Power Conversion

The PM3398B-6P-1-3P-E is intended for industrial power-conversion applications where a dedicated power supply is required. Its role should be assessed within the original equipment design.

High-Capacity Power Platform

Related PM3398B documentation identifies an output rating around 1500 W for certain configurations. This indicates a high-capacity power supply platform, but the exact output capability of the specific unit must be verified.

Defined Model Reference

The complete model number helps maintenance teams distinguish the unit from other power-supply configurations. Accurate identification reduces the risk of selecting an incompatible replacement.

Support for Legacy Equipment Maintenance

Sourcing the correct spare part may help extend the service life of an existing industrial installation and avoid unnecessary changes to the surrounding equipment.

Established Spare-Parts Identification

The model is listed by industrial spare-parts suppliers, making it possible for buyers to request quotations and compare condition, availability, and warranty arrangements.

Mechanical Information for Procurement

The supplied dimensions and weight help purchasing teams plan storage, transport, and installation. These values should be checked against the physical unit and equipment drawings where dimensional fit is critical.

10. Technical FAQs

Q1: What is the PM3398B-6P-1-3P-E?

It is an industrial AC-to-DC power supply associated with Pioneer Magnetics and listed as a spare part for compatible industrial equipment.

Q2: Is it manufactured by Allen-Bradley?

Available product records identify Pioneer Magnetics as the manufacturer. The unit is commonly sold in Allen-Bradley-related spare-parts catalogs. Buyers should verify the nameplate and manufacturer documentation.

Q3: What is the input voltage?

Available records identify a 120–240 V AC input at 50/60 Hz. Confirm the permitted range on the exact unit before connecting it.

Q4: What is the input current rating?

Product records list a 23 A input rating. The actual supply circuit and protection must be designed according to the unit’s documentation and installation requirements.

Q5: What is the output voltage?

Related PM3398B platform documentation identifies a nominal 56 V DC output. Because secondary listings contain inconsistent specifications, verify the output voltage for the exact model and revision.

Q6: What is its output power?

Some related-model records specify approximately 1500 W. The actual rating for the PM3398B-6P-1-3P-E should be confirmed from its nameplate or original technical documentation.

Q7: What are the dimensions?

The supplied dimensions are 280 × 195 × 100 mm.

Q8: What is the weight?

The supplied weight is 5.01 kg. Confirm whether shipping or packaging weight is stated separately when planning transport.

Q9: Is the model discontinued?

Some industrial spare-parts catalogs report that the model has been discontinued. Availability may differ among suppliers, so confirm the condition and stock status of the exact unit.

Q10: Can I replace it with a standard 56 V power supply?

Not without an engineering assessment. The replacement must match the required electrical output, current capability, regulation characteristics, isolation, connectors, dimensions, and intended equipment application.

Q11: What should be checked before installation?

Verify the full model number, input voltage, input current, output ratings, terminal arrangement, grounding requirements, mounting dimensions, and compatibility with the connected equipment.

Q12: What should be checked if the connected equipment does not start?

Qualified personnel should inspect the input supply, wiring, output voltage, load condition, and diagnostic information according to the equipment’s safety procedures. Disconnect power before working on exposed electrical connections.

11. Procurement and Maintenance Recommendations

For industrial spare-parts procurement, start by matching the complete model number on the existing unit. The PM3398B family includes related configurations, so a similar model reference does not establish interchangeability.

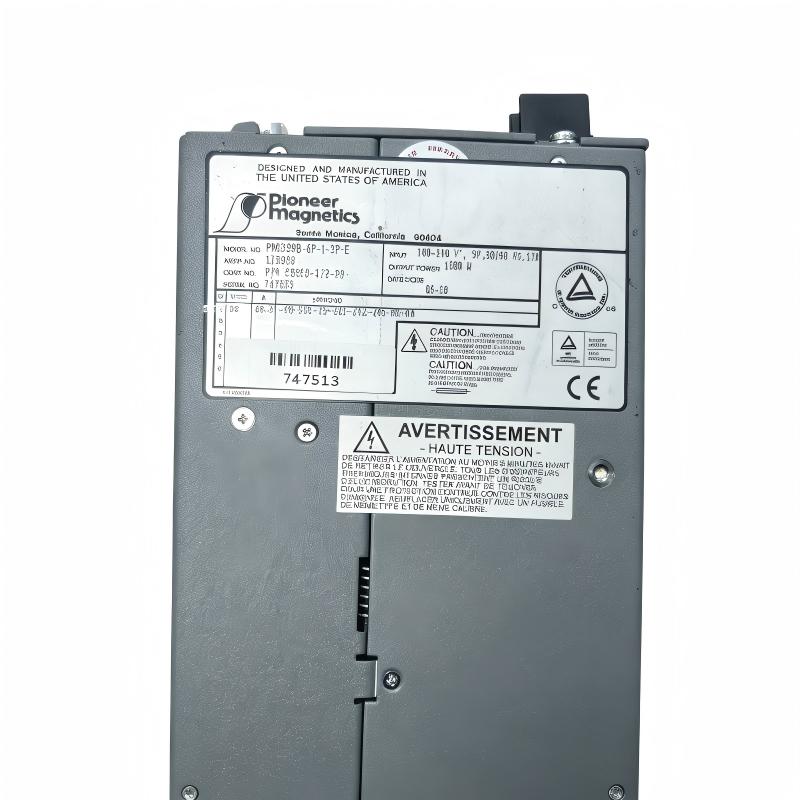

Request clear product identification and verify the nameplate, input ratings, output ratings, terminal arrangement, and hardware condition. For discontinued equipment, ask the supplier whether the unit is new, unused old stock, refurbished, or repaired. Where available, request test documentation and written warranty terms.

Before accepting a replacement, compare its electrical characteristics with the original equipment requirements. This is particularly important for the output voltage and current because conflicting secondary listings exist for related PM3398B configurations.

During maintenance, inspect the input and output wiring, terminal connections, grounding, mounting hardware, and evidence of overheating or corrosion. Check whether a downstream fault or overload may have contributed to the original power-supply failure.

If the supply is replaced, verify the output under approved test conditions and confirm that the connected equipment operates normally. Keep records of the replacement part number, test results, and any changes made during commissioning.

Because the module may be used in legacy industrial equipment, planning a suitable spare-parts strategy can help reduce repair delays. Maintaining a verified part reference and the original electrical drawings is more reliable than relying on an unconfirmed substitute selected only by nominal power rating.

12. Conclusion

The PM3398B-6P-1-3P-E is an industrial power supply associated with Pioneer Magnetics and commonly listed as an Allen-Bradley-related spare part. Available records identify a 120–240 V AC input, a 23 A input rating, and a 50/60 Hz operating frequency. Related PM3398B documentation describes a nominal 56 V DC output and an output capacity around 1500 W, but these figures must be verified against the exact unit.

With supplied dimensions of 280 × 195 × 100 mm and a weight of 5.01 kg, the module can be evaluated for compatible industrial equipment where its electrical and mechanical requirements match the original installation.

For reliable replacement and maintenance, verify the full model reference, output specifications, terminal arrangement, mounting requirements, and equipment compatibility before ordering or commissioning. Accurate identification and careful testing are essential when maintaining legacy industrial power systems.
