1. Product Overview

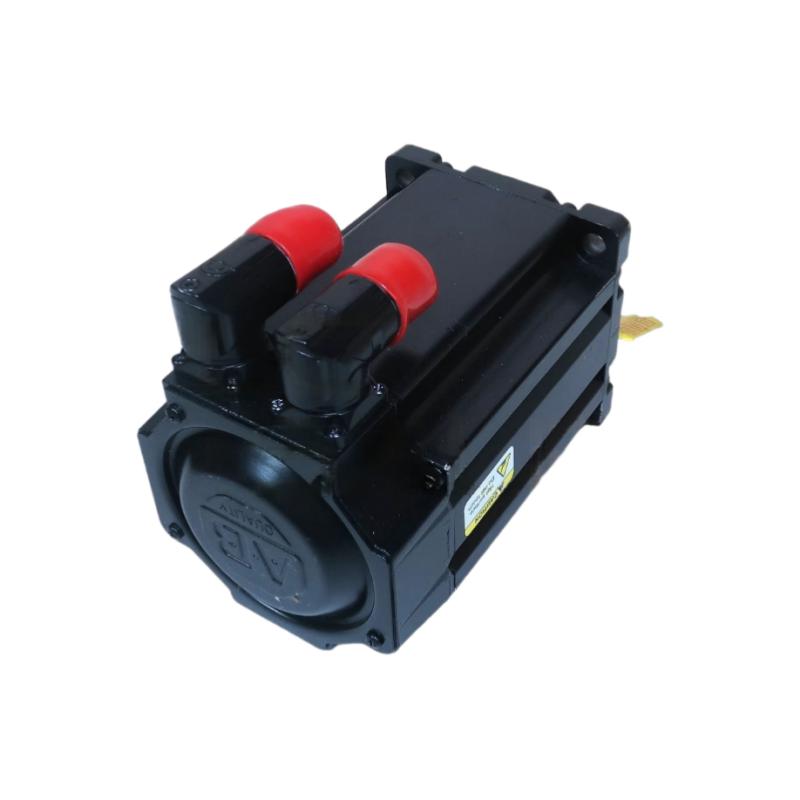

The Allen-Bradley MPL-B4530K-SK72AA is a low-inertia brushless rotary servo motor from the MP-Series MPL family manufactured by Rockwell Automation. Designed for precision motion control, this motor supports applications that require responsive acceleration, accurate speed regulation, and reliable positioning in automated production environments.

With a 130 mm frame size, a 76.2 mm magnet stack length, and a maximum rated speed of 4,000 RPM, the MPL-B4530K-SK72AA is suitable for a broad range of industrial motion-control tasks. Its permanent-magnet design and low-inertia rotor characteristics help servo systems respond quickly to changes in commanded speed and position. This makes the motor particularly useful in machinery that performs frequent starts, stops, direction changes, and coordinated movements.

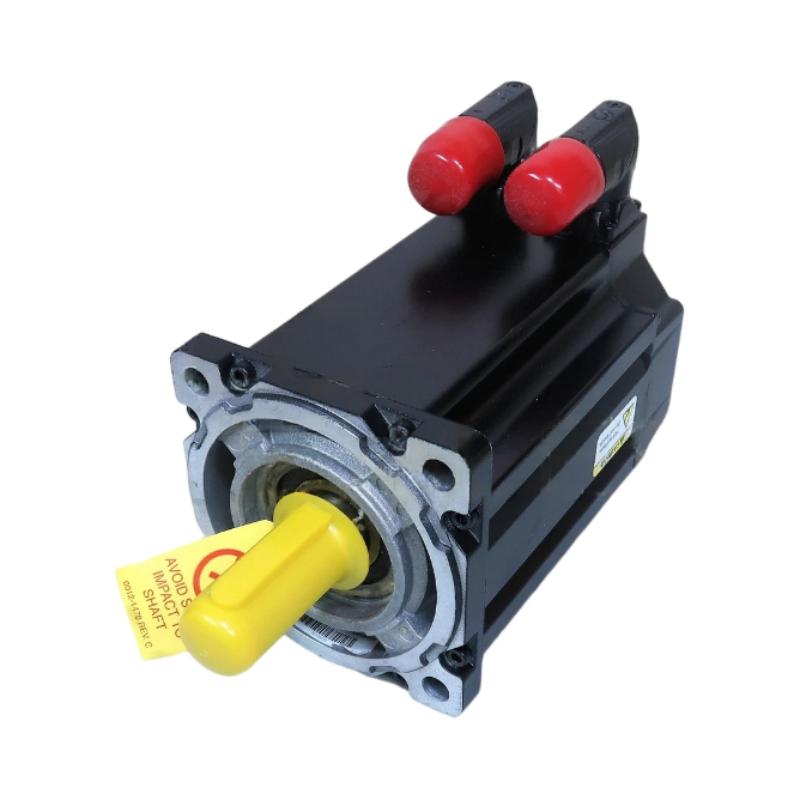

The model incorporates a single-turn high-resolution encoder for position feedback, a keyless shaft extension, and a right-angle SpeedTEC DIN connector that can be rotated to accommodate different installation arrangements. It is supplied without an integrated holding brake, making it suitable for applications in which a brake is not required or where the machine uses a separate mechanical holding solution.

The MPL-B4530K-SK72AA is designed for integration into compatible servo-drive and motion-control systems. Correct drive selection, feedback compatibility, motor cabling, mechanical coupling, and parameter configuration are essential for achieving the expected performance.

For industrial maintenance teams, OEMs, system integrators, and spare-parts purchasers, understanding the motor’s configuration is important when selecting a replacement or planning a new automation installation.

2. Technical Specifications

Specification note: Electrical ratings and torque figures should be checked against the motor nameplate and the applicable Rockwell Automation technical documentation before commissioning. The stated 7.3 kg weight is the supplied listing value; confirm the exact shipping or net weight for the unit being purchased. The feedback interface and drive compatibility must also be verified for the specific controller and drive generation.

3. Function and Working Principle

3.1 Brushless Servo Motor Operation

The MPL-B4530K-SK72AA converts electrical energy into controlled rotary motion. Unlike a conventional induction motor operating primarily at a speed determined by supply frequency and load, a servo motor works as part of a closed-loop control system.

A servo drive supplies controlled current to the motor windings. These currents generate a rotating magnetic field that interacts with the permanent magnets in the rotor, producing torque. By adjusting the current magnitude, electrical phase, and commutation timing, the drive controls the motor’s acceleration, speed, and direction.

The motion controller supplies a position, velocity, or torque command. The drive processes the command and regulates the motor response using feedback from the encoder. When the measured motion differs from the commanded motion, the control loop adjusts the output to reduce the error.

This arrangement allows the motor to execute precise motion profiles rather than simply running at a fixed speed.

3.2 Low-Inertia Construction

Low-inertia servo motors are designed to reduce the rotational inertia that the drive must accelerate and decelerate. Lower motor inertia can improve dynamic response, especially in machines that repeatedly change speed or direction.

Typical benefits include:

• Faster acceleration and deceleration when correctly sized for the load.
• Improved response to changing motion commands.
• Better suitability for repetitive positioning cycles.
• Support for coordinated motion in automated machinery.
• Potential reductions in cycle time when the complete machine is designed around dynamic motion.

Actual response depends on the motor, servo drive, load inertia, mechanical transmission, control-loop settings, and application requirements. Low motor inertia alone does not guarantee a particular positioning accuracy or cycle time.

3.3 Encoder Feedback and Position Control

The MPL-B4530K-SK72AA uses a single-turn high-resolution encoder to provide feedback about rotor position. The drive uses this information to regulate commutation and motion.

Encoder feedback is important in applications that require repeatable positioning, smooth velocity control, and synchronization with other machine axes.

The single-turn designation is an important selection detail. A single-turn encoder measures angular position within one revolution. It should not automatically be treated as equivalent to a multi-turn absolute encoder that records position across multiple revolutions.

For machines that must recover a multi-turn absolute position after a power interruption, the system designer must verify the controller’s homing strategy and the specific feedback capabilities required.

3.4 Speed and Torque Regulation

The motor’s performance depends on both the electrical drive and the mechanical load. The servo drive regulates current to generate the required torque, while feedback allows the control system to monitor motion and correct deviations.

The listed continuous stall torque of approximately 8.25 Nm and peak torque of approximately 20.3 Nm are useful reference values for preliminary evaluation. Continuous and peak torque have different operating conditions and must not be treated as interchangeable ratings.

Peak torque is generally available only within specified limits for a limited duration. The applicable drive current rating, motor thermal characteristics, duty cycle, and manufacturer overload limits determine whether a proposed operating profile is acceptable.

4. Role in Industrial Automation Systems

The MPL-B4530K-SK72AA is a final motion-control actuator within a larger automation architecture. It works with a compatible servo drive, motion controller, feedback wiring, power cabling, and mechanical transmission to move machine components according to programmed commands.

4.1 Positioning Control

In positioning applications, a controller commands the motor to move to a target position. The servo drive uses encoder feedback to control movement and reduce position error.

Potential applications include indexing tables, automated handling equipment, packaging machinery, and precision assembly stations.

4.2 Velocity Control

For operations requiring a controlled rotational speed, the motor and drive maintain the commanded velocity within the capabilities of the system. This is useful in conveyors, rotary feeders, cutting systems, and other equipment where speed consistency affects process quality.

4.3 Coordinated Multi-Axis Motion

When connected to a suitable motion-control platform, the motor can form one axis in a multi-axis machine. Several axes may need to accelerate, decelerate, or move in a coordinated sequence.

Successful coordination depends on the controller architecture, drive communication, motion configuration, feedback compatibility, and the mechanical design of the machine.

4.4 Equipment Modernization and Maintenance

Industrial facilities may need to replace a motor after bearing wear, electrical damage, connector deterioration, contamination, or other failures. Using the correct model and configuration can reduce unnecessary changes to mounting, cabling, drive parameters, and machine programming.

However, a matching frame size does not by itself prove that two servo motors are interchangeable. The exact catalog number, feedback type, shaft arrangement, brake option, connector, and electrical ratings should be checked before a replacement is approved.

5. Industrial Applications

5.1 Packaging Machinery

Packaging equipment often requires rapid, repeatable movements to synchronize feeding, sealing, cutting, and product transfer. Servo control can provide the motion flexibility needed for changing product sizes and production recipes.

The MPL-B4530K-SK72AA may be considered for suitable rotary or linear-motion axes when its torque, speed, inertia, and drive requirements match the machine.

5.2 Material Handling Systems

Automated handling equipment uses servo motors to position products, move transfer mechanisms, and control indexing operations. A low-inertia motor can be useful when the application requires frequent acceleration and deceleration.

The complete system must still account for payload, transmission ratio, friction, impact loads, and stopping requirements.

5.3 Assembly and Manufacturing Equipment

Automated assembly lines may require controlled rotation, repeatable positioning, and synchronization between different machine operations. Servo motors can support these functions in screw-driving stations, component placement equipment, rotary indexing machines, and automated fixtures.

The appropriate motor rating depends on the required cycle time, load profile, and mechanical design.

5.4 Printing and Converting Machinery

Printing, labeling, winding, and converting equipment can use servo-controlled axes to maintain synchronization and manage speed changes. Correct motion tuning is particularly important where changes in speed affect material registration or tension.

5.5 Industrial Automation Upgrades

During an equipment upgrade, the MPL-B4530K-SK72AA may be evaluated as part of a compatible Allen-Bradley motion-control solution. Before installation, engineers should check the existing drive, controller, feedback interface, cable set, and machine mounting.

An upgrade may also require updated parameters, a different feedback cable, revised connector routing, or changes to the control program.

6. Installation and System Integration

Correct installation is essential for motor performance, service life, and personnel safety. Installation should be carried out by qualified personnel using the applicable manufacturer instructions and site safety procedures.

6.1 Mechanical Mounting

Before mounting the motor, inspect the flange, mounting surface, shaft, and coupling. The machine structure should be sufficiently rigid to support the motor and withstand the forces generated during acceleration and deceleration.

Important checks include:

• Confirming the flange dimensions and mounting-hole pattern.
• Checking shaft diameter and the coupling’s compatibility with the keyless shaft.
• Verifying shaft alignment with the driven equipment.
• Avoiding excessive radial or axial loading.
• Ensuring that the motor is securely mounted and that the coupling is correctly installed.
• Confirming that the motor can be accessed for inspection and maintenance.

The keyless shaft configuration must be considered when selecting the coupling. A coupling designed for a keyed shaft may not be appropriate without a manufacturer-approved arrangement.

6.2 Electrical Connections

The motor must be connected to a compatible servo drive using the correct power and feedback cables. Connector compatibility, pin assignments, cable shielding, grounding, and cable routing should be confirmed before energizing the system.

Do not assume that a connector which physically fits is electrically compatible. Incorrect wiring may damage the feedback device or drive and can create unsafe operating conditions.

Follow the manufacturer’s requirements for protective grounding, electromagnetic compatibility, cable separation, and electrical protection.

6.3 Drive and Controller Compatibility

The servo drive must support the motor’s voltage class, current requirements, feedback interface, and motor identification parameters. The controller must also support the intended motion-control mode.

Before commissioning, verify:

1. Motor and drive catalog numbers.
2. Supported feedback type and protocol.
3. Motor power and current ratings.
4. Compatible power and feedback cables.
5. Drive firmware and configuration requirements.
6. Controller communication and axis configuration.
7. Applicable motor parameter files or configuration tools.

The exact compatibility of a drive series should be confirmed from the current technical documentation rather than assumed from the motor family name.

6.4 Connector Orientation and Cable Routing

The right-angle SpeedTEC DIN connector can be rotated to support different installation layouts. This flexibility can help reduce cable interference in compact machine enclosures.

Connector orientation should be selected before final cable routing. Avoid sharp bends, excessive cable tension, and routing that places mechanical stress on the connector.

Ensure that cables remain clear of moving machine parts, hot surfaces, sharp edges, and sources of electrical interference.

6.5 Commissioning and Functional Testing

Before returning the machine to production, perform commissioning checks in accordance with the applicable safety and manufacturer procedures.

Recommended checks include:

• Confirming the motor and drive model configuration.
• Inspecting mechanical alignment and coupling security.
• Checking the power and feedback connections.
• Verifying the motor feedback signal and direction of rotation.
• Testing the commanded motion at a controlled, reduced operating level where appropriate.
• Checking for unexpected vibration, noise, or temperature rise.
• Confirming limit, interlock, and emergency-stop functions.
• Validating motion profiles and load performance before normal production.

Unexpected movement, feedback faults, or abnormal current should be investigated before continued operation.

7. Compatible System Components

The MPL-B4530K-SK72AA is intended to work within a suitable servo motion-control system. The following table describes common component categories to evaluate during system design or replacement.

These are system component categories, not a guarantee that any particular drive, cable, or accessory is directly compatible. Always confirm the complete catalog numbers and wiring requirements before ordering.

8. Recommended Alternative Models and Replacement Considerations

The following Allen-Bradley models may be worth evaluating when the original motor is unavailable or when the application requirements change. They are comparison candidates, not automatic drop-in replacements.

Before choosing an alternative, compare the voltage class, frame size, stack length, speed, torque, feedback type, shaft configuration, brake option, connector, mounting dimensions, and cable requirements.

Even models with similar frame sizes and speed ratings can differ in feedback behavior, shaft mechanics, and drive compatibility. The replacement decision should be based on the full catalog number and the machine’s actual requirements.

9. Key Advantages

Low-Inertia Motion Response

The MPL family is designed for dynamic motion-control applications. When correctly sized, low-inertia construction can support responsive acceleration and deceleration.

High-Speed Operation

The model’s specified maximum speed of up to 4,000 RPM makes it suitable for applications that require relatively high rotational speed within the motor’s rated operating envelope.

Encoder-Based Feedback

The single-turn high-resolution encoder provides feedback for closed-loop motion control. Correct feedback integration helps the servo system regulate position and speed.

Flexible Connector Arrangement

The right-angle, rotatable SpeedTEC DIN connector supports different cable-routing arrangements and may simplify installation in space-constrained equipment.

Keyless Shaft Configuration

The keyless shaft extension can be appropriate for compatible clamping couplings. The coupling must be selected and installed according to the shaft and mechanical load requirements.

Integration Within Allen-Bradley Motion Systems

The motor belongs to the Allen-Bradley MP-Series MPL family. It can be evaluated for compatible motion-control architectures, subject to confirmation of the drive, feedback interface, cables, and controller configuration.

10. Technical FAQs

Q1: What is the frame size of the MPL-B4530K-SK72AA?

The motor has a 130 mm frame size, corresponding to the Frame 45 configuration in the model designation.

Q2: What is its maximum speed?

The specified speed is up to 4,000 RPM. The allowable operating speed in a particular application depends on the drive configuration, load, and applicable motor ratings.

Q3: Does the MPL-B4530K-SK72AA include a holding brake?

No. The SK72AA configuration is specified without an integrated brake. If the application must hold a vertical or gravity-loaded axis when power is removed, a suitable engineered holding solution is required. Do not assume that a non-brake motor can safely hold such a load by itself.

Q4: What type of encoder does this motor use?

It uses a single-turn high-resolution encoder. The exact feedback interface and supported protocol should be verified against the motor documentation and the intended servo drive.

Q5: Is the shaft keyed?

No. The SK72AA configuration uses a keyless shaft extension. The coupling and driven mechanism must be suitable for this shaft arrangement.

Q6: What is the magnet stack length?

The magnet stack length is 76.2 mm, equivalent to 3.0 inches.

Q7: Can this motor replace another 130 mm servo motor?

Not necessarily. Frame size alone does not establish compatibility. The replacement must also match the electrical ratings, feedback device, shaft configuration, connector, brake arrangement, mounting details, and drive requirements.

Q8: Which drive can operate this motor?

A compatible servo drive must be selected based on the motor’s voltage class, current requirements, encoder interface, and control-system architecture. Confirm the exact drive catalog number and configuration using the applicable manufacturer documentation.

Q9: What should be checked before purchasing a replacement?

Confirm the full model number, nameplate details, physical condition, shaft type, connector, feedback configuration, brake option, and required cables. If the motor is being used in an existing machine, check the current drive and controller configuration as well.

Q10: What is the weight of the motor?

The supplied product listing gives a weight of 7.3 kg. Confirm whether the quoted figure represents the net motor weight or a shipping value before arranging freight or mechanical handling.

11. Procurement and Replacement Considerations

When sourcing an MPL-B4530K-SK72AA for maintenance or industrial automation projects, the complete catalog number should be used in purchase inquiries. Similar Allen-Bradley servo motors may share the same frame size but use different feedback devices, shaft configurations, or brake options.

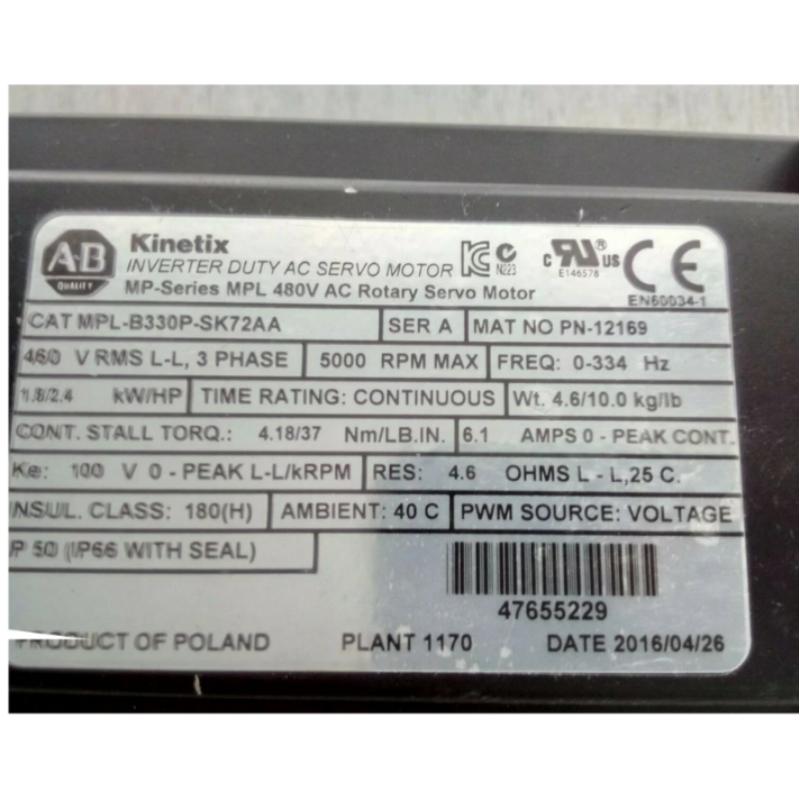

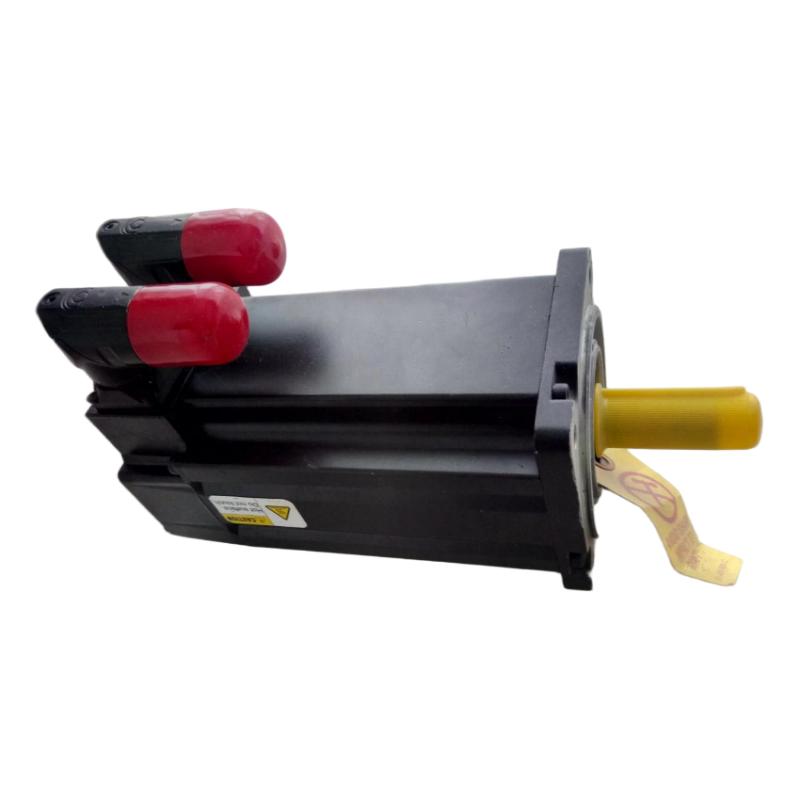

Purchasers should request clear photographs of the motor, nameplate, shaft, and connector. These details help verify that the offered unit matches the required configuration.

For used, refurbished, or surplus motors, request information about the unit’s condition, testing process, warranty terms, and return policy. If the motor is being purchased for a critical production line, it is also prudent to confirm the availability of compatible cables and other required components before installation.

International procurement may require additional attention to packaging, transit protection, customs documentation, and delivery lead time. The motor should be protected against impact, moisture, contamination, and damage to its shaft or connector during transport.

Before installing a replacement, compare its nameplate and configuration with the existing motor. If any discrepancy is found, obtain engineering confirmation rather than assuming that a visually similar unit will operate correctly.

12. Conclusion

The Allen-Bradley MPL-B4530K-SK72AA is a low-inertia brushless servo motor designed for industrial motion-control applications requiring responsive speed and position regulation. Its 130 mm frame, 76.2 mm magnet stack, operation up to 4,000 RPM, single-turn high-resolution encoder, keyless shaft, and no-brake configuration define the main characteristics that engineers and purchasers should evaluate.

The motor can be considered for suitable packaging machinery, automated handling equipment, assembly systems, and other industrial applications when its ratings match the mechanical load and control requirements. Successful integration depends on correct drive selection, feedback compatibility, mechanical installation, cable configuration, and commissioning.

For replacement projects, the full model number and all configuration details should be verified before purchase. A careful compatibility check helps reduce installation delays, avoid unnecessary modifications, and support reliable operation of industrial automation equipment.
