Product Overview

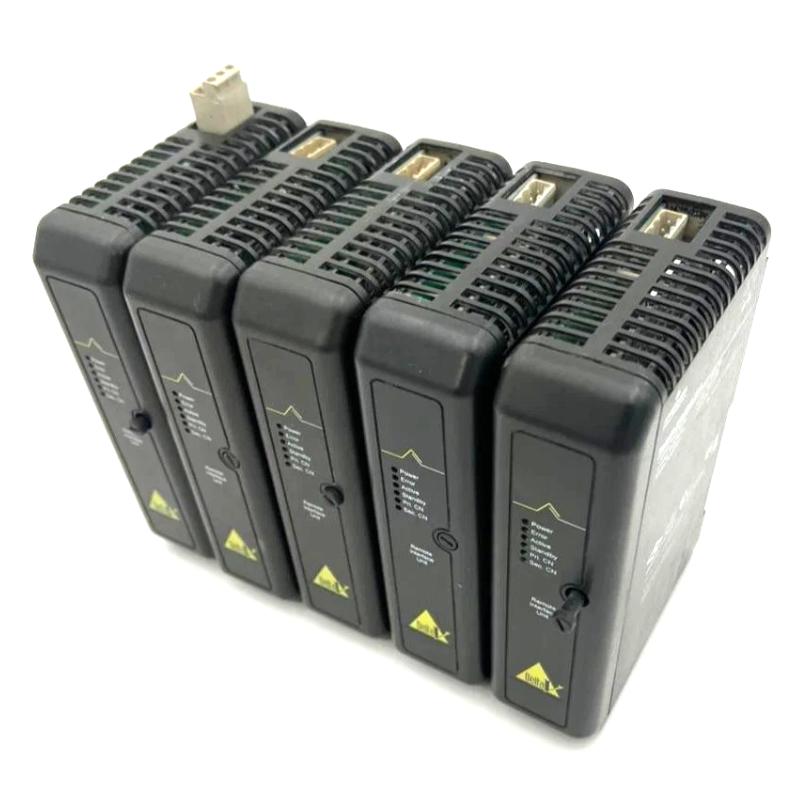

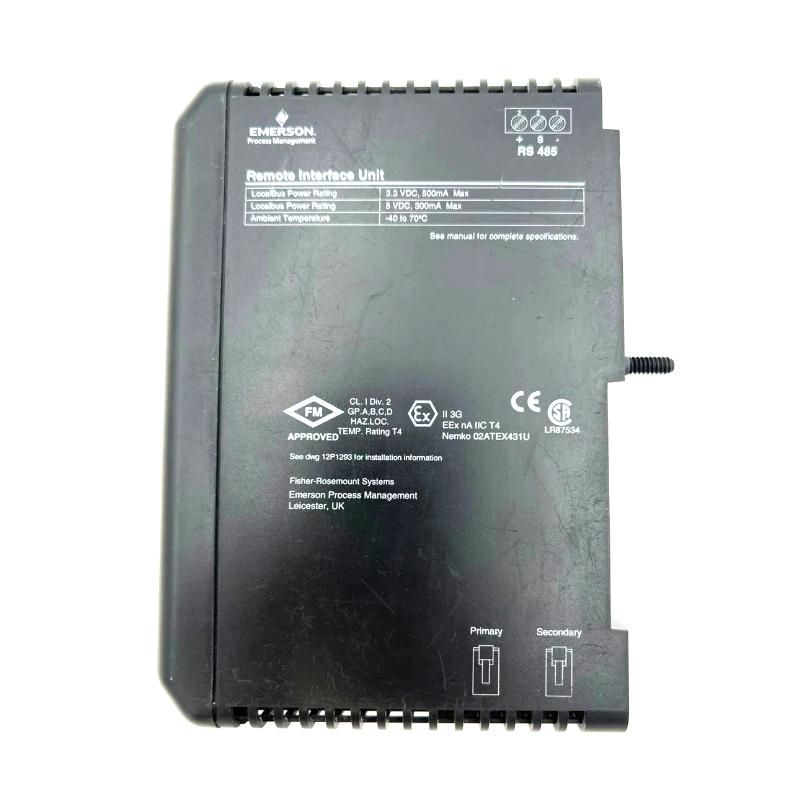

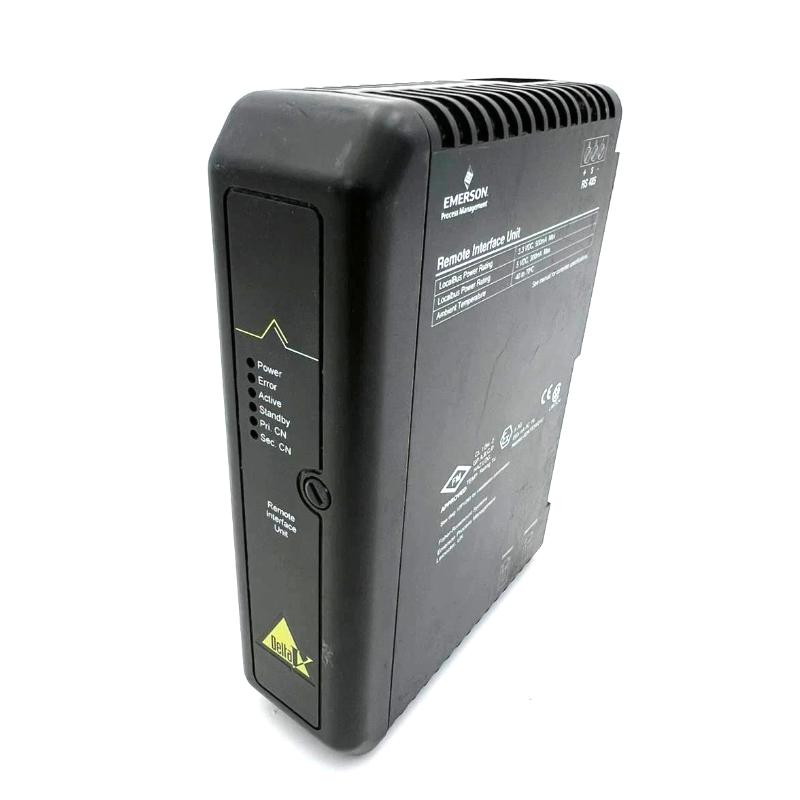

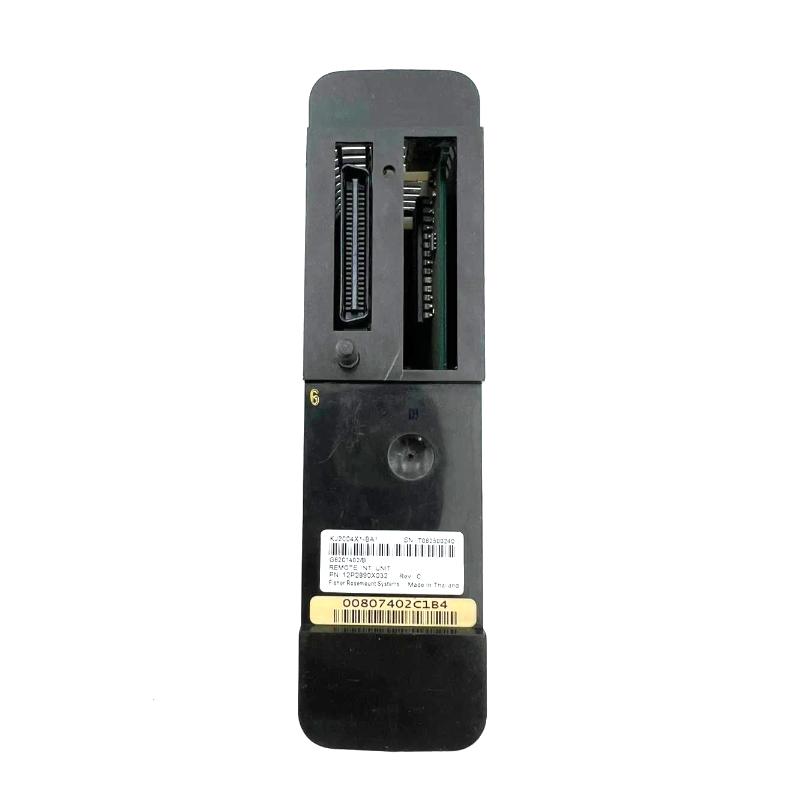

The Emerson VS3201 KJ2004X1-BA1 is a Remote Interface Unit (RIU) used in the DeltaV M-series distributed control system. Its purpose is to connect a remote I/O assembly with the wider DeltaV control architecture, allowing field signals collected by remote I/O cards to reach the control system without placing all I/O hardware beside the main controller.
This arrangement is useful in process plants where instruments and actuators are spread across several equipment areas. For example, a chemical processing facility may place an I/O carrier near a group of field instruments while keeping the main controller and operator stations in a central control room. The RIU establishes the interface between the remote I/O assembly and the control system, reducing the need to concentrate every I/O connection in one cabinet.
The KJ2004X1-BA1 belongs to the original RIU generation used in earlier DeltaV M-series installations. Its compatibility requirements differ from those of the later Remote Interface Unit 2 (RIU2). This distinction matters when maintaining an established system because a newer interface unit may require a different DeltaV software version or additional compatibility provisions.
The RIU operates as part of a larger hardware arrangement rather than as a standalone field controller. Its installation depends on the appropriate power/controller carrier, compatible I/O interface carrier, system power supply, extender connections where required, and the associated I/O cards. The actual I/O capacity and signal types depend on the cards installed in the remote assembly.
For a replacement project, engineers should verify the complete part number, the installed DeltaV version, the carrier configuration, and the existing remote I/O arrangement. Matching the model designation alone is not sufficient if the surrounding hardware or software has changed.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VS3201 KJ2004X1-BA1 |
| Product Family | DeltaV M-series |
| Product Type | Remote Interface Unit |
| Abbreviation | RIU |
| Primary Function | Remote I/O subsystem interface |
| System Architecture | DeltaV distributed control system |
| LocalBus Supply | 5 V DC and 3.3 V DC |
| LocalBus Current Consumption | 300 mA maximum at 5 V DC; 500 mA maximum at 3.3 V DC |
| Power Dissipation | Approximately 4.0 W typical, 5.4 W maximum |
| Operating Temperature | -40°C to +70°C |
| Relative Humidity | 5–95%, non-condensing |
| Ingress Protection | IP20 |
| Shock Resistance | 10 g, half-sine pulse, 11 ms |
| Vibration Resistance | 1 mm peak-to-peak from 2–13.2 Hz; 0.7 g from 13.2–150 Hz |
| Hazardous Area Considerations | Verify the applicable system certification and installation requirements |
| System Compatibility | Original DeltaV M-series RIU installations; verify software and hardware revision |
| Dimensions | 113 × 45 × 100 mm |
| Weight | 0.3 kg |
Product Features
- Remote I/O interfacing: Connects a compatible remote I/O assembly with the DeltaV control architecture.
- M-series system integration: Works within the carrier-based hardware arrangement used by DeltaV M-series installations.
- Distributed cabinet layout: Supports locating I/O hardware closer to field equipment when the system architecture permits.
- Multiple I/O card options: The remote assembly can accommodate supported I/O card types selected for the application.
- Dedicated system power arrangement: Operates as part of a compatible carrier and power-supply configuration.
- Legacy RIU compatibility: Relevant to earlier DeltaV installations that require the original RIU rather than RIU2.
- Industrial operating range: Supports the specified operating temperature and environmental conditions when installed correctly.
- Modular maintenance: Allows the remote interface component to be serviced within the established I/O subsystem architecture.
Working Principle
The VS3201 KJ2004X1-BA1 provides the interface between a remote M-series I/O assembly and the DeltaV control system. The I/O cards installed in the remote assembly acquire field signals or generate control outputs, while the RIU provides the communication path required for the remote I/O arrangement.
A typical system follows this structure:
Field Instruments and Actuators → Remote I/O Cards → M-series Carrier and RIU → DeltaV Control System → Operator Workstation
When a field transmitter sends a measurement to a compatible input card, the card converts the signal into data that can be used by the control system. The remote interface arrangement transfers the I/O data to the DeltaV system, where the configured control strategy can process it and present relevant values or alarms to operators.
The reverse path applies to output operations. A control strategy determines the required output value, and the corresponding data is transferred to the remote I/O subsystem. A compatible output card then drives the field device according to its configured signal type and electrical requirements.
The RIU does not replace the controller or independently execute the entire process-control strategy. The controller remains responsible for control calculations, sequencing, and logic. The remote interface extends the reach of the I/O architecture so that field signals can be handled at a location separate from the main controller.
The original KJ2004X1-BA1 must also be distinguished from RIU2 hardware. Emerson’s DeltaV M-series Zone 2 Remote I/O documentation identifies the original RIU as the option required for certain DeltaV versions earlier than v13.3.1, while RIU2 has its own version and hotfix requirements. The exact software compatibility must therefore be checked before changing the interface hardware.
Role in the DeltaV Control Architecture
The VS3201 functions at the remote I/O interface layer. It connects the remote carrier assembly to the wider control system, allowing supported I/O cards to exchange process data with the DeltaV controller.
Field Devices → Remote I/O Cards → Remote Interface Unit → DeltaV Controller → Operator and Engineering Stations
| System Element | Function |
|---|---|
| VS3201 KJ2004X1-BA1 | Interfaces the remote I/O assembly with the DeltaV control system |
| Remote I/O Carrier | Provides mounting and interconnection for supported I/O cards |
| Power/Controller Carrier | Supports the RIU and associated system power arrangement |
| Analog Input Cards | Acquire supported analog field signals |
| Analog Output Cards | Provide configured analog control signals to field devices |
| Discrete I/O Cards | Handle supported digital input and output signals |
| System Power Supply | Supplies the required power to the remote I/O assembly |
| Extender Cable, Where Required | Connects carrier assemblies according to the selected hardware arrangement |
| DeltaV Controller | Executes the configured control strategy |
| Operator Workstation | Displays process information, alarms, and equipment status |
Industrial Applications
| Application | Typical Use |
|---|---|
| Chemical Processing | Connecting remote instrumentation cabinets to a central DeltaV control system |
| Oil and Gas Facilities | Collecting field signals from distributed equipment areas |
| Refinery Units | Integrating remote I/O assemblies serving process instruments and actuators |
| Power Generation | Supporting remote signal acquisition in compatible auxiliary control systems |
| Water Treatment | Connecting field instrumentation located away from the main control cabinet |
| Pharmaceutical Production | Integrating remote I/O hardware into a distributed process-control layout |
| Tank Farms | Collecting level, pressure, and other instrument signals through compatible I/O cards |
| Distributed Equipment Skids | Connecting local I/O assemblies to a central control architecture |
| Existing DeltaV Installations | Maintaining remote I/O arrangements that use the original RIU generation |
| Control-System Maintenance | Replacing a verified RIU component while retaining the compatible carrier and software arrangement |
Installation and Maintenance
- Verify the complete model: Confirm that VS3201 KJ2004X1-BA1 matches the existing remote interface unit and hardware revision.
- Check DeltaV software compatibility: Establish the installed software version and confirm that it supports the original RIU hardware.
- Inspect the carrier arrangement: Verify the required power/controller carrier, I/O interface carrier, and any extender cables used in the installation.
- Confirm the power supply: Check that the associated system power supply is suitable for the remote I/O assembly and its installed cards.
- Follow electrical isolation procedures: Apply the plant’s approved shutdown and isolation process before removing or installing the RIU.
- Inspect connectors and contacts: Check the module interface and carrier connections for contamination, mechanical damage, or poor engagement.
- Verify I/O card compatibility: Confirm that the cards installed in the remote assembly are supported by the selected hardware and software configuration.
- Check the remote I/O layout: Review the carrier arrangement and confirm that all required connections are correctly installed.
- Inspect environmental conditions: Ensure that the installation remains within the specified temperature, humidity, and enclosure requirements.
- Validate communication after installation: Confirm that the DeltaV system recognizes the remote I/O assembly and that the expected data is available.
- Test representative I/O points: Verify selected input readings and output operations against approved commissioning procedures before returning the equipment to service.
- Record the configuration: Document the RIU part number, DeltaV version, carrier arrangement, power supply, installed I/O cards, and commissioning results.
Compatible System Components
| Component | Function |
|---|---|
| Emerson VE3051C0 M-series 2-Wide Power/Controller Carrier | Provides the horizontal carrier arrangement for the remote interface unit and associated power supply |
| Emerson VE4050S2K1C0 M-series 8-Wide I/O Interface Carrier | Provides mounting positions for compatible M-series I/O cards |
| Emerson VE4054S1C0 M-series 8-Wide VerticalPlus I/O Interface Carrier | Supports a compatible vertical I/O carrier arrangement |
| Emerson VE3056 M-series 4-Wide VerticalPlus Power/Controller Carrier | Provides the power/controller carrier arrangement for compatible vertical installations |
| Compatible M-series I/O Cards | Acquire field signals or provide configured control outputs |
| Compatible M-series Terminal Blocks | Provide the required field wiring connections for installed I/O cards |
| Emerson VE5009 Enhanced DC-to-DC System Power Supply | Supports the specified M-series Zone 2 remote I/O power arrangement |
| Compatible M-series Extender Cables | Connect carrier assemblies where required by the installation |
| DeltaV M-series Controller | Executes the control strategy using configured I/O data |
| DeltaV Engineering Software | Supports hardware configuration, control strategy engineering, and system diagnostics |
Recommended Related Models
| Model | Product Type | Selection Consideration |
|---|---|---|
| Emerson KJ2004X1-BA2 | DeltaV M-series Remote Interface Unit | Check the complete model and system requirements when evaluating related RIU hardware |
| Emerson VE3051C0 | DeltaV M-series 2-Wide Power/Controller Carrier | Relevant to compatible horizontal remote I/O carrier arrangements |
| Emerson VE4050S2K1C0 | DeltaV M-series 8-Wide I/O Interface Carrier | Suitable for supported horizontal I/O card installations |
| Emerson VE4054S1C0 | DeltaV M-series 8-Wide VerticalPlus I/O Interface Carrier | Consider when the system uses a compatible vertical I/O carrier arrangement |
| Emerson VE3056 | DeltaV M-series 4-Wide VerticalPlus Power/Controller Carrier | Used in the corresponding vertical power/controller carrier arrangement |
| Emerson VE5009 | Enhanced DC-to-DC System Power Supply | Relevant to the documented M-series Zone 2 remote I/O power configuration |
Key Advantages
- Connects a remote M-series I/O assembly to the DeltaV control architecture.
- Supports distributed placement of I/O hardware in compatible installations.
- Allows supported analog and discrete I/O cards to exchange data with the control system.
- Fits established DeltaV M-series carrier-based hardware arrangements.
- Provides a relevant replacement option for systems that require the original RIU generation.
- Helps maintain existing remote I/O architecture when the surrounding hardware and software remain compatible.
Technical FAQs
What is the main function of the VS3201 KJ2004X1-BA1?
It acts as a Remote Interface Unit for the DeltaV M-series I/O subsystem. Its role is to interface the remote I/O assembly with the wider control system so that supported I/O cards can exchange process data with the DeltaV controller.
Can the original KJ2004X1-BA1 be replaced directly with an RIU2?
A direct replacement should not be assumed. The original RIU and RIU2 have different software compatibility requirements. Before changing hardware, verify the DeltaV version, applicable hotfix requirements, carrier arrangement, and support for the installed I/O cards.
Which carrier and power components are needed for a remote I/O installation?
The required components depend on whether the installation uses horizontal or vertical carrier hardware. A documented horizontal arrangement can use the VE4050S2K1C0 I/O carrier and VE3051C0 power/controller carrier, while a compatible vertical arrangement can use the VE4054S1C0 and VE3056. The specified system power supply must also be verified for the selected configuration.
What should be tested after replacing the RIU?
Confirm that the remote I/O assembly is recognized by DeltaV, that the expected I/O data is available, and that communication diagnostics show no unresolved faults. Test representative input and output points according to the site’s commissioning procedures before returning the affected process equipment to normal operation.
