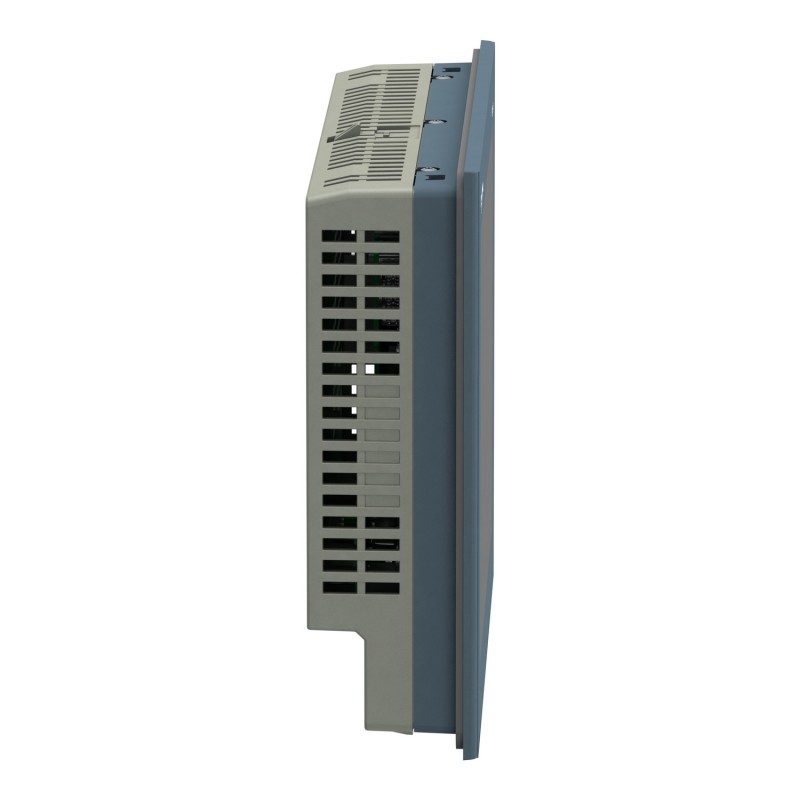

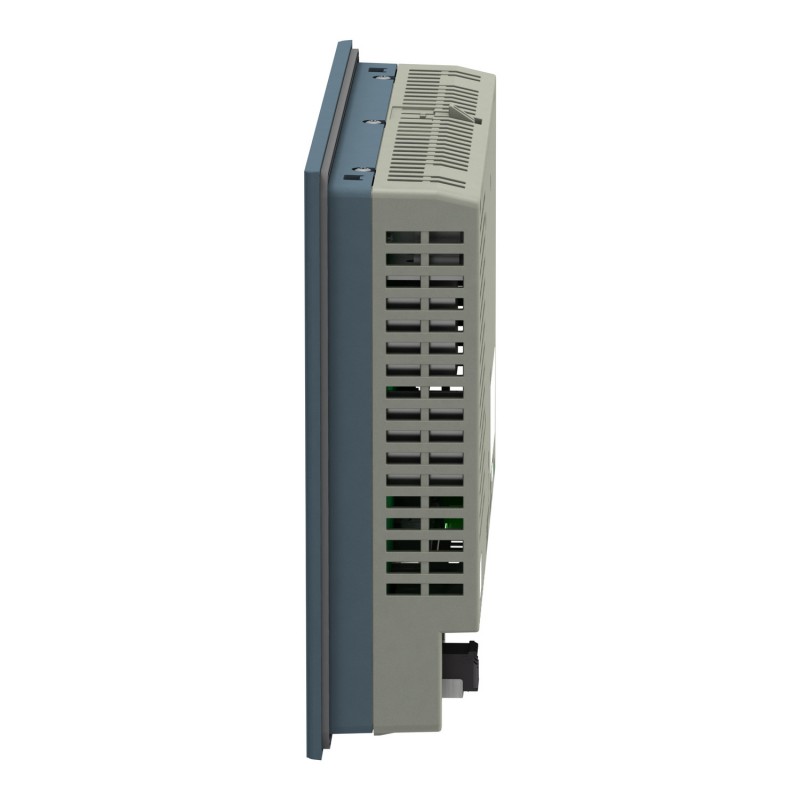

Product Overview

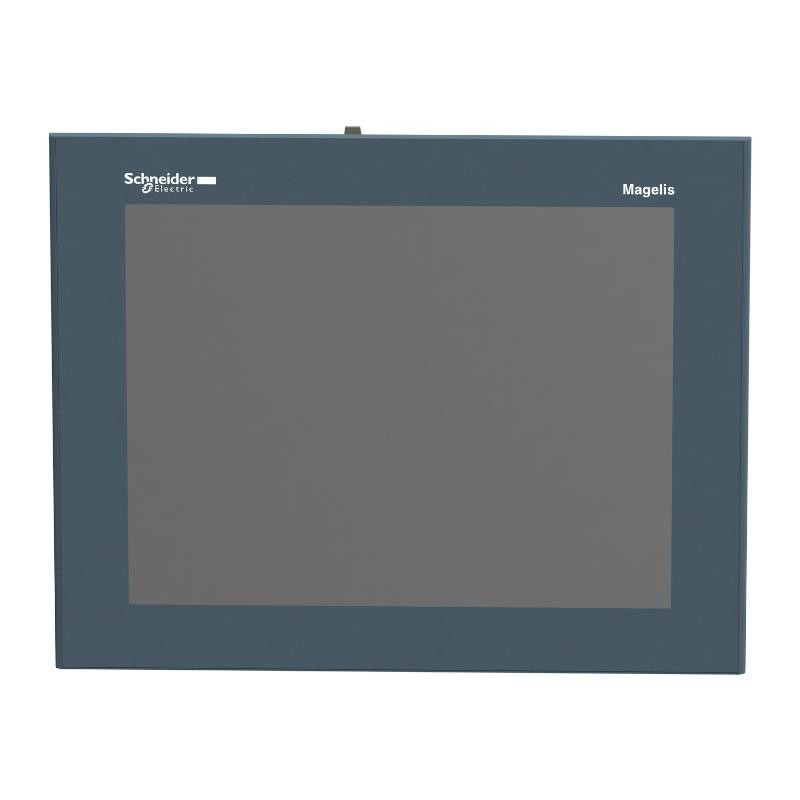

The Schneider Electric HMIGTO5310 is a 10.4-inch operator terminal in the Harmony GTO series, intended for machine control systems that require a larger interface for process visualization and operator interaction. Its 640 × 480 pixel VGA color display provides space for equipment diagrams, alarm lists, operating parameters, and grouped status indicators. Compared with smaller GTO terminals, the larger screen can reduce the need to split related information across multiple pages.

On a production line, the HMIGTO5310 can serve as the main operator station for monitoring machine sequences, checking production data, and adjusting permitted settings. An operator might use one screen to review the overall machine state, another to inspect an alarm, and a third to access maintenance parameters. The arrangement depends on the HMI project rather than being fixed by the terminal itself.

The HMIGTO5310 supports Ethernet, RS-232C, and RS-485 communication. This allows it to connect to compatible PLCs over an industrial network or communicate with equipment using supported serial protocols. For example, a machine controller can exchange process values with the terminal over Ethernet, while a separate serial connection may be used for compatible auxiliary equipment. Actual connectivity depends on the selected driver, protocol, wiring, and project configuration.

The terminal supports Vijeo Designer for HMI application development and has 96 MB of Flash EPROM application memory, together with 512 KB of battery-backed SRAM. USB Type-A and Mini-B interfaces support compatible peripheral and service operations, while the SD/SDHC card interface provides an additional option for supported data-transfer workflows.

When specifying the HMIGTO5310 for a new installation or replacement, engineers should consider more than the screen size. The existing project, controller driver, communication ports, memory requirements, and panel cutout all affect compatibility. Its 10.4-inch display is particularly useful where operators need to see more machine information at once, but the project should be checked for VGA screen compatibility before migration.

Technical Specifications

Product Features

• 10.4-inch VGA display: Provides a larger viewing area for machine diagrams, alarm summaries, and multi-parameter screens.
• 65,536-color TFT screen: Supports color-coded operating states, warning indicators, and graphical process information.
• Resistive touchscreen: Allows operators to select configured controls and enter operating values directly.
• Ethernet connectivity: Supports 10BASE-T/100BASE-TX communication with compatible controllers.
• RS-232C and RS-485 interfaces: Accommodates supported serial-connected PLCs and auxiliary devices.
• 96 MB application memory: Stores the configured HMI application.
• Battery-backed SRAM: Provides backup memory for supported data-retention functions.
• SD/SDHC card support: Supports compatible removable storage up to 32 GB for applicable service and transfer procedures.
• USB connectivity: Includes Type-A and Mini-B interfaces for supported peripheral and service functions.
• Multicolor status LED: Provides a visual indication of the terminal’s operating mode.
• Natural convection cooling: Uses passive cooling without a forced-air fan.

Working Principle

The HMIGTO5310 acts as the operator interface between a person and a PLC-controlled machine. Its internal runtime executes the configured HMI application, retrieves data from the connected controller, and displays the information as operating values, alarms, status indicators, and graphical screens.

A typical communication path is:

PLC or Machine Controller → Ethernet / Serial Communication → HMIGTO5310 → Touchscreen → Operator

During operation, the HMI reads the variables configured in its project and presents them on the appropriate screens. If an operator changes a setpoint or selects a command, the terminal sends the corresponding request through the configured communication driver. The PLC processes the request according to its program, interlocks, and operating conditions.

The Ethernet interface supports network communication with compatible controllers using an appropriate protocol. Correct IP addressing, network configuration, and driver selection are necessary for data exchange. The terminal’s Ethernet port does not automatically make every controller or industrial protocol compatible.

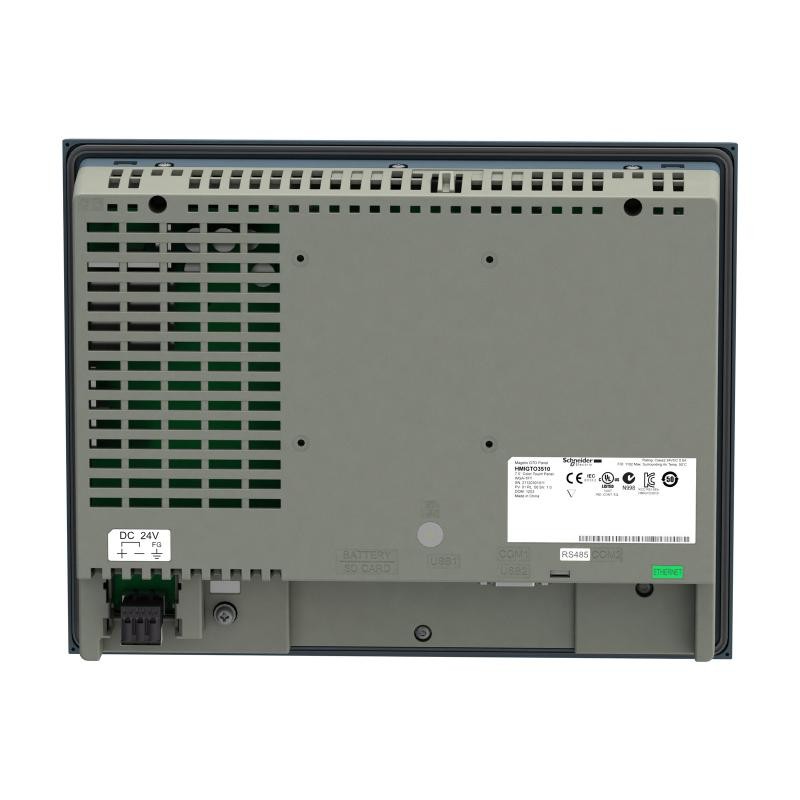

COM1 supports RS-232C communication, while COM2 supports RS-485 through an RJ45 connection. These interfaces serve different electrical requirements, so the port and cable must match the connected equipment. Serial parameters and protocol settings must also agree at both ends.

Vijeo Designer defines the screen layout, data objects, alarm handling, and operator actions. The SD card and USB interfaces can be used for supported storage or service workflows, depending on the software configuration. They do not replace the need to maintain a compatible application project.

The HMIGTO5310 handles visualization and operator input; it does not replace the PLC’s control logic. Machine sequencing, safety interlocks, and output control remain the responsibility of the associated control system.

Role in an Industrial HMI Architecture

The HMIGTO5310 sits at the operator-interface layer of an industrial control system. Its larger VGA display presents information from the controller, while Ethernet and serial interfaces support communication with compatible automation equipment.

PLC / Machine Controller → Ethernet or Serial Network → HMIGTO5310 → Operator

Industrial Applications

Installation and Maintenance

1. Verify the model: Confirm that HMIGTO5310 is the required terminal and that the application supports its 10.4-inch VGA display and available interfaces.
2. Check the panel cutout: Confirm the mounting opening and required clearance against the applicable installation drawings before preparing the cabinet.
3. Confirm the DC supply: Use a compatible 24 V DC supply within the specified 19.2–28.8 V operating range.
4. Inspect the mounting gasket: Ensure that the mounting surface is clean and the gasket is correctly seated to maintain the specified front-panel protection.
5. Configure Ethernet: Check the network cable, IP address, subnet settings, and controller communication parameters before testing data exchange.
6. Verify serial wiring: Confirm whether COM1 or COM2 is required, then check connector assignments, electrical interface compatibility, and cable routing.
7. Review the HMI project: Verify the Vijeo Designer project version, target terminal, controller driver, screen configuration, and alarm settings before transferring the application.
8. Check the memory card: Use a compatible SD/SDHC card within the supported capacity and verify the required files before performing a supported transfer or recovery procedure.
9. Inspect USB connections: Confirm that connected peripherals are supported and that the selected interface is appropriate for the intended service operation.
10. Test touchscreen operation: Check screen navigation, data entry, alarm acknowledgement, and configured operator controls across the application.
11. Validate controller communication: Confirm that process values update correctly and that permitted commands reach the intended controller over the selected interface.
12. Record commissioning details: Document the application version, network settings, serial configuration, storage procedure, and functional test results for future maintenance.

Compatible System Components

Recommended Related Models

Key Advantages

• Provides a 10.4-inch VGA display for detailed machine visualization.
• Combines Ethernet with RS-232C and RS-485 communication interfaces.
• Supports Vijeo Designer application development.
• Includes SD card and USB interfaces for supported service and storage tasks.
• Uses natural convection cooling.
• Provides IP65 front-panel protection when installed under the specified conditions.

Technical FAQs

What makes the HMIGTO5310 suitable for a central machine operator station?

Its 10.4-inch display offers more room for machine diagrams, alarm lists, and grouped operating values than smaller GTO terminals. Whether it can serve as the main station depends on the HMI project, controller communication requirements, and the information operators need to see at one time.

Can the HMIGTO5310 connect to both Ethernet and serial equipment?

The terminal has an Ethernet interface, an RS-232C COM1 interface, and an RS-485 COM2 interface. These provide different communication options, but simultaneous use must be validated against the configured HMI project, supported drivers, and requirements of the connected equipment.

What should be considered when moving an application from a smaller GTO terminal?

Review the display resolution, screen layout, project target, controller drivers, and communication settings. A project developed for a smaller display may require adjustments to object placement, fonts, navigation, or screen organization before it can be used effectively on the HMIGTO5310.

What maintenance checks are relevant to the HMIGTO5310’s backup memory?

The terminal uses battery-backed SRAM for supported data-retention functions. Follow the applicable maintenance procedure for battery-status monitoring and replacement, and confirm which application data is stored in backup memory. Keep a current copy of the HMI project so that the terminal can be restored if service is required.
